Kismile Small Space Heater Instruction Manual

1. Important Safety Information

Read all instructions before using this heater. Failure to follow these instructions may result in fire, electric shock, or injury.

• Do not use this heater in bathrooms, laundry areas, or similar indoor locations where water may be present.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.

Safety Features:

This Kismile Space Heater is equipped with advanced safety features to ensure safe operation:

• Automatic Overheat Protection: The heater will automatically shut off if its internal components reach a temperature that could cause overheating. It will resume operation once the temperature cools down.
• Tip-Over Switch: The heater includes a safety switch at its base that automatically turns the unit off if it is tipped forward or backward. The heater will only operate when placed on a flat, stable surface.

Image: The heater's safety features include automatic shut-off for overheating and a tip-over switch at the base.

Image: Detail of the tip-over protection mechanism located at the bottom of the heater.

Image: Overheating protection ensures the heater automatically shuts off if it gets too hot.

2. Product Overview

The Kismile Small Space Heater is a portable ceramic fan heater designed for personal spaces. It features advanced ceramic heating elements for efficient warmth and multiple operating modes to suit various needs.

Image: The Kismile Space Heater highlighting its core features: multiple modes, lightweight design, rapid heating, adjustable thermostat, and integrated safety mechanisms.

Image: Key benefits of the Kismile Ceramic Space Heater, including rapid heating and safety.

3. Setup

1. Unpack: Carefully remove the heater from its packaging. Retain packaging for future storage.
2. Placement: Place the heater on a firm, level surface. Ensure there are no obstructions within 3 feet (0.9 m) of the front, sides, and rear of the heater to allow for proper airflow and prevent fire hazards.
3. Power Connection: Plug the heater directly into a 120V AC, 60Hz wall outlet. Do not use extension cords or power strips.

Image: The heater can be conveniently placed on or under a table for personal heating.

4. Operating Instructions

The Kismile Space Heater features two control knobs on the top for power/mode selection and thermostat adjustment.

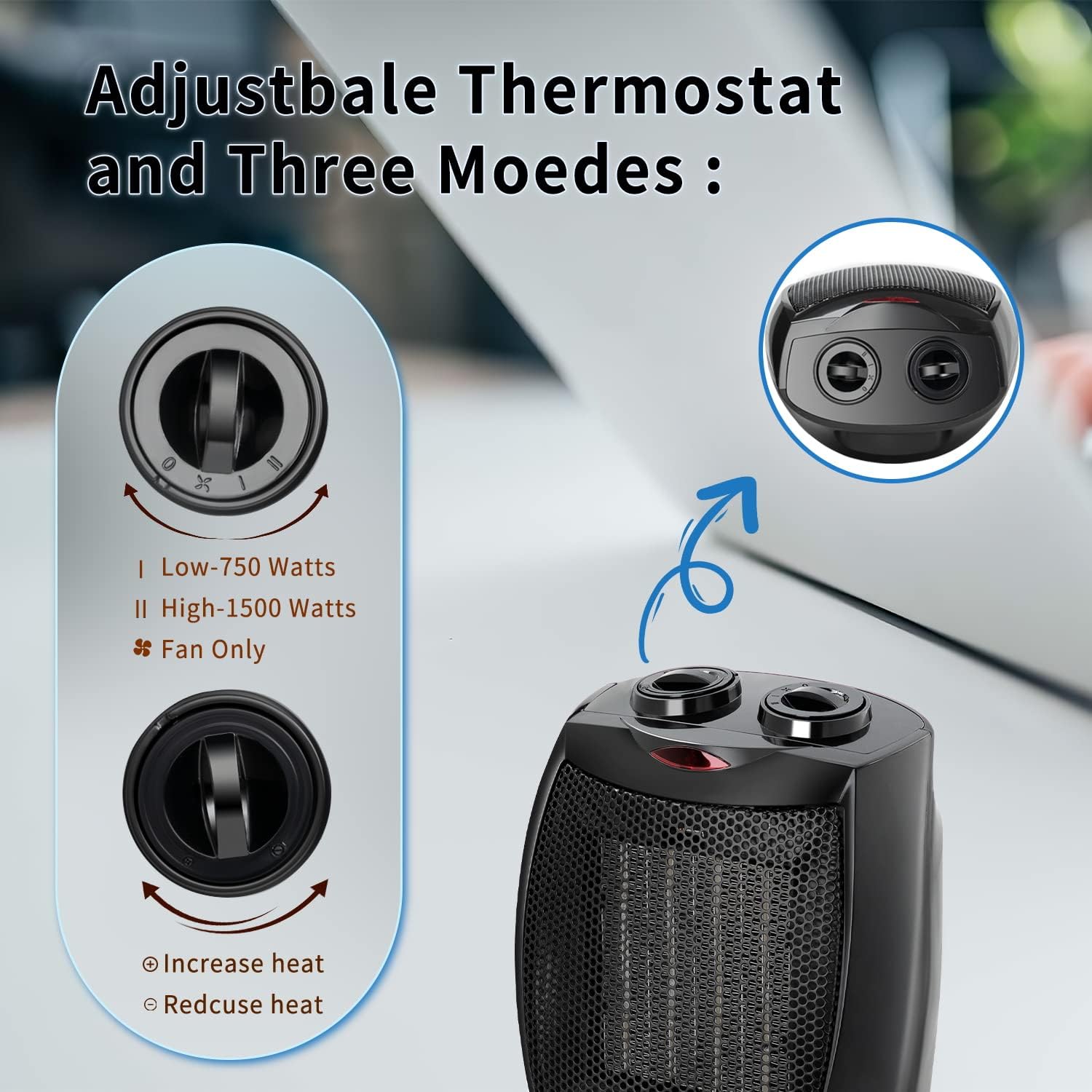

Image: The control panel with clearly labeled dials for heat settings and thermostat adjustment.

Image: Detailed view of the control knobs for selecting modes and adjusting temperature.

Control Functions:

• Left Knob (Mode Selector):
  • OFF: Turns the heater off.
  • FAN ONLY: Operates the fan without heat, useful for air circulation.
  • LOW HEAT (750W): Provides a lower heat output.
  • HIGH HEAT (1500W): Provides maximum heat output.
• Right Knob (Adjustable Thermostat):
  • Rotate clockwise to increase the desired temperature.
  • Rotate counter-clockwise to decrease the desired temperature.
  • The heater will cycle on and off to maintain the set temperature.

Operation Steps:

1. Ensure the heater is plugged into a suitable electrical outlet. The power indicator light will illuminate.
2. Turn the left knob (Mode Selector) to your desired setting: FAN ONLY, LOW HEAT (750W), or HIGH HEAT (1500W).
3. Adjust the right knob (Adjustable Thermostat) to your preferred temperature. For continuous heating, turn the thermostat knob to its maximum setting.
4. To turn off the heater, rotate the left knob (Mode Selector) to the OFF position.

5. Maintenance

Regular maintenance helps ensure the longevity and efficient operation of your heater.

• Cleaning: Always unplug the heater before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents. Ensure no water enters the interior of the heater.
• Dust Removal: Use a vacuum cleaner with a brush attachment to remove dust from the air intake and exhaust grilles.
• Storage: When not in use, store the heater in a cool, dry location. It is recommended to store it in its original packaging to protect it from dust and damage.

6. Troubleshooting

If your heater is not operating correctly, refer to the following common issues and solutions:

• Heater does not turn on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check if the Mode Selector knob is set to a heat or fan setting (not OFF).
  • Verify the heater is on a flat, stable surface. The tip-over switch will prevent operation if the heater is not upright.
  • If the room temperature is higher than the thermostat setting, the heater may not turn on. Adjust the thermostat to a higher setting.
• Heater turns off unexpectedly:
  • The overheat protection system may have activated. Unplug the heater, allow it to cool down for 10-15 minutes, and then plug it back in. Ensure air intake and exhaust are not blocked.
  • The tip-over switch may have activated. Ensure the heater is on a stable, level surface.
  • The thermostat may have reached the set temperature. The heater will cycle on and off to maintain the temperature.
• No heat, but fan is running:
  • Ensure the Mode Selector knob is set to LOW HEAT or HIGH HEAT, not FAN ONLY.
  • Adjust the thermostat to a higher setting.

If the problem persists after checking these points, contact customer support.

7. Specifications

Image: Dimensions and power settings of the Kismile Space Heater.

Image: Detailed dimensions of the Kismile Space Heater.

8. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your product or contact Kismile customer service through their official channels. Keep your purchase receipt as proof of purchase.
