Yanzeo SR691 UHF RFID Reader Instruction Manual

1. Product Overview

The Yanzeo SR691 is a high-performance UHF RFID integrated reader designed for long-distance identification applications. It features a 9dBi antenna and supports a reading distance of 3-8 meters. The reader is built with an IP67 rating, making it suitable for outdoor environments. It offers multiple communication interfaces including RS232, RS485, and Wiegand, ensuring versatile integration into various systems. This device supports ISO18000-6C/EPC Gen2 and ISO18000-6B protocols, operating within the wide frequency band of 860-960MHz.

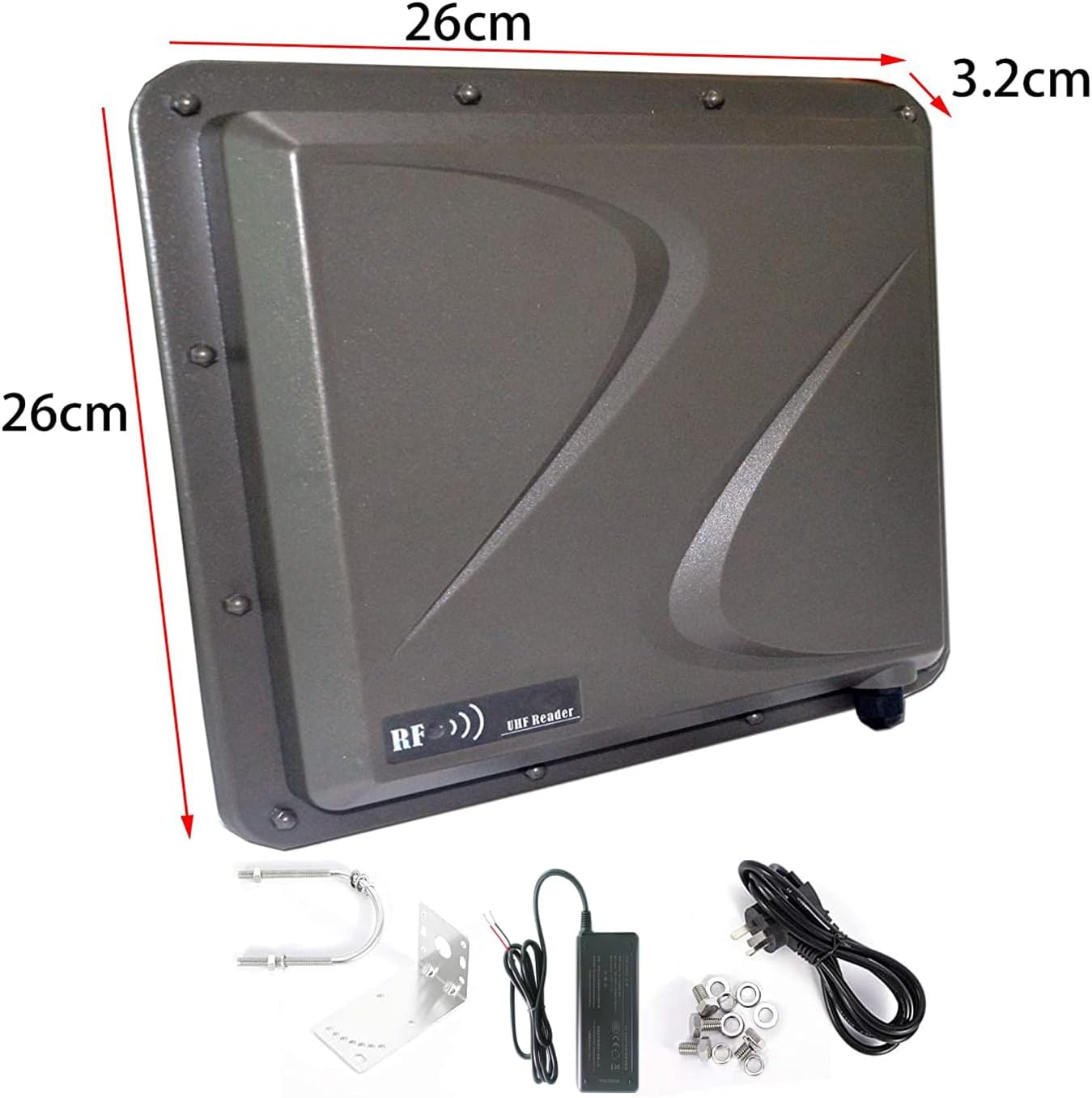

Figure 1: Front view of the Yanzeo SR691 UHF RFID Reader with approximate dimensions (26cm x 26cm x 3.2cm).

2. Package Contents

Before proceeding with the installation, please verify that all items listed below are present in your package:

• Yanzeo SR691 UHF RFID Reader
• Power Adapter
• Mounting Bracket and Screws
• USB to RS232/RS485 Converter Cable
• Wiring Terminal Block

Figure 2: Included components: RFID reader, power adapter, mounting hardware, and connection cables.

3. Setup Instructions

3.1. Physical Connection

1. Connect Power: Connect the provided power adapter to the reader's power input port. Ensure the power source matches the reader's voltage requirements.
2. Connect to Computer (for configuration): Use the USB to RS232/RS485 converter cable to connect the reader to your computer's USB port. This connection is typically used for initial setup and software configuration.
3. Mounting (Optional): Secure the reader using the provided mounting bracket and screws in the desired location. Ensure the antenna has a clear line of sight to the area where RFID tags will be read.

3.2. Driver Installation

After connecting the reader to your computer, you may need to install the appropriate USB-Serial driver. This driver is usually provided on a CD with the product or can be downloaded from the manufacturer's website. Once installed, verify the assigned COM port in your computer's Device Manager.

4. Operating Instructions

4.1. Software Configuration

Use the provided RFID Demo software for configuration and testing. The software interface allows you to manage reader settings and perform tag operations.

1. Language Selection: In the software, navigate to the 'Language' menu and select 'English' for easier operation.
2. Port Connection: Go to the 'Connect' tab. Select 'Serial Interface' and choose the correct COM port identified in Device Manager (e.g., COM3). Click 'Connect' to establish communication with the reader.
3. Card Type Selection: In the 'Base Settings' or 'EPC(GEN 2) Read&Write' tab, select the appropriate 'Card Type'. Options typically include 'EPCGEN 2 Multi-Tag', 'ISO18000-6B', or 'EPCGEN 2 Single-Tag', depending on the tags you are using.
4. Frequency Settings: Adjust the hopping value based on your region. The software provides options for 'China', 'America', and 'Europe', which set the frequency range accordingly (e.g., America: 902.0 - 928.0 MHz, Europe: 860.0 - 870.0 MHz).
5. Buzzer Control: The buzzer can be enabled or disabled in the settings.
6. Trigger Mode: Select 'Low Trigger' for continuous reading or 'Close' for manual triggering.

4.2. Reading RFID Tags

Once the reader is connected and configured:

1. Navigate to the 'Read Demo' tab in the software.
2. Click 'Start Reading Tags' to begin the tag identification process.
3. Place RFID tags within the reading range of the SR691 reader. The software will display the identified tag data (e.g., EPC, Hex Card) in a list.
4. The 'Count' and 'Sum' fields will update to show the number of unique tags and total reads, respectively.

Figure 3: Back view of the RFID reader, showing the mounting points and cable entry.

5. Maintenance

To ensure optimal performance and longevity of your Yanzeo SR691 UHF RFID Reader, follow these maintenance guidelines:

• Cleaning: Regularly clean the exterior of the reader with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the casing.
• Environmental Protection: Although the device has an IP67 rating for outdoor use, avoid prolonged exposure to extreme weather conditions or direct water immersion.
• Cable Inspection: Periodically check all cables for any signs of wear, damage, or loose connections. Replace damaged cables immediately.
• Firmware Updates: Check the manufacturer's website for any available firmware updates. Follow the provided instructions carefully for any update procedures.

6. Troubleshooting

If you encounter issues with your Yanzeo SR691 UHF RFID Reader, refer to the following common troubleshooting steps:

• Reader Not Powering On: Ensure the power adapter is securely connected to both the reader and a functional power outlet. Check the power indicator light on the reader.
• No Connection to Software: Verify that the USB-Serial driver is correctly installed and the correct COM port is selected in the software. Try restarting the software and reconnecting the USB cable.
• Unable to Read Tags:
  • Ensure tags are within the optimal reading range and orientation.
  • Check that the correct 'Card Type' (e.g., EPCGEN 2 Multi-Tag) is selected in the software.
  • Verify that the frequency settings match your region.
  • Confirm that the 'Trigger Mode' is set appropriately (e.g., 'Low Trigger' for continuous reading).
  • Ensure there are no metallic obstructions or sources of interference near the reader or tags.
• Inconsistent Reads: This could be due to environmental interference, incorrect power settings, or tags being too close or too far from the reader. Adjust power settings in the software if applicable.

If the issue persists after following these steps, please contact technical support.

7. Specifications

8. Warranty and Support

The Yanzeo SR691 UHF RFID Reader comes with a 6-month warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use conditions.

For technical assistance, troubleshooting, or warranty claims, please contact Yanzeo customer support through the official website or your point of purchase. Please have your product model and purchase details ready when contacting support.
