1. Introduction and Overview
Thank you for choosing the Jamara Lamborghini Centenario 3-in-1 Ride-On Car. This product is designed to provide a versatile and engaging experience for children, transforming between a walker, a push car, and a ride-on car. Please read this manual carefully before assembly and use to ensure safe operation and proper maintenance.
The Lamborghini Centenario 3-in-1 Ride-On Car features an authentic design, a storage compartment under the seat, a height-adjustable push handle with steering function, a backrest with side protection bars, sound effects on the steering wheel, a tilt prevention system, a removable footrest, decorative headlights, and ultra-grip rubber rings on the wheels for enhanced stability.
2. Safety Instructions
- Adult Supervision Required: Always supervise children when they are using the ride-on car.
- Weight Limit: Do not exceed the recommended weight limit for the product. Refer to the specifications section.
- Assembly: Ensure all parts are correctly assembled and securely fastened by an adult before use.
- Hazard Areas: Do not use near stairs, swimming pools, steep inclines, or public roads.
- Protective Gear: Children should wear appropriate protective gear, such as a helmet, when using the ride-on car.
- Footrest: Ensure the footrest is properly installed or removed depending on the mode of use to prevent tripping hazards.
- Push Handle: When using the push handle, ensure it is securely locked in place and adjusted to a comfortable height for the adult.
- Maintenance: Regularly check for loose parts, damaged components, or worn-out wheels. Replace any damaged parts immediately.
3. Parts List
Before assembly, ensure all components are present. Refer to the diagram below for identification.
Figure 3.1: Exploded view with key features labeled.
- Main Ride-On Car Body (Lamborghini Centenario)
- Steering Wheel with Sound Function
- Height-Adjustable Push and Hold Rod with Steering Function
- Backrest with Side Protection Bars
- Removable Footrest
- Wheels with Ultra-Grip Rubber Rings
- Assembly Hardware (screws, washers, etc. - if applicable)
4. Setup and Assembly
Follow these steps for initial assembly. Adult assembly is required.
- Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
- Wheel Installation: Attach the wheels to the main car body. Ensure they are securely fastened according to the included hardware instructions.
- Steering Wheel Assembly: Install the steering wheel onto the designated post on the car body. Connect any necessary wiring for the sound function (if applicable, insert batteries as per instructions).
- Backrest and Protection Bars: Securely attach the backrest and side protection bars to the rear of the car body.
- Push Handle Installation: Insert the push and hold rod into its designated slot at the rear of the car. Ensure it clicks into place or is secured with the provided locking mechanism. Adjust the height as needed (75 mm - 1000 mm) and lock it.
- Footrest Attachment: For younger children or when using as a push car, attach the removable footrest to the sides of the car body. Ensure it is firmly in place.
Figure 4.1: Initial setup and interaction with the ride-on car.
Figure 4.2: Side view of the assembled ride-on car with push handle.
5. Operating Instructions
5.1. Walker Mode
For children learning to walk, the car can be used as a walker. Ensure the footrest is removed to allow the child to push off the ground with their feet. The backrest provides support.
5.2. Push Car Mode
In this mode, an adult pushes the car using the height-adjustable push handle. The child can rest their feet on the removable footrest. The push handle also allows the adult to steer the car, providing directional control.
Figure 5.1: Rear view showing the push handle for adult control.
5.3. Ride-On Car Mode
For older children, the car can be used as a ride-on toy. Remove the push handle and footrest. The child can propel themselves using their feet and steer with the functional steering wheel. The steering wheel includes sound buttons for interactive play.
5.4. Storage Compartment
Lift the seat to access the storage compartment, suitable for small toys or personal items.
6. Maintenance
- Cleaning: Wipe the car body with a damp cloth and mild soap. Do not use abrasive cleaners or solvents.
- Storage: Store the ride-on car in a cool, dry place away from direct sunlight when not in use.
- Battery Replacement: If the steering wheel sound function requires batteries, replace them as per the instructions provided with the product. Ensure correct polarity.
- Inspection: Periodically check all screws, bolts, and connections to ensure they are tight. Inspect wheels and axles for wear.
7. Troubleshooting
- Steering Issues: If the steering is stiff or unresponsive, check the connection of the steering wheel to the main steering mechanism. Ensure no debris is obstructing movement.
- Sound Not Working: Check if batteries are installed correctly and are not depleted. Replace batteries if necessary. Ensure all connections are secure.
- Loose Parts: If any parts feel loose, re-tighten screws or re-secure connections as per assembly instructions. Discontinue use if parts cannot be secured.
8. Specifications
| Model Number | 460567 |
| Brand | Jamara |
| Product Dimensions (L x W x H) | 28.27 x 18.11 x 39.65 inches (71.8 x 46 x 100.7 cm) |
| Item Weight | 13.1 pounds (5.94 kg) |
| Push Handle Height Adjustment | 75 mm - 1000 mm |
| Release Date | November 6, 2020 |

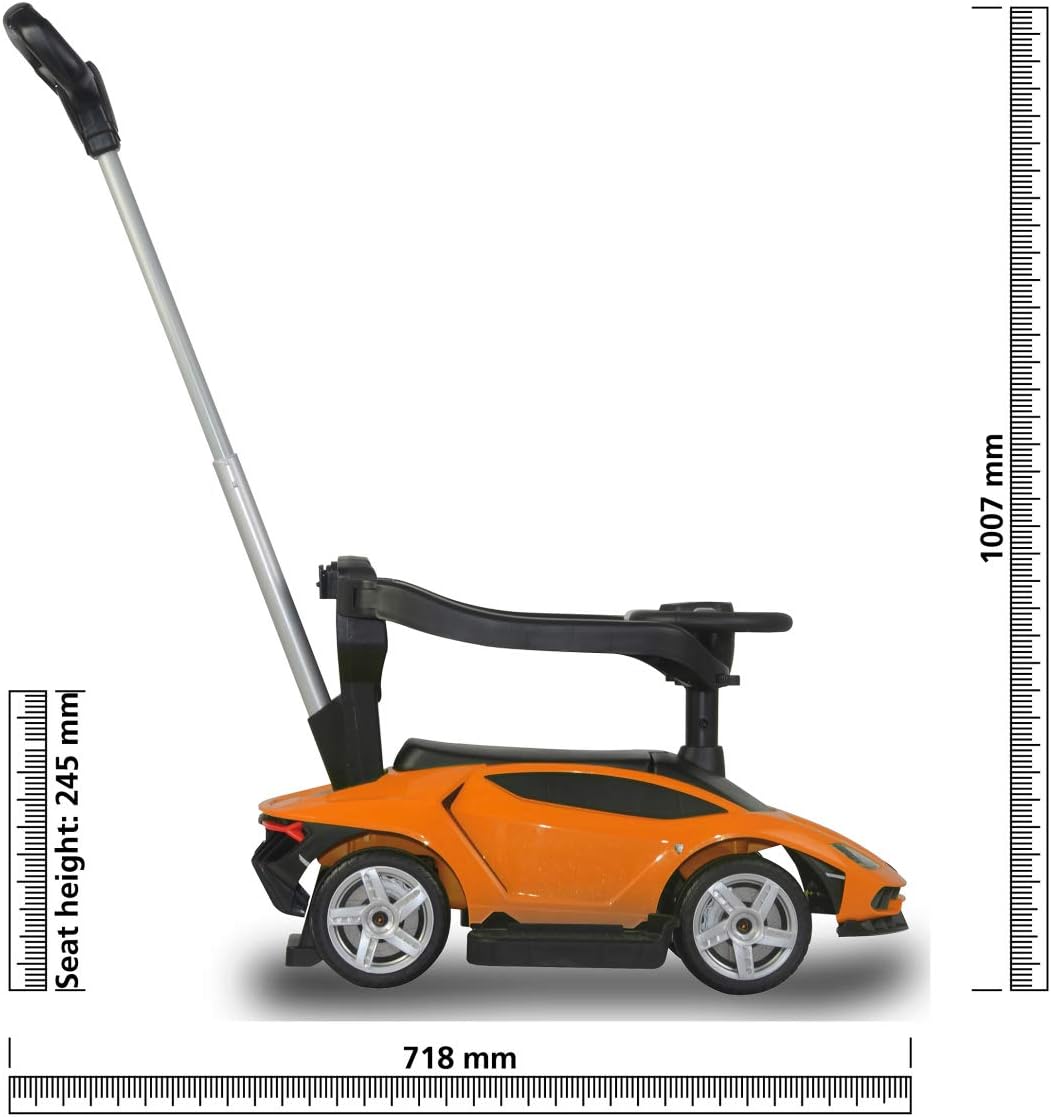

Figure 8.1: Product dimensions overview.
9. Warranty and Support
For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact Jamara customer service directly. Keep your proof of purchase for any warranty claims.
