1. Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions before operating the dehydrator.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
2. Product Overview and Components
The Ronco Turbo EZ-Store Dehydrator is designed for efficient food preservation. It features a base with a heating element and fan, multiple stackable trays, and a lid.

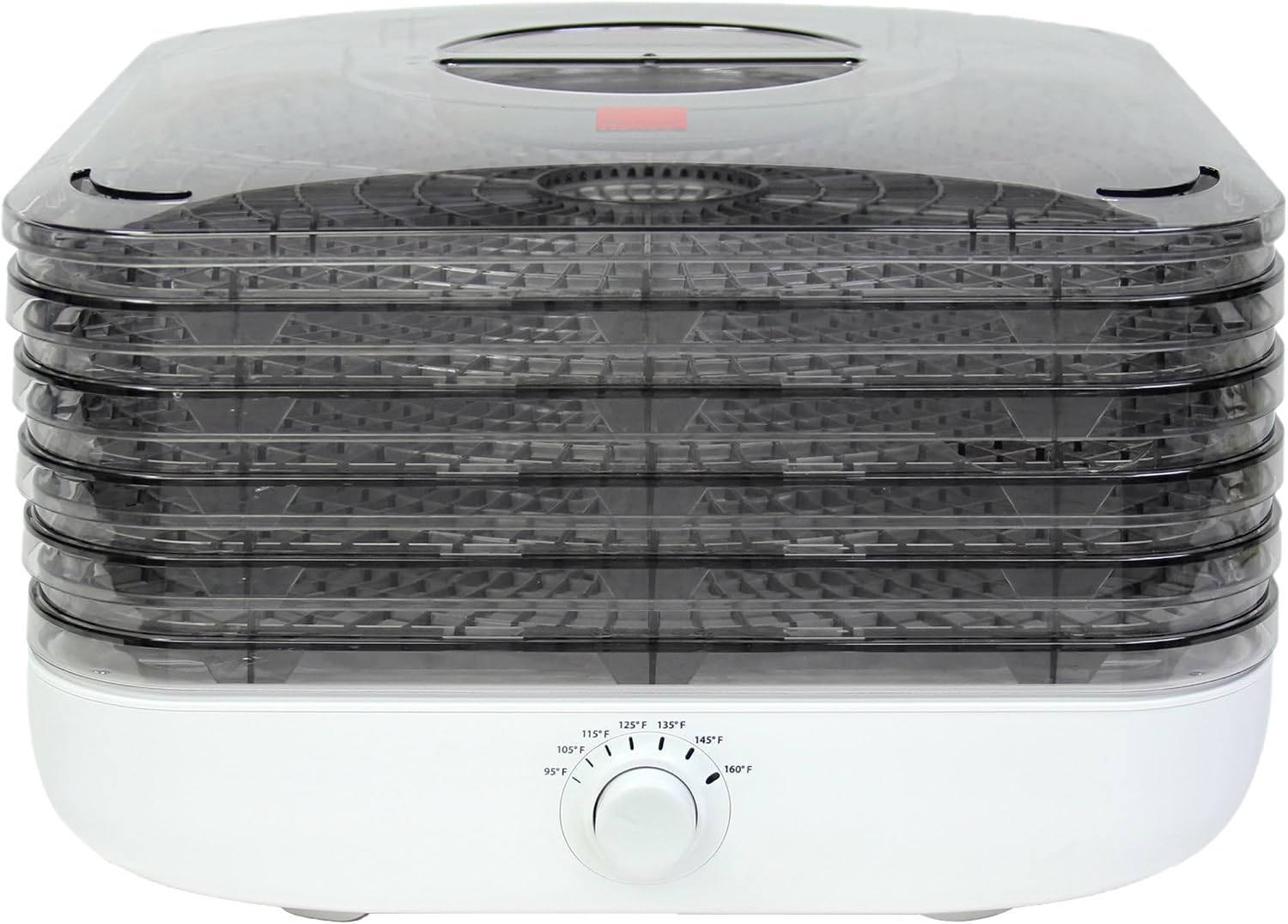

Image: The Ronco Turbo EZ-Store 5-Tray Dehydrator, showing the white base, clear stackable trays, and clear lid with a central vent.
Key components include:
- Base Unit: Contains the heating element, quiet convection fan, and temperature control knob.
- Stackable Trays: Five clear, rotating trays for holding food items. These trays are designed to nest for compact storage.
- Lid: A clear lid with an adjustable vent to regulate air circulation during dehydration.
Image: A diagram illustrating the 5 stackable trays of the Ronco Turbo EZ-Store Dehydrator, highlighting its compact design and dimensions (approximately 14.2 inches wide, 14.6 inches deep, and 8 inches high when stacked).
3. Setup
- Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
- Initial Cleaning: Before first use, wash the trays and lid in warm, soapy water. Rinse thoroughly and dry. The base unit can be wiped with a damp cloth. Ensure all parts are completely dry before assembly.
- Placement: Place the dehydrator on a stable, heat-resistant surface, away from walls or other appliances to allow for proper air circulation. Ensure the power cord can reach a grounded electrical outlet without being strained.
- Assembly: Place the base unit on the chosen surface. Stack the desired number of trays onto the base. Place the lid securely on top of the uppermost tray.
4. Operating Instructions
4.1 Food Preparation
Proper food preparation is crucial for successful dehydration.
- Clean and Trim: Wash all fruits, vegetables, and herbs thoroughly. Remove any bruised or damaged portions.
- Slice Uniformly: Slice food items into uniform thickness to ensure even drying. Thinner slices will dry faster.
- Pre-treatment (Optional): Some fruits and vegetables benefit from pre-treatment (e.g., blanching, soaking in lemon juice) to prevent discoloration or improve texture. Refer to specific recipes or food preservation guides for details.
- Arrange on Trays: Place food in a single layer on the dehydrator trays, ensuring there is space between pieces for air to circulate. Do not overload trays.
Image: A dehydrator tray displaying various food items suitable for drying, including spices, mushrooms, fruits, herbs, fruit roll-ups, and meats.
4.2 Dehydration Process
- Stack Trays: Place the prepared food on the trays and stack them onto the dehydrator base.
- Secure Lid: Place the lid firmly on the top tray.
- Set Temperature: Plug the dehydrator into a standard electrical outlet. Turn the temperature control knob to the desired setting (between 95°F and 160°F).
- Monitor Drying: The quiet convection air flow will begin to circulate, drying the food. Drying times vary based on food type, thickness, and humidity. Periodically check the food for desired dryness.
- Rotation (Optional): For very large batches or specific items, you may rotate the trays periodically to ensure even drying, though the convection system is designed for uniform results.
- Completion: Once food is dried to the desired consistency, turn the temperature knob to 'OFF' and unplug the unit. Allow food to cool completely before storing.
Image: A diagram illustrating the air and heat circulation within the Ronco Turbo EZ-Store Dehydrator, showing how the adjustable lid vent and base vent facilitate even drying.
4.3 Temperature Guidelines
The adjustable temperature control allows for precise drying. General guidelines are:
- Herbs: 95°F - 105°F (35°C - 40°C)
- Vegetables: 115°F - 125°F (46°C - 52°C)
- Fruits: 130°F - 140°F (54°C - 60°C)
- Meats (Jerky): 145°F - 160°F (63°C - 71°C)
Always refer to specific recipes for optimal temperature and drying times for different food items.
5. Maintenance and Cleaning
Regular cleaning ensures the longevity and hygienic operation of your dehydrator.
- Unplug Before Cleaning: Always ensure the dehydrator is unplugged from the power outlet and completely cooled before cleaning.
- Trays and Lid: The dehydrator trays and lid are dishwasher safe. Alternatively, they can be washed by hand in warm, soapy water. Rinse thoroughly and dry completely.
- Base Unit: Wipe the base unit with a damp cloth. Do not immerse the base unit in water or any other liquid. Ensure no water enters the electrical components.
- Stubborn Residue: For stubborn food residue, soak trays in warm, soapy water for a short period before scrubbing gently.
6. Storage
The Ronco Turbo EZ-Store Dehydrator is designed for compact storage.
- Ensure all parts are clean and completely dry before storing.
- The trays are designed to nest, reducing the overall height of the unit for convenient storage in a pantry or cupboard.
- Store the dehydrator in a cool, dry place.
7. Troubleshooting
If you encounter issues with your dehydrator, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dehydrator does not turn on | Not plugged in; Power outlet malfunction; Unit malfunction | Ensure the unit is securely plugged into a working electrical outlet. Check household circuit breaker. If problem persists, contact customer support. |
| Food drying unevenly | Food slices are not uniform; Trays overloaded; Insufficient air circulation | Ensure food is sliced to a consistent thickness. Do not overcrowd trays; leave space for air flow. Consider rotating trays periodically for very large batches. |
| Food drying too slowly | Temperature setting too low; High humidity; Food too thick | Increase temperature setting within recommended range. Ensure food is sliced thinly. Operate in a low-humidity environment if possible. |
| Food burning or drying too quickly | Temperature setting too high; Food too thin | Reduce temperature setting. Ensure food is not excessively thin. Monitor drying process closely. |
8. Specifications
- Brand: Ronco
- Model: Turbo (2nd Generation)
- ASIN: B08JQN4959
- UPC: 665860778058
- Material: Plastic (Food Safe)
- Color: White
- Wattage: 100 watts
- Voltage: 120 Volts (AC)
- Item Weight: 8 pounds
- Product Dimensions: 13 x 13 x 12 inches
- Number of Trays: 5
- Temperature Range: 95°F - 160°F
- Dishwasher Safe: Yes (Trays and Lid)
9. Warranty and Support
For warranty information or technical support, please contact Ronco customer service. Details regarding specific warranty periods and terms are typically provided with your purchase documentation or can be found on the official Ronco website.
When contacting support, please have your product model number (Turbo) and ASIN (B08JQN4959) available.
