UNI-SHINE 7-inch Round LED Headlight Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your UNI-SHINE 7-inch Round LED Headlights. These headlights are designed to provide enhanced illumination and are DOT approved for road use. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Image: Two UNI-SHINE 7-inch round LED headlights, showcasing their design and size, with a blue Jeep Wrangler in the background.

Product Features

• Advanced LED Chips: Utilizes the latest generation of LED chips for improved lighting performance and energy efficiency compared to traditional HID chips.
• Reflector Design: Features a reflector design that produces a brighter, non-glaring light beam with professional high and low beam patterns, enhancing driving visibility.
• Easy Installation: Designed for plug-and-play installation with included H4 and H13 plug adapters. Features a built-in anti-flicker harness, eliminating the need for an external decoder. Installation typically takes approximately 20 minutes.
• High Brightness: Equipped with original intensity LED chips, offering 50% brighter illumination than similar 7-inch headlights. Power output is 30W for low beam and 60W for high beam.
• DOT & E-MARK Certified: Certified for legal road use, ensuring compliance with safety standards.
• Long Lifespan: Engineered for a service life exceeding 50,000 hours.
• IP68 Waterproof Rating: Provides reliable performance in various weather conditions including rain, snow, fog, and dust.

Image: Illustration detailing the DOT/SAE/Emark-9 approval, the D-shape lens optic system for wide, flat, and non-blinding low beams, and the absence of halo rings or dense LEDs.

Package Contents

Verify that all components are present before beginning installation:

• 2 x UNI-SHINE 7-inch Round LED Headlights
• 2 x H4 to H13 Adapter Cables

Installation Instructions

These headlights are designed for a straightforward, plug-and-play installation. No modifications are typically required for compatible vehicles.

1. Preparation: Ensure your vehicle is turned off and the battery is disconnected for safety.
2. Remove Existing Headlights: Carefully remove the stock headlights from your vehicle's headlight bucket. This usually involves removing a bezel and a few screws.
3. Connect Adapters: Connect the provided H4 to H13 adapter cable to the vehicle's factory headlamp wiring harness.
4. Install LED Headlights: Plug the UNI-SHINE LED headlight into the adapter. Ensure the connection is secure. The headlights are designed to fit directly into the existing bucket.
5. Secure Headlights: Re-tighten any screws or re-attach the bezel to secure the new LED headlights in place.
6. Test Functionality: Reconnect the battery and test the high and low beam functions to ensure proper operation.

Note on Compatibility:

• Compatible with Jeep Wrangler TJ 1997-2006; CJ-7 1976-1986; JL 2018-2020 (requires additional JL bracket, not included); Unlimited JK 4 Door 2007-2015; JK 2 Door 2007-2015; CJ-8 Scrambler 1981-1985; TJ Unlimited/LJ 2003-2006; Defender 90 and 110; AM General Hummer 1992-2001; Hummer H1&H2 2003-2009 (H2 requires 9007 male to H4 female adapter, not included).
• Some models may require minor modifications. Please verify fitment before installation.

Image: Visual guide demonstrating the plug-and-play installation of the UNI-SHINE LED headlights using the H4-H13 adapter, emphasizing no modification is needed.

Operating Instructions

The UNI-SHINE LED Headlights operate similarly to standard vehicle headlights, providing both high and low beam functions.

• Low Beam: Provides a wide and flat light pattern designed to illuminate the road ahead without blinding oncoming traffic. Activate via your vehicle's standard headlight switch.
• High Beam: Offers a more focused and intense light output for maximum visibility when driving in dark conditions without oncoming traffic. Activate via your vehicle's standard high beam switch.

Image: A visual representation of the distinct light patterns produced by the high beam and low beam settings of the UNI-SHINE LED headlights.

Maintenance

To ensure the longevity and optimal performance of your UNI-SHINE LED Headlights, follow these maintenance guidelines:

• Cleaning: Clean the lens regularly with a soft cloth and mild soap solution to remove dirt and debris. Avoid abrasive cleaners.
• Moisture Removal: The headlights feature a breather design to prevent water accumulation. If moisture is observed inside the lens:
  1. Open the valve on the back of the headlight.
  2. Turn on the headlights for 1-2 hours to allow the moisture to evaporate.
  3. Close the valve once moisture is gone. This process prevents further moisture ingress.
• Inspection: Periodically inspect the wiring and connections for any signs of wear or damage.

Image: An exploded view of the headlight's rear, showing the breather valve and arrows indicating airflow for heat dissipation and moisture removal.

Troubleshooting

If you encounter issues with your UNI-SHINE LED Headlights, refer to the following common problems and solutions:

If problems persist after attempting these solutions, please contact UNI-SHINE customer support.

Specifications

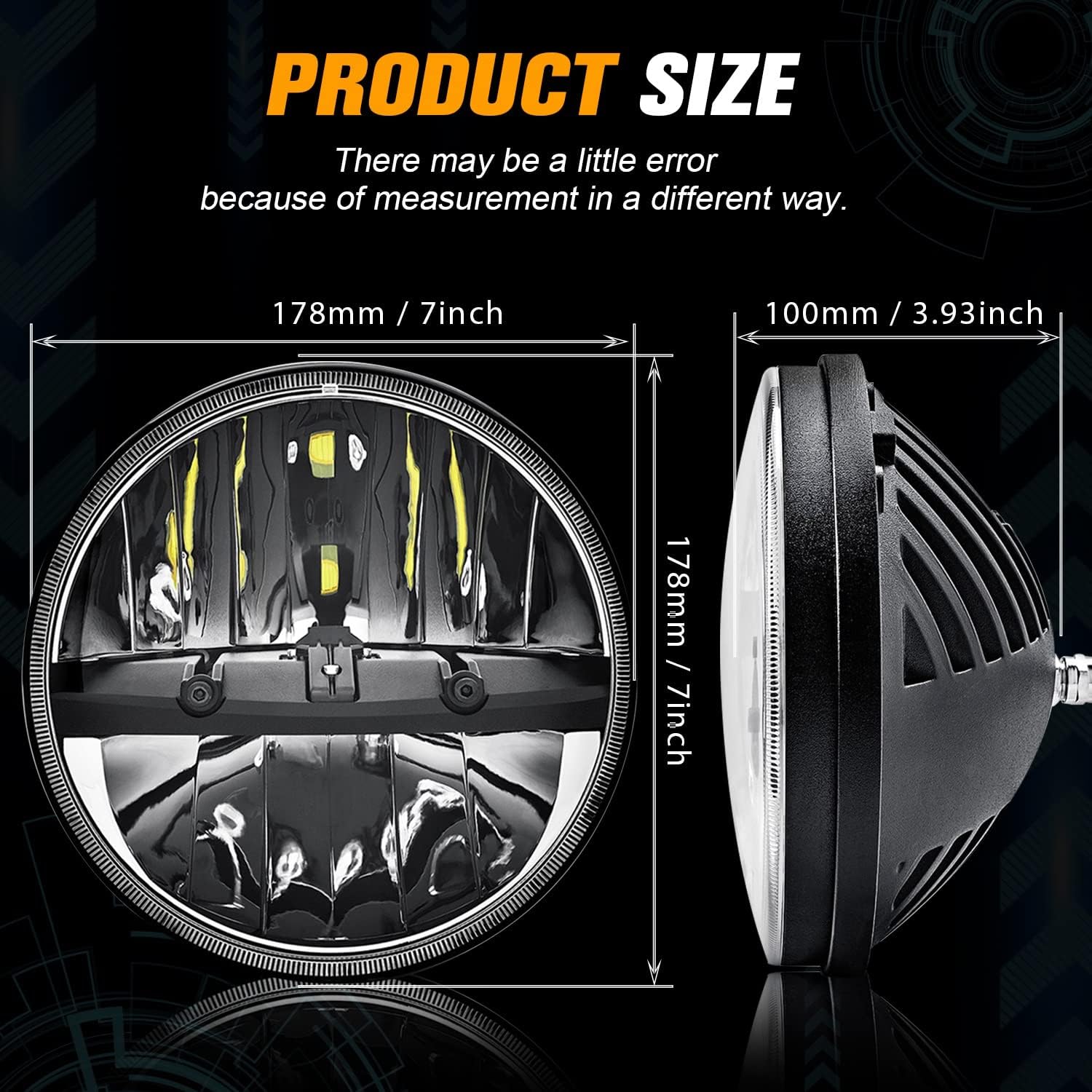

Image: Technical drawing illustrating the dimensions of the 7-inch (178mm) round LED headlight, including its depth of 3.93 inches (100mm).

Warranty and Support

UNI-SHINE is committed to product quality and customer satisfaction. If you have any questions, concerns, or require assistance with your headlights, please contact our customer support team.

We aim to respond to all inquiries within 24 hours on weekdays.

For support, please refer to the contact information provided with your purchase or visit the official UNI-SHINE website.
