ANCHEER Electric Mountain Bike User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your ANCHEER Electric Mountain Bike, Model AMA005687. Please read this manual thoroughly before your first ride and retain it for future reference.

Figure 1: Side view of the ANCHEER Electric Mountain Bike.

2. Setup and Assembly

Your ANCHEER Electric Mountain Bike arrives approximately 85% assembled. The following steps detail the final assembly process.

2.1 Unboxing and Component Identification

Upon opening the package, carefully remove all components. The main parts include the bike frame, front wheel, handlebars, seat post with saddle, pedals, battery, and charger. Ensure all protective packaging is removed.

2.2 Handlebar Installation

1. Install the Stem: Loosen the screws on the stem (the part that connects the handlebars to the fork).
2. Install Handlebars: Position the handlebars into the stem. Ensure the brake levers and shifters are correctly oriented.
3. Tighten Screws: Securely tighten the screws on the stem to fix the handlebars in place.

2.3 Front Wheel Installation

1. Remove Crossbar: The crossbar is used to hold the box in place and is not a bicycle part. Remove it from the front fork.
2. Loosen Nuts: Loosen the nuts on the front wheel axle.
3. Position Wheel: Carefully place the front wheel into the fork dropouts, ensuring the brake rotor aligns with the brake caliper.
4. Tighten Nuts: Install the gasket and tighten the nuts on both sides of the front wheel axle securely.

2.4 Saddle Installation

1. Attach Saddle to Seat Post: Secure the saddle to the seat post using the provided hardware.
2. Insert Seat Post: Insert the seat post into the bike's seat tube.
3. Adjust Height: Adjust the saddle height to a comfortable riding position, ensuring the minimum insertion line on the seat post is not visible. Tighten the quick-release lever or bolt to secure.

2.5 Pedal Installation

1. Identify Pedals: The pedals are marked 'L' for left and 'R' for right.
2. Left Pedal: Install the left pedal (L) by turning it counter-clockwise into the left crank arm.
3. Right Pedal: Install the right pedal (R) by turning it clockwise into the right crank arm.
4. Tighten: Use a wrench to securely tighten both pedals.

2.6 Battery Installation

1. Insert Battery: Slide the removable battery into its designated slot on the bike frame.
2. Secure Battery: Lock the battery in place using the key.

2.7 Headlight Installation

1. Attach Headlight: Mount the headlight to the front fork using the provided screw.
2. Connect Wiring: Ensure the headlight wiring is securely connected.

3. Operating Modes

Your ANCHEER Electric Mountain Bike offers three distinct riding modes:

• Pure Electric Bicycle Mode: Engage this mode for full electric power, controlled via the motorcycle-style throttle. This provides strong and sustained power.
• Pedal-Assist Bicycle Mode: This mode provides electric assistance (1-5 gears) as you pedal, conserving energy and extending range up to 34-40 miles per charge.
• Normal Bicycle Mode: With the battery off or depleted, the bike functions as a traditional bicycle, allowing for manual pedaling.

Figure 2: The multifunctional LCD display provides real-time information on battery level, speed, mileage, and pedal assist levels.

4. Key Components and Features

4.1 Motor

The bike is equipped with a 500W high-speed brushless gear motor, providing powerful acceleration and assistance for climbing hills. It offers a top speed of 20mph.

Figure 3: Illustration of the 48V-500W motor, highlighting its power and protective features.

4.2 Battery

Features a removable 48V/10.4AH Lithium-Ion battery, offering a range of 25 miles (throttle mode) to 50 miles (pedal-assist mode). A full charge takes 3-4 hours. The battery is integrated into the frame with an anti-theft lock.

Figure 4: The removable 48V 10Ah Lithium-Ion battery, securely integrated into the bike's frame.

4.3 Drivetrain and Gears

Equipped with a Shimano 7-speed drivetrain for smooth and accurate gear shifting.

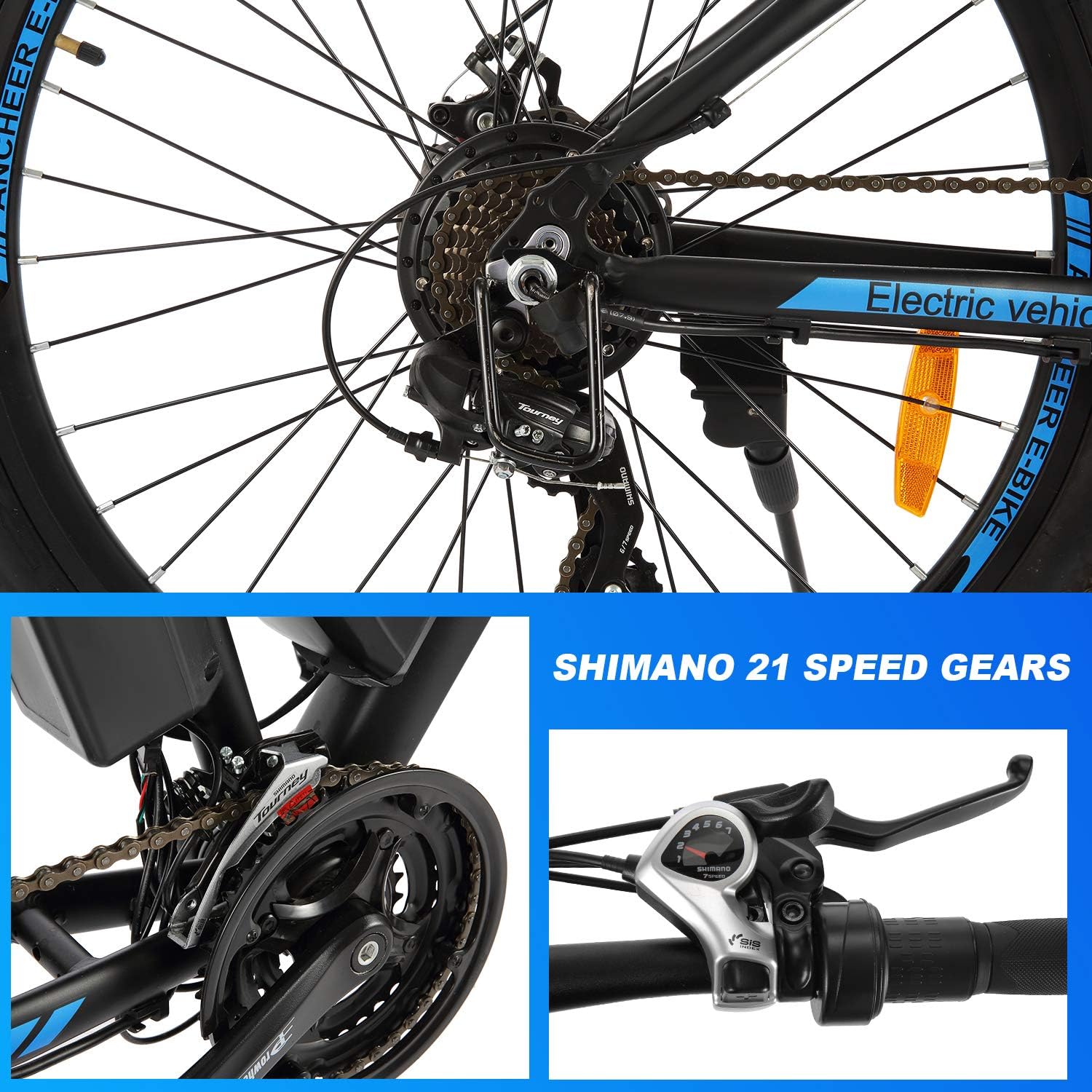

Figure 5: Detail of the Shimano 21-speed gear system, ensuring efficient power transfer.

4.4 Wheels and Tires

Features 27.5-inch mountain tires designed for various terrains, providing stability and reduced effort during rides.

Figure 6: The 27.5-inch wheel, featuring a robust tire and disc brake system.

4.5 Brakes and Suspension

Equipped with dual-disc brakes for reliable stopping power and a high-strength front suspension fork for improved comfort and control over varied terrain.

Figure 7: The high-strength front suspension fork enhances riding comfort and control.

4.6 Frame

The bike features an aluminum alloy frame with a stable triangular design, ensuring durability and a lightweight structure.

Figure 8: The bike's aluminum alloy frame, designed for strength and stability.

5. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your electric bike.

• Battery Care: Charge the battery fully after each use. Avoid completely draining the battery. Store the battery in a cool, dry place when not in use.
• Tire Pressure: Regularly check and maintain the recommended tire pressure for optimal performance and safety.
• Brake Inspection: Periodically inspect brake pads and rotors for wear. Adjust or replace as necessary to ensure effective braking.
• Chain Lubrication: Keep the chain clean and lubricated to ensure smooth gear changes and prevent wear.
• Fastener Checks: Regularly check all bolts, nuts, and fasteners for tightness. Loose components can affect safety and performance.
• General Cleaning: Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.

6. Troubleshooting

This section addresses common issues you might encounter with your ANCHEER Electric Mountain Bike.

• Bike Not Powering On: Ensure the battery is fully charged and properly seated in the frame. Check that the battery is locked and the power button on the battery is pressed.
• Motor Not Assisting: Verify that the pedal-assist level is set above zero on the LCD display. Check for any loose connections to the motor or controller.
• Brakes Squealing or Rubbing: This often indicates misaligned brake calipers or worn pads. Adjust the caliper position to ensure the rotor is centered between the pads. If pads are worn, replace them.
• Gear Shifting Issues: If gears are not shifting smoothly, the derailleur may need adjustment. Consult a bike mechanic if you are unsure how to perform this adjustment.
• Reduced Range: Ensure tires are properly inflated. Riding in higher assist modes, against strong headwinds, or carrying heavy loads can reduce battery range.

7. Specifications

8. Warranty and Support

ANCHEER provides customer support and warranty services for your electric bike.

• Warranty: The product comes with a limited warranty. For specific details, refer to the warranty documentation included with your purchase.
• Replacement Parts: Within one year of purchase, replacement parts may be provided if damage is proven with corresponding pictures or videos.
• Contact Support: For any issues or inquiries, contact ANCHEER customer service directly via your order details. Responses are typically provided within 24 hours on working days. Telephone service is also available if needed.
• Returns: Returns are accepted within one month from the date of purchase.
