Introduction
This instruction manual provides essential information for the safe and effective use of your DBPOWER 1080P Additional Camera Unit. This camera is designed to expand your existing DBPOWER baby monitor system, allowing you to monitor multiple rooms or angles with high-definition clarity. Please read this manual thoroughly before installation and operation, and retain it for future reference.
Safety Information
To ensure safe operation and prevent damage, please observe the following safety precautions:
- Keep the camera unit and its power adapter out of reach of children.
- Do not place the camera or power cord within 3 feet of the crib or playpen to avoid strangulation hazards.
- Use only the original power adapter provided with the unit.
- Do not expose the camera to water, moisture, or extreme temperatures.
- Avoid placing the camera in direct sunlight or near heat sources.
- Do not attempt to open or repair the camera unit yourself. Refer all servicing to qualified personnel.
- Ensure proper ventilation around the camera unit.
- This product is intended for indoor use only.
Package Contents
Please check the package contents to ensure all items are present:
- DBPOWER 1080P Additional Camera Unit (MCBM0002)
- Power Adapter for Camera Unit
- User Manual (this document)
Product Overview
The DBPOWER 1080P Additional Camera Unit is a compact and versatile device designed to seamlessly integrate with your existing DBPOWER baby monitor system. It features a sleek, dome-shaped design with pan and tilt capabilities.
Figure 1: Front view of the DBPOWER 1080P Additional Camera Unit, showing the lens and base.
Key components include:
- Camera Lens: Captures video feed.
- Infrared LEDs: For night vision functionality.
- Microphone: For two-way audio communication.
- Speaker: For two-way audio communication.
- Pair Button: Used for pairing the camera with the monitor unit.
- Power Port: Connects to the power adapter.
Setup
Follow these steps to set up your additional camera unit and pair it with your existing DBPOWER monitor:
- Position the Camera: Place the camera unit in a suitable location within the room you wish to monitor. Ensure it has a clear line of sight to the area of interest and is placed on a stable, flat surface or mounted securely. Keep it at least 3 feet away from the crib.
- Connect Power: Connect the small end of the power adapter to the power port on the back of the camera unit. Plug the other end of the power adapter into a standard electrical outlet. The camera will power on automatically.
- Prepare Monitor for Pairing: Turn on your DBPOWER monitor unit. Navigate to the camera pairing menu. (Refer to your monitor's specific user manual for detailed instructions on accessing the pairing menu, as this may vary by monitor model).
- Initiate Pairing: While in the pairing menu on your monitor, press and hold the "Pair" button on the back or bottom of the additional camera unit for a few seconds until the monitor indicates successful pairing. The camera's LED indicator may flash during pairing and become solid once connected.
- Verify Connection: Once paired, the video feed from the new camera should appear on your monitor. You can connect up to four cameras to a single DBPOWER monitor system.
Figure 2: The camera unit positioned in a nursery, connected to power.
Figure 3: The DBPOWER system supports connecting up to four camera units for multi-room monitoring.
Operating Instructions
Once your additional camera is paired, you can utilize its features through your DBPOWER monitor unit.
Figure 4: The monitor unit provides intuitive controls for camera functions.
Pan & Tilt
Use the directional buttons on your monitor unit to remotely adjust the camera's viewing angle. This allows you to pan horizontally and tilt vertically to get a full view of the room without physically moving the camera.
Two-Way Talk
Press and hold the "Talk" button on your monitor to speak through the camera's speaker. This feature allows you to soothe your baby or communicate with someone in the room where the camera is located.
One-Click Zoom
Utilize the zoom function on your monitor to get a closer look at your baby. This digital zoom allows you to magnify the image for more detail.
Night Vision
The camera is equipped with infrared LEDs that automatically activate in low-light conditions, providing a clear black-and-white video feed even in complete darkness. This ensures continuous monitoring day and night.
Multiple Cameras Auto Scan
If you have multiple cameras paired, your monitor can automatically cycle through the camera feeds, displaying each camera for a set duration before switching to the next. This feature ensures you can keep an eye on different areas without manual switching.

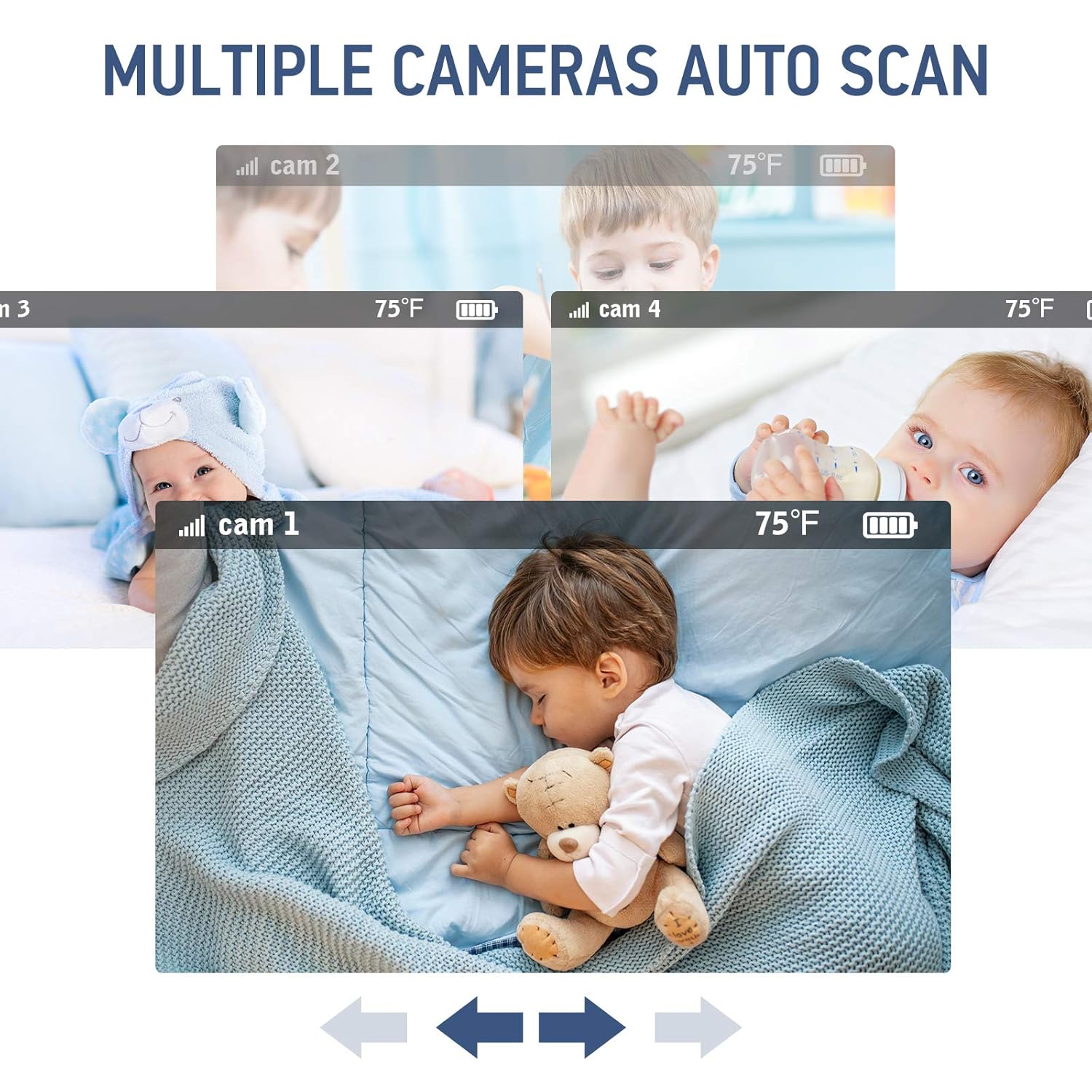

Figure 5: The auto-scan feature cycles through multiple camera views, displaying temperature for each.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your camera unit:
- Cleaning: Use a soft, dry, lint-free cloth to clean the camera lens and body. Do not use abrasive cleaners, solvents, or aerosol sprays.
- Storage: If storing the camera for an extended period, disconnect it from power and store it in a cool, dry place away from direct sunlight.
- Avoid Obstructions: Ensure no objects block the camera's ventilation holes or lens.
Troubleshooting
If you encounter issues with your camera unit, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No video/audio from camera | Camera not powered on; Camera not paired; Out of range. | Ensure camera is plugged in and powered. Re-pair the camera with the monitor. Move camera closer to the monitor. |
| Poor video quality | Low light conditions; Lens is dirty; Interference. | Night vision should activate automatically. Clean the camera lens. Reduce interference from other wireless devices. |
| Audio static or interference | Too far from monitor; Obstructions; Other electronic devices. | Move camera closer to the monitor. Remove obstructions. Move camera away from other electronics. |
| Camera not responding to Pan/Tilt | Camera is frozen; Connection issue. | Unplug and replug the camera to restart it. Ensure a stable connection to the monitor. |
Specifications
Technical specifications for the DBPOWER 1080P Additional Camera Unit:
| Feature | Detail |
|---|---|
| Model Number | MCBM0002 |
| Video Capture Resolution | 1080p |
| Effective Video Resolution | 1080 Pixels |
| Connectivity Technology | Wireless |
| Connectivity Protocol | Wi-Fi |
| Special Feature | Night Vision, Two-Way Talk, Pan & Tilt, Zoom |
| Power Source | Corded Electric |
| Mounting Type | Ceiling Mount (also suitable for tabletop) |
| Form Factor | Dome |
| Low Light Technology | Night Color (Infrared) |
| Room Type | Nursery |
| International Protection Rating | IP54 |
| Item Weight | 1.04 pounds |
| Package Dimensions | 5.67 x 4.8 x 4.41 inches |
Warranty and Support
DBPOWER products are manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or customer service, please refer to the warranty card included with your original monitor unit or visit the official DBPOWER website. Please have your model number (MCBM0002) ready when contacting support.
For the most up-to-date support information, please visit: www.dbpower.co
