1. Product Overview

The sparefixd Interference Filter Suppressor, model 41038124, is an essential electrical component designed for Philco washing machines. Its primary function is to reduce electromagnetic interference (EMI) and radio frequency interference (RFI) generated by the washing machine's motor and other electrical parts. This ensures stable operation of the appliance and prevents interference with other electronic devices in your home.

Image 1.1: Front view of the sparefixd Interference Filter Suppressor, highlighting its electrical terminals and product markings.

2. Compatibility

This interference filter suppressor is equivalent to part number 41038124 and is compatible with a range of Philco washing machine models. To ensure correct fitment, verify your washing machine's model number. The model number is typically found inside the door, below or above the door seal, or on a rating plate located on the side or rear of the machine. It will generally be printed or stamped on a sticker or plate and consist of numbers and letters.

Compatible Models:

• M_PTL3609, M_PTL3611, M_PTL3612
• PAS1053EN, PAS1268E, PAS1268EH, PAS1275E
• PES712W, PSW71200
• PTL3609, PTL3610, PTL3611, PTL6105, PTL610E, PTL612E
• PTL7105D, PTL7125D, PTL712E, PTL7145D
• PTL8E/1-31
• PWD12S, PWD12SN, PWD14S, PWD612, PWD614RS, PWD6414S, PWD7512

3. Safety Information

WARNING: Electrical components can be dangerous. Always disconnect the washing machine from the main power supply before attempting any installation, repair, or maintenance. Failure to do so can result in electric shock, serious injury, or death. If you are unsure about any step, it is recommended to seek assistance from a qualified appliance service professional.

• Ensure all connections are secure and correctly insulated.
• Do not operate the appliance with damaged or improperly installed components.
• Keep children and pets away from the appliance during installation.

4. Installation Guide

This guide provides general steps for replacing the interference filter suppressor. Specific procedures may vary slightly depending on your washing machine model. Always refer to your appliance's service manual if available.

1. Disconnect Power: Unplug the washing machine from the wall outlet or switch off the circuit breaker supplying power to the appliance.
2. Access the Component: Depending on your model, you may need to remove the top panel, rear panel, or front panel to access the existing interference filter.
3. Locate the Old Filter: Identify the current interference filter. It is typically a cylindrical component with several wires connected to it, often mounted near the power inlet.
4. Photograph Connections: Before disconnecting any wires, take clear photographs of how the wires are connected to the old filter. This will serve as a reference for reconnecting the new filter.
5. Disconnect Wires: Carefully disconnect the wires from the terminals of the old filter. Note the position of each wire.
6. Remove Old Filter: Unmount the old filter from its housing or bracket.
7. Install New Filter: Mount the new sparefixd 41038124 interference filter suppressor in the same location and orientation as the old one.
8. Reconnect Wires: Using your photographs as a guide, carefully reconnect the wires to the corresponding terminals on the new filter. Ensure all connections are firm and secure.

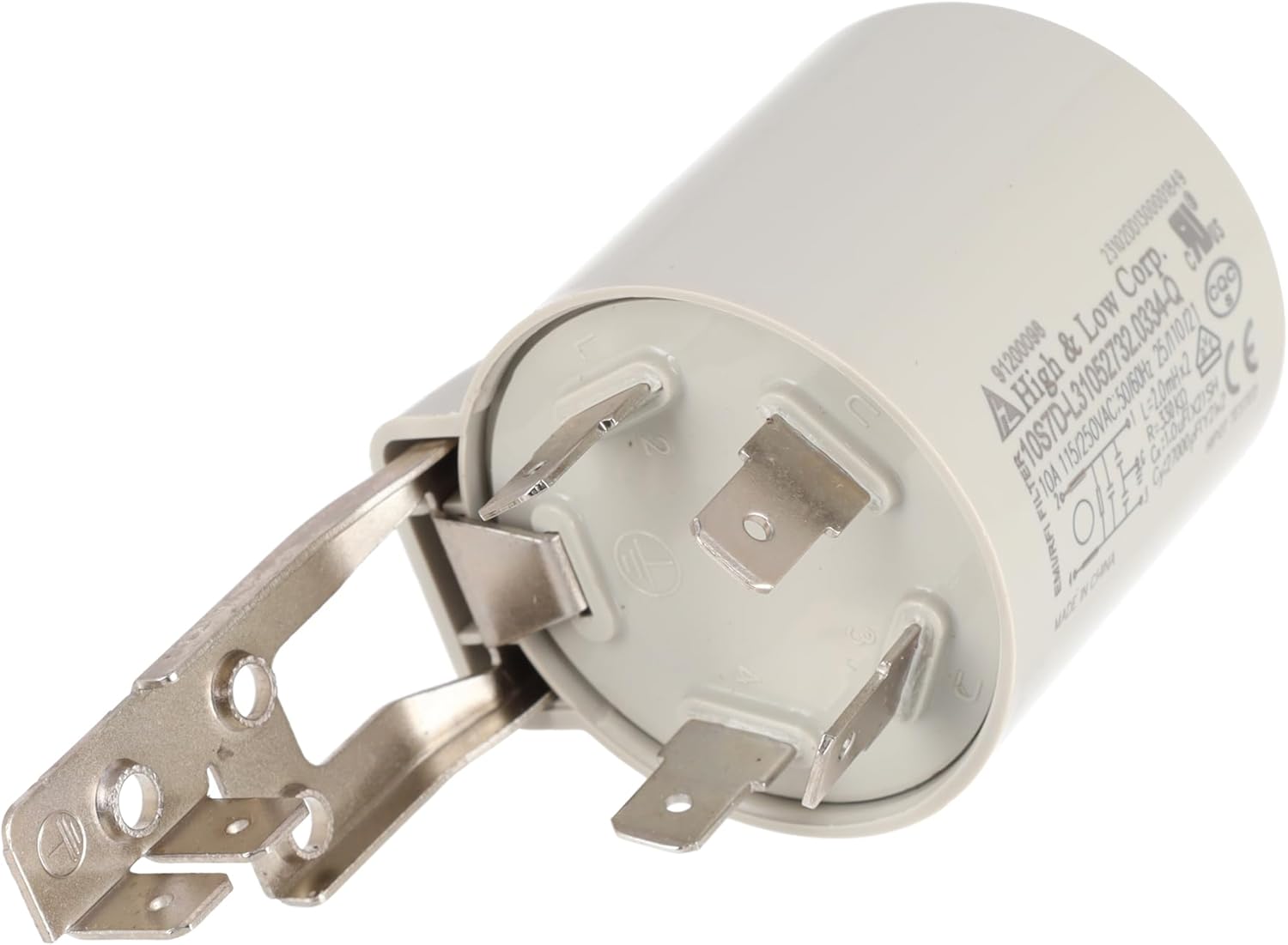

Image 4.1: Angled view of the interference filter suppressor, showing the mounting bracket and terminal layout for installation reference.

9. Reassemble Appliance: Replace any panels or covers that were removed to access the filter.
10. Restore Power: Plug the washing machine back into the wall outlet or switch on the circuit breaker.
11. Test Operation: Run a short wash cycle to confirm the washing machine operates correctly and that any previous interference issues are resolved.

5. Function and Operation

The interference filter suppressor operates passively within the washing machine's electrical system. It contains components such as capacitors and inductors that work together to filter out high-frequency electrical noise (EMI/RFI) that can be generated by the motor, pump, and other electrical parts during operation. By suppressing this noise, the filter ensures that the washing machine's internal electronics function correctly and prevents the noise from radiating out and affecting other sensitive electronic devices in your home, such as radios or televisions. Once installed, the filter requires no user interaction and functions automatically whenever the washing machine is powered on.

6. Care and Maintenance

The sparefixd Interference Filter Suppressor is a sealed, maintenance-free component. It does not require regular cleaning or servicing. However, it is advisable to periodically inspect the wiring connections to the filter during any other appliance maintenance to ensure they remain secure and free from corrosion or damage. If the filter itself appears physically damaged (e.g., cracked casing, burnt smell), it should be replaced immediately.

7. Troubleshooting

If you experience issues related to electrical interference after installing the new filter, consider the following:

• Persistent Interference: If electrical noise or interference with other devices continues, ensure all wiring connections to the filter are correct and secure. A loose connection can reduce the filter's effectiveness.
• Incorrect Installation: Double-check the installation steps to ensure the filter was installed correctly and that the correct model was used for your appliance.
• Faulty Component: Although rare for new parts, the filter itself could be faulty. If all other troubleshooting steps fail, consider testing the filter or consulting a professional.
• Other Sources of Interference: The interference might be originating from another component within the washing machine or from an external source. A qualified technician can diagnose complex electrical issues.

8. Technical Specifications

Image 8.1: Close-up view of the product label, detailing electrical specifications and certifications.

9. Warranty Information

Specific warranty information for the sparefixd Interference Filter Suppressor, model 41038124, is not provided in the product details. Please refer to the retailer's return policy or contact the manufacturer directly for warranty inquiries.

10. Customer Support

For technical assistance, installation guidance, or further inquiries regarding the sparefixd Interference Filter Suppressor, please contact your appliance service professional or the sparefixd support channel. Always provide your product model number (41038124) and your washing machine's model number when seeking support.
