Acezoe 7.4QT Stainless Steel Air Fryer AF100 Instruction Manual

1. Introduction and Overview

Thank you for choosing the Acezoe 7.4QT Stainless Steel Air Fryer. This appliance is designed to provide a healthier alternative to traditional frying methods by using rapid hot air circulation to cook food with significantly less oil. Please read this manual thoroughly before use to ensure safe and optimal operation.

Image: The Acezoe 7.4QT Stainless Steel Air Fryer, a sleek kitchen appliance designed for healthy cooking.

Key Features:

• 7.4 Quart Capacity: Large enough to cook for 6-8 people, accommodating a 6.5-7.5lb roast chicken or 20 chicken wings.
• 1700W Power: Ensures quick and efficient cooking.
• 9 Preset Cooking Programs: One-touch operation for common dishes like French fries, meat, drumsticks, steak, cake, shrimp, fish, chicken, and vegetables.
• LED Touch Screen: Intuitive digital display for precise temperature and time adjustments.
• 360° Hot Air Circulation: Provides even cooking and a crispy texture.
• Adjustable Temperature Range: 180-400°F for versatile cooking.
• Non-Stick Basket and Tray: Ceramic coating, PFOA and PTFE free, detachable and dishwasher safe for easy cleaning.
• Auto Shut-Off: Enhances safety by automatically turning off the appliance.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• A fire may occur if the air fryer is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not place any items on top of the appliance when in operation.
• Do not place any of the following materials in the air fryer: paper, cardboard, plastic, and the like.
• Do not store any materials, other than manufacturer's recommended accessories, in this appliance when not in use.
• Do not place any of the following materials in the air fryer: paper, cardboard, plastic, and the like.
• Do not store any materials, other than manufacturer's recommended accessories, in this appliance when not in use.

3. Product Components and Diagram

Familiarize yourself with the parts of your Acezoe Air Fryer for proper operation and maintenance.

Image: A close-up view of the Acezoe Air Fryer's control panel and basket, highlighting features like Auto-Shutoff, Memory Reset, Adjustable Temps, and Pre-Heat.

• Main Unit: Houses the heating element and fan.
• Control Panel: LED touch screen for setting time, temperature, and selecting presets.
• Basket Handle: For safely pulling out and inserting the cooking basket.
• Cooking Basket: Non-stick, removable basket where food is placed.
• Crisper Plate/Tray: Sits inside the cooking basket to allow air circulation around food.
• Air Inlet/Outlet: Located on the top and back of the unit for proper airflow.

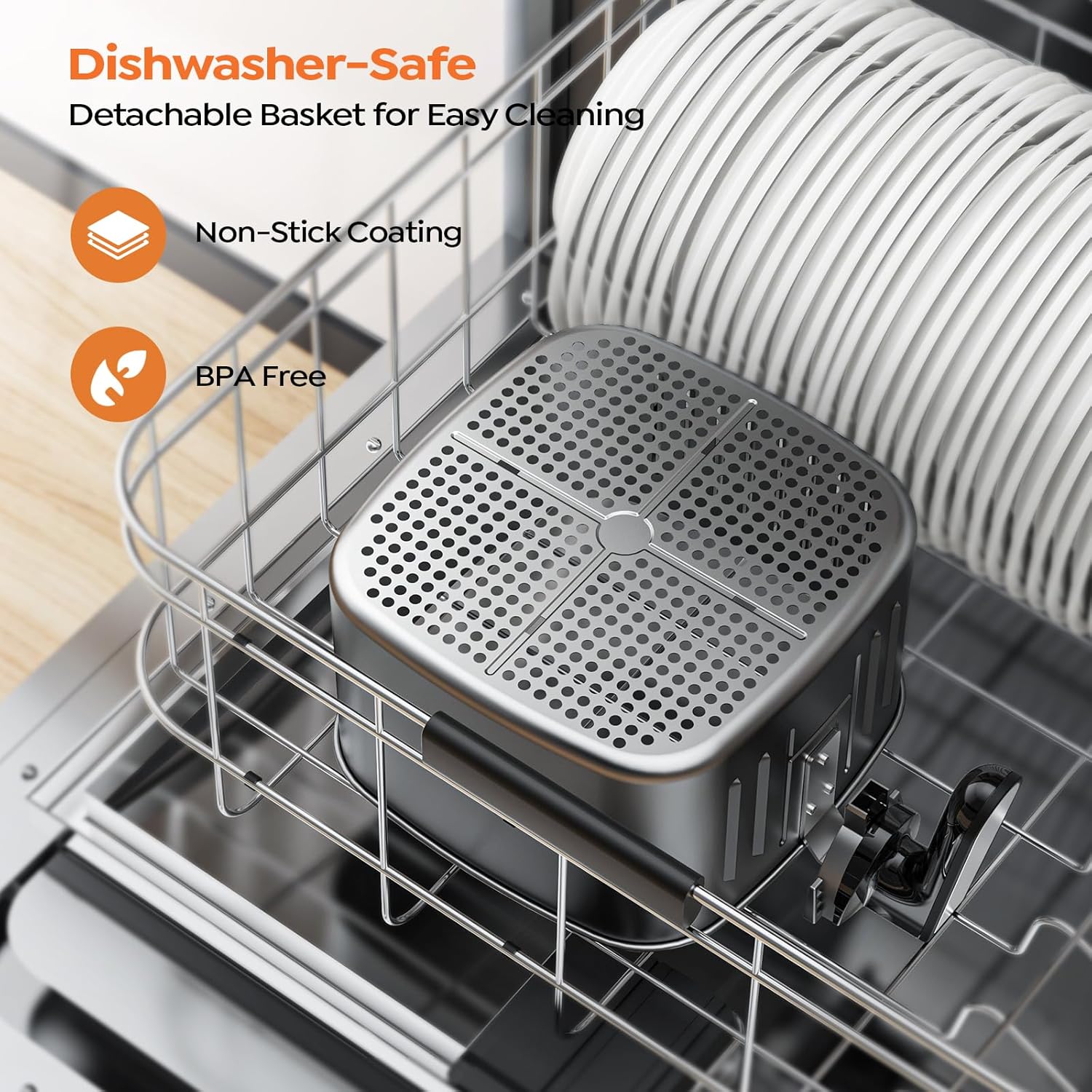

Image: The detachable, non-stick cooking basket and crisper plate of the Acezoe Air Fryer, shown being placed into a dishwasher for cleaning.

4. Setup and First Use

Unpacking:

1. Remove all packaging materials, stickers, and labels from the appliance.
2. Carefully remove the air fryer and its accessories from the box.
3. Wash the cooking basket and crisper plate with hot water, dish soap, and a non-abrasive sponge.
4. Wipe the inside and outside of the appliance with a damp cloth.
5. Ensure all parts are completely dry before use.

Before First Use:

1. Place the air fryer on a stable, level, heat-resistant surface. Ensure there is at least 6 inches of space around the appliance for proper ventilation.
2. Plug the power cord into a grounded wall outlet.
3. It is recommended to run the air fryer empty for about 10-15 minutes at 350°F (175°C) to eliminate any manufacturing odors. A slight smell or smoke may occur, which is normal.
4. Allow the appliance to cool completely before cleaning it again.

5. Operating Instructions

Basic Operation:

1. Place the crisper plate into the cooking basket.
2. Place your food into the cooking basket. Do not overfill.
3. Slide the cooking basket back into the air fryer until it clicks into place.
4. Press the Power button (ⓘ) to turn on the appliance.
5. Select a preset program by touching the corresponding icon, or manually adjust the temperature and time using the + and - buttons.
6. Press the Start/Pause button (▶▶) to begin cooking.
7. The air fryer will automatically pause if the basket is pulled out during cooking. It will resume when the basket is reinserted.
8. Once the timer reaches zero, the air fryer will beep and automatically shut off.

Image: A hand interacting with the LED touch screen of the Acezoe Air Fryer, demonstrating the one-touch smart operation for various cooking presets.

Preset Programs:

The Acezoe Air Fryer features 9 convenient preset programs. Simply touch the icon for your desired food, and the appliance will automatically set the optimal temperature and time.

Image: The control panel displaying the 9 preset cooking programs, including options for French fries, meat, drumsticks, steak, cake, shrimp, fish, chicken, and vegetables.

Preheating:

For best results, preheating the air fryer is recommended. Select the preheat function or manually set the temperature and allow the unit to run for 3-5 minutes before adding food.

Image: A visual comparison showing the difference in crispiness between food cooked with preheating versus without preheating in an air fryer.

Cooking Tips:

• Shake the basket halfway through cooking for even browning, especially for smaller items like fries or chicken wings.
• Lightly spray food with oil for extra crispiness, particularly for fresh ingredients.
• Do not overcrowd the basket; cook in batches if necessary to ensure proper air circulation.
• For frozen foods, follow package instructions or use a relevant preset.

6. Cleaning and Maintenance

Regular cleaning ensures the longevity and optimal performance of your air fryer.

Before Cleaning:

• Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.

Cleaning the Basket and Crisper Plate:

• The non-stick cooking basket and crisper plate are dishwasher safe.
• Alternatively, wash them with hot water, dish soap, and a non-abrasive sponge.
• For stubborn food residue, soak the basket and plate in hot, soapy water for about 10 minutes before cleaning.
• Avoid using metal utensils or abrasive cleaning materials, as these can damage the non-stick coating.

Cleaning the Main Unit:

• Wipe the exterior of the air fryer with a damp cloth. Do not immerse the main unit in water or any other liquid.
• Clean the interior with a damp cloth and mild detergent.
• For the heating element, use a cleaning brush to remove any food residue.

Image: A visual representation of the Acezoe Air Fryer's non-stick detachable basket being easily cleaned under running water, emphasizing its user-friendly design.

7. Troubleshooting

If you encounter any issues with your air fryer, refer to the following troubleshooting guide:

8. Specifications

• Model Name: AF100
• Capacity: 7.4 Quarts
• Output Wattage: 1700 Watts
• Voltage: 120 Volts
• Product Dimensions: 15"D x 12"W x 13"H
• Item Weight: 12.1 Pounds
• Material: Ceramic, Stainless Steel
• Control Method: Touch Control
• Temperature Range: 180-400°F
• Non-stick Coating: Yes (PFOA and PTFE free)
• Dishwasher Safe Parts: Basket and Crisper Plate

9. Warranty and Support

Acezoe provides lifetime assistance from its official support team. For any product-related inquiries, technical support, or warranty claims, please contact Acezoe customer service through the official website or your purchase platform.

Please retain your proof of purchase for warranty purposes.
