1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your LUBAN Industrial Warning Signal Tower Light, Model B-3T-12+L. Please read this manual thoroughly before use and retain it for future reference.
2. Safety Information
Observe the following safety precautions to prevent injury and damage to the product:
- Electrical Safety: Ensure the power supply matches the specified voltage (DC 12V). Disconnect power before installation, wiring, or maintenance. All electrical work should be performed by qualified personnel.
- Mounting: Securely mount the device to a stable surface capable of supporting its weight. Avoid locations with excessive vibration, high temperatures, or direct exposure to water unless the product is specifically rated for such conditions.
- Handling: Handle the product with care to avoid damage to the LED components or housing.
- Intended Use: This product is designed for industrial signaling applications. Do not use it for purposes other than its intended function.
3. Product Overview
The LUBAN Industrial Warning Signal Tower Light is a 3-layer LED indicator designed for clear visual signaling in industrial environments. It features high-performance LED chips for bright illumination and a long lifespan.
Image 3.1: LUBAN 3-Layer Industrial Warning Signal Tower Light. This image displays the complete assembly of the signal tower light, featuring three distinct colored segments (red, yellow, green) stacked vertically, mounted on a pole with an L-bracket for installation.
Key Features:
- LED Technology: Utilizes high-performance LED chips for bright, energy-efficient illumination with an estimated lifespan of over 50,000 hours. Each layer contains 9 LED chips distributed in three directions for 360-degree visibility.
- Durable Construction: Made from polycarbonate (PC) for the lampshades and aluminum for the pole, ensuring durability in industrial settings.
- Clear Visibility: Prism-cut PC lampshade lenses provide even light distribution, enhancing visibility from a distance.
- Modular Design: Consists of a light unit, an aluminum pole, and an L-bracket for flexible mounting options.

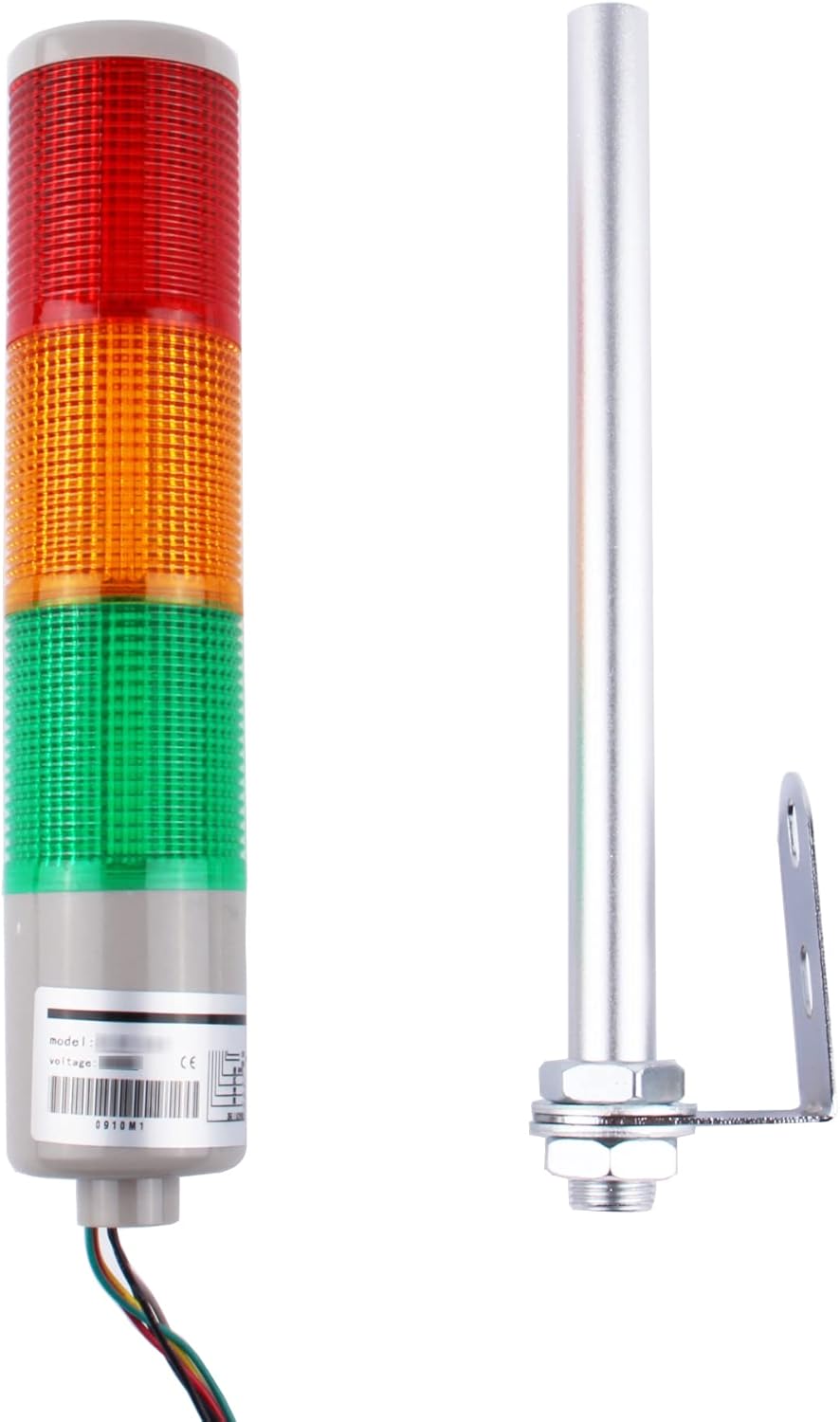

Image 3.2: Disassembled LUBAN 3-Layer Tower Light Components. This image shows the main light unit separated from the aluminum pole and L-bracket, illustrating the individual components of the product.
4. Setup and Installation
Follow these steps for proper installation and wiring of your signal tower light.
4.1 Mounting
The signal tower light can be mounted using the provided L-bracket or by drilling a suitable hole.
- L-Bracket Mounting: Attach the L-bracket to a stable vertical surface using appropriate fasteners (not included). Secure the signal light's pole to the L-bracket using the provided nut and washer.
- Direct Mounting (without L-bracket): If not using the L-bracket, drill a mounting hole with a diameter of approximately 18-20mm (0.7-0.8 inches) in the desired surface. Insert the threaded end of the pole through the hole and secure it with the provided nut and washer.
Image 4.1: Close-up of L-bracket mounting for LUBAN Tower Light. This image details the alloy steel pole and the L-bracket attachment, showing the secure mounting mechanism.
4.2 Wiring (DC 12V)
This model operates on DC 12V power. Refer to the wiring diagram below for correct connections. The device supports common anode or common cathode configurations.
Image 4.2: DC Power Wiring Diagram for LUBAN Tower Light. This diagram illustrates the wire connections for the DC 12V model, showing specific colors for the red, yellow, and green lights, and the common power line (grey).
Wire Color Code:
- Grey: Common Power Line (GND or +12V, depending on common anode/cathode setup)
- Red: Red Light Segment
- Yellow: Yellow Light Segment
- Green: Green Light Segment
Important: Connect the appropriate power (DC 12V) to the common line and individual light wires to activate each segment. Ensure all connections are secure and insulated.
5. Operating Instructions
The LUBAN Industrial Warning Signal Tower Light functions as a visual indicator. Each colored segment can be independently controlled by applying power to its respective wire.
5.1 Light Indications
The standard color assignments for industrial signaling are as follows:
- Red Light: Typically indicates a critical condition, such as an emergency stop, machine fault, or immediate danger.
- Yellow Light: Generally signifies a warning, caution, or abnormal condition, such as over-temperature, over-pressure, or a process hold.
- Green Light: Indicates normal operation, safe conditions, or a completed process.

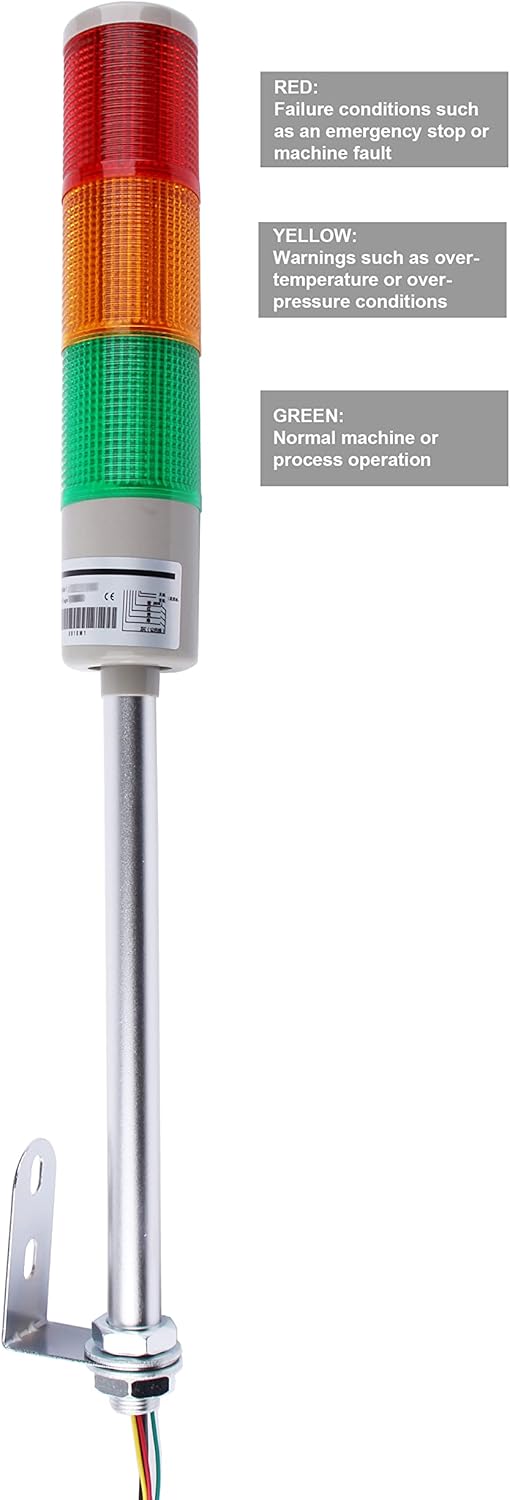

Image 5.1: LUBAN Tower Light with color meaning labels. This image shows the signal tower light with text overlays explaining the typical industrial meanings for red (failure), yellow (warning), and green (normal operation).
Image 5.2: Illuminated LUBAN Tower Light. This image displays the signal tower light with all three segments (red, yellow, green) brightly illuminated, demonstrating its visual signaling capability.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your signal tower light.
- Cleaning: Periodically clean the exterior of the lampshade with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the polycarbonate material.
- Inspection: Regularly inspect the wiring for any signs of wear, fraying, or loose connections. Check the mounting hardware to ensure it remains secure.
- LED Lifespan: The LED chips have a long operational life. Replacement of individual LEDs is generally not required under normal operating conditions.
7. Troubleshooting
If you encounter issues with your signal tower light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light segment does not illuminate | No power to the unit; Incorrect wiring for the specific segment; Faulty LED segment. | Verify DC 12V power supply is connected and active. Check wiring connections against the diagram (Image 4.2). Ensure the common line and the specific color wire are correctly connected. If wiring is correct, the LED segment may require replacement. |
| All lights are off | No power to the unit; Common power line disconnected. | Check the main power supply to the unit. Ensure the grey common power line is securely connected. |
| Light is dim or flickers | Insufficient power supply; Loose wiring connection. | Confirm the power supply provides stable DC 12V. Inspect all wiring connections for looseness and secure them. |
8. Specifications
Technical specifications for the LUBAN Industrial Warning Signal Tower Light, Model B-3T-12+L:
| Feature | Specification |
|---|---|
| Model Number | B-3T-12+L |
| Voltage | DC 12V |
| Number of Layers | 3 (Red, Yellow, Green) |
| Light Source | LED (Light Emitting Diode) |
| Number of LEDs | 27 (9 LEDs per layer) |
| Viewing Angle | 360 degrees |
| Material | Polycarbonate (PC) lampshade, Aluminium pole |
| Mounting Type | Floor Mount (L-bracket included) |
| Pole Length | Approx. 15 cm (5.9 inches) |
| Total Height (approx.) | 43.5 cm (17.1 inches) |
| Item Weight | 0.37 kg (13.1 ounces) |
| Special Features | Common anode or cathode design |
9. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact your point of purchase. Keep your purchase receipt as proof of purchase.
