Splitvolt EGB 11-016 NEMA 10-30 Extension Cable User Manual

1. Product Overview

The Splitvolt EGB 11-016 is a 16-foot 5-inch (5-meter) NEMA 10-30 extension cable designed to extend the reach of your 240V, 30-amp power source. This cable is suitable for various applications, including charging electric vehicles (EVs), connecting to clothes dryers, or powering recreational vehicles (RVs). It features a NEMA 10-30P (male) plug and a NEMA 10-30R (female) receptacle, ensuring compatibility with standard 240V dryer outlets.

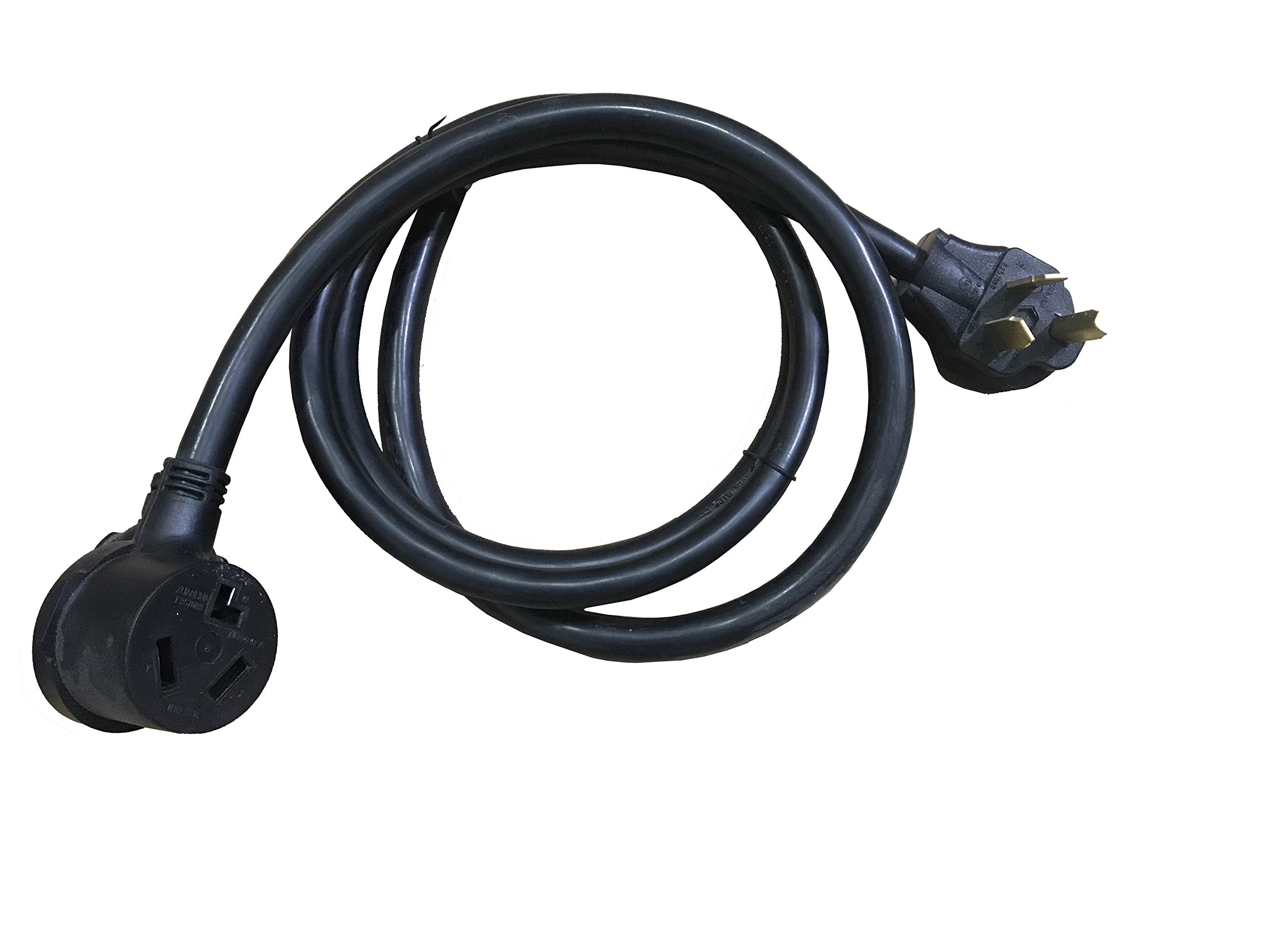

Image 1.1: The Splitvolt EGB 11-016 NEMA 10-30 Extension Cable, featuring both the male plug and female receptacle.

Constructed with 10 AWG (American Wire Gauge) 100% copper wiring, this cable is built for durability and efficient power transmission. It is UL safety certified, providing assurance of its quality and adherence to safety standards.

2. Safety Information

Please read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• UL Certified: This cable is UL certified, indicating it meets recognized safety standards.
• 100% Copper Wiring: The cable utilizes 100% copper wiring for superior conductivity and safety.
• Proper Rating: Ensure the connected appliance or EV charger does not exceed the cable's rating of 30 Amps, 125/250 VAC, and 12.5 kW. For continuous charging, do not exceed 24 Amps.
• Indoor Use: While durable, avoid prolonged exposure to extreme outdoor elements.
• Inspect Before Use: Always inspect the cable for any signs of damage, cuts, or frayed wires before each use. Do not use if damaged.
• Secure Connections: Ensure all connections are firm and fully seated to prevent overheating or arcing.
• Avoid Overloading: Do not connect multiple extension cords in series or overload the circuit.
• Keep Dry: Do not use in wet conditions or allow the plugs/receptacles to come into contact with water.

Image 2.1: Safety and quality certifications for Splitvolt EGB cables, including 100% Copper Wiring and UL Certification.

3. Setup Instructions

This extension cable is designed for simple plug-and-play operation. Follow these steps for proper setup:

1. Identify Your Outlet: Locate a NEMA 10-30R wall outlet. This is typically a 3-prong, 240V outlet commonly used for electric clothes dryers.
2. Connect to Wall Outlet: Take the NEMA 10-30P (male) plug end of the Splitvolt extension cable and firmly insert it into your NEMA 10-30R wall outlet. Ensure it is fully seated.
3. Connect Your Device: Take the NEMA 10-30R (female) receptacle end of the Splitvolt extension cable and connect your EV charger, dryer, or RV power cord's NEMA 10-30P plug into it. Ensure this connection is also firm and fully seated.
4. Verify Connection: Double-check both connections to ensure they are secure before activating power to your device.

Image 3.1: Visual guide to NEMA 10-30P (male plug) and 10-30R (female receptacle) configurations.

4. Operating Instructions

Once the Splitvolt EGB 11-016 extension cable is securely connected to both the wall outlet and your device, you can proceed with normal operation of your appliance or EV charger.

• For EV Charging: Plug your EV charger into the female end of the extension cable, then plug the male end of the extension cable into your NEMA 10-30 wall outlet. Initiate charging as per your EV charger's instructions.
• For Dryers: Connect your electric dryer's power cord to the female end of the extension cable, then plug the male end of the extension cable into your NEMA 10-30 wall outlet. Operate your dryer as usual.
• For RV Use: Connect your RV's power inlet to the female end of the extension cable, then plug the male end of the extension cable into your NEMA 10-30 wall outlet. Ensure your RV's electrical system is compatible with a 30A, 240V supply.

Always monitor the cable and connections during initial use to ensure there is no excessive heat or unusual odors, which could indicate a problem.

5. Maintenance

Proper maintenance will ensure the longevity and safe operation of your Splitvolt EGB 11-016 extension cable.

• Regular Inspection: Periodically inspect the entire length of the cable, including the plugs and receptacles, for any signs of wear, cuts, cracks, or discoloration.
• Cleaning: Keep the cable and its connectors clean and free from dust, dirt, and moisture. Use a dry cloth for cleaning. Do not use liquid cleaners.
• Storage: When not in use, coil the cable loosely and store it in a dry, cool place away from direct sunlight and extreme temperatures. Avoid kinking or bending the cable sharply.
• Avoid Damage: Do not drive over the cable, place heavy objects on it, or expose it to sharp edges that could damage the insulation.

6. Troubleshooting

If you encounter issues while using your Splitvolt EGB 11-016 extension cable, consider the following troubleshooting steps:

• No Power to Device:
  • Ensure both ends of the extension cable are fully and securely plugged into the wall outlet and the device.
  • Check the circuit breaker for the wall outlet. If it has tripped, reset it.
  • Test the wall outlet with another known working appliance to confirm it is supplying power.
  • Inspect the extension cable for visible damage. If damaged, discontinue use.
• Overheating:
  • If the cable or plugs feel excessively hot, immediately disconnect power.
  • Ensure the connected device's power requirements do not exceed the cable's rating (30A, 12.5kW, 24A continuous).
  • Verify that the wall outlet and circuit are rated for 30 Amps.
  • Ensure connections are tight and free of debris. Loose connections can cause resistance and heat.
• Loose Connection:
  • If connections feel loose, ensure the plugs are fully inserted.
  • Avoid pulling the cable by the cord; always grasp the plug to disconnect.

If problems persist after following these steps, contact Splitvolt customer support.

7. Specifications

8. Warranty and Support

The Splitvolt EGB 11-016 extension cable comes with a full one-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any questions regarding your Splitvolt product, please contact Splitvolt customer service through their official website or the retailer where the product was purchased. Please have your model number (EGB-11-016-30A) and proof of purchase available when contacting support.
