HoMedics 2-in-1 Shiatsu Massage Cushion and Cordless Body Massager MCS-950HJ User Manual

Introduction

This manual provides essential instructions for the safe and effective use of your HoMedics 2-in-1 Shiatsu Massage Cushion and Cordless Body Massager, model MCS-950HJ. Please read all instructions carefully before operation and retain this manual for future reference.

The HoMedics MCS-950HJ offers a versatile massage experience, combining a full-back shiatsu massage cushion with a removable, cordless body massager. Features include deep-tissue shiatsu and rolling massage, adjustable zone control, soothing heat, and vibration functions.

Important Safety Information

Warnings: Do not use this product near water. Discontinue use if experiencing pain or discomfort. Ensure proper charging procedures are followed. Keep loose clothing and accessories away from moving parts. Consult a healthcare provider before use if you have any medical conditions, including but not limited to pregnancy, pacemaker use, diabetes, or circulatory issues.

Package Contents

• 1 HoMedics 2-in-1 Shiatsu Massage Cushion and Cordless Body Massager
• 1 Quick-Start Guide
• 1-Year Warranty Information

Setup Instructions

1. Positioning the Cushion: Place the massage cushion on a sturdy chair or sofa. Ensure the cushion is securely positioned and will not slip during use. The cushion includes straps to help secure it to most chairs.
2. Power Connection: Plug the power adapter into a standard electrical outlet. Connect the other end to the power input on the massage cushion.
3. Charging the Cordless Pillow: The removable pillow is rechargeable. Ensure it is properly docked in its designated slot on the main cushion or connected to its charging cable (if separate) to charge before cordless use. A full charge is recommended for optimal performance.

Operating Instructions

The massage cushion is controlled via a handheld remote. Familiarize yourself with the remote's functions before use.

Remote Control Functions:

• Power Button: Press to turn the unit ON or OFF.
• Relaxation Modes: Select from pre-programmed modes such as 'Get Going', 'Wind Down', or 'Recover' for varied massage experiences.
• Neck & Shoulder Massage: Activates massage for the neck and shoulder area. Press 'HEAT' to add soothing heat to this zone.
• Massage Type: Choose between 'SHIATSU' (deep-kneading) or 'ROLLING' (intermediate pressured) massage styles.
• Speed: Adjust the massage speed (e.g., Speed 1, Speed 2).
• Back Cushion Zone Control: Target specific areas of your back: 'UPPER', 'FULL', or 'LOWER'. Adjust the 'WIDTH' of the rolling massage nodes.
• Heat: Activates soothing heat in the lumbar area.
• Vibration: Activates vibration massage in the lumbar area.

Using the Cordless Body Massager (Removable Pillow):

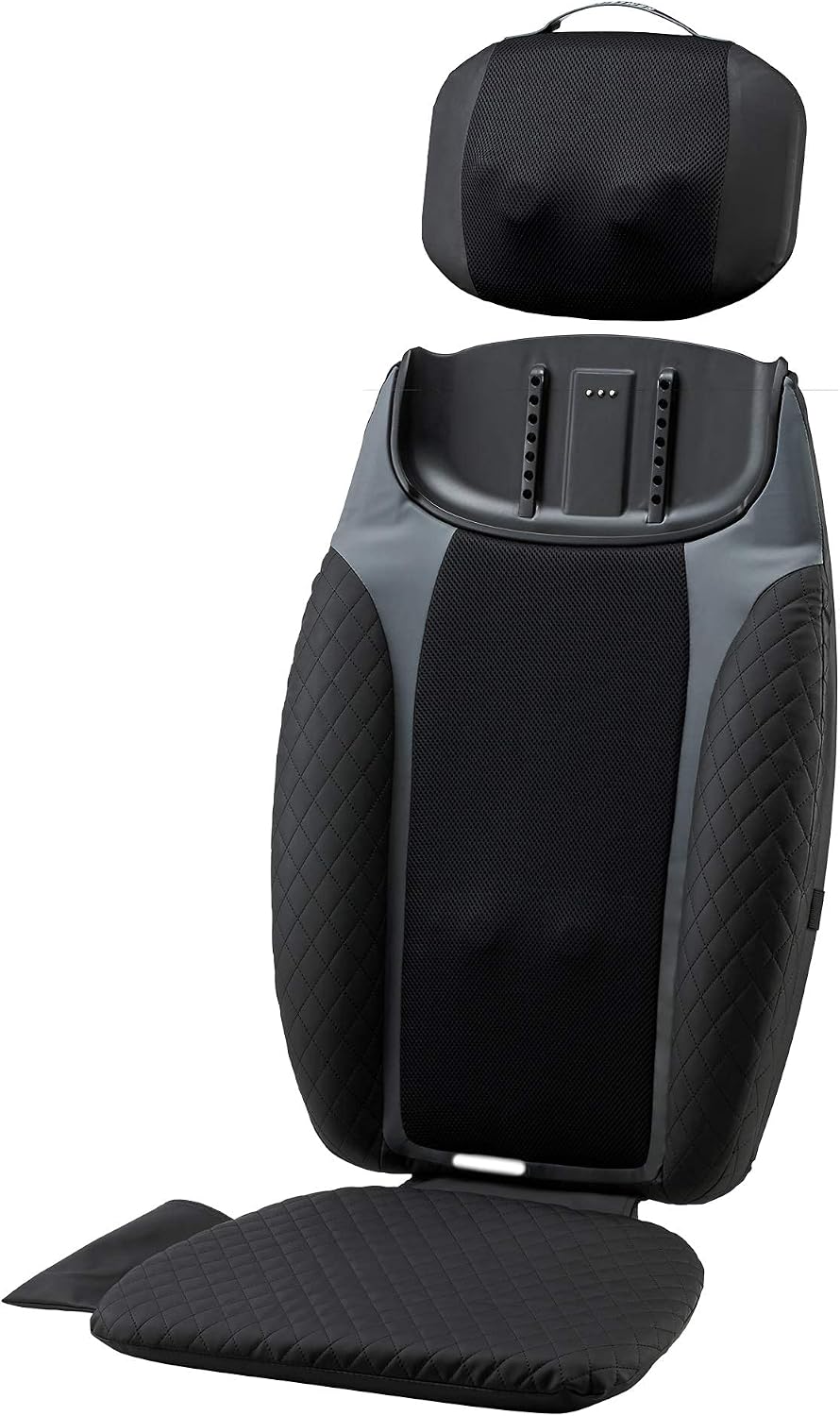

The top pillow section can be removed and used independently as a cordless body massager. To remove, gently pull the pillow upwards from its slot. It is rechargeable and designed for use on various body parts such as legs, arms, and feet. Re-dock the pillow to recharge it.

Automatic Shut-off: For safety and to prevent overheating, the unit is equipped with an automatic shut-off feature. The massage cycle typically lasts for 15 minutes. It is recommended not to exceed 15 minutes of continuous use per session.

Maintenance

Cleaning:

• Always unplug the unit before cleaning.
• Wipe the surface with a soft, damp cloth. Do not use abrasive cleaners, brushes, gasoline, kerosene, glass/furniture polish, or paint thinner to clean the massager.
• Do not immerse the unit in water or any other liquid.

Storage:

Store the massager in its box or a safe, dry, cool place. Avoid contact with sharp edges or pointed objects that might cut or puncture the fabric surface. Do not wrap the power cord around the unit.

Troubleshooting

Specifications

• Model Number: MCS-950HJ
• Product Dimensions: 12 x 12 x 28 inches
• Weight: 17.85 Pounds
• Batteries: 1 Lithium Ion battery (included, required for cordless pillow)
• Power Source: Battery Powered (cordless pillow), AC Adapter (main cushion)
• Material: Plastic, Silicone, and/or Rubber
• Color: Black

Warranty and Support

This HoMedics product is covered by a 1-Year Limited Warranty from the date of purchase. For warranty claims or technical support, please refer to the contact information provided in the Quick-Start Guide or visit the official HoMedics website.
