Ranch Hand FSF201BL1 Front Replacement Bumper Instruction Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your Ranch Hand FSF201BL1 Front Replacement Bumper. Please read these instructions thoroughly before proceeding with installation or use to ensure proper function and safety.

Safety Information

Always prioritize safety during installation and use. Improper installation can lead to serious injury or damage to your vehicle. It is highly recommended that installation be performed by a qualified professional.

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle is securely supported on a level surface using jack stands before beginning work.
• Disconnect the vehicle's battery before working on electrical components, if applicable.
• Do not exceed the vehicle's Gross Vehicle Weight Rating (GVWR) or Gross Axle Weight Rating (GAWR) after installation.
• Keep all fasteners tightened to the manufacturer's specifications. Regularly check for loose hardware.

Package Contents

Verify that all components are present before beginning installation:

• 1 x Ranch Hand FSF201BL1 Front Replacement Bumper
• Installation Hardware (bolts, nuts, washers - specific quantities may vary)
• Note: Additional components may be included depending on specific vehicle application.

Setup and Installation

This section outlines the general steps for installing the Ranch Hand FSF201BL1 Front Replacement Bumper. Specific vehicle models may require additional steps or modifications. Refer to your vehicle's service manual for detailed instructions on removing the factory bumper.

Tools Required (Typical)

• Socket Wrench Set
• Open-End Wrench Set
• Torque Wrench
• Pry Bar (optional, for factory bumper removal)
• Cutting Tools (if modifications are required)
• Measuring Tape
• Marker

Installation Steps (General)

1. Prepare Vehicle: Park the vehicle on a level surface, engage the parking brake, and disconnect the negative battery terminal.
2. Remove Factory Bumper: Carefully remove the existing front bumper according to your vehicle's manufacturer instructions. This typically involves disconnecting fog lights, sensors, and unbolting the bumper from the frame.
3. Prepare Bumper for Installation: If applicable, transfer any necessary components (e.g., fog lights, sensors, wiring harnesses) from the factory bumper to the Ranch Hand bumper.
4. Position New Bumper: With assistance, carefully lift and position the Ranch Hand FSF201BL1 bumper onto the vehicle's frame mounting points. Ensure proper alignment.
5. Secure Bumper: Install all mounting hardware (bolts, washers, nuts) provided. Hand-tighten all fasteners initially.
6. Align and Torque: Adjust the bumper for optimal alignment with the vehicle's body. Once aligned, progressively tighten all fasteners to the vehicle manufacturer's recommended torque specifications.
7. Reconnect Components: Reconnect any fog lights, sensors, or wiring harnesses.
8. Final Inspection: Double-check all connections and fasteners for tightness. Ensure no wires are pinched and all components are clear of moving parts. Reconnect the battery.

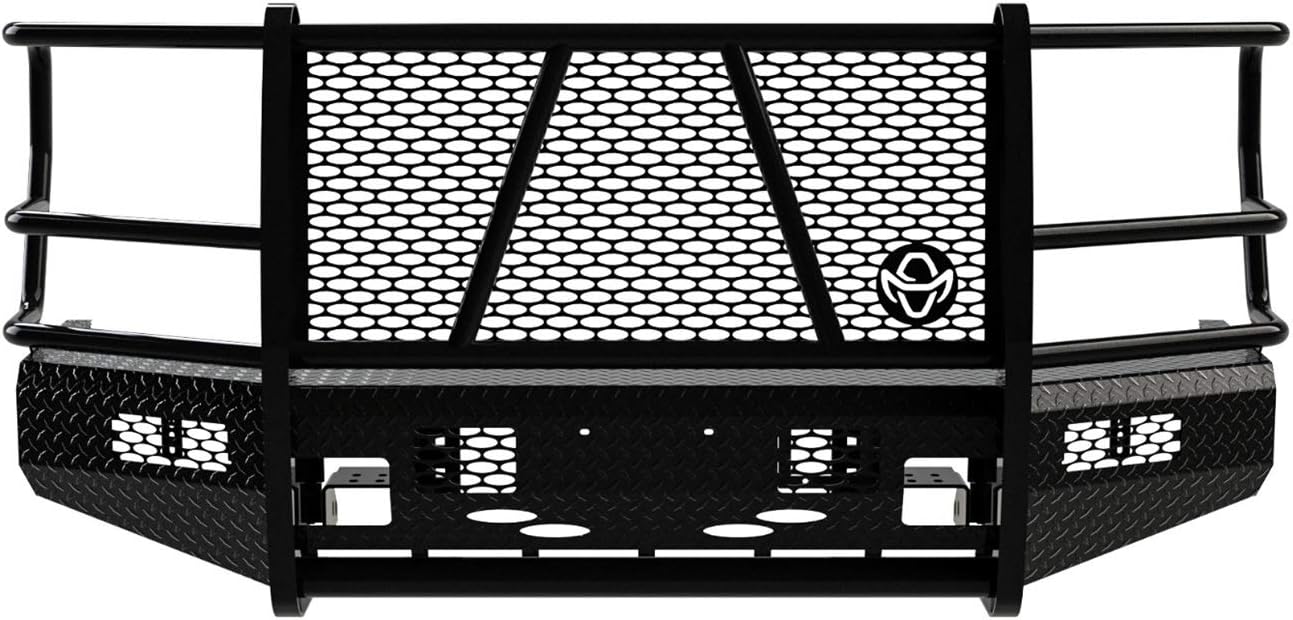

Image 1: Front view of the Ranch Hand FSF201BL1 bumper. This image displays the robust construction and design of the bumper, including the integrated grille guard and textured diamond plate sections.

Image 2: Angled front view of the Ranch Hand FSF201BL1 bumper. This perspective shows the depth and protective capabilities of the bumper, including the side bars and potential mounting points for auxiliary lighting.

Image 3: Side profile view of the Ranch Hand FSF201BL1 bumper. This image illustrates how the bumper extends to provide side protection for the vehicle's front end.

Image 4: Close-up view of the Ranch Hand FSF201BL1 bumper's internal structure. This image details the robust mounting brackets and cutouts designed for auxiliary lights or other accessories.

Usage Considerations

After installation, consider the following points for optimal performance and safety:

• Vehicle Clearance: Be aware of the increased front-end dimensions and weight, which may affect approach angles and overall vehicle handling.
• Sensor Functionality: If your vehicle has front parking sensors or adaptive cruise control, ensure they are properly calibrated and functioning after bumper installation.
• Lighting: Verify that all factory and aftermarket lighting integrated into the bumper is functioning correctly.

Maintenance

Regular maintenance will help preserve the appearance and integrity of your Ranch Hand bumper.

• Cleaning: Wash the bumper regularly with mild soap and water to remove dirt, salt, and other corrosive materials. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
• Inspection: Periodically inspect all mounting hardware for tightness. Re-torque bolts as necessary. Check for any signs of rust, damage, or wear on the bumper and its components.
• Touch-Up: If the powder coat finish is chipped or scratched, promptly touch it up with appropriate paint to prevent rust.

Troubleshooting

This section addresses common issues you might encounter.

• Loose Bumper: If the bumper feels loose or rattles, check all mounting bolts and ensure they are tightened to the correct torque specifications.
• Misalignment: If the bumper appears misaligned, loosen the mounting bolts slightly, adjust the bumper's position, and then re-tighten.
• Sensor Malfunction: If vehicle sensors (e.g., parking sensors) are not functioning correctly after installation, ensure they are properly connected and clear of obstructions. Consult a professional for recalibration if needed.
• Rust Spots: Small rust spots on the powder coat can be treated by cleaning the area, sanding lightly, and applying a rust-inhibiting primer and matching paint.

Specifications

Warranty Information

Ranch Hand products are manufactured to high standards. For specific warranty details regarding your FSF201BL1 Front Replacement Bumper, please refer to the official Ranch Hand website or contact their customer service department. Keep your proof of purchase for warranty claims.

Customer Support

For technical assistance, installation questions, or warranty inquiries, please contact Ranch Hand customer support directly. Visit the official Ranch Hand website for current contact information.

Note: Always provide your product model number (FSF201BL1) and proof of purchase when contacting support.
