1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Peerless Elmhurst P2465LF-OB Two-Handle Centerset Bath Faucet. Please read all instructions carefully before beginning installation and retain this manual for future reference. This faucet is designed for 3-hole, 4-inch installations and features a durable ceramic cartridge and a WaterSense label, indicating efficient water usage.
2. Product Overview
The Peerless Elmhurst Two-Handle Centerset Bath Faucet in Oil Rubbed Bronze is designed for bathroom sink applications. Key features include:
- Fits 3-hole 4 in. installations.
- Push pop-up drain assembly in matching finish (included) is ADA compliant and simple to install, operate and clean.
- ADA compliant design.
- WaterSense labeled faucet uses at least 20% less water than the industry standard without compromising performance.
- Rigid spout that does not swivel.
- Equipped with a ceramic cartridge for durability.
Figure 2.1: Peerless Elmhurst Two-Handle Centerset Bath Faucet in Oil Rubbed Bronze.
Figure 2.2: Detailed diagram illustrating the dimensions and key features of the Elmhurst faucet, including spout reach, height, width, and installation hole requirements.
3. Setup and Installation
This faucet is designed for a 3-hole, 4-inch centerset installation. Ensure you have all necessary tools and follow local plumbing codes. A matching push pop-up drain assembly is included for convenience.
3.1 Pre-Installation Checklist
- Verify all components are present (faucet body, handles, pop-up drain assembly, mounting hardware).
- Turn off the main water supply to the bathroom.
- Clear the work area under the sink.
3.2 Installation Steps (Summary)
- Remove the old faucet and clean the sink surface.
- Install the faucet body onto the sink deck, ensuring proper alignment with the 3 holes.
- Secure the faucet from underneath the sink using the provided mounting hardware.
- Connect the hot and cold water supply lines to the faucet inlets. (Supply lines are not included and must be purchased separately).
- Install the push pop-up drain assembly into the sink drain hole, ensuring a watertight seal.
- Connect the drain assembly to the P-trap.
- Turn on the main water supply and check for leaks.
For detailed visual guidance, please refer to the official product video below.
Video 3.1: Official Peerless Elmhurst Product Video (P2465LF). This video demonstrates the features and installation process of the Elmhurst faucet, including its 3-hole installation and matching pop-up drain.
4. Operating Instructions
Your Peerless Elmhurst faucet features two handles for precise control over water temperature and flow, along with a push pop-up drain.
4.1 Water Flow and Temperature Control
- To turn on the cold water, rotate the right handle counter-clockwise.
- To turn on the hot water, rotate the left handle counter-clockwise.
- Adjust both handles to achieve the desired water temperature and flow rate.
- To turn off the water, rotate the handles clockwise until the flow stops.
4.2 Pop-Up Drain Operation
- To close the drain and fill the sink, press down on the top of the drain stopper.
- To open the drain and allow water to flow out, press down on the top of the drain stopper again.

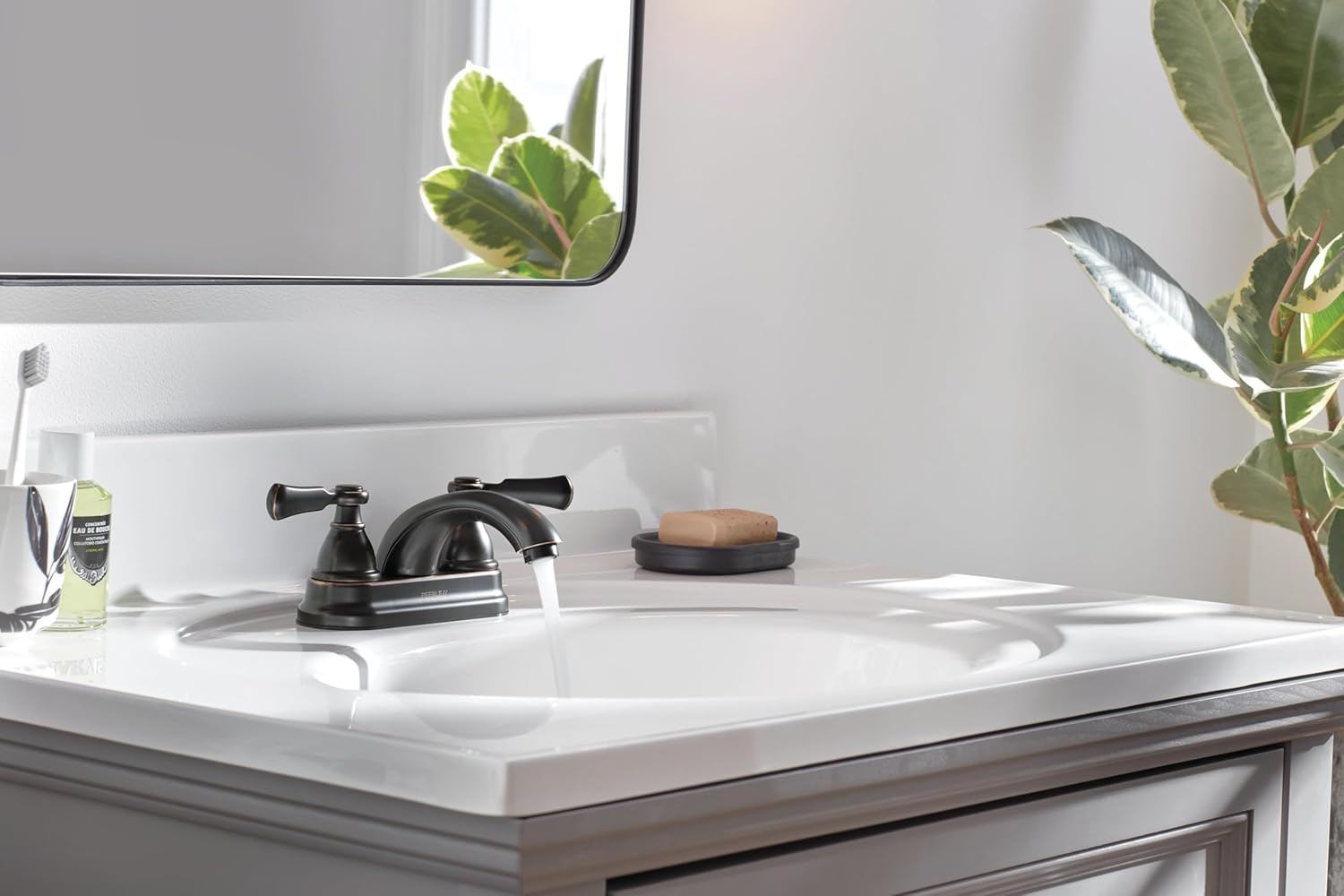

Figure 4.1: The Peerless Elmhurst faucet installed and in operation, demonstrating water flow into a bathroom sink.
5. Maintenance
Regular cleaning and maintenance will help preserve the finish and functionality of your faucet.
5.1 Cleaning the Faucet
- Clean the faucet with a mild soap and water solution.
- Rinse thoroughly with clean water and dry with a soft cloth.
- Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the Oil Rubbed Bronze finish.
5.2 Aerator Maintenance
- If water flow decreases, the aerator may be clogged.
- Unscrew the aerator from the end of the spout.
- Rinse any debris from the aerator screen under running water.
- Reattach the aerator to the spout.
6. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator or partially closed shut-off valves. | Clean the aerator (see Section 5.2). Ensure shut-off valves under the sink are fully open. |
| Leaks from Spout | Worn ceramic cartridge or loose connections. | Tighten connections. If problem persists, the ceramic cartridge may need replacement. Contact customer support. |
| Leaks from Base of Faucet | Loose mounting nuts or improper sealant during installation. | Tighten mounting nuts under the sink. If necessary, re-install the faucet with proper sealant. |
| Drain Stopper Not Sealing | Debris in drain or improper adjustment. | Clear any debris from the drain. Check the adjustment of the pop-up drain mechanism. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Peerless |
| Model Name | Elmhurst Two-Handle Centerset Bath Faucet |
| Model Number | P2465LF-OB |
| Color | Oil Rubbed Bronze |
| Material | Zinc (Body), Ceramic (Handles) |
| Mounting Type | Deck Mount |
| Number of Handles | 2 |
| Hole Count | 3 |
| Special Feature | Pop Up Drain (included) |
| Installation Type | Centerset |
| Spout Design | Traditional curve |
| Item Weight | 2.78 pounds |
| Product Dimensions | 5.75 x 6.25 x 3.5 inches |
| Manufacturer | Delta Faucet Company |
| UPC | 034449957489 |
8. Warranty and Support
Your Peerless Elmhurst faucet is backed by a Limited Lifetime Warranty. For warranty claims, technical assistance, or replacement parts, please contact Peerless customer support.
