Ejoyous Mini Portable Washing Machine User Manual

Introduction

Thank you for choosing the Ejoyous Mini Portable Washing Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and retain it for future reference.

Safety Information

• Ensure the washing machine is placed on a stable, flat surface to prevent tipping.
• Do not immerse the main unit (host) in water. Only the bucket and the turbine component are designed for water contact.
• Keep the USB power cable away from water and ensure it is not damaged before use.
• Do not overload the machine. It is designed for small items such as underwear, socks, or baby clothes.
• Always unplug the machine before cleaning or when not in use.
• Keep out of reach of children.
• Use only the provided power adapter (if any) or a compatible 5V USB power source.
• The washing machine cover with buckle helps prevent water overflow during operation. Ensure it is properly secured.

Product Overview

Components

• Host Unit: Contains the motor and control electronics.
• Washing Bucket: The container for water and clothes.
• Turbine/Pulsator: The rotating component at the bottom of the bucket that creates water flow.
• Double-Sided Suction Cup: Used to secure the turbine unit to the bottom of the bucket.
• Cover: Prevents water splashing and overflow.
• USB Cable: For power supply.

Features

• Super Shock Wave Technology: Emulsifies and removes dirt effectively.
• Spiral Water Flow Washing: Utilizes low water level washing and high water level soaking for thorough cleaning.
• Turbine Forward and Reverse Washing: Gently rubs clothes to minimize wear.
• 3.8L Capacity: Ideal for small loads such as one set of underwear or 3-5 pairs of socks.
• USB Powered: Convenient for use with various USB power sources.
• Compact and Portable Design: Easy to store and transport for dorms, apartments, RVs, camping, and travel.
• Low Noise Operation: Operates at approximately 45 decibels.

Image: The Ejoyous Mini Portable Washing Machine with its main components: the white bucket and the separate blue turbine unit.

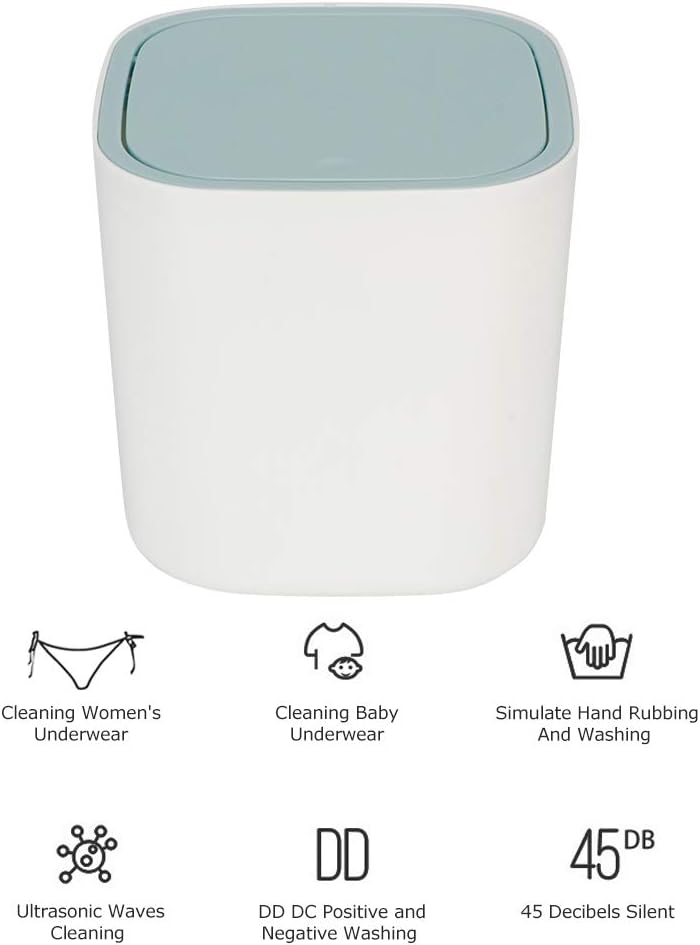

Image: Icons illustrating key features: cleaning women's underwear, cleaning baby underwear, simulating hand rubbing and washing, ultrasonic waves cleaning, DD DC positive and negative washing, and 45 decibels silent operation.

Setup

1. Unpack: Carefully remove all components from the packaging.
2. Assemble Turbine: Place the turbine unit at the bottom center of the washing bucket.
3. Secure Turbine: Use the double-sided suction cup to firmly attach the turbine unit to the bottom of the bucket. Ensure it is securely fixed to prevent movement during operation.
4. Position: Place the assembled washing machine on a stable, flat surface.
5. Connect Power: Insert the USB cable into the machine's port and connect it to a compatible 5V USB power source (e.g., a wall adapter, power bank, or computer USB port).

Operating Instructions

1. Add Water: Fill the washing bucket with the appropriate amount of water. For low water level washing, fill to the lower mark; for high water level soaking, fill to the higher mark.
2. Add Detergent: Add a small amount of liquid detergent suitable for delicate items. Avoid excessive foaming detergents.
3. Load Laundry: Place your small laundry items (e.g., underwear, socks) into the bucket. Do not exceed the 3.8L capacity.
4. Close Cover: Securely close the washing machine cover using the buckle to prevent water from overflowing.
5. Start Washing: Press the power button (if available, otherwise it may start automatically upon power connection) to begin the washing cycle. The turbine will start rotating in forward and reverse directions.
6. Washing Process: The machine will perform a spiral water flow wash, utilizing super shock wave technology to clean your items.
7. Drain and Rinse: After the cycle, unplug the machine. Carefully remove the cover and drain the water. You may rinse the items under running water or by refilling the bucket with clean water and running a short cycle without detergent.
8. Remove Laundry: Once rinsed, remove your clean laundry.

Image: A hand placing a light blue garment into the open Ejoyous Mini Portable Washing Machine.

Image: Close-up view of the washing machine in operation, showing clothes being agitated by super shock wave technology, emulsifying and peeling off dirt.

Image: Details of the washing machine cover with a buckle mechanism to prevent overflow, and the spiral hole arrangement on the turbine for effective rinsing and washing.

Image: A close-up showing the turbine's design for forward and reverse washing, carefully rubbing clothes to minimize wear, alongside an illustration of super shock wave cleaning action on fabric.

Image: An overhead view of the washing machine in operation, demonstrating the spiral water flowing washing method with labels for 'Low water level washing' and 'High water level soaking'.

Maintenance

• Cleaning: After each use, unplug the machine and empty any remaining water. Wipe the inside of the bucket and the turbine unit with a soft, damp cloth.
• Detergent Residue: Ensure no detergent residue is left in the bucket or on the turbine. Rinse thoroughly if necessary.
• Exterior: Clean the exterior of the machine with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the machine in a cool, dry place away from direct sunlight when not in use.

Troubleshooting

Specifications

Image: Diagram showing the dimensions of the Ejoyous Mini Portable Washing Machine: 17.3cm (6.8in) width, 17.5cm (6.9in) depth, and 17.4cm (6.9in) height.

Warranty and Support

This product comes with a standard manufacturer's warranty. Please refer to the packaging or contact your retailer for specific warranty terms and conditions.

For technical support, questions, or assistance with your Ejoyous Mini Portable Washing Machine, please contact the manufacturer or your point of purchase. You may also visit the Ejoyous Store on Amazon for more information.
