Creality LD-002H Resin 3D Printer User Manual

1. Introduction

The Creality LD-002H Resin 3D Printer is an advanced resin printer designed for high-precision 3D printing. Featuring a 6.08-inch 2K monochrome LCD and an upgraded UV integrated light source, it offers fast printing speeds and exceptional detail. This manual provides essential information for setting up, operating, and maintaining your LD-002H printer to ensure optimal performance and longevity.

Figure 1: Creality LD-002H Resin 3D Printer.

Key Features:

• Fast Printing and Longer Lifespan: Utilizes a 6-inch 2K HD monochrome LCD for rapid curing (1-4s/layer) and extended screen life.
• Ultra Accuracy Printing: Equipped with a UV integrated light source module and upgraded transmission system for improved precision and detail.
• Air Filtration System: Built-in activated carbon filter absorbs resin fumes for a more pleasant printing experience.
• CHITUBOX Slicing Software: Compatible with CHITUBOX for easy model support addition and size adjustment.
• User-Friendly Interface: 3.5-inch full-color touch screen for real-time monitoring and easy operation.

2. Setup Guide

2.1 Unboxing and Initial Assembly

Carefully remove all components from the packaging. Ensure all accessories listed in the 'What's in the Box' section are present. The printer comes largely pre-assembled, requiring minimal setup.

2.2 Installing the Build Platform and Resin Vat

1. Remove the red plastic cover from the printer.
2. Carefully remove the resin vat by loosening its screws and lifting it out.
3. Install the build platform onto the Z-axis arm and tighten its securing screws.

Figure 2: Manually Leveling System. The image shows the build platform and the adjustment knobs for leveling.

2.3 Leveling the Build Platform

Accurate leveling is crucial for successful prints. Follow these steps:

1. Loosen the screws on the build platform.
2. Place a piece of A4 paper on the LCD screen.
3. On the touch screen, navigate to 'Tools' and select 'Manual Auto-Home' to lower the platform until it presses against the paper.
4. Gently pull the paper to feel slight resistance. If needed, adjust the platform height using the on-screen controls (up/down arrows) until the paper can be pulled with slight friction.
5. Tighten the build platform screws securely while maintaining the paper's position.
6. Remove the paper.

2.4 Pouring Resin

Before pouring resin, ensure you are wearing appropriate personal protective equipment, including gloves and a mask, and working in a well-ventilated area.

1. Shake the resin bottle well before opening.
2. Carefully pour the photosensitive resin into the resin vat, ensuring it does not exceed the maximum fill line.
3. Replace the red plastic cover on the printer.

Figure 3: Pouring Photosensitive Resin. Always wear gloves and ensure proper ventilation.

3. Operating Instructions

3.1 Powering On and User Interface

Connect the power supply and press the ON/OFF button. The 3.5-inch full-color touch screen provides an intuitive interface for controlling the printer.

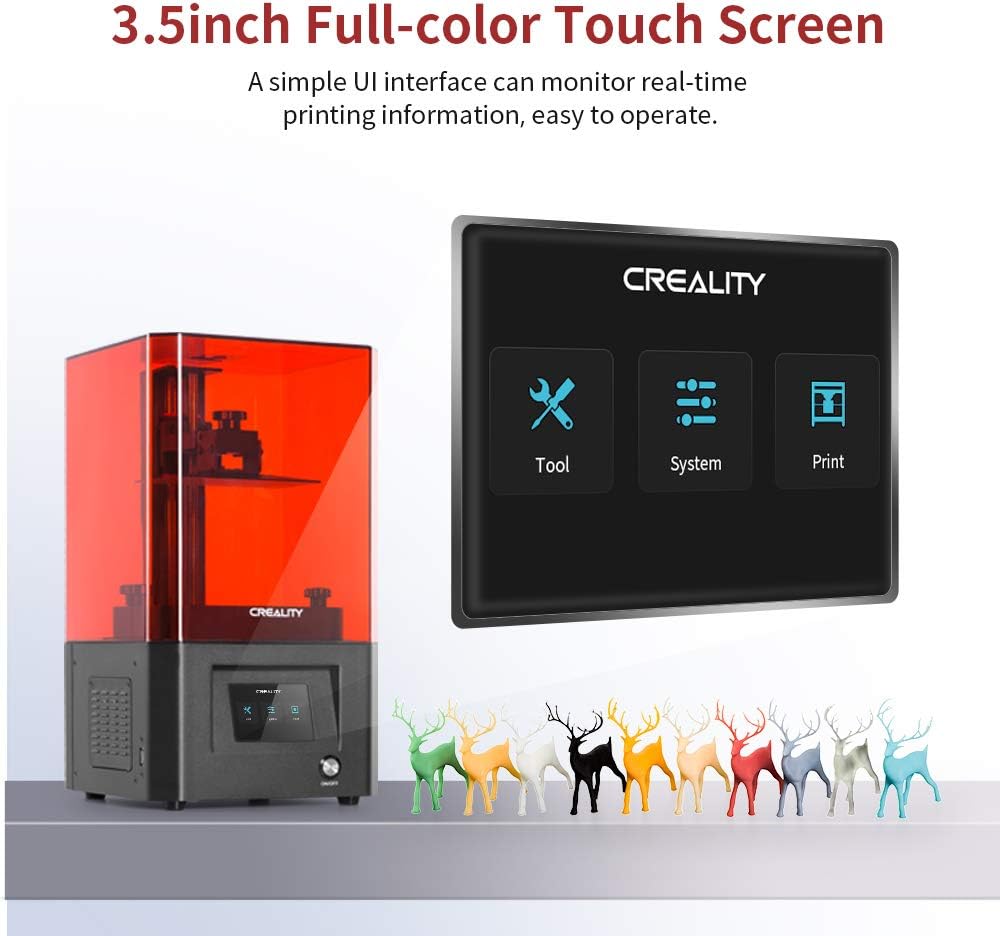

Figure 4: 3.5-inch Full-color Touch Screen. The user interface allows for easy navigation and control.

3.2 Preparing Print Files with CHITUBOX

The LD-002H printer is compatible with CHITUBOX slicing software. Use CHITUBOX to prepare your 3D models, add necessary supports, and slice them into a printable format (.ctb files).

Figure 5: Powerful Slicer Software. CHITUBOX allows for model preparation and support generation.

3.3 Starting a Print

1. Save your sliced .ctb file onto the provided USB disk.
2. Insert the USB disk into the printer's USB port.
3. On the touch screen, select 'Print'.
4. Browse and select your desired print file from the USB disk.
5. Confirm the print parameters (Bottom Layer, Bottom Exposure, Normal Exposure, Exposure Off) and adjust if necessary.
6. Press 'Play' to begin the printing process.

4. Maintenance

Regular maintenance ensures the longevity and consistent performance of your Creality LD-002H printer.

4.1 Cleaning the Build Platform and Printed Models

After each print, carefully remove the build platform. Use a scraper to detach the printed model. Clean the build platform and the printed model with isopropyl alcohol (IPA) to remove any uncured resin. Allow them to dry completely before re-use or post-curing.

4.2 Resin Vat and FEP Film Care

Inspect the FEP film at the bottom of the resin vat regularly for damage or cloudiness. If there are cured resin bits, carefully remove them. If the FEP film is significantly damaged or cloudy, it should be replaced to prevent print failures.

4.3 Air Filtration System

The printer features a built-in air filtration system with activated carbon to absorb resin fumes. Periodically check and replace the activated carbon filter as needed to maintain effective fume absorption.

Figure 6: Air Filtering System. The integrated fan and activated carbon filter help manage resin odors.

5. Troubleshooting

This section addresses common issues you might encounter with your LD-002H printer.

5.1 Grinding Noise During Printing

If the printer produces a grinding noise during operation, especially when the build platform is lowering, it may indicate that the Z-axis is attempting to move beyond its physical limit or is encountering resistance. This can happen if the build platform is not correctly leveled or if there is an obstruction in the resin vat or on the LCD screen. Ensure the build platform is properly leveled as per Section 2.3 and that there are no foreign objects in the resin vat or on the LCD screen. If the issue persists after re-leveling and checking for obstructions, contact customer support.

5.2 Print Failures (e.g., models not sticking, partial prints)

• Model not sticking to platform: Re-level the build platform (Section 2.3). Increase bottom exposure time in slicing software. Ensure the build platform is clean and free of grease.
• Partial prints or layers missing: Check the FEP film for damage or cloudiness. Ensure the resin is well-mixed and at an appropriate temperature. Verify that the sliced file is not corrupted.
• Resin cured on LCD screen: Immediately clean the LCD screen. This often indicates a damaged FEP film or incorrect print settings.

6. Specifications

Figure 7: Product Dimensions.

Figure 8: Build Volume.

7. Warranty and Support

Comgrow, as the first agency and largest strategic partner of Creality 3D, is dedicated to providing high-quality and economical 3D printers. Our products are exported to over 200 countries and regions. We are committed to improving product quality and ensuring customer satisfaction.

What's in the Box:

• Creality LD-002H 3D Printer
• User Manual
• Release film for 3D printer
• Mask
• Plastic gloves
• Paper funnel
• Warranty card
• Tools (scrapers, Allen wrench)
• U disk (USB drive)
• Power cord

Technical Support:

For any further questions or technical assistance, please feel free to contact us via Amazon message. Our team of over 20 professional technical staff is ready to assist you.

Figure 9: Technical Support Information.

You can also visit the Comgrow Store for more product information and resources.
