SAMEBIKE Electric Mountain Bike User Manual

Introduction

Thank you for choosing the SAMEBIKE Electric Mountain Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new e-bike. Please read it thoroughly before your first ride and keep it for future reference.

Figure 1: SAMEBIKE Electric Mountain Bike (Black Color)

Safety Information

• Always wear a helmet when riding.
• Familiarize yourself with local traffic laws and regulations for electric bicycles.
• Perform a pre-ride inspection before each use, checking brakes, tires, and battery level.
• Do not ride under the influence of alcohol or drugs.
• Avoid riding in adverse weather conditions, such as heavy rain or snow.
• Ensure all components are securely fastened before riding.

Package Contents

Your SAMEBIKE Electric Mountain Bike package should include the following items:

• SAMEBIKE Electric Mountain Bike (main frame, rear wheel, motor pre-assembled)
• Front Wheel
• Handlebar Assembly
• Seat Post and Saddle
• Pedals (Left and Right)
• Charger
• E-Bike Accessory Kit (tools for assembly)
• User Manual (this document)

Setup and Assembly

Follow these steps to assemble your SAMEBIKE Electric Mountain Bike. It is recommended to watch the assembly video for visual guidance.

Assembly Video Guide

This video demonstrates the assembly process, including attaching the front wheel, handlebars, and pedals, as well as showcasing key features like the display and gears.

Step-by-Step Assembly

1. Install the Front Wheel: Carefully align the front wheel with the fork. Ensure the disc brake rotor slides correctly into the brake caliper. Secure the wheel using the quick-release skewer or axle nuts provided.

   Figure 2: Front wheel disc brake assembly.

2. Attach the Handlebar: Insert the handlebar stem into the fork's steerer tube. Adjust the height and angle for comfortable riding, then tighten the stem bolts securely. Ensure the cables are not twisted.

   Figure 3: Handlebar controls and display.

3. Install the Pedals: Identify the left (L) and right (R) pedals. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Apply a small amount of grease to the threads and tighten them firmly with a wrench.
4. Adjust the Seat: Insert the seat post into the frame's seat tube. Adjust the saddle height to ensure a comfortable and efficient pedaling position. Secure the quick-release lever or seat post clamp.

   Figure 4: Adjustable saddle for rider comfort.

5. Check Brakes and Gears: Test both front and rear brakes to ensure they engage properly. Verify that the gear shifter operates smoothly through all 7 gears.
6. Inflate Tires: Check the tire pressure and inflate to the recommended PSI (usually found on the tire sidewall).
7. Initial Battery Charge: Before your first ride, fully charge the battery. Connect the charger to the bike's charging port and then to a power outlet. The indicator light on the charger will change when fully charged.

Figure 5: Bike dimensions for proper fit and setup.

Operating Instructions

Powering On/Off

Press and hold the power button on the handlebar display to turn the e-bike system on or off. The display will illuminate, showing battery level and assist mode.

Pedal Assist System (PAS)

The bike features a pedal assist system. Use the '+' and '-' buttons on the display to select your desired assist level. Higher levels provide more motor assistance. The 350W brushless motor provides significant torque, making it easy to ride on various terrains.

Figure 6: Motor specifications and terrain capabilities.

Throttle Operation

For immediate power without pedaling, gently twist the throttle on the right handlebar. The throttle provides power up to the maximum speed allowed by the selected assist level or local regulations.

Gears (Shimano 7-Speed)

Use the Shimano shifter on the right handlebar to change gears. Shift to lower gears for climbing hills and higher gears for flat terrain or downhill riding. Always ease pressure on the pedals when shifting for smoother transitions.

Lights

Press the 'LIGHT' button on the display to turn the front headlight on or off. Ensure lights are used during low-light conditions or at night for visibility.

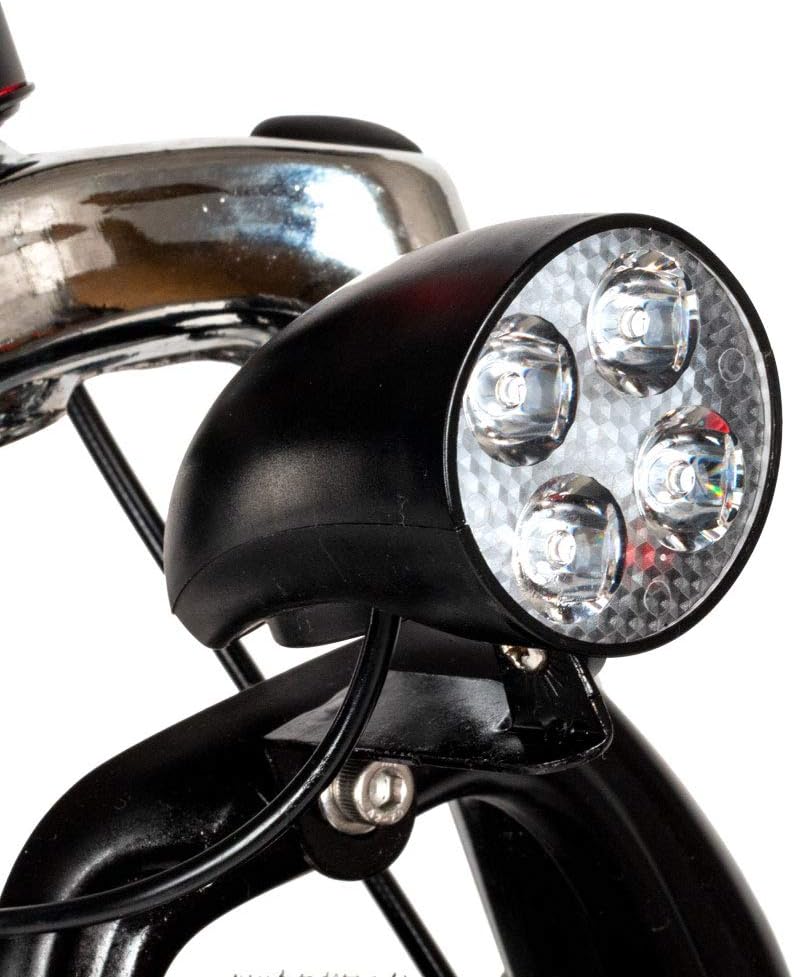

Figure 7: Integrated front LED headlight for visibility.

Braking

The bike is equipped with disc brakes for reliable stopping power. Use both brake levers simultaneously for effective and controlled braking. Practice braking in a safe area to get accustomed to the feel.

Maintenance

Regular maintenance ensures the longevity and safe operation of your e-bike.

• Battery Care:
  • Charge the battery regularly, even if not in use, to maintain its health.
  • Avoid fully discharging the battery.
  • Store the battery in a cool, dry place away from direct sunlight and extreme temperatures.
• Tire Pressure: Check tire pressure weekly and inflate to the recommended PSI. Proper inflation improves ride quality and prevents flats.
• Brake Inspection: Regularly inspect brake pads for wear and brake cables for tension. Adjust or replace as needed.
• Chain Lubrication: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
• General Cleaning: Clean the bike regularly with a damp cloth. Avoid using high-pressure washers directly on electrical components.
• Fastener Check: Periodically check all bolts and nuts for tightness, especially on critical components like the handlebars, seat post, and wheels.

Troubleshooting

Specifications

Warranty and Support

For detailed warranty information, please refer to the warranty card included with your product or visit the official SAMEBIKE website. If you encounter any issues or require technical assistance, please contact SAMEBIKE customer support through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.

You can visit the SAMEBIKE Store for more information: SAMEBIKE Store on Amazon
