Hopestar Greenhouse Hoops User Manual

Introduction

Thank you for choosing Hopestar Greenhouse Hoops. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new plant support system. Please read these instructions carefully before use and retain them for future reference.

Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

6 x Greenhouse Hoops (curved, plastic-coated steel pipe)
6 x Fixed Supports (straight, long 120cm/47.3inch, diameter 11mm/0.43inch)
6 x Connecting Pipes
12 x Ground Nails
100 x White Cable Ties
12 x Green Plant Covers Tube Clips

Diagram showing all components included in the Hopestar Greenhouse Hoops package: 6 curved hoops, 6 straight fixed supports, 6 connecting pipes, 12 ground nails, 100 cable ties, and 12 tube clips. — Figure 1: All components included in the Hopestar Greenhouse Hoops package.

Setup and Assembly

Follow these steps to assemble your greenhouse hoop system:

Prepare the Hoops: The greenhouse hoops are pre-curved. Insert the ends of each hoop into the ground to form an arch over your planting area. Ensure they are spaced evenly along the length of your garden bed.
Install Fixed Supports: Place the straight fixed supports vertically between the hoops. These supports provide additional stability and a framework for connecting the hoops.
Connect Hoops and Supports: Use the connecting pipes to join the tops of the hoops to the fixed supports. This creates a rigid tunnel structure. Secure these connections firmly.
Secure with Cable Ties: Utilize the provided cable ties to further secure the hoops to the fixed supports, especially at points where they intersect or require extra reinforcement.
Anchor with Ground Nails: Drive the ground nails into the soil at the base of the hoops and fixed supports to prevent the structure from shifting due to wind or other external forces.
Attach Covering (Optional): Once the frame is assembled, you can drape your chosen garden fabric, netting, or insulation film over the hoops. Use the green plant covers tube clips to secure the covering to the hoops. These clips can be used as a single unit or cut into two smaller clips for more attachment points.

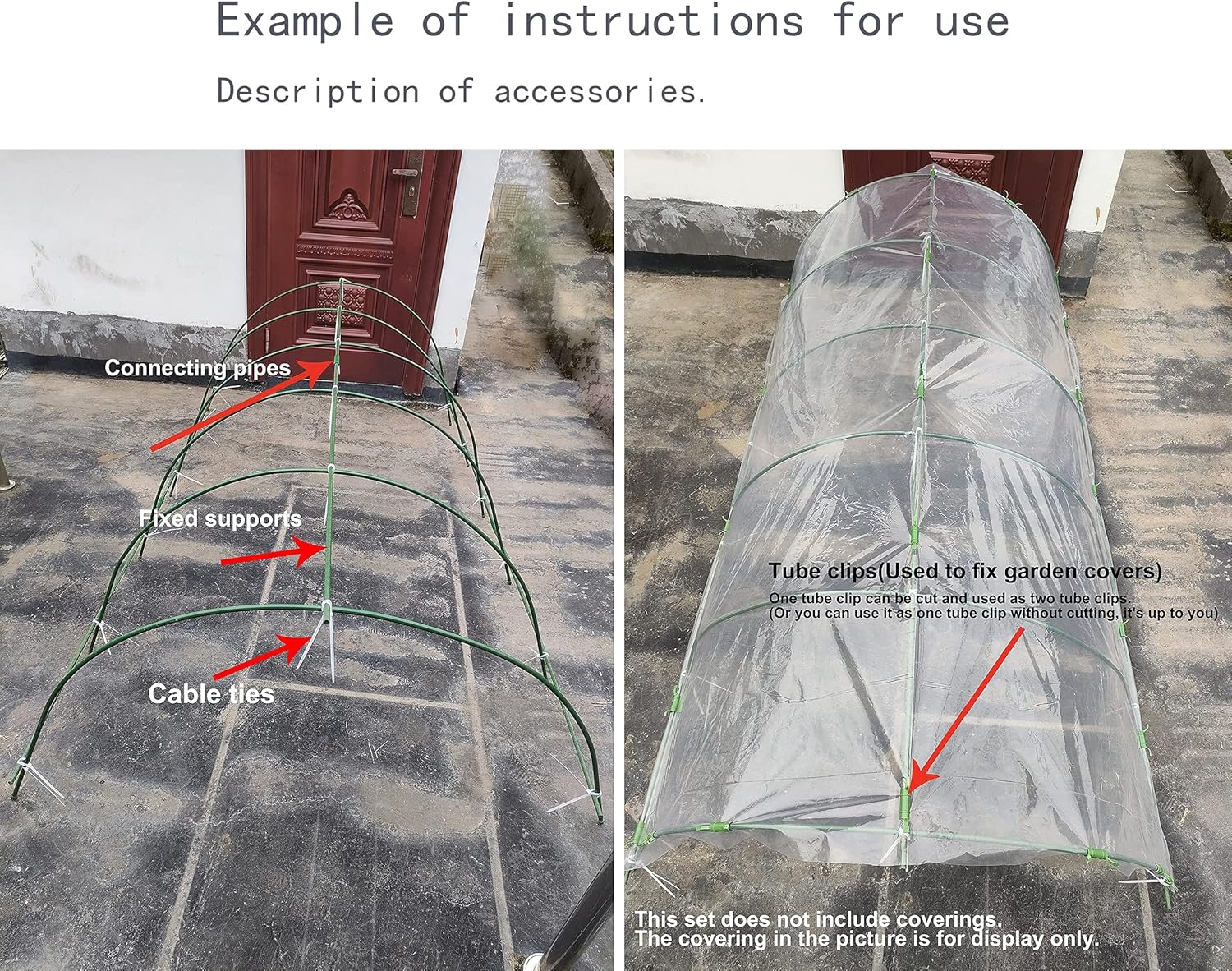

Two images demonstrating the assembly process. The left image shows the frame with connecting pipes, fixed supports, and cable ties. The right image shows the completed frame covered with a transparent garden cover, secured by tube clips. — Figure 2: Example of assembly and use with a garden cover. Note: Garden cover is not included.

Operating Instructions and Usage

The Hopestar Greenhouse Hoops are designed to create a protective environment for your plants. Here are guidelines for effective use:

Plant Protection: Use the hoop system with appropriate coverings (not included) to protect plants from various environmental factors.
Frost Protection: Apply insulation film or frost blankets during colder temperatures to shield plants from frost damage.
Pest and Bird Control: Utilize insect-proof nets or bird netting to prevent pests and birds from damaging your crops.
Sun Protection: Employ shading nets during intense sunlight to prevent scorching and reduce water evaporation.
Mini Greenhouse Effect: The enclosed space created by the hoops and covering provides an ideal environment for rapid germination and growth of young plants.

A garden bed with plants covered by a white mesh netting supported by the Hopestar Greenhouse Hoops, protecting the plants from pests. — Figure 3: Greenhouse hoops supporting a protective netting over a garden bed.

A collage of three images showing different applications of the greenhouse hoops: one in a raised garden bed with plants, another on a balcony supporting potted plants, and a third showing a row cover over young plants. — Figure 4: Versatile applications of the greenhouse hoops in various garden settings.

Care and Maintenance

Proper care will extend the lifespan of your Hopestar Greenhouse Hoops:

Cleaning: Wipe down the plastic-coated steel pipes with a damp cloth to remove dirt and debris. Avoid abrasive cleaners.
Inspection: Regularly inspect all connections, cable ties, and ground nails for tightness and integrity. Replace any worn or damaged components.
Storage: When not in use, disassemble the hoops and store them in a dry, protected area to prevent unnecessary wear and tear. The plastic-coated steel is rust-resistant, but proper storage is recommended for longevity.
Reusability: The hoops are designed for durability and reusability across multiple growing seasons.

A close-up image of the green plastic-coated steel pipe, highlighting its smooth, durable surface. — Figure 5: Close-up of the durable plastic-coated steel pipe material.

Troubleshooting

Problem	Possible Cause	Solution
Structure feels unstable.	Loose connections, insufficient ground anchoring.	Ensure all connecting pipes are firmly attached. Drive ground nails deeper or add more if necessary. Verify cable ties are tight.
Covering is not staying in place.	Tube clips are not properly secured or insufficient number of clips used.	Ensure tube clips are firmly attached to the hoops and covering. Use additional clips as needed. Consider using rocks or weights along the bottom edge of the covering.
Hoops are difficult to bend or insert into ground.	Hard or rocky soil.	Water the soil thoroughly before insertion to soften it. Use a rubber mallet to gently tap the hoops into place, avoiding excessive force.

Specifications

Model: B08HHJCS5B
Material: Plastic-coated steel pipe
Hoop Dimensions (after bending):
- Width: 125 cm (49.2 inches)
- Height: 70 cm (27.6 inches)
Hoop Length (before bending): 210 cm (6.9 feet)
Tube Diameter: 11 mm (0.43 inches)
Fixed Support Length: 120 cm (47.3 inches)
Package Weight: Approximately 5.29 pounds
Package Dimensions: 49.8 x 28.3 x 3 inches

A single greenhouse hoop showing its dimensions: 70cm (27.6 inches) in height and 125cm (49.2 inches) in width. — Figure 6: Dimensions of a single Hopestar Greenhouse Hoop.

Warranty and Support

For warranty information or customer support, please refer to the product packaging or contact your retailer. You may also visit the Hopestar Store on Amazon for additional product information and contact options.

Hopestar B08HHJCS5B
