1. Introduction
This manual provides comprehensive instructions for the CableCreation USB 3.0 to Gigabit Ethernet Adapter (Model CD0759). This device allows you to connect your USB 3.0 enabled computer or laptop to a wired network, providing a stable and high-speed internet connection up to 1000 Mbps. Please read this manual thoroughly before using the product to ensure proper operation and longevity.
2. Product Overview
The CableCreation USB 3.0 to Gigabit Ethernet Adapter is designed for reliable and fast network connectivity. Key features include:
- High-Speed Connectivity: Supports Gigabit Ethernet (1000 Mbps) with backward compatibility for 10/100 Mbps networks.
- USB 3.0 Interface: Utilizes a SuperSpeed USB 3.0 interface for data transfer rates up to 5 Gbps.
- Durable Design: Features a premium aluminum housing for efficient heat dissipation and a flexible, braided cable for enhanced durability.
- Compact and Portable: Lightweight and small form factor for easy transport.
Figure 2.1: CableCreation USB 3.0 to Gigabit Ethernet Adapter. This image shows the adapter with its USB 3.0 connector and RJ45 port, connected by a braided cable.
2.1 Design Features
- Braided Cable: The 12cm (approximately 4.8 inches) braided cotton cable provides extra strength and durability, reducing strain on the USB port.
- Aluminum Housing: The adapter's aluminum alloy casing offers superior thermal insulation and faster heat dissipation compared to plastic alternatives.
- USB 3.0 Plug: Designed for secure and stable connection, supporting up to 1 Gbps data transmission.

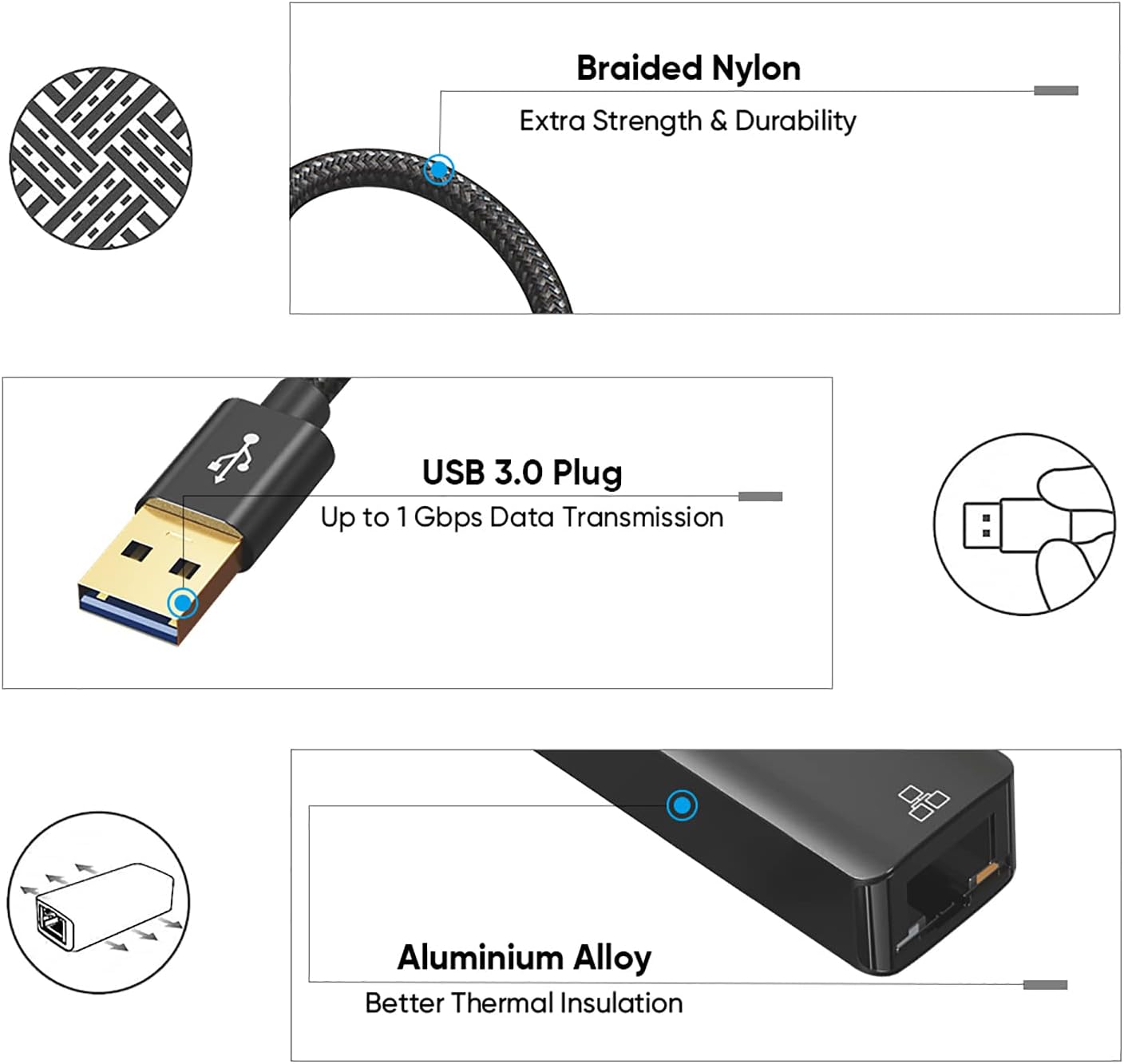

Figure 2.2: Detailed view of the adapter's design, highlighting the braided nylon cable for durability, the USB 3.0 plug for high-speed data, and the aluminum alloy housing for thermal management.
2.2 LED Indicators
The adapter features two LED indicators to provide status information:
- Signal Indicator (Yellow): Indicates network activity.
- Connection Indicator (Green): Indicates a successful network connection.
Figure 2.3: Close-up of the RJ45 port showing the yellow signal indicator and green connection indicator LEDs.
3. Setup
Setting up your CableCreation USB 3.0 to Gigabit Ethernet Adapter is a straightforward process.
3.1 Connecting the Adapter
- Locate an available USB 3.0 port on your computer or laptop.
- Plug the USB 3.0 connector of the adapter into the USB 3.0 port on your device.
- Connect a standard RJ45 Ethernet cable from your router or network switch to the RJ45 port on the adapter.
Figure 3.1: The adapter connected to a laptop's USB port, providing an RJ45 Ethernet connection.
3.2 Driver Installation
- Plug and Play: For most mainstream operating systems such as Chrome OS, Windows 10/8.1/8, the adapter is plug and play, requiring no manual driver installation.
- Driver Installation Required: For Windows 7/XP/Vista, macOS, and Linux systems, you may need to install a driver for first-time use. Typically, the necessary drivers are automatically detected and installed by the operating system upon connection. If not, please refer to the CableCreation support website for driver downloads.
4. Operating Instructions
Once the adapter is connected and drivers are installed (if necessary), your computer should automatically detect the wired network connection.
- Verify the green connection indicator LED on the adapter is illuminated, indicating a successful physical connection to the network.
- The yellow signal indicator LED will flash to show network activity (data transmission).
- Your operating system's network settings should display a new wired connection. You can configure network preferences (e.g., IP address, DNS) through your system's network control panel if required by your network administrator.
- Enjoy a stable and high-speed wired internet connection.
Figure 4.1: A laptop connected to a wired network via the USB to Ethernet adapter, illustrating a stable connection for tasks like data download or streaming.
Figure 4.2: Visual comparison demonstrating the potential speed and stability benefits of a wired connection (1000Mbps) over a typical Wi-Fi connection (3Mbps) for tasks like downloading large files.
5. Compatibility
The CableCreation USB 3.0 to Gigabit Ethernet Adapter offers broad compatibility with various devices and operating systems.
5.1 Supported Operating Systems
- Windows (32/64 bit) 10 / 8.1 / 8 / 7 / Vista / XP
- Mac OS X 10.5 or later
- Linux
- Chrome OS
5.2 Compatible Devices
The adapter is compatible with a wide range of devices including laptops, PCs, and tablets that have a USB 3.0 port. It is ideal for devices lacking a built-in RJ45 Ethernet port.
Note: This adapter is NOT compatible with Nintendo Switch, Wii, or Wii U.

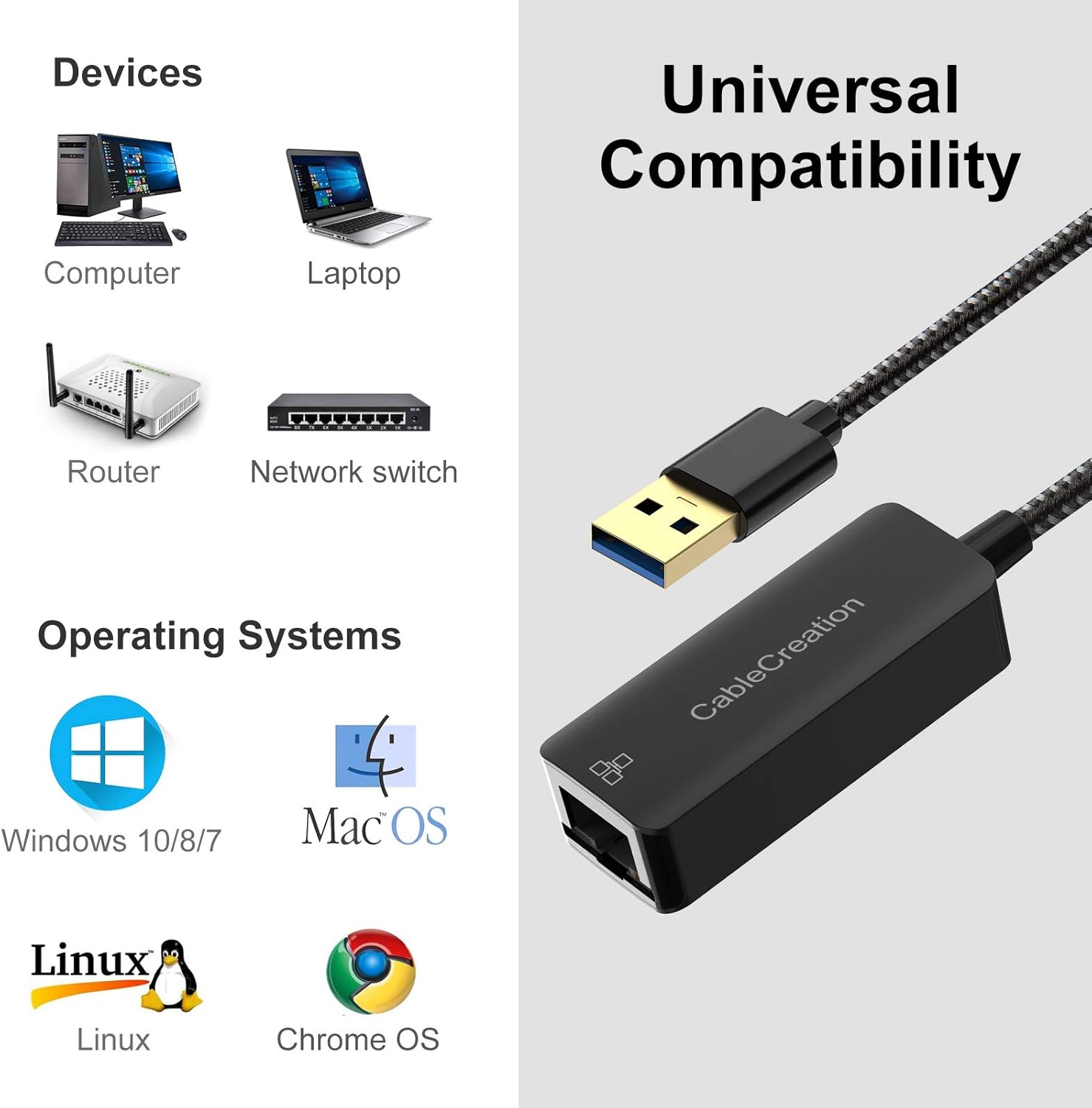

Figure 5.1: Visual representation of the adapter's universal compatibility with various devices (computers, laptops, routers, network switches) and operating systems (Windows, macOS, Linux, Chrome OS).
6. Troubleshooting
This section addresses common questions and issues you might encounter.
Q1: Does this LAN adapter require a driver?
A1: For most modern operating systems like Chrome OS, Windows 10/8.1/8, it is plug and play, meaning no driver software is required. However, for Windows 7/XP/Vista, macOS, and Linux systems, you may need to install a driver for first-time use. Your system usually handles this automatically. If not, check the CableCreation support website for specific driver downloads.
Q2: Will this work with Nintendo Switch?
A2: No, this adapter is not compatible with Nintendo Switch, Wii, or Wii U.
Q3: Will the Ethernet adapter overheat during operation?
A3: The adapter's temperature remains within a reasonable operating range. The aluminum housing is specifically designed to offer faster heat dissipation, preventing overheating.
7. Specifications
| Model Number | CD0759 |
| Brand | CableCreation |
| Hardware Interface | USB 3.0, Ethernet (RJ45) |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.3, USB |
| Data Transfer Rate | 1000 Megabits Per Second (Mbps) |
| Product Dimensions | 18.49 x 11.71 x 1.7 cm |
| Item Weight | 26 Grams |
| Housing Material | Aluminum |
| Cable Length | Approximately 12 cm (4.8 inches) |
Figure 7.1: Diagram illustrating the compact dimensions of the adapter, highlighting its slim and portable design.
8. Maintenance
To ensure the longevity and optimal performance of your CableCreation USB 3.0 to Gigabit Ethernet Adapter, follow these simple maintenance guidelines:
- Cleaning: Use a soft, dry cloth to gently wipe the adapter. Avoid using liquid cleaners or solvents, as they may damage the device.
- Storage: When not in use, store the adapter in a cool, dry place away from direct sunlight and extreme temperatures.
- Handling: Avoid bending the cable excessively or applying undue force to the connectors. Always grasp the plug when connecting or disconnecting, not the cable.
- Environment: Do not expose the adapter to water, moisture, or high humidity.
9. Warranty and Support
CableCreation products are designed for reliability and performance. For specific warranty information, please refer to the documentation included with your purchase or visit the official CableCreation website.
For technical support, driver downloads, or further assistance, please visit the CableCreation Store on Amazon or their official support channels.
