1. Introduction
Thank you for choosing the Alpicool CF45 Portable Refrigerator. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and retain it for future reference.
The Alpicool CF45 is a versatile 45-liter portable refrigerator and freezer designed for various applications, including automotive, camping, trucking, boating, and home use. It features efficient cooling, a wide temperature range, and multiple power options.
2. Safety Instructions
- Ensure the power supply voltage matches the specifications of the refrigerator.
- Do not operate the appliance if the power cord is damaged.
- Keep the ventilation openings clear of obstructions.
- Do not use electrical appliances inside the storage compartments unless they are of the type recommended by the manufacturer.
- Avoid placing the refrigerator in direct sunlight or near heat sources.
- Always disconnect the power supply before cleaning or performing maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Setup
3.1 Unpacking and Placement
Carefully remove the refrigerator from its packaging. Inspect for any damage during transit. Place the unit on a flat, stable surface, ensuring adequate ventilation around all sides. Allow at least 10 cm of space around the unit for proper airflow.
3.2 Power Connection
The Alpicool CF45 supports multiple power supply options:
- DC 12V/24V: Connect the DC power cord to your vehicle's 12V or 24V socket (cigarette lighter port).
- AC 100-240V: Use the AC power cord with the provided adapter to connect to a standard wall outlet.
- Portable Battery: The unit can also be powered by a compatible portable battery or solar generator (sold separately).
Image: The Alpicool CF45 can be powered by 12V/24V DC from a vehicle, 100-240V AC from a wall outlet, or a portable battery/solar setup.
3.3 Battery Protection Mode
The refrigerator features a 3-level battery protection system to prevent your vehicle's battery from draining completely. You can select between High (H), Medium (M), and Low (L) modes. The factory setting is High (H).
- High Mode (H): Recommended when connected to your car battery to ensure the car starts.
- Medium Mode (M): Suitable for portable batteries or backup batteries.
- Low Mode (L): Allows for deeper discharge, ideal when not relying on a vehicle's starting battery.
The refrigerator will automatically cut off power if the input voltage drops below the set threshold for the selected mode and resume operation when the voltage recovers.
Image: A table illustrating the voltage cut-out and cut-in points for the 3-level battery protection system (High, Medium, Low) for both 12V and 24V DC inputs.
4. Operating Instructions
4.1 Control Panel and Temperature Setting
The Alpicool CF45 features a multi-function control panel for easy operation. Use the buttons to adjust settings:
- Power Button: Turns the unit on or off.
- Increase Temperature Button: Increases the target temperature.
- Reduce Temperature Button: Decreases the target temperature.
- ECO/MAX Mode Setting: Toggles between energy-saving (ECO) and fast cooling (MAX) modes.
The temperature range is adjustable from -20°C to 20°C. The display shows the current internal temperature and other status indicators.
Image: The multi-function control panel of the Alpicool CF45, showing buttons for temperature adjustment, power, and ECO/MAX mode, alongside a smartphone demonstrating app control.
4.2 Cooling Modes (ECO/MAX)
- ECO Mode (Energy Saving): Operates with lower power consumption to maintain temperature, ideal for extended use.
- MAX Mode (Fast Cooling): Provides rapid cooling and freezing, suitable for quickly reaching desired temperatures.
Image: An illustration comparing ECO mode (45W, energy saving) and MAX mode (60W, fast cooling), demonstrating their respective power consumption and benefits, with the cooler interior filled with various items.
4.3 Dual Zone Design
The CF45 features partitioned storage, allowing it to function as both a refrigerator and a freezer simultaneously, or as a single temperature zone. The main compartment can be set to freeze while a smaller section maintains refrigeration temperatures.
- When the set temperature is above 0°C, both zones will refrigerate.
- When the set temperature is below 0°C, the freezer compartment will freeze, and the fridge zone will continue to refrigerate.
Image: A visual representation of the Alpicool CF45's dual zone design, explaining how temperature settings affect the function of the freezer and refrigerator compartments.
4.4 Interior LED Light
The refrigerator is equipped with an interior LED light for convenient use in low-light conditions, eliminating the need for an external flashlight.
Image: The Alpicool CF45 with its lid open, revealing an interior LED light, shown in a nighttime outdoor setting with people around a campfire.
4.5 Anti-Shake and Shockproof Design
The Alpicool CF45 is designed to be anti-shake and 40° shockproof, making it suitable for use in vehicles and rugged outdoor environments.
Image: The Alpicool CF45 positioned on uneven, rocky ground beside an off-road vehicle, highlighting its robust anti-shake and shockproof construction.
5. Maintenance
5.1 Cleaning
- Always unplug the unit before cleaning.
- Clean the interior and exterior surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents.
- Ensure the removable internal basket is cleaned regularly.
- Do not immerse the unit in water.
- Periodically clean the ventilation grilles to ensure proper airflow and prevent overheating.
5.2 Storage
When storing the refrigerator for an extended period, ensure it is clean and dry. Leave the lid slightly ajar to prevent odors and mold growth. Store in a dry, well-ventilated area.
6. Troubleshooting
If you encounter issues with your Alpicool CF45, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not turn on. | No power supply, damaged cable, or battery protection activated. | Check power connections. Ensure cables are not damaged. Verify battery voltage is above the cut-off threshold. Adjust battery protection mode if necessary. |
| Unit is not cooling effectively. | Insufficient ventilation, door not closed properly, or temperature setting too high. | Ensure adequate space around the unit for ventilation. Check that the lid is securely closed. Lower the temperature setting. Clean ventilation grilles. |
| Unusual noise during operation. | Unit not on a stable surface, or fan obstruction. | Place the unit on a flat, stable surface. Check for any obstructions in the fan area. |
| Bluetooth connectivity issues. | App malfunction or device compatibility. | Ensure Bluetooth is enabled on your device. Restart the app and the refrigerator. Check for app updates. |
If the problem persists after attempting these solutions, please contact customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Model | CF45 |
| Capacity | 45 Liters |
| Dimensions (D x W x H) | 34.5 x 69.3 x 45.6 cm |
| Weight | 12.7 kg |
| Voltage | 12V/24V DC, 100-240V AC |
| Temperature Range | -20°C to 20°C |
| Average Power Consumption | 60W |
| Annual Energy Consumption | 45 kWh/year (Energy Class C) |
| Cooling Method | Compressor |
| Defrost System | Automatic |
| Special Features | Water dispenser (as per product specifications), USB charging port, Interior LED light, Removable internal basket, Corner protectors, Anti-shake design. |
Image: Detailed dimensions and capacity breakdown of the Alpicool CF45 portable refrigerator.

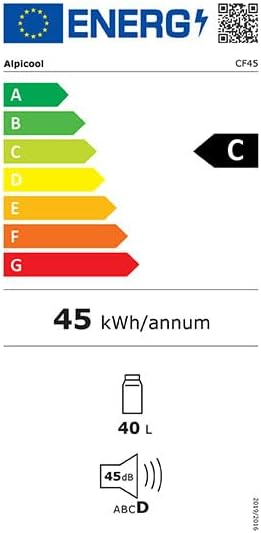

Image: The EU Energy Label for the Alpicool CF45, indicating its energy efficiency class, annual energy consumption, capacity, and noise level.
8. Warranty and Support
8.1 Warranty Information
The Alpicool CF45 Portable Refrigerator comes with a 3-month manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
8.2 Customer Support
For technical assistance, warranty claims, or any questions regarding your Alpicool CF45, please contact your retailer or the Alpicool customer service department. Refer to your purchase documentation for specific contact details.
