Introduction
Thank you for choosing the Rowenta XForce 8.50 Aqua RH9695 Cordless Vacuum Cleaner. This 4-in-1 appliance is designed for efficient cleaning from floor to ceiling, offering powerful suction, a unique Aqua head for simultaneous vacuuming and mopping, and flexible technology to reach difficult areas. Please read this manual carefully before using the appliance and keep it for future reference.
Image: The Rowenta XForce 8.50 Aqua RH9695 cordless vacuum cleaner being used to clean a carpeted floor.
Safety Instructions
Always observe the following safety precautions:
- This appliance is for domestic use only. Do not use it for industrial or commercial purposes.
- Do not use the appliance in wet conditions or on wet surfaces, except when using the Aqua head as intended.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Do not vacuum flammable or combustible materials, hot ashes, or sharp objects.
- Ensure the battery is fully charged before first use. Use only the charger supplied with the appliance.
- Do not operate the vacuum cleaner if it has been dropped, damaged, left outdoors, or dropped into water.
- Children should be supervised to ensure they do not play with the appliance.
Setup
1. Assembly
Carefully unpack all components. Assemble the main body, extension tube, and desired cleaning head (e.g., Power Led Vision head or Aqua head) by clicking them into place. Ensure all connections are secure.

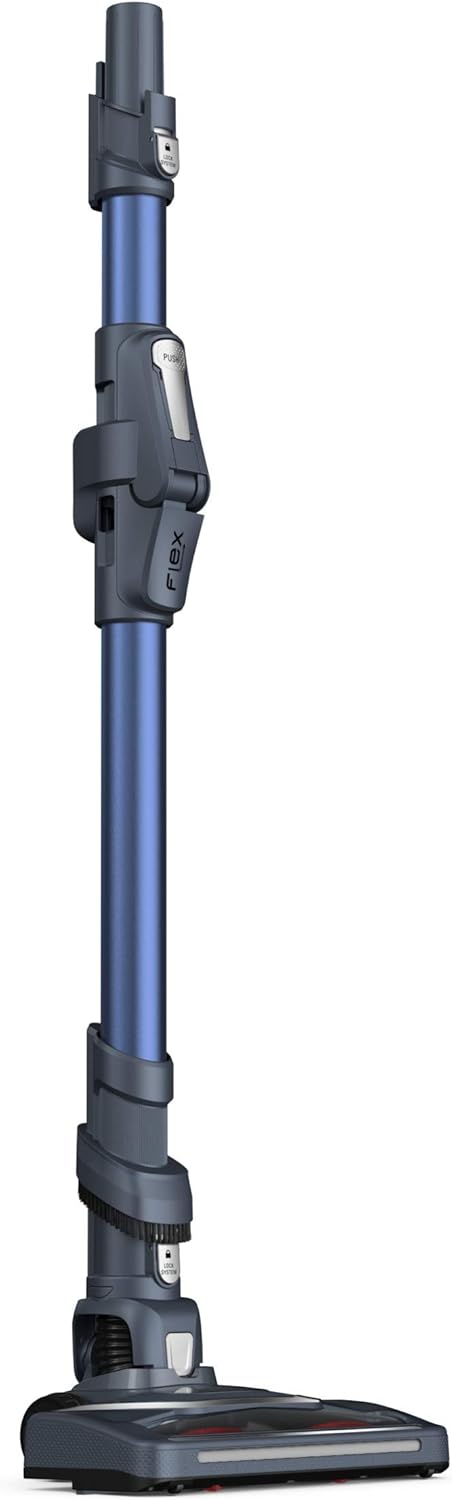

Image: The Rowenta XForce 8.50 Aqua RH9695 vacuum cleaner assembled and standing upright, showcasing its Stop&Go feature.
2. Battery Charging
The 22V Lithium-ion battery is removable. To charge, detach the battery from the main unit and connect it to the supplied charger. The charging indicator will show the charging status. A full charge provides up to 45 minutes of runtime, or up to 1 hour and 10 minutes with an optional additional battery.

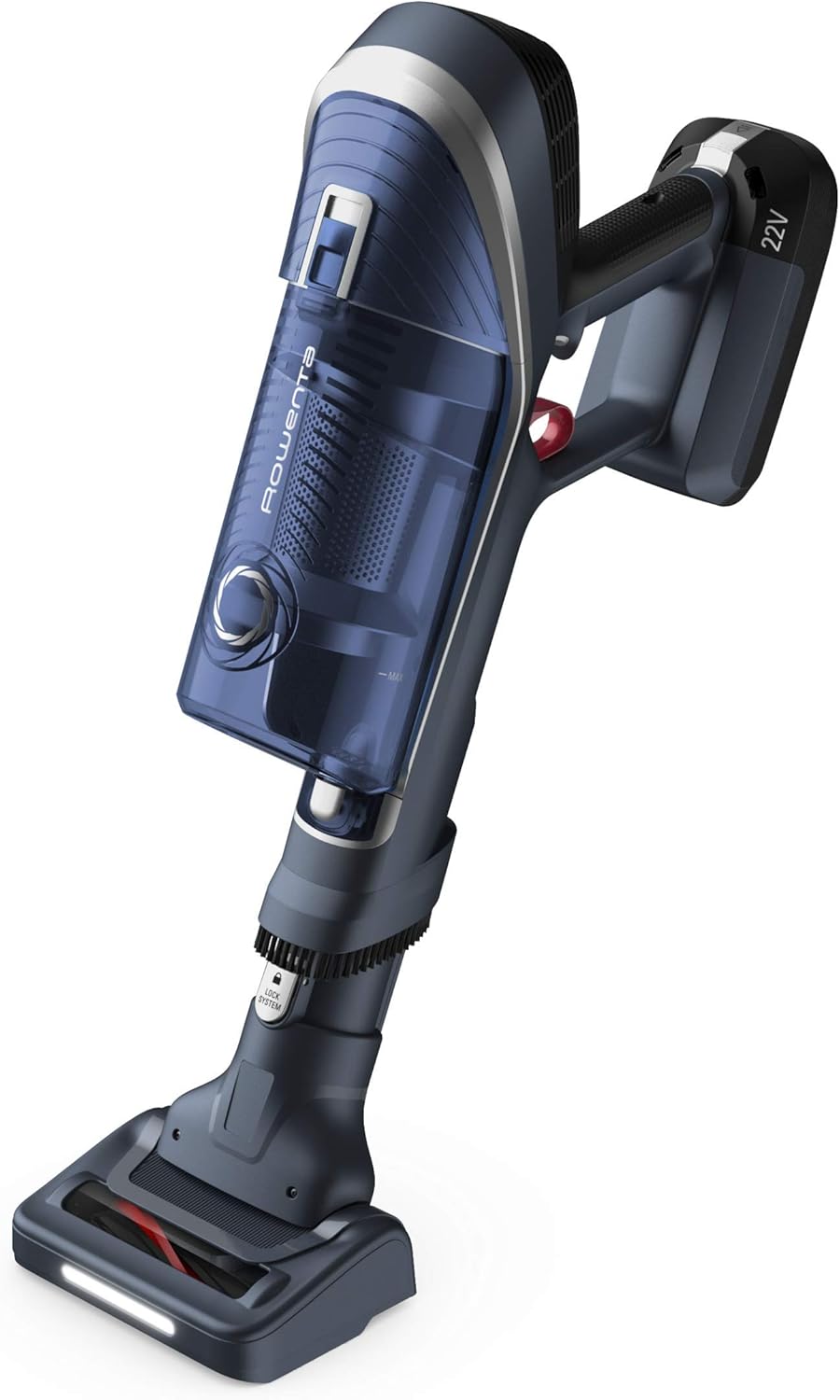

Image: Close-up of the handheld unit of the Rowenta XForce 8.50 Aqua RH9695, showing the removable 22V battery and dust bin.
3. Attaching the Aqua Head
To use the wet cleaning function, attach the Aqua head to the extension tube. Fill the water tank on the Aqua head with clean water. Ensure the mop pads are securely attached to the head.
Image: The Aqua head attachment for the Rowenta XForce 8.50 Aqua RH9695, showing the water tank and mop pad area.
Operating Instructions
1. Power On/Off and Suction Modes
Press the power button to turn the vacuum cleaner on. The appliance offers multiple power levels. Use the control panel to select the appropriate suction power for your cleaning task. The Power Led Vision head illuminates the cleaning path, making dust visible even in dark areas.
2. Using the Aqua Head (Vacuum and Mop)
With the Aqua head attached and filled, the vacuum cleaner can simultaneously vacuum and mop hard floors. Move the vacuum cleaner slowly over the surface to allow for effective cleaning and mopping.
3. Boost Function
For stubborn dirt or high-traffic areas, press the Boost trigger to activate maximum suction power. Release the trigger to return to the standard power setting.
4. Flex Technology
The flexible tube allows the vacuum to reach up to four times further under low-lying furniture without needing to bend down. Simply press the 'Flex' button on the tube to activate this feature.
Image: The Rowenta XForce 8.50 Aqua RH9695 vacuum cleaner with its flexible tube bent to clean under furniture.
5. Stop&Go Position
The Stop&Go feature allows the tube and head to stand upright independently while you use the handheld vacuum for other surfaces, providing convenience during cleaning sessions.
Image: The Rowenta XForce 8.50 Aqua RH9695 vacuum cleaner standing upright on its own, illustrating the Stop&Go function.
Maintenance
1. Emptying the Dust Bin
The 0.55L dust bin is designed for easy access and emptying. Simply detach the handheld unit, open the bin, and dispose of the contents. The bin does not need to be removed from the tube for emptying.
2. Cleaning Filters
The dust bin and EasyWash filter are 100% washable. Remove the filter and dust bin, rinse them under running water, and allow them to air dry completely before reassembling. Regular cleaning ensures optimal filtration and suction performance.
3. Cleaning the Aqua Head and Mop Pads
After each use, empty any remaining water from the Aqua head tank. Remove and wash the mop pads. Allow them to dry completely before storing. Clean the Aqua head itself with a damp cloth.
4. Cleaning Brushes and Accessories
Periodically check the main brush roll and any mini electro brushes for tangled hair or debris. Use scissors to cut away hair and remove any obstructions. Clean other accessories with a damp cloth as needed.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low suction power | Dust bin full, filter clogged, brush roll obstructed, or blockage in the tube/head. | Empty dust bin. Clean or replace filter. Remove obstructions from brush roll, tube, or head. |
| Vacuum cleaner stops during use | Battery low, motor overheating, or severe blockage. | Charge battery. Turn off and allow motor to cool. Check for and remove blockages. |
| Battery not charging | Charger not properly connected, or battery/charger fault. | Ensure charger is securely connected to both battery and power outlet. Contact customer support if issue persists. |
| Water not dispensing from Aqua head | Water tank empty, or nozzle clogged. | Refill water tank. Check and clean the water dispensing nozzles. |
Specifications
- Model Number: RH9695
- Power: 890 Watts
- Voltage: 22 Volts
- Battery Type: Lithium-ion
- Battery Life: Up to 45 minutes (standard mode), up to 1 hour 10 minutes with additional battery
- Dust Bin Capacity: 0.55 Liters
- Filter Type: Cyclonic, Allergen filter (filters up to 99% of particles)
- Noise Level: 70 Decibels
- Dimensions (L x W x H): 76 x 13.9 x 48.5 cm
- Weight: 2.7 Kilograms
- Special Features: Cordless, 4-in-1 function, Power Led Vision head, Aqua head, Stop&Go position, Flex technology
- Recommended Surfaces: Carpet, Hard floor
Image: Diagram showing the dimensions of the Rowenta XForce 8.50 Aqua RH9695 cordless vacuum cleaner.
Warranty Information
This Rowenta XForce 8.50 Aqua RH9695 vacuum cleaner comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your proof of purchase for any warranty claims.
Customer Support
For further assistance, troubleshooting, or to purchase replacement parts and accessories, please visit the official Rowenta website or contact Rowenta customer service. Contact details can typically be found on the Rowenta website or in your product packaging.
