Ledlenser P7R Core Rechargeable Flashlight User Manual
Model: P7R Core
1. Introduction
The Ledlenser P7R Core is a high-power, rechargeable LED flashlight designed for versatile use in various environments, including home, camping, tactical, and emergency situations. It features advanced light technology and a robust, waterproof design to ensure reliable performance.
Image: The Ledlenser P7R Core flashlight, showcasing its sleek black aluminum body and front lens.
2. Safety Information
- Eye Safety: Do not shine the flashlight directly into eyes. The high lumen output can cause temporary vision impairment.
- Battery Safety: Use only the specified Lithium Ion battery. Do not attempt to open, crush, or expose the battery to extreme temperatures or fire.
- Water Immersion: While the flashlight is IP68 rated for submersion up to 1.5 meters for 30 minutes, ensure the charging port is clean and dry before charging after water exposure.
- Children: Keep out of reach of children.
3. Package Contents
Verify that all items are present in the package:
- Ledlenser P7R Core Flashlight
- 1 Lithium Ion Battery (pre-installed or separate)
- Magnetic Charging Cable
- Lanyard
Image: An exploded view of the Ledlenser P7R Core flashlight showing the removable battery and the magnetic charging cable, along with battery status indicators.
4. Product Features
- Smart Light Technology: Customize light modes and switch sequences for personalized operation.
- Advanced Focus System: Seamlessly transition between a broad floodlight and a sharply focused spot beam.
- Magnetic Charge System: Convenient and robust charging solution with a battery status indicator.
- Constant Light Output: Maintains consistent brightness levels across various modes.
- IP68 Waterproof Rating: Submersible up to 1.5 meters for 30 minutes, offering superior protection against water and dust.
- Flex-Sealing Technology: Enhances protection against environmental elements.
- Durable Construction: Made from high-quality aluminum, drop-proof up to 2 meters.
Image: The Ledlenser P7R Core flashlight highlighting its Multi-Core Optics for light output and Advanced Focus System for seamless beam adjustment.
Image: Top and side views of the Ledlenser P7R Core, illustrating the Smart Light Technology for programmable functions and the Magnetic Charging System.
Image: The Ledlenser P7R Core flashlight partially submerged in water, demonstrating its Flex-Sealing Technology and superior protection against water.
5. Setup
5.1. Initial Charging
Before first use, fully charge the flashlight battery. Connect the magnetic charging cable to the flashlight's charging port and plug the USB end into a compatible USB power source (e.g., wall adapter, computer USB port). The battery status indicator will show charging progress.
5.2. Battery Installation (if not pre-installed)
- Unscrew the tail cap of the flashlight.
- Insert the Lithium Ion battery with the positive (+) end facing towards the head of the flashlight.
- Screw the tail cap back on securely.
6. Operating Instructions
6.1. Power On/Off
Press the power button located on the side of the flashlight to turn it on or off.
6.2. Changing Light Modes
The P7R Core features multiple light modes. Briefly press the power button repeatedly to cycle through the available modes: Low, Medium, High. A quick double-press may activate Boost mode, which provides maximum brightness temporarily.
6.3. Advanced Focus System
To adjust the beam from a wide floodlight to a narrow spot beam, slide the head of the flashlight forward or backward. This allows for precise illumination depending on your needs.

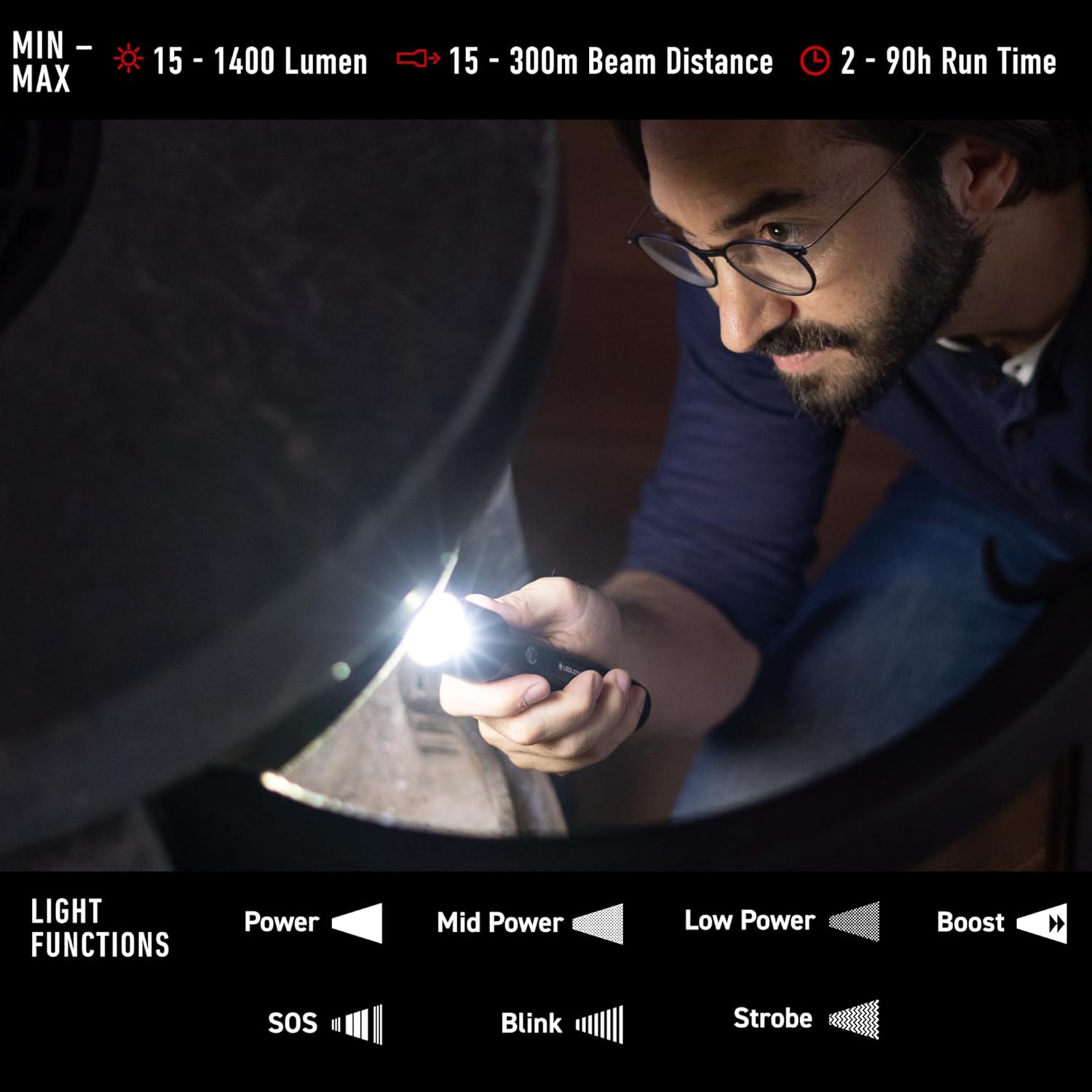

Image: A user operating the Ledlenser P7R Core flashlight, demonstrating its various light functions and the range of lumen output and beam distance.
7. Charging
The P7R Core utilizes a magnetic charging system for convenience. When the battery level is low, the indicator light will change color (e.g., from green to orange or red). To charge, simply attach the magnetic end of the charging cable to the flashlight's charging port. The indicator light will show charging status (e.g., red for charging, green for fully charged).
Ensure the charging port is clean and free of debris before connecting the cable. Avoid charging in wet conditions.
8. Maintenance
8.1. Cleaning
Wipe the flashlight body with a soft, damp cloth. Do not use abrasive cleaners or solvents. For the lens, use a lens cleaning cloth to avoid scratches.
8.2. Storage
Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, it is recommended to charge the battery periodically to maintain its health.
9. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Flashlight does not turn on. | Battery is depleted or incorrectly installed. | Charge the battery. Ensure the battery is inserted with correct polarity and the tail cap is fully tightened. |
| Light output is dim. | Low battery level. | Recharge the battery. |
| Cannot change light modes. | Incorrect button press sequence. | Refer to Section 6.2 for correct mode changing instructions. |
| Magnetic charger not connecting properly. | Debris on charging contacts or cable. | Clean the magnetic contacts on both the flashlight and the charging cable. |
10. Specifications
| Feature | Detail |
|---|---|
| Model | P7R Core |
| Light Source | High Power LED |
| Lumen Output (Boost) | 1400 Lumens |
| Lumen Output (High) | 1000 Lumens |
| Lumen Output (Medium) | 440 Lumens |
| Lumen Output (Low) | 15 Lumens |
| Runtime (High) | 2 hours |
| Runtime (Medium) | 4 hours |
| Runtime (Low) | 90 hours |
| Beam Distance | Up to 300 meters |
| Water Resistance | IP68 (submersible 1.5m for 30 min) |
| Drop Resistance | 2 meters |
| Battery Type | 1 Lithium Ion (included) |
| Material | Aluminum |
| Weight | 12.6 ounces (approx. 358 grams) |
| Dimensions | 3.35 x 2.83 x 8.27 inches |
Image: A comparison table showing specifications for different Ledlenser P Core series flashlights, including P7R Core.
11. Warranty and Support
The Ledlenser P7R Core is backed by Ledlenser's 7-Year Warranty, ensuring quality and durability. For warranty claims, technical support, or service inquiries, please visit the official Ledlenser website or contact their customer service department.
