Kidzone 12V7AH Premium Electric Tractor with Trailer Instruction Manual

1. Introduction

Thank you for choosing the Kidzone 12V7AH Premium Electric Tractor with Trailer. This ride-on toy is designed to provide an authentic and engaging driving experience for children aged 3-8 years. Featuring dual 35W motors, EVA treaded tires, a 3-gear shift system, 7-LED lights, and Bluetooth connectivity, this tractor offers both fun and functionality. This manual provides essential information for safe assembly, operation, and maintenance of your new electric tractor.

Image 1: Kidzone 12V7AH Premium Electric Tractor with Trailer (Red)

2. Safety Information

BASIC SAFETY: This product is designed for children aged 3-8 years. Do not exceed the maximum weight capacity of 66 lbs (30 kg). Only one rider is permitted at a time. Adults and/or supervisors must instruct the user on all common safety rules and practices.

• Operate the product on a flat and smooth surface.
• Do not allow children to operate the ride-on toy near public roads, raceways, near motor vehicles, on or near steep inclines or steps, in any slippery conditions (including rain, snow, and ice), or at any potentially dangerous places.
• Do not use this product as a traffic tool.
• Never leave children unattended with the ride-on toy. Close supervision is necessary when your child is using the product.
• If necessary, adults and/or supervisors should be responsible for setting up gates and barriers to ensure a safe environment for the child rider.
• Be aware and alert children that hands, legs, hair, clothing, and loose items can potentially get caught in moving parts. Avoid placing body parts on moving parts and do not wear loose clothing while using the ride-on toy.
• Avoid using this product in tight environments to prevent damage to the product or injury to the user.
• This product does not have brakes. Do not use this product in areas that require active braking to prevent possible rolls, crashes, or bodily injury.
• Do not use this product in the dark. Only operate this product during daytime or in a well-lit area.
• Avoid continuously hitting obstacles to prevent overheating or damaging the motor. Drive away or remove obstacles as soon as possible.
• For your child's safety, ensure the seatbelt is securely fastened and the rider is wearing personal protective equipment, such as a helmet, when operating this product.

Image 2: Child buckling seatbelt for safety.

3. What's in the Box

Your Kidzone Electric Tractor package includes the following items:

• Ride On Tractor
• Instruction Manual
• Detachable Trailer
• Remote Control
• Charger

4. Setup and Assembly

Follow these steps to assemble your Kidzone Electric Tractor. It is recommended to have an adult perform the assembly.

1. Unpack all components from the box and verify against the parts list.
2. Connect the battery terminals. Ensure all wires are securely connected.
3. Attach the rear wheels to the tractor body, securing them with the provided washers and nuts.
4. Attach the front wheels to the tractor body, securing them with the provided washers and nuts.
5. Install the seat and secure it.
6. Attach the steering wheel.
7. Assemble the detachable trailer by attaching its wheels and side panels.
8. Connect the assembled trailer to the rear hitch of the tractor.
9. Ensure all connections are firm and secure before first use.

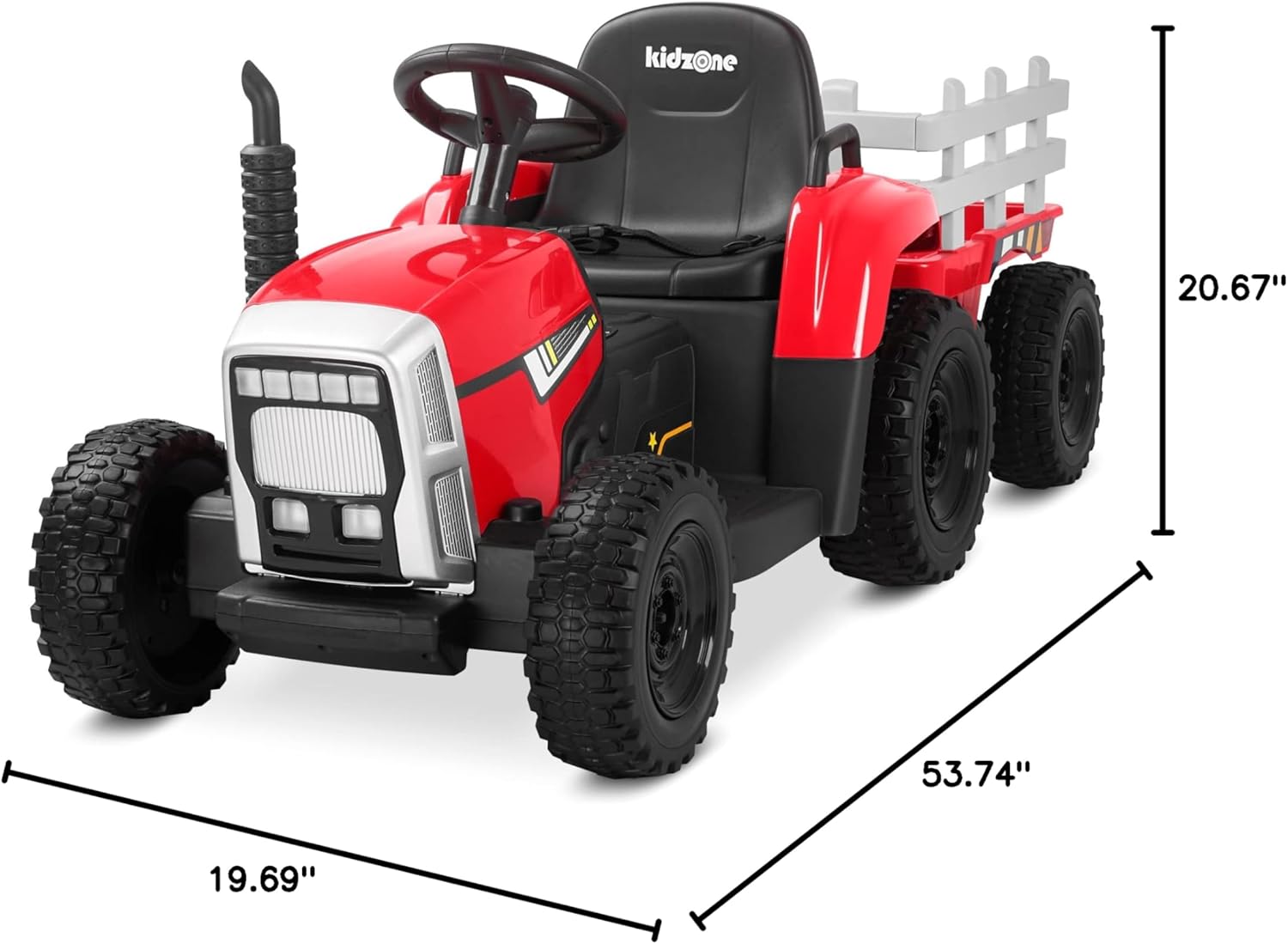

Image 3: Product dimensions for assembly reference.

5. Operating Instructions

Familiarize yourself with the controls and features for a safe and enjoyable ride.

Power On/Off

• Press the red power button on the dashboard to turn the tractor on or off.

Driving Controls

• 3-Gear Shift System: Use the gear shift knob to select between two forward speeds (High/Low) and one reverse speed.
• Foot Pedal: Press the foot pedal to accelerate. Release the pedal to engage the automatic brake.

Lights and Sounds

• LED Headlights: Press the light button on the dashboard to turn the 7-LED headlights on or off.
• Horn: The tractor features horns powered by air pressure for realistic sounds.
• Bluetooth & MP3: Connect your device via Bluetooth or USB to play your child's favorite music or stories through the built-in speaker system. Adjust volume using the controls on the dashboard.

Remote Control Operation

The remote control allows parents to safely guide younger children. It offers three speed settings and full directional control.

• Ensure the remote control is paired with the tractor according to the remote control's instructions.
• Use the directional buttons to steer the tractor forward, backward, left, and right.
• Adjust the speed settings on the remote control as needed.

Image 4: Tractor control panel with power, gear shift, and media controls.

Image 5: Remote control for parental guidance.

6. Features Overview

The Kidzone Electric Tractor is packed with features designed for an immersive play experience:

• Realistic Tractor Design: Features 7-LED headlights, a detailed control panel, shift knob, and solid armrests for an authentic look and feel.
• Detachable Trailer: A functional trailer allows kids to transport small toys, snacks, or garden supplies, enhancing imaginative play.
• Dual 35W Motors: Provides boosted power and torque for smooth operation.
• EVA Treaded Tires: Four large EVA tires ensure smooth driving on various surfaces, suitable for both indoor and outdoor play.
• 12V Rechargeable Lead-acid Battery: Offers extended riding fun with a charging time of 8-12 hours.

Image 6: Dazzling LED lights for enhanced realism.

Image 7: Detachable trailer and EVA tires for versatile play.

7. Maintenance

Proper maintenance ensures the longevity and safe operation of your electric tractor.

• Battery Charging: Charge the 12V lead-acid battery for 8-12 hours before first use and after each play session. Do not overcharge.
• Cleaning: Wipe the tractor clean with a damp cloth. Avoid using harsh chemicals or abrasive cleaners. Do not spray water directly onto electrical components.
• Storage: Store the tractor in a dry, cool place away from direct sunlight and moisture. If storing for an extended period, ensure the battery is fully charged and recharge it periodically (e.g., once a month) to maintain battery health.
• Inspections: Regularly check all screws, nuts, and connections to ensure they are tight and secure. Inspect tires for wear and tear.

8. Troubleshooting

If you encounter any issues with your Kidzone Electric Tractor, please refer to the following basic troubleshooting tips:

• Tractor not starting: Ensure the power button is pressed, the battery is fully charged, and all battery connections are secure. Check the fuse if applicable.
• Reduced speed or power: The battery may be low. Recharge the battery for the recommended duration. Ensure the tractor is not overloaded beyond its weight capacity.
• Remote control not working: Check the batteries in the remote control. Ensure the remote is properly paired with the tractor.
• Unusual noises: Stop using the tractor immediately and inspect for any loose parts or obstructions in the wheels or motor area.

If problems persist, please contact customer support for further assistance.

9. Specifications

Image 8: Age and weight recommendations.

10. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please contact Kidzone customer service. Refer to the contact details provided on the product packaging or the official Kidzone website. Please have your model number (060-ROT-15V2-RD) and purchase date ready when contacting support.
