1. Introduction
The ZIBOO ZB-T15 Flexible Test Hook Clip is designed for professional electrical testing applications. It provides a secure and insulated connection for various measurement tasks, compatible with multimeters, clamp meters, and other testing instruments. Its flexible design allows for access to hard-to-reach test points, making it ideal for integrated circuit testing, automotive inspection, and general electrical work.
Image 1.1: Overview of the ZIBOO ZB-T15 Flexible Test Hook Clip, showing both red and black units.
2. Product Features
- Flexible and Bendable Head: The test hook's head is designed to be flexible, allowing it to bend and reach components in confined spaces.
- Extendable Hook: Pressing the plunger extends the test hook, providing a secure grip on test points.
- 4mm Banana Socket: Features a standard 4mm banana socket for easy connection to most test leads.
- High Voltage Insulation: Fully insulated design ensures safety during high voltage testing.
- Durable Construction: Main body made of PA (Polyamide) for long service life, with nickel alloy and stainless steel spring for reliable contact.
- Versatile Applications: Suitable for multimeters, clamp meters, oscilloscopes, and for tasks such as automobile inspection, integrated circuit testing, and home circuit repair.
Image 2.1: Detailed view highlighting the flexible head and extendable hook feature.
Image 2.2: The 4mm banana socket for connecting test leads.
3. Specifications
| Parameter | Value |
|---|---|
| Brand | ZIBOO |
| Model | ZB-T15 |
| Material | Copper (contact), Nickel Plating (surface treatment), PA (shell) |
| Current Voltage Rating | CAT III 1000V, MAX. 10A |
| Color | Red, Black |
| Connection Mode | Welding (internal connection) |
| Item Weight | 0.06 Kilograms |
| Standard Met | IEC/EN: 61010 |
Image 3.1: Visual representation of the product parameters.
4. Setup and Operating Instructions
4.1 Connecting the Test Hook Clip
- Ensure your multimeter or testing instrument is turned off before making any connections.
- Insert the 4mm banana plug of your test lead into the banana socket at the base of the ZB-T15 Flexible Test Hook Clip. Ensure a firm connection.
- Connect the other end of your test leads to the appropriate input terminals on your multimeter (e.g., COM and VΩmA).
4.2 Using the Test Hook Clip
- With your testing instrument set to the desired measurement function (e.g., voltage, resistance), carefully approach the test point.
- Press the plunger on the ZB-T15 clip to extend the hook.
- Position the hook around the component lead or test point. Release the plunger to allow the hook to retract and securely grip the test point.
- The flexible head allows you to bend the probe to access difficult angles.
- Once a secure connection is made, observe the reading on your testing instrument.
- After measurement, press the plunger again to release the hook from the test point.
Video 4.1: Demonstration of connecting and using the ZIBOO ZB-T15 Flexible Test Hook Clip with a multimeter for various testing applications.

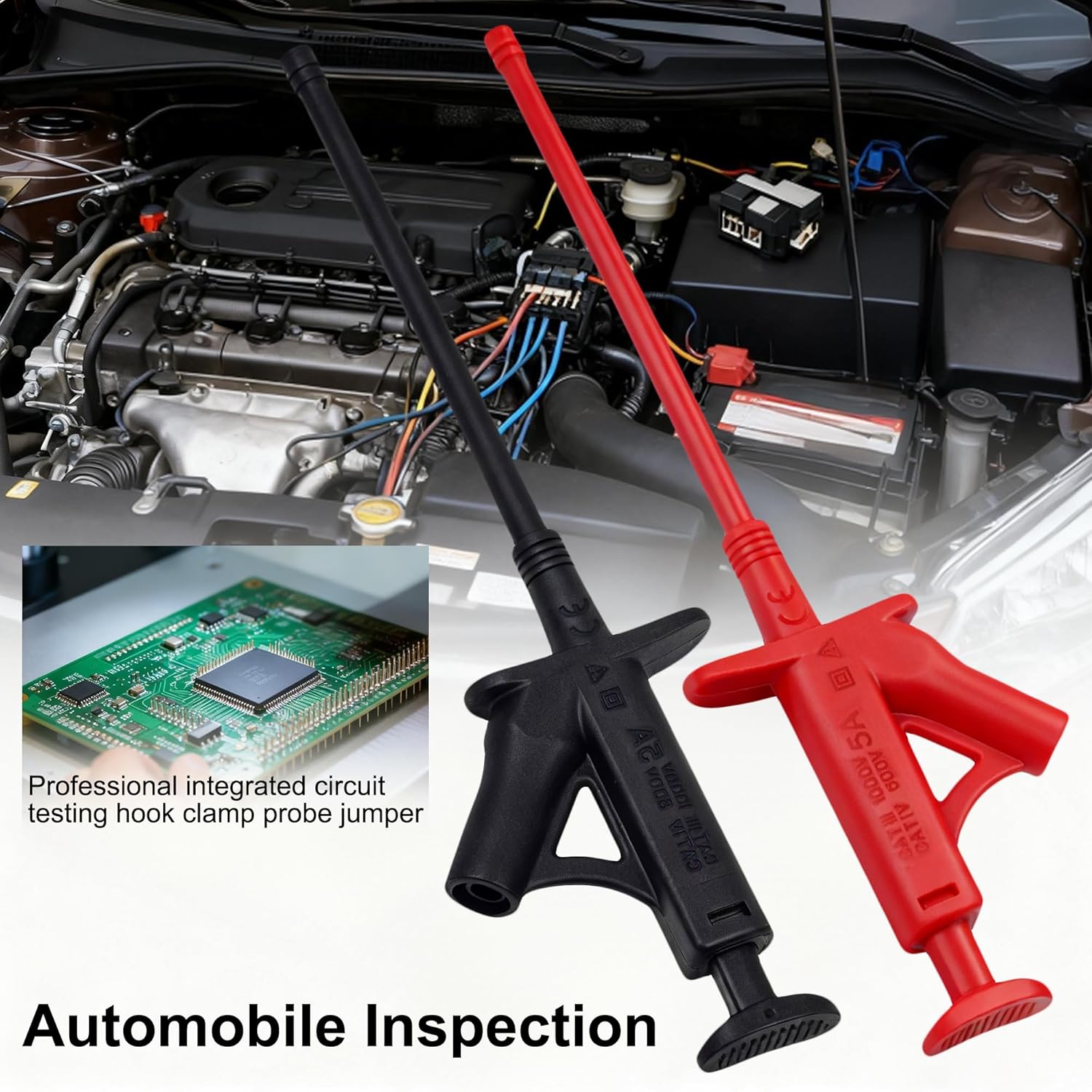

Image 4.2: Examples of the test hook clips in use for automotive and circuit board inspection.
5. Safety Information
- Always ensure the test hook clips are properly insulated and free from damage before use.
- Do not exceed the maximum voltage (1000V) or current (10A) ratings.
- Always connect the common (black) lead first and disconnect it last.
- Avoid touching exposed metal parts of the test hook or circuit during live measurements.
- Use appropriate personal protective equipment (PPE) when working with electrical circuits.
- Refer to your multimeter's instruction manual for specific safety guidelines.
6. Maintenance
- Clean the test hook clips with a soft, dry cloth after each use. Do not use abrasive cleaners or solvents.
- Inspect the insulation and the hook mechanism regularly for any signs of wear, cracks, or damage. Replace immediately if damage is found.
- Store the test hook clips in a clean, dry environment, away from direct sunlight and extreme temperatures.
7. Troubleshooting
- No Reading on Multimeter:
- Ensure the test hook clips are securely connected to the test leads and the multimeter.
- Verify that the test hook is making good contact with the test point.
- Check the multimeter settings (function, range) are appropriate for the measurement.
- Hook Not Extending/Retracting Smoothly:
- Inspect for any debris or foreign objects obstructing the mechanism.
- If the mechanism is stiff, a small amount of dry lubricant might be applied carefully, avoiding contact with electrical parts.
8. Warranty and Support
ZIBOO products are manufactured to high-quality standards. For warranty information or technical support, please refer to the official ZIBOO website or contact your local distributor. Keep your purchase receipt for warranty claims.
