1. Introduction
This manual provides essential information for the installation, function, and maintenance of your sparefixd Cooling Fan Motor, model UN1460. This component is designed as a replacement part for various CDA oven models to ensure proper cooling and operation.
Compatible Models: CD250SS, CD300B, CD300G, CD300W, CD306SS, CD401/2BL, CD401/2GR, CD401/2WH, CD401BL, CD401GR, CD401WH, CD600SS, CD601/2SS, CD601SS, CD620SS, CD906SS.
2. Safety Information
Always prioritize safety when working with electrical appliances. Failure to follow these safety guidelines may result in electric shock, injury, or damage to the appliance.
- Disconnect Power: Before attempting any installation, maintenance, or repair, ensure the oven is completely disconnected from the main power supply. Turn off the circuit breaker or unplug the appliance.
- Professional Installation Recommended: If you are not experienced with appliance repair, it is highly recommended to seek assistance from a qualified technician.
- Wear Protective Gear: Use appropriate personal protective equipment, such as gloves and eye protection, to prevent injury.
- Handle with Care: Components may have sharp edges. Handle the fan motor and surrounding parts carefully.
- Verify Compatibility: Ensure this replacement part is compatible with your specific oven model before installation.
3. Setup and Installation
This section outlines the general steps for replacing the cooling fan motor. Specific procedures may vary depending on your oven model. Refer to your oven's service manual for detailed instructions.
- Prepare the Oven: Ensure the oven is cool and completely disconnected from the power supply.
- Locate Model Number: For cookers and ovens, the model number is typically found inside the door on the main body of the cooker, sometimes hidden behind the door seal, usually towards the bottom. For separate hobs, the model number is usually on the underside. Access may require removing the oven from its unit if integrated.
- Access the Fan Motor: Depending on your oven design, you may need to remove the back panel, top panel, or other components to access the cooling fan motor. Carefully remove any screws or fasteners.
- Disconnect Wiring: Note the position and connection of all wires attached to the old fan motor. Take photos if necessary for reference. Carefully disconnect the wiring.
- Remove Old Motor: Unscrew or unclip the old cooling fan motor from its housing.
- Install New Motor: Position the new sparefixd Cooling Fan Motor (UN1460) into the housing. Secure it with the original screws or clips.
- Reconnect Wiring: Connect the wiring to the new motor, ensuring all connections are secure and match the original configuration.
- Reassemble Oven: Reattach any panels or components that were removed. Ensure all screws are tightened.
- Test Functionality: Reconnect the oven to the power supply. Turn on the oven and observe if the cooling fan operates correctly. Listen for any unusual noises.
Image 1: Side view of the sparefixd Cooling Fan Motor, model UN1460, showing the motor and fan assembly.

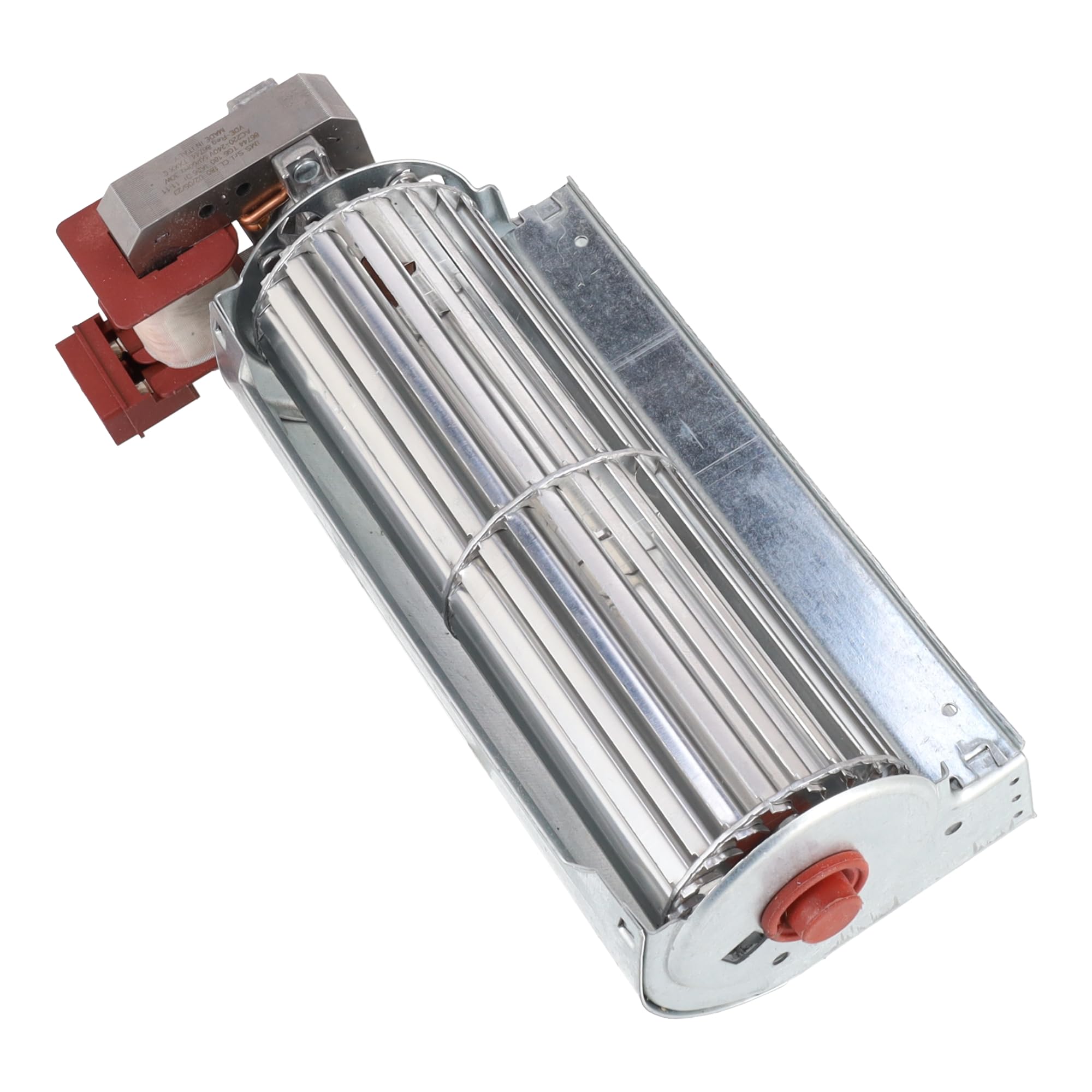

Image 2: Angled view of the sparefixd Cooling Fan Motor, highlighting the fan blades and motor housing.
4. Operating Principles
The cooling fan motor is a critical component in your oven's thermal management system. Its primary function is to circulate air to cool down the oven's external surfaces and internal electronic components during and after cooking cycles. This prevents overheating of the appliance and surrounding cabinetry, contributing to the oven's longevity and safe operation.
When the oven reaches a certain temperature, the cooling fan automatically activates. It continues to run until the oven's internal temperature drops to a safe level, even after the cooking process has finished and the oven is turned off.
5. Maintenance
Regular maintenance of your oven, including its internal components, can extend its lifespan and ensure efficient operation. While the cooling fan motor itself requires minimal direct maintenance, consider the following:
- Regular Cleaning: Periodically clean the oven's exterior and interior, ensuring that air vents are not obstructed by grease or debris. Blocked vents can hinder the cooling fan's effectiveness.
- Inspect for Obstructions: If accessible, occasionally inspect the fan blades for any build-up of dust or debris that could impede its rotation. Ensure the oven is disconnected from power before inspection.
- Listen for Unusual Noises: Pay attention to any new or unusual noises coming from the fan area, which could indicate wear or a developing issue.
6. Troubleshooting
If you experience issues with your oven's cooling system, the cooling fan motor may be a contributing factor. Here are some common symptoms and potential solutions:
- Fan Not Spinning:
- Check Power: Ensure the oven is receiving power.
- Wiring: Verify that all electrical connections to the fan motor are secure.
- Obstruction: Check for any physical obstructions preventing the fan blades from turning.
- Motor Failure: If power is present and there are no obstructions, the motor itself may have failed and requires replacement.
- Unusual Noises (Grinding, Squealing):
- Bearing Wear: This often indicates worn bearings within the motor, necessitating replacement.
- Obstruction: A foreign object might be hitting the fan blades. Disconnect power and inspect.
- Oven Overheating / Exterior Too Hot:
- Fan Malfunction: The cooling fan may not be operating effectively, or at all. Refer to 'Fan Not Spinning' above.
- Thermostat Issue: While less common for cooling, a faulty thermostat could prevent the fan from activating.
If troubleshooting steps do not resolve the issue, it is advisable to consult a qualified appliance repair technician.
7. Specifications
| Specification | Detail |
|---|---|
| Brand | sparefixd |
| Model Number | UN1460 |
| Equivalent Part Number | UN1460 |
| Material | Plastic (referring to some components, main body is metal) |
| Manufacturer | sparefixd |
| Unit Count | 1.0 Total |
8. Warranty and Support
Information regarding specific warranty terms for this sparefixd Cooling Fan Motor (UN1460) is not provided in the product details. For warranty inquiries or technical support, please contact the seller or manufacturer directly.
Regarding spare parts availability, the provided information states: "Information indisponible sur les pièces détachées" (Information unavailable on spare parts).
