Introduction
This manual provides essential information for the proper use and care of your AV:LINK High Speed HDMI Cable, Model 112.137UK. This thin-wire HDMI cable features gold-plated connectors and is designed for high-speed data transmission, supporting 4K Ultra HD resolutions and 3D content. It is suitable for connecting various devices such as game consoles, CD/DVD/Blu-ray players, satellite receivers, and cable boxes to compatible displays.

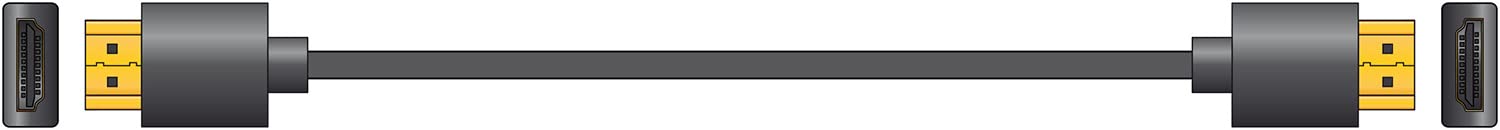

Image: AV:LINK High Speed HDMI Cable. This image displays the AV:LINK High Speed HDMI Cable. It is a black cable, coiled, with a gold-plated HDMI connector visible at each end. The cable is designed for high-speed data transmission, supporting 4K Ultra HD and 3D content.
Product Features
- Thin Wire Design: Features a thin wire design with low profile gold-plated connectors, ideal for installations where space is limited, such as behind wall-mounted TVs and monitors.
- High Speed Performance: HDMI v2.0 compliant, supporting 4K Ultra HD resolutions and HDCP 2.2 (note: 5m/10m versions may have different compliance).
- Enhanced Connectivity: Supports Ethernet, audio return channel (ARC), and 3D content, providing versatile connectivity options.
- Optimal Length: This specific model is 1.0 meter in length, suitable for close-range connections.
Setup
- Identify Ports: Locate the HDMI output port on your source device (e.g., game console, Blu-ray player) and the HDMI input port on your display device (e.g., TV, monitor). Ensure both devices are powered off before connecting.
- Connect Cable: Insert one end of the AV:LINK HDMI cable firmly into the HDMI output port of your source device.
- Connect to Display: Insert the other end of the AV:LINK HDMI cable firmly into an available HDMI input port on your display device.
- Power On Devices: Power on your display device first, then your source device.
- Select Input: Use your display device's remote control to select the correct HDMI input source.
Note: For optimal performance, ensure that both your source and display devices support the desired resolution and features (e.g., 4K, 3D, ARC).
Operating Instructions
Once the AV:LINK HDMI cable is correctly connected and the input source is selected on your display, the cable operates automatically. It transmits digital audio and video signals between your connected devices. No additional configuration is typically required for the cable itself.
- Audio Return Channel (ARC): If your devices support ARC, ensure it is enabled in your TV's audio settings to send audio from your TV back to an ARC-enabled sound system via the HDMI cable.
- Ethernet Channel: If both connected devices support HDMI Ethernet Channel (HEC), the cable can facilitate network data transfer between them. Refer to your device manuals for HEC setup.
- 3D Content: For 3D content, ensure your source device, display, and media content are all 3D compatible.
Maintenance
The AV:LINK High Speed HDMI Cable requires minimal maintenance to ensure long-lasting performance.
- Storage: When not in use, store the cable in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid tight coiling or sharp bends that could damage the internal wires.
- Cleaning: If necessary, gently wipe the cable and connectors with a soft, dry, lint-free cloth. Do not use liquid cleaners or solvents.
- Handling: Always grasp the connector housing when plugging or unplugging the cable. Avoid pulling directly on the cable itself, as this can damage the internal connections.
Troubleshooting
| Problem | Possible Cause / Solution |
|---|---|
| No picture or sound |
|
| Picture flickering or distorted |
|
| No audio (picture is fine) |
|
Specifications
| Brand | AV:LINK |
| Model Number | 112.137UK |
| Cable Type | HDMI |
| Connector Type | HDMI Male-to-Male |
| Length | 1.0 Meter |
| Color | Black (with gold-plated connectors) |
| HDMI Version | v2.0 (4K & HDCP 2.2 compliant, except 5m/10m versions) |
| Features | Ethernet, Audio Return Channel (ARC), 3D Compatible, High Speed |
| Compatible Devices | TVs, Monitors, Game Consoles, Blu-ray/DVD Players, Satellite/Cable Boxes |
| Weight | 0.08 Kilograms |
| Compliance | RoHS |
Warranty and Support
For information regarding warranty coverage and technical support for your AV:LINK High Speed HDMI Cable, please refer to the documentation provided with your purchase or visit the official AV:LINK website. Keep your proof of purchase for warranty claims.
For further assistance, you may contact AV:LINK customer support through their official channels.
