COLZER ST-05TA Food Dehydrator Instruction Manual

1. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before operating the dehydrator.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not block the air vents during operation.

2. Product Overview

The COLZER ST-05TA Food Dehydrator is designed to efficiently dry various foods such as fruits, vegetables, meats, and herbs, preserving their nutrients and flavor. It features a digital control panel for precise temperature and time settings, multiple BPA-free trays, and a horizontal airflow system for even drying.

2.1 Key Features

• BPA-Free Trays: Includes 6 trays, each measuring 340 x 340 mm, providing ample drying space.
• Digital Touch Control: Temperature range from 68°F to 194°F (20°C to 90°C) and an integrated 24-hour timer for accurate drying.
• High Nutritional Retention: Equipped with 6 non-stick silicone pads, suitable for drying various foods while locking in minerals and vitamins.
• Safety Features: Automatic shut-off and overheat protection functions ensure safe operation.
• Efficient Airflow: Integrated air circulation fan generates forced hot air convection for uniform heating across all trays.
• Quiet Operation: Horizontal airflow system ensures stable and quiet operation, with noise levels below 55dB.

2.2 Components

• Main Dehydrator Unit
• 6 BPA-Free Drying Trays
• 6 Non-Stick Silicone Mesh Sheets
• Front Door (Clear for viewing progress)
• Digital Control Panel
• Power Cord

Figure 1: COLZER ST-05TA Food Dehydrator showing its design, trays filled with food, and icons indicating BPA-free, auto shutoff, overheat protection, and 3D hot-air drying.

Figure 2: Dimensions of the dehydrator (9.2in/23.5cm height, 17.7in/45cm depth, 14.7in/37.5cm width) and individual tray size (340x340mm) with a tray interval of 20mm (0.79in).

Figure 3: The intelligent control panel displaying temperature and timer settings, along with a dehydration guide for various food types like fruits, vegetables, and meat.

Figure 4: Detailed view of the BPA-free trays, non-stick silicone mesh sheets, and the internal fan system for 360-degree circulating hot air.

3. Setup

3.1 Unpacking

1. Carefully remove the dehydrator and all its components from the packaging.
2. Check for any damage during transit. If any damage is found, do not operate the appliance and contact customer support.
3. Retain the packaging materials for future storage or shipping.

3.2 Initial Cleaning

1. Before first use, wipe the main unit with a damp cloth.
2. Wash the drying trays and silicone mesh sheets in warm, soapy water. Rinse thoroughly and dry completely. The trays are dishwasher safe.
3. Ensure all parts are completely dry before assembly and use.

3.3 Placement

• Place the dehydrator on a stable, level, and heat-resistant surface.
• Ensure there is adequate space around the unit (at least 6 inches) for proper air circulation.
• Do not place the dehydrator near heat sources, flammable materials, or in direct sunlight.
• Ensure the power cord is not obstructed or pinched.

4. Operating Instructions

4.1 Food Preparation

Proper food preparation is crucial for successful dehydration. Always use fresh, high-quality ingredients.

• Cleaning: Wash fruits and vegetables thoroughly.
• Slicing: Slice food into uniform thickness (typically 1/4 inch or 6mm) for even drying.
• Pre-treatment (Optional): Some foods, especially fruits like apples or bananas, may benefit from pre-treatment (e.g., lemon juice dip) to prevent browning.
• Meat: For jerky, slice lean meat thinly against the grain. Marinate if desired.

4.2 Loading Trays

1. Place the prepared food in a single layer on the drying trays. Do not overlap food items.
2. Use the silicone mesh sheets for smaller items or foods that might stick.
3. Insert the loaded trays into the dehydrator. Ensure the trays are properly seated.
4. Close the front door securely.

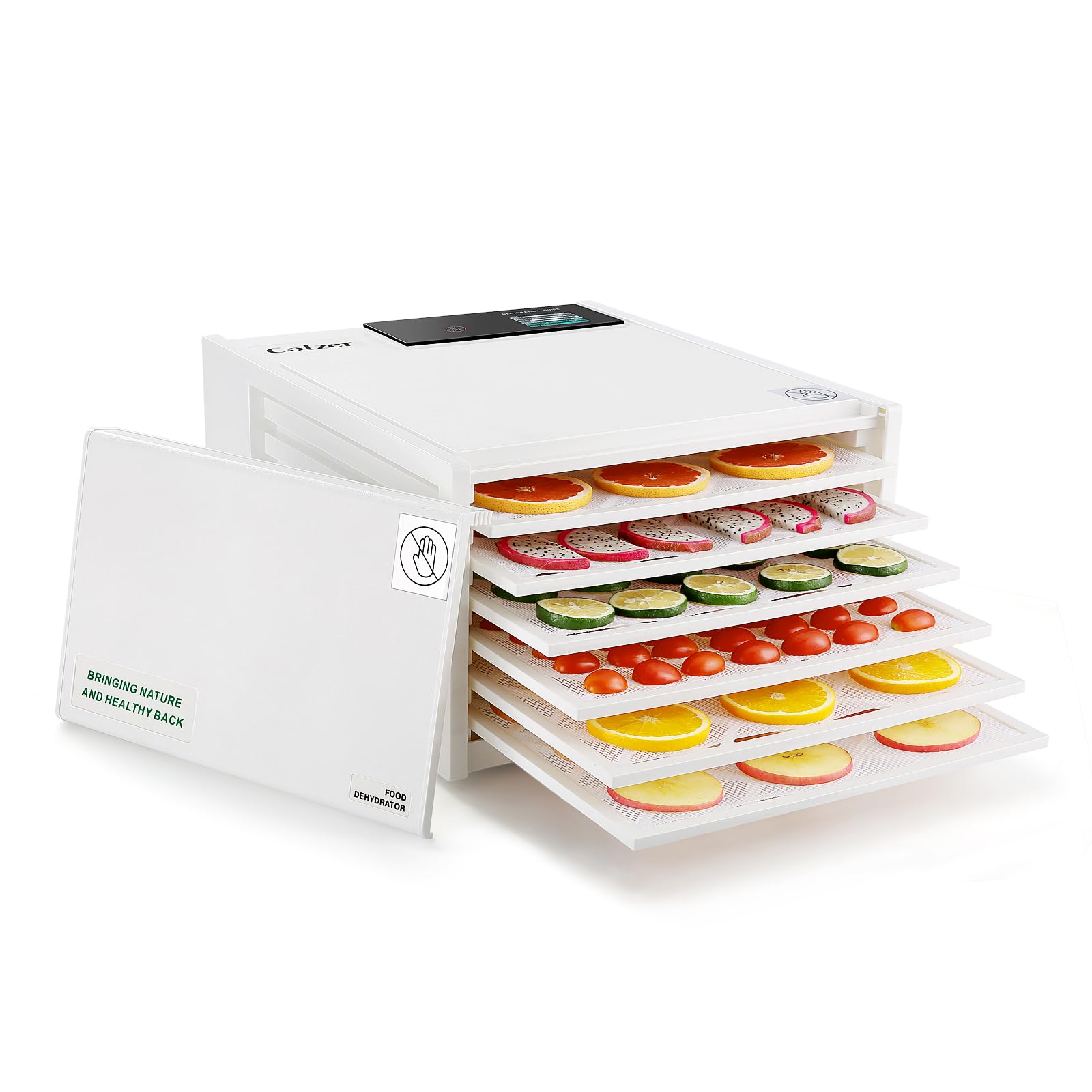

Figure 5: The dehydrator with its six trays partially extended, demonstrating how food items are placed for drying.

4.3 Setting Temperature and Timer

1. Plug the power cord into a grounded electrical outlet.
2. Press the ON/OFF button on the digital control panel to turn on the unit.
3. Press the TEMP button to adjust the temperature. Use the +/- buttons to set the desired temperature between 68°F and 194°F (20°C and 90°C).
4. Press the TIME button to adjust the drying time. Use the +/- buttons to set the desired time, up to 24 hours.
5. The dehydrator will start operating automatically after a few seconds or once the settings are confirmed.

Refer to the dehydration guide on the control panel (Figure 3) or a reliable recipe book for recommended temperatures and times for different foods.

4.4 Dehydration Process

• Monitor the drying progress periodically through the clear front door.
• For optimal results, it is recommended to rotate the trays halfway through the drying cycle, moving bottom trays to the top and vice versa.
• Food is fully dehydrated when it is pliable but not sticky, or brittle and breaks easily (depending on the food type).
• Once drying is complete, turn off the unit and unplug it. Allow the food to cool completely before storing.

5. Maintenance and Cleaning

Regular cleaning ensures the longevity and hygienic operation of your dehydrator.

1. Always unplug the dehydrator from the power outlet and allow it to cool completely before cleaning.
2. Drying Trays and Silicone Mesh Sheets: These are dishwasher safe. Alternatively, wash them in warm, soapy water, rinse thoroughly, and dry completely.
3. Main Unit: Wipe the exterior and interior of the dehydrator with a damp cloth. For stubborn stains, use a mild detergent. Do not immerse the main unit in water or any other liquid.
4. Fan Area: Use a soft brush or vacuum cleaner to gently remove any food particles or dust from the fan area.
5. Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the surfaces.
6. Ensure all parts are completely dry before storing or next use.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact COLZER customer service directly.

Please have your model number (ST-05TA) and purchase details ready when contacting support.
