CURT 13531 Class 3 Trailer Hitch Instruction Manual

1. Introduction

This manual provides detailed instructions for the proper installation, operation, and maintenance of your CURT 13531 Class 3 Trailer Hitch. This vehicle-specific hitch is designed for select model years of the Kia Niro and Niro EV, offering a standard 2-inch x 2-inch receiver for various towing applications. Please read all instructions carefully before proceeding with installation or use to ensure safety and optimal performance.

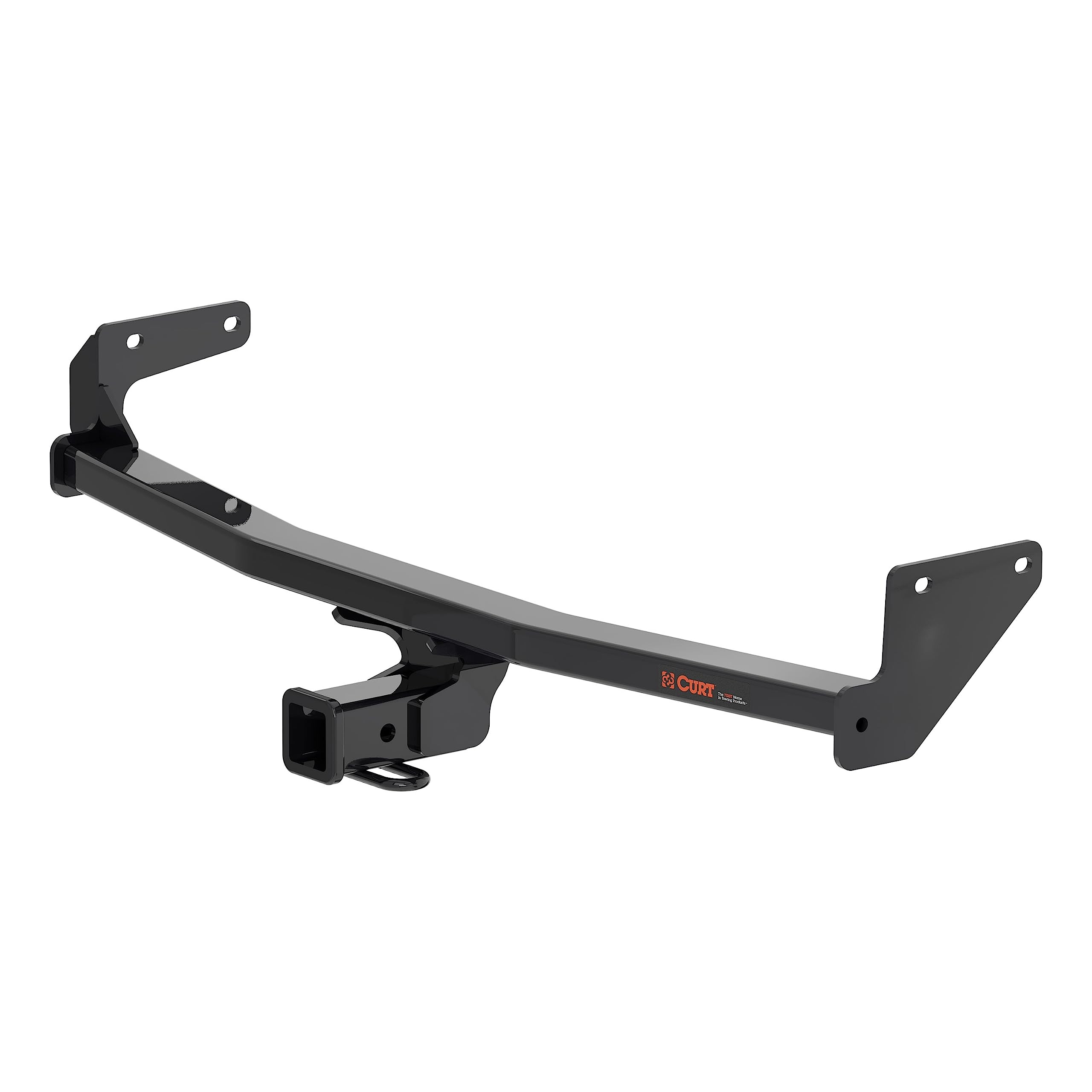

Image 1.1: Overview of the CURT 13531 Class 3 Trailer Hitch. This image shows the complete hitch assembly, highlighting its robust construction and vehicle-specific design.

2. Safety Information

Your safety and the safety of others are paramount. Always adhere to the following safety guidelines:

• Weight Capacity: This trailer hitch is rated for 2,000 lbs. Gross Trailer Weight (GTW) and 200 lbs. Tongue Weight (TW). Never exceed these ratings or the lowest-rated towing component of your vehicle.
• Vehicle Manufacturer Guidelines: Always consult your vehicle's owner's manual for specific towing capacities and recommendations.
• Proper Connection: Ensure all towing components, including the hitch, ball mount, hitch ball, and safety chains, are correctly installed and secured before towing.
• Regular Inspection: Before each tow, inspect the hitch and all towing components for wear, damage, or loose fasteners.
• Load Distribution: Distribute the trailer load properly to maintain stability and control.
• Braking and Handling: Be aware that towing a trailer affects your vehicle's braking distance and handling characteristics. Adjust your driving accordingly.
• Compatibility: This hitch is not compatible with vertical hanging bike racks or bike racks that require bikes to be mounted vertically.

3. Parts List

Verify that all components are present before beginning installation. The CURT 13531 hitch typically includes:

• CURT 13531 Class 3 Trailer Hitch
• Mounting Hardware (bolts, washers, nuts - specific quantities and sizes will be in the included hardware kit)
• Installation Instructions (this document)

4. Installation Instructions

The CURT 13531 hitch is designed for a custom, factory fit on the Kia Niro and Niro EV, requiring no drilling for installation. Follow these general steps, referring to the specific hardware and torque specifications provided in your hardware kit.

1. Prepare Vehicle: Park the vehicle on a level surface and engage the parking brake. If necessary, raise the vehicle using a hoist or jack stands for easier access to the undercarriage.
2. Locate Mounting Points: Identify the existing mounting holes on the vehicle's frame or chassis where the hitch will attach. These are typically pre-drilled by the manufacturer.
3. Position Hitch: Carefully lift the hitch into position, aligning the mounting holes on the hitch with the vehicle's frame holes. It may be helpful to have an assistant for this step.
4. Install Hardware: Insert the provided bolts and washers through the hitch and vehicle frame. Secure with nuts, but do not fully tighten at this stage.
5. Adjust and Tighten: Once all hardware is loosely installed, ensure the hitch is properly centered and level. Then, progressively tighten all fasteners to the torque specifications provided in your hardware kit.
6. Final Check: Double-check all fasteners to ensure they are securely tightened. Remove any tools or equipment from under the vehicle.

Image 4.1: This icon indicates that the CURT 13531 hitch is designed for installation without requiring any drilling into the vehicle's frame.

Image 4.2: A close-up view of the standard 2-inch hitch receiver, where the ball mount or other towing accessories are inserted.

5. Operating Instructions (Towing Guidelines)

Once your CURT hitch is installed, follow these guidelines for safe and effective towing:

• Attach Ball Mount: Insert a compatible 2-inch x 2-inch ball mount into the receiver tube and secure it with a hitch pin and clip.
• Connect Trailer: Lower the trailer coupler onto the hitch ball. Ensure the coupler is fully engaged and locked.
• Safety Chains: Always cross safety chains under the trailer coupler and attach them to the designated chain loops on the hitch.
• Trailer Wiring: Connect any necessary trailer wiring for lights and brakes.
• Pre-Trip Inspection: Before driving, perform a thorough check of all connections, lights, and brakes.
• Driving with a Trailer: Drive at reduced speeds, allow for increased braking distances, and make wider turns. Avoid sudden maneuvers.

Image 5.1: This graphic clearly indicates the receiver tube size is 2 inches, which is a standard dimension for many towing accessories.

6. Maintenance

To ensure the longevity and safe operation of your CURT trailer hitch, perform regular maintenance:

• Inspect Regularly: Periodically check the hitch for any signs of rust, cracks, bends, or other damage.
• Check Fasteners: Ensure all mounting bolts remain tight. Re-torque to specifications if necessary.
• Clean: Keep the hitch clean from dirt, salt, and road debris. The dual-coat finish (liquid A-coat and black powder coat) provides excellent resistance to rust, chipping, and UV rays, but regular cleaning helps maintain its integrity.
• Lubricate: Apply a light coat of grease to the hitch ball and inside the receiver tube to prevent rust and ensure smooth operation.

Image 6.1: This image shows hitch components being treated with the industry-leading dual-coat finish, which provides superior protection against rust, chips, and UV exposure.

7. Troubleshooting

If you encounter issues with your trailer hitch, consider the following:

• Loose Connections: If you notice excessive movement or rattling, re-check all bolts and ensure they are torqued to specification.
• Difficulty Inserting Accessories: Ensure the receiver tube is clean and free of debris. A small amount of lubricant can help.
• Unusual Noises: Investigate any unusual noises immediately. This could indicate loose components or an overloaded hitch.
• Damage: If the hitch appears damaged, do not use it. Contact CURT customer support for assistance.

8. Specifications

Image 8.1: This image illustrates the rigorous testing process, where CURT hitches are subjected to real-world, on-vehicle conditions to ensure safety and durability according to SAE J684 standards.

9. Warranty and Support

For warranty information, technical support, or to purchase replacement parts, please contact CURT customer service. Refer to the official CURT website for the most up-to-date contact details and warranty policies.

Website: www.curtmfg.com
