leikefitness GM5809 Adjustable Foldable Weight Bench User Manual

1. Introduction

Thank you for choosing the leikefitness GM5809 Adjustable Foldable Weight Bench. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read all instructions carefully before assembly and operation. Retain this manual for future reference.

2. Important Safety Information

• Consult a physician before starting any exercise program.
• Keep children and pets away from the equipment during use.
• Place the bench on a flat, stable surface. Ensure adequate space around the bench for safe operation.
• Inspect the bench for loose parts, damage, or wear before each use. Do not use if damaged.
• Ensure all adjustment pins and bolts are securely locked in place before beginning an exercise.
• Do not exceed the maximum weight capacity of 300 kg (660 lbs).
• Use proper form and controlled movements during exercises.
• Stop exercising immediately if you feel pain, dizziness, or nausea.

3. Package Contents

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support.

• Main Frame Assembly
• Backrest Pad
• Seat Pad
• Leg Support Rollers
• Adjustment Knobs/Pins
• Hardware (bolts, washers, nuts)
• Assembly Tools (wrenches, Allen keys)

4. Assembly Instructions

Assembly typically requires minimal effort, often involving only a few bolts to secure the main components. Follow these general steps:

1. Unpack all components and lay them out on a clean, flat surface.
2. Attach the main support legs to the bench frame using the provided bolts and tools. Ensure they are tightened securely.
3. Mount the backrest and seat pads to their respective frames.
4. Install the leg support rollers. Ensure they are firmly attached and can rotate freely.
5. Verify all bolts and connections are tight before first use.

Image 4.1: Assembled leikefitness GM5809 Adjustable Foldable Weight Bench.

5. Operating Instructions

5.1 Adjusting the Bench Positions

The leikefitness GM5809 bench offers multiple adjustment options for a variety of exercises:

• Backrest Adjustment: The backrest can be adjusted to 6 different positions, ranging from decline to incline. To adjust, pull the quick-release bolt, move the backrest to the desired angle, and ensure the bolt automatically locks into a secure position.
• Seat Adjustment: The seat can be adjusted to 3 different positions to complement the backrest angle and provide optimal support. Follow the same quick-release bolt mechanism to adjust and lock the seat.

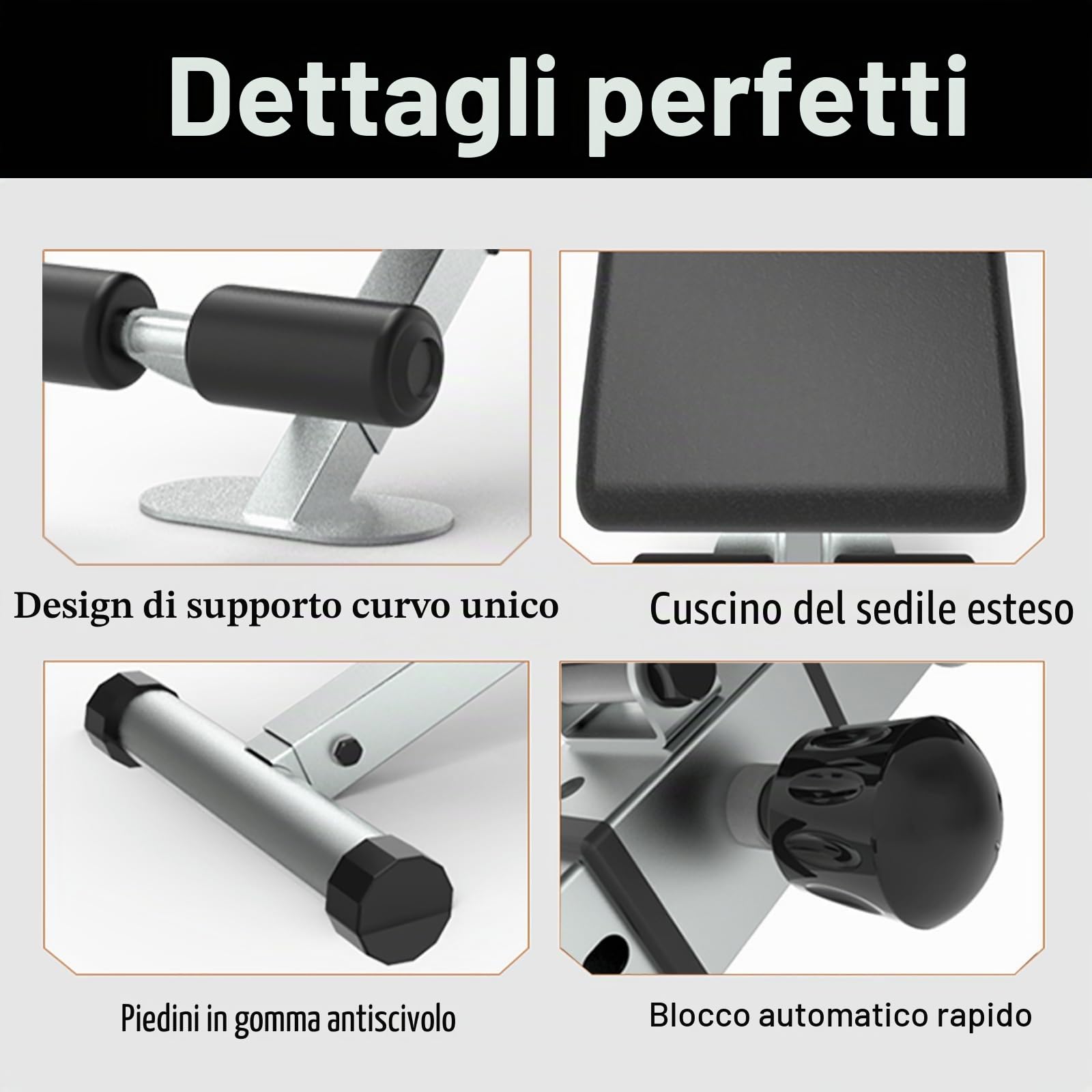

Image 5.1: Illustration of the fast adjustment mechanism with automatic lock for backrest and seat.

5.2 Folding and Storage

The bench is designed for easy folding to save space when not in use.

1. Ensure the backrest and seat are in their lowest or most compact positions if applicable.
2. Locate the folding mechanism (usually a pin or lever) and disengage it.
3. Carefully fold the bench components inward until it reaches its compact storage size.
4. Secure any locking pins to prevent accidental unfolding.

Image 5.2: The leikefitness GM5809 bench in its folded configuration, demonstrating its space-saving design.

5.3 Exercise Examples

The adjustable design allows for a wide range of exercises, including:

• Dumbbell Press (Flat, Incline, Decline)
• Dumbbell Rows
• Sit-ups/Crunches
• Leg Raises
• Bicep Curls
• Tricep Extensions

Image 5.3: Examples of exercises that can be performed using the adjustable weight bench.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your weight bench.

• Cleaning: Wipe down the bench pads and frame with a damp cloth after each use to remove sweat and dirt. Avoid abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and adjustment pins for tightness. Tighten any loose fasteners.
• Wear and Tear: Inspect the upholstery for tears or excessive wear. Check the frame for any signs of damage or corrosion. Replace worn or damaged parts immediately.

7. Troubleshooting

• Bench feels unstable: Ensure the bench is on a flat, level surface. Check all assembly bolts and adjustment pins for tightness.
• Adjustment pin not locking: Ensure the backrest or seat is fully engaged in the desired position. Clean any debris from the adjustment holes.
• Squeaking noises: Apply a small amount of silicone lubricant to pivot points or moving parts.

8. Specifications

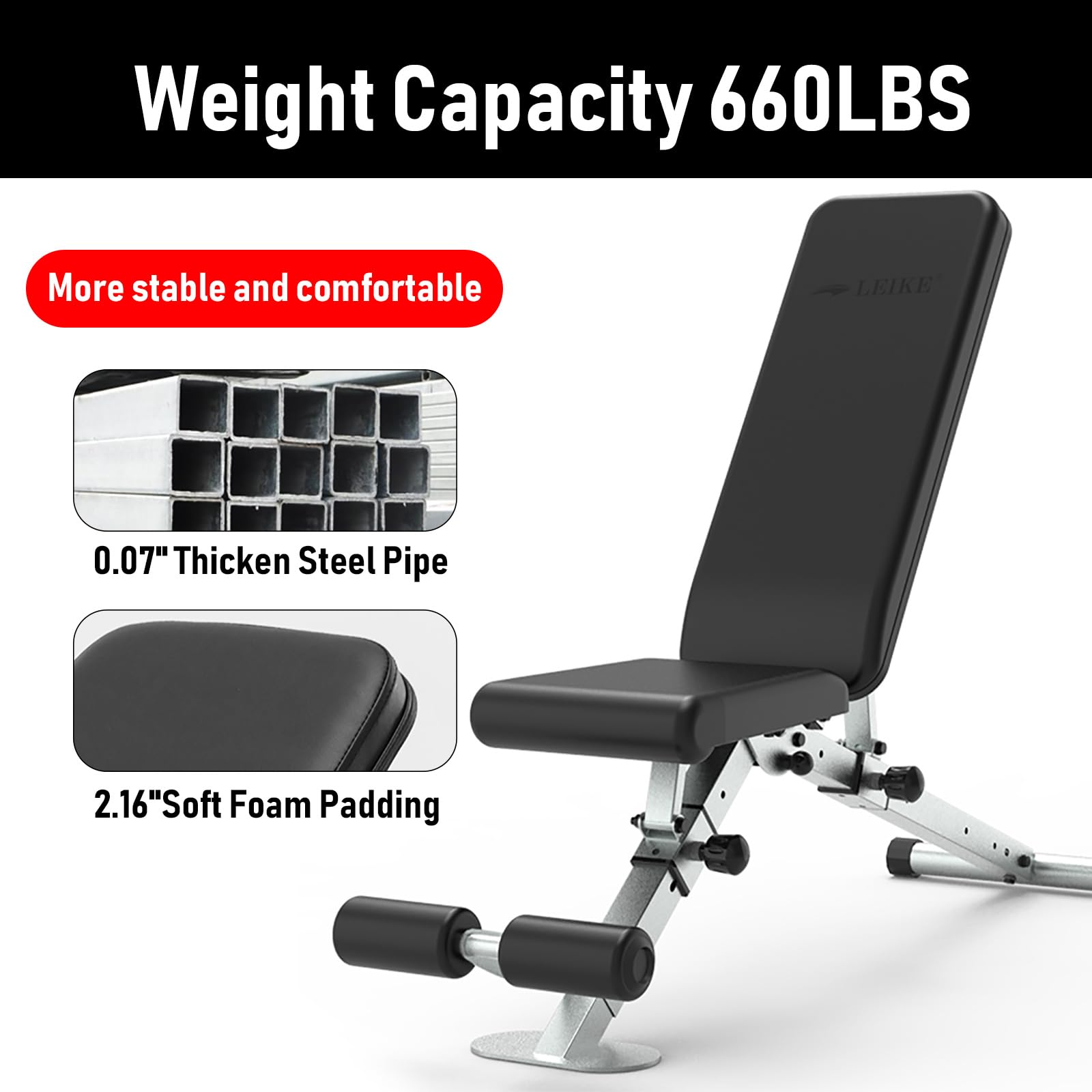

Image 8.1: Details on the bench's robust construction and 660 lbs (300 kg) weight capacity.

9. Warranty and Support

leikefitness provides a 2-year availability for spare parts within the EU. For any questions regarding your product, assembly, or operation, please contact customer support.

To contact support:

1. Log in to your Amazon account.
2. Go to "Your Orders".
3. Find the order ID for your leikefitness GM5809 bench.
4. Click on "Contact Seller".
