1. Introduction
The VOLTCRAFT P-600 is a versatile NiMH round cell battery charger designed for various battery types, including Micro (AAA), Mignon (AA), Baby (C), Mono (D), and 9V batteries. This charger features a microprocessor-controlled charging process, an LCD screen for monitoring, and a convenient USB output. It automatically switches to trickle charge after completion, preventing overcharging and extending battery life.
2. Safety Information
Please read and understand all safety instructions before using the VOLTCRAFT P-600 charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Use this charger only for rechargeable NiMH batteries. Do not attempt to charge non-rechargeable batteries or other battery chemistries (e.g., NiCd, Li-ion, Alkaline).
- Do not expose the charger to rain, moisture, or extreme temperatures.
- Ensure proper ventilation during charging. Do not cover the charger.
- Keep out of reach of children.
- Do not disassemble or modify the charger. Refer all servicing to qualified personnel.
- If the charger or batteries become excessively hot during charging, disconnect from power immediately.
3. Setup
- Unpacking: Carefully remove the charger and any accessories from the packaging. Inspect for any signs of damage.
- Power Connection: Connect the charger to a suitable power outlet using the provided power adapter. The LCD screen should illuminate.
- Placement: Place the charger on a stable, flat, and non-flammable surface, away from direct sunlight or heat sources.
4. Operating Instructions
4.1 Inserting Batteries
The VOLTCRAFT P-600 supports various battery sizes. Insert batteries into the appropriate charging slots, ensuring correct polarity (+ and -). The charger features individual charging bays, allowing you to charge different battery types simultaneously.
Image: The VOLTCRAFT P-600 charger with a variety of NiMH batteries (AAA, AA, C, D, 9V) correctly placed in its charging bays, visible through the transparent blue cover.

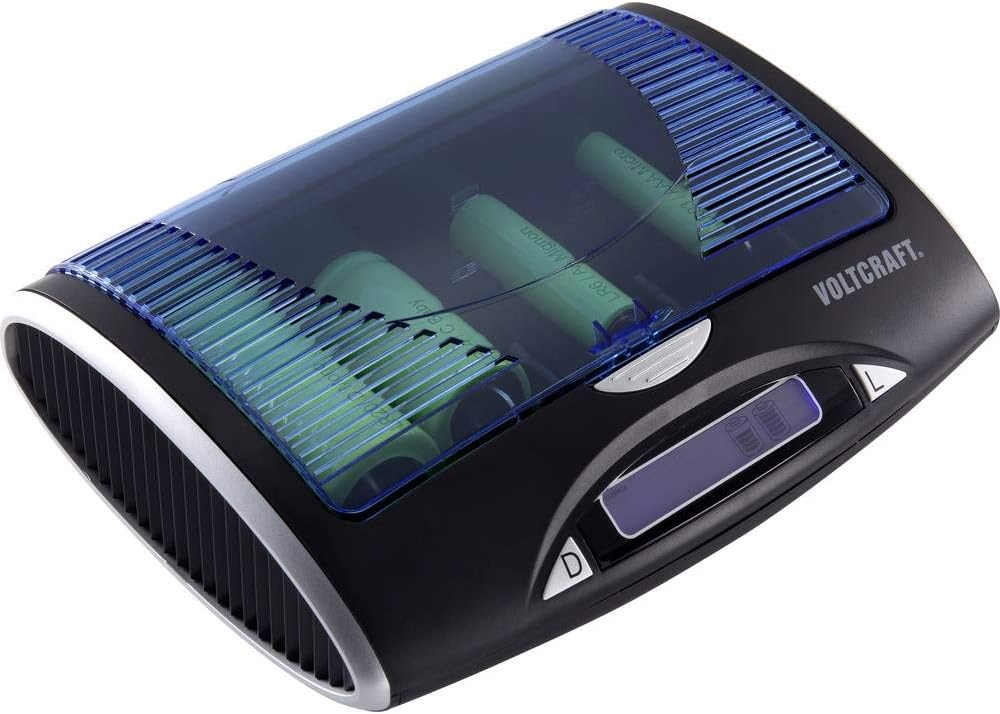

Image: A close-up view of the VOLTCRAFT P-600 charger showing AA and AAA size batteries inserted into their designated slots.
Image: The VOLTCRAFT P-600 charger with C and D size batteries properly seated in their charging compartments.
Image: A detailed shot of the VOLTCRAFT P-600 charger demonstrating 9V batteries placed in their dedicated charging slots.
4.2 LCD Display
The integrated LCD screen provides real-time information about the charging status of each battery. It typically shows the charge progress, battery type, and other relevant indicators.
Image: A close-up of the VOLTCRAFT P-600's LCD display, illustrating the charging status and battery information.
4.3 Charging Process
Once batteries are correctly inserted, the charger automatically begins the charging process. The P-600 utilizes microprocessor control to optimize charging for each individual battery. After the charging cycle is complete, the charger automatically switches to a trickle charge mode. This feature prevents overcharging, which can damage batteries and shorten their lifespan.
4.4 USB Output
The charger includes a USB output port, allowing you to charge compatible USB-powered devices simultaneously with your batteries. Connect your device's USB cable to the charger's USB port.
5. Maintenance
- Cleaning: Disconnect the charger from the power supply before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- Storage: When not in use, store the charger in a cool, dry place, away from direct sunlight and extreme temperatures.
- Battery Care: Always remove batteries from the charger once fully charged if not using the trickle charge feature for extended periods.
6. Troubleshooting
If you encounter issues with your VOLTCRAFT P-600 charger, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger not powering on | No power supply; faulty power adapter; loose connection. | Check power outlet; ensure power adapter is securely connected; try a different outlet. |
| Battery not charging | Incorrect battery type; incorrect polarity; battery is fully charged; faulty battery. | Ensure NiMH battery is used; check polarity; verify battery status on LCD; replace faulty battery. |
| LCD display not working | Power issue; internal fault. | Check power connection; if problem persists, contact support. |
| Batteries getting too hot | Faulty battery; improper ventilation; incorrect battery type. | Immediately remove batteries and disconnect charger; ensure proper ventilation; use only NiMH batteries. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | VOLTCRAFT |
| Model Number | VC-10904665 |
| Color | Black |
| Compatible Battery Types | NiMH Micro (AAA), Mignon (AA), Baby (C), Mono (D), 9V |
| Special Features | Single bay monitoring, Minus-Delta-U Cut-off, Microprocessor controlled charging, Trickle charge |
| Compatible Devices | 4 (referring to charging bays for round cells) |
| USB Output | Yes |
| LCD Screen | Yes |
| Item Weight | 390 Grams |
| Compliant Specifications | CE |
8. Warranty and Support
The VOLTCRAFT P-600 charger comes with a commitment to quality. Spare parts availability is guaranteed for 1 year from the date of purchase. For technical support, warranty claims, or further assistance, please refer to the contact information provided with your product packaging or visit the official VOLTCRAFT website.
