Scheppach MP132-42 Thermal Lawnmower Instruction Manual

1. Safety Instructions

Always read and understand all safety warnings and instructions before operating the lawnmower. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

General Safety

• Keep children and bystanders away while operating the lawnmower.
• Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and sturdy footwear.
• Never operate the lawnmower in wet grass or rain.
• Ensure the engine is off and the spark plug cap is removed before performing any maintenance or clearing blockages.
• Do not operate the lawnmower if any parts are damaged or missing.
• Refuel in a well-ventilated area with the engine off and cool. Avoid smoking during refueling.

2. Product Overview

The Scheppach MP132-42 is a lightweight yet powerful thermal lawnmower designed for small to medium-sized gardens up to 800 m². It features a 131 cc 4-stroke gasoline engine, a compact 42 cm cutting width, and a 45-liter grass collection bag. The mower is equipped with large ball-bearing wheels and a comfortable handle for easy maneuverability.

Key Features

• Powerful Engine: 131 cc 4-stroke gasoline engine delivering 3.3 HP (2.4 kW).
• Compact Cutting Width: 42 cm for efficient mowing in smaller areas.
• Adjustable Cutting Height: Central height adjustment with 7 settings from 25 to 75 mm.
• Efficient Grass Collection: 45-liter durable fabric bag with plastic top for easy filling and emptying.
• Easy Cleaning: Integrated water connection for quick cleaning of the steel housing.
• Space-Saving Storage: Foldable handle for convenient storage in sheds or garages.

Figure 2.1: Overall view of the Scheppach MP132-42 thermal lawnmower.

Figure 2.2: The lawnmower offers 3-in-1 functionality: Mowing, Grass Collection, and Cleaning.

3. Setup

3.1 Unpacking and Assembly

1. Carefully remove all components from the packaging.
2. Unfold the handle and secure it using the provided quick-release levers or bolts. Ensure the handle is firmly locked in place.
3. Attach the grass collection bag according to the instructions in the manual.
4. Check all fasteners for tightness before first use.

Figure 3.1: The foldable handle design allows for compact storage and easy transport.

3.2 Fuel and Oil Filling

The lawnmower is shipped without fuel or engine oil. It is crucial to fill both before starting the engine.

• Engine Oil: Fill with recommended 4-stroke engine oil (e.g., SAE 30) to the appropriate level indicated on the dipstick. Do not overfill.
• Fuel: Fill the fuel tank with unleaded gasoline. Do not use E85 or other ethanol blends not approved for small engines.
• Always refuel in a well-ventilated outdoor area, away from open flames or sparks.

Figure 3.2: Close-up view of the 131cc engine, showing the oil and fuel caps.

4. Operating Instructions

4.1 Starting the Engine

1. Ensure the spark plug cap is securely attached.
2. Press the primer bulb 3-5 times (if equipped) until fuel is visible in the bulb.
3. Move the throttle lever to the 'START' or 'CHOKE' position.
4. Pull the starter cord firmly until the engine starts.
5. Once the engine runs smoothly, move the throttle lever to the 'RUN' position.

4.2 Adjusting Cutting Height

The cutting height can be adjusted centrally using a single lever.

• Ensure the engine is off before adjusting the cutting height.
• Locate the central height adjustment lever on the side of the mower.
• Move the lever to select one of the 7 available cutting height settings (25-75 mm).

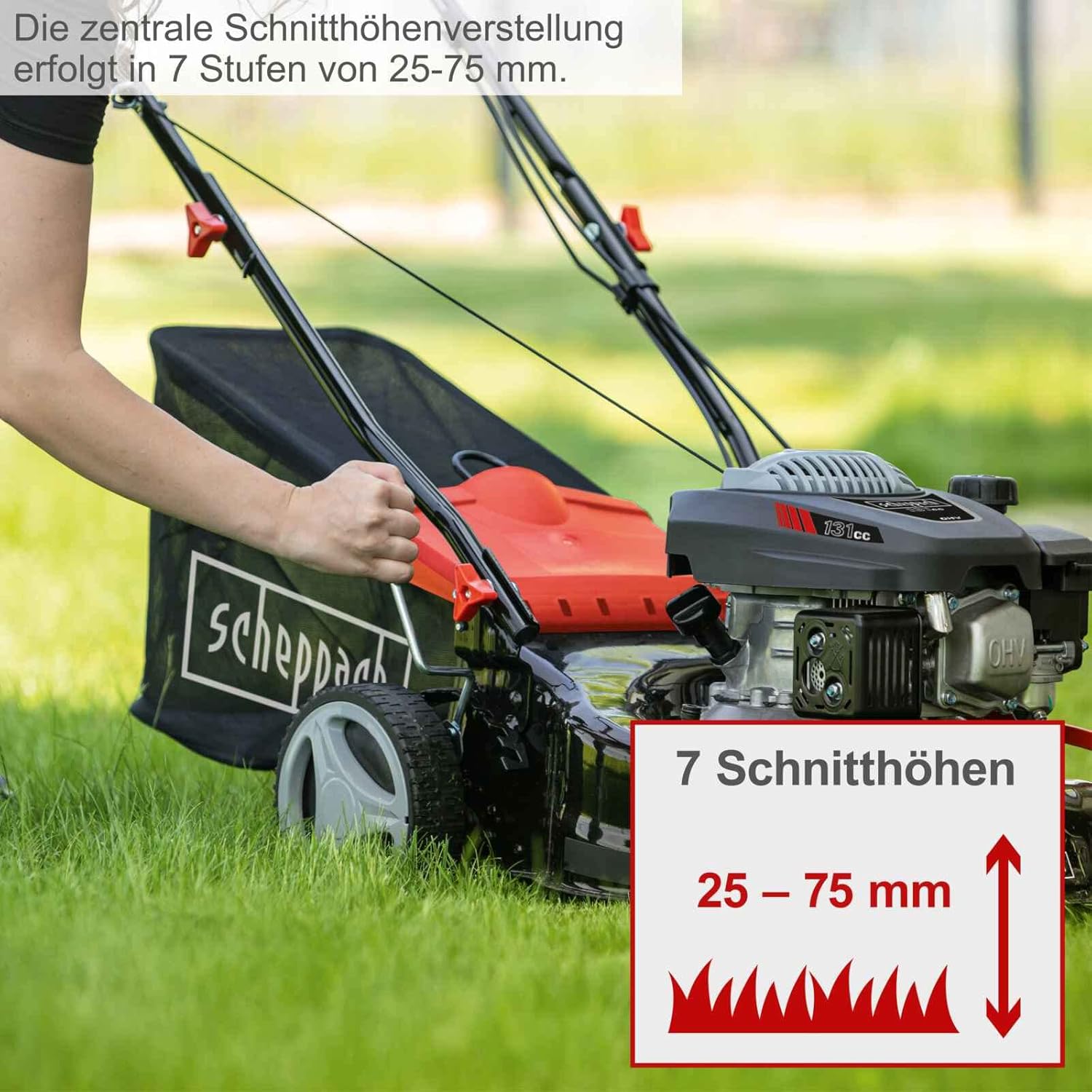

Figure 4.1: The central cutting height adjustment offers 7 positions from 25 to 75 mm.

4.3 Mowing Techniques

• For best results, mow when the grass is dry.
• Overlap each cutting pass slightly to ensure even coverage.
• Avoid cutting more than one-third of the grass blade length at a time.
• Empty the grass collection bag regularly to maintain optimal performance.

Figure 4.2: Operating the lawnmower for efficient grass cutting.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your lawnmower.

5.1 Cleaning

• After each use, clean the underside of the mower deck to prevent grass buildup.
• The integrated water connection allows for quick and easy cleaning of the steel housing. Attach a garden hose, turn on the water, and start the engine briefly to clean the deck.
• Clean the exterior of the engine and housing with a damp cloth. Do not use high-pressure washers directly on the engine.

Figure 5.1: Using the Easy Clean function with water connection for quick cleaning.

5.2 Blade Care

• Regularly inspect the cutting blade for sharpness and damage.
• A dull or damaged blade can lead to poor cutting performance and increased engine strain.
• Have the blade sharpened or replaced by a qualified service technician.

5.3 Engine Maintenance

• Check the engine oil level before each use and top up if necessary.
• Change the engine oil after the first 5 hours of operation, then every 25 hours or annually.
• Clean or replace the air filter regularly, especially in dusty conditions.
• Inspect and clean the spark plug periodically. Replace if worn or fouled.

6. Troubleshooting

7. Specifications

8. Warranty and Support

This Scheppach product is covered by the manufacturer's standard warranty. Please refer to the warranty card included with your product for specific terms and conditions. Keep your proof of purchase for any warranty claims.

For technical support, spare parts, or service inquiries, please contact Scheppach customer service or an authorized service center. Information regarding spare parts availability in the EU is guaranteed for 7 years from the date of purchase.

9. Product Videos

No relevant official product videos from the seller were found for this specific model.
