Phomemo Thermal Labels Instruction Manual for M110/M100/M220/M221/M108 Label Printers

1. Introduction

These Phomemo thermal labels are designed for use with compatible Phomemo thermal label printers. They utilize direct thermal printing technology, eliminating the need for ink or toner. This manual provides essential information for the proper setup, operation, and care of your Phomemo thermal labels.

2. Product Overview

2.1 Compatible Printers

These labels are compatible with Phomemo M110, M100, M220, M221, M250, M260, M160, M150, M120, and M108 label makers. Ensure your printer model is listed for optimal performance.

Image showing various Phomemo label printers compatible with the thermal labels, including models M220, M110, M250, M160, M150, M260, M100, M120, and M108.

Figure 2.1: Compatible Phomemo Label Printers.

2.2 Label Specifications

Label Size: 3/4" x 3/8" (20mm x 10mm)
Labels per Roll: 1280 labels
Print Color: Black on white
Material: Thermal paper
Features: BPA-free, Strong Adhesion, Abrasion Resistant, Water Resistant

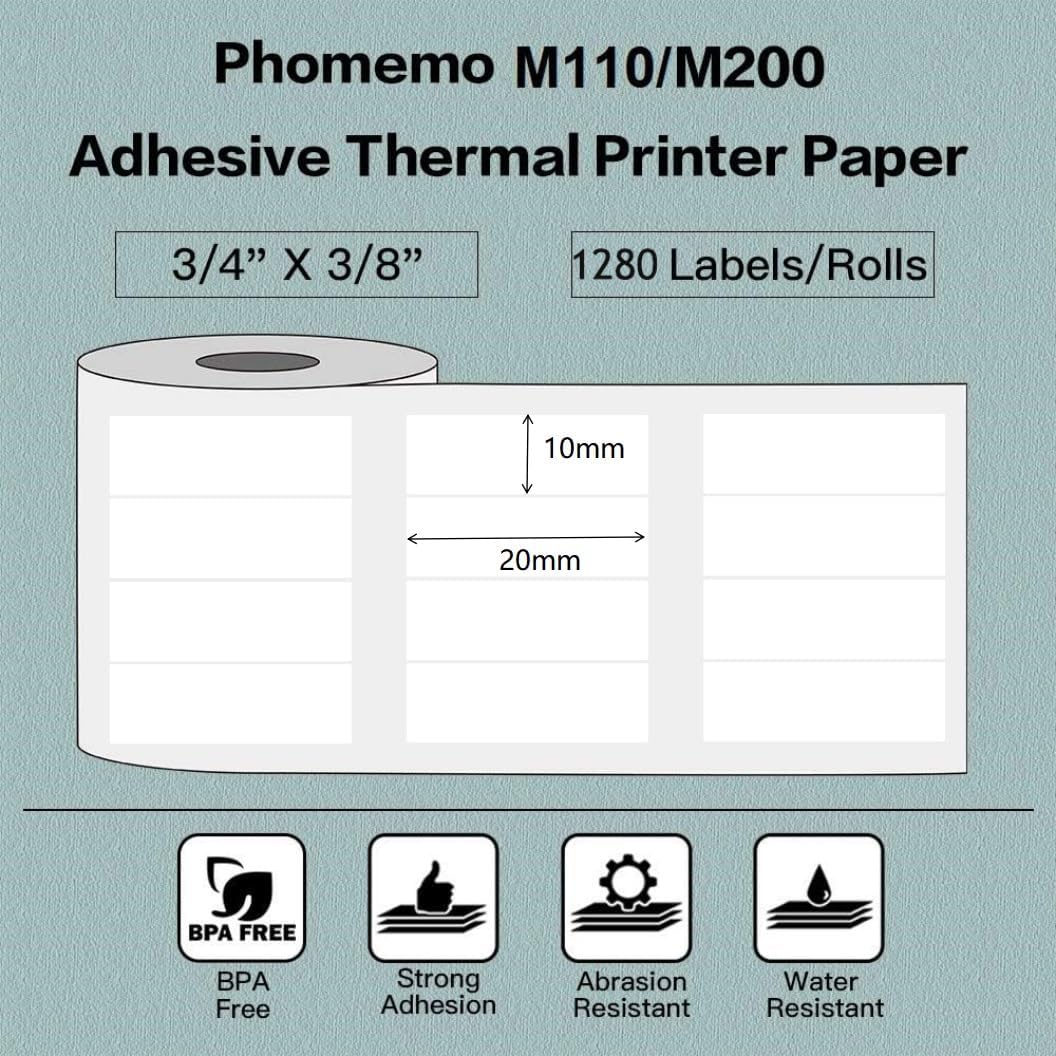

Diagram showing Phomemo M110/M200 adhesive thermal printer paper with dimensions 3/4 inch by 3/8 inch (20mm x 10mm) and 1280 labels per roll. Icons indicate BPA Free, Strong Adhesion, Abrasion Resistant, and Water Resistant features.

Figure 2.2: Label dimensions and features.

3. Setup and Installation

3.1 App Installation

To use your Phomemo label printer and labels, install the Print Master App. This app is available for download from the Apple App Store (for iOS devices) and Google Play Store (for Android devices).

3.2 Printer Connection

Ensure your Phomemo label printer is powered on.
Open the Print Master App on your smartphone or tablet.
Enable Bluetooth on your device and connect to your Phomemo printer through the app.

3.3 Loading Labels

Refer to your specific Phomemo label printer's manual for detailed instructions on how to open the printer and correctly load the label roll. Ensure the labels are facing the correct direction for printing and are properly aligned within the printer's feed mechanism.

4. Operation

4.1 Printing Process

Once your printer is connected and labels are loaded, you can begin printing using the Print Master App. The app offers various fonts, filter effects, and themes to customize your labels. Follow these general steps:

Open the Print Master App.
Select the 'New Label' option.
Choose the correct label paper size (20x10mm) or template within the app.
Design your label by adding text, images, or barcodes.
Adjust the content within the label boundaries.
Initiate printing with a single click.

Screenshot of the Phomemo Print Master App showing steps to print 20x10mm labels. Steps include clicking 'New Label', choosing label paper, selecting 'White Label' and '4 rows-1020' template, editing content, rotating, and copying to populate multiple labels.

Figure 4.1: Guide to printing 20x10mm labels using the Print Master App.

4.2 Usage Examples

These versatile labels can be used for various purposes, including:

Barcode labels
Address and mailing labels
Price tags
Product identification
Home organization tags

Small white thermal labels applied to clear containers of candy, displaying product names and prices.

Figure 4.2: Labels used for product identification on candy containers.

Small white thermal labels applied to various medicine bottles, showing contents like 'PROBIOTICS', 'VITAMIN C', and 'COENZYME Q10' along with expiration dates.

Figure 4.3: Labels used for organizing medicine bottles.

5. Maintenance and Care

5.1 Storage

Store thermal labels in a cool, dry place away from direct sunlight and excessive heat. Prolonged exposure to heat or light can degrade the thermal coating, affecting print quality and label longevity.

5.2 Label Properties

Phomemo thermal labels are designed with durability in mind:

BPA-Free: Safe for various applications.
Water-Resistant: Helps protect against splashes and moisture.
Scratch-Resistant: Provides durability against minor abrasions.
Oil-Proof: Resists smudging from oils.

Image illustrating BPA-free sticker labels with a natural outdoor background.

Figure 5.1: BPA-free label feature.

Diagram showing an inkless thermal label with a colorless thermal coating and flexible label layers.

Figure 5.2: Inkless thermal label technology.

Three images demonstrating the water-proof, oil-proof, and scratch-resistant properties of the labels. One label is submerged in water, another in oil, and a third is being scratched with a coin.

Figure 5.3: Durability features: Water-proof, Oil-proof, Scratch Resistant.

6. Troubleshooting

6.1 Common Issues

Poor Print Quality: Ensure the label roll is correctly loaded and the thermal side is facing the print head. Check for any debris on the print head.
Printer Not Connecting: Verify Bluetooth is enabled on your device and the printer. Restart both the printer and the app.
Labels Not Feeding: Check for proper alignment of the label roll. Ensure there are no obstructions in the paper path.
Incorrect Label Count: While the product is specified as 1280 labels per roll, occasional discrepancies have been reported. If you encounter a significant difference, please contact Phomemo support.

6.2 Instructional Video

Video 6.1: General overview of Phomemo label usage. (Duration: 0:21)

7. Technical Specifications

Brand	Phomemo
Model Number (Printer)	M110
Label Size	20mm x 10mm (3/4" x 3/8")
Labels per Roll	1280
Color	White
Shape	Rectangular
Material Type	Paper
Finish Type	Uncoated
Manufacturer Part Number	2010-600

8. Support Information

For further assistance, technical support, or warranty inquiries regarding your Phomemo thermal labels or compatible printers, please visit the official Phomemo website or contact their customer service directly. Refer to your printer's packaging or the Phomemo website for specific contact details.
