Introduction
This manual provides comprehensive instructions for the installation, proper use, and maintenance of your Emtek Alexander 12-Inch Center-to-Center Cabinet Pull, Model 86479US4. Please read these instructions carefully before proceeding with installation to ensure correct application and long-lasting performance.
Product Overview

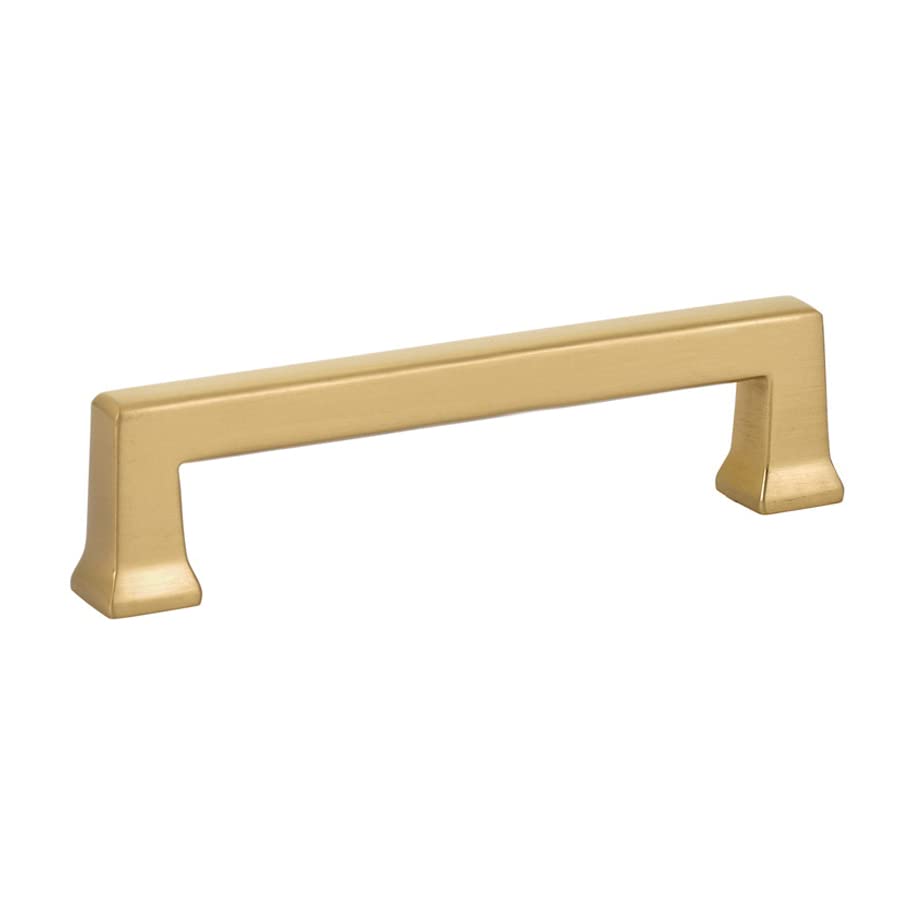

This image displays the Emtek Alexander 12-inch cabinet pull. It features a rectangular bar design with two square-based posts, all finished in a matte brass color. The pull is shown horizontally, highlighting its clean lines and contemporary aesthetic.
The Emtek Alexander cabinet pull is designed for use on cabinet doors and drawers. It features a durable brass construction with a matte finish, offering both aesthetic appeal and functional reliability. Each pull includes the necessary mounting screws for installation.
Setup and Installation
Required Tools:
- Phillips head screwdriver
- Measuring tape or ruler
- Pencil
- Drill with appropriate drill bit (typically 3/16" or 5mm, verify with screw size)
- Masking tape (optional, for marking)
Installation Steps:
- Determine Placement: Decide on the desired location for the pull on your cabinet door or drawer. Use a measuring tape and pencil to mark the two screw hole centers. For a 12-inch center-to-center pull, ensure your marks are exactly 12 inches apart.
- Prepare for Drilling: For accuracy, apply masking tape over the marked drilling points to prevent splintering of the wood during drilling.
- Drill Pilot Holes: Using a drill with the correct size drill bit (refer to screw diameter for best fit), carefully drill pilot holes through the cabinet door or drawer at your marked points. Ensure the drill is perpendicular to the surface to avoid angled holes.
- Attach the Pull: Align the posts of the Emtek Alexander pull with the drilled holes. Insert the provided screws from the back side of the cabinet door or drawer through the pilot holes and into the threaded posts of the pull.
- Tighten Screws: Using a Phillips head screwdriver, carefully tighten the screws until the pull is secure. Do not overtighten, as this can strip the screw threads or damage the cabinet material.
- Verify Stability: Gently pull on the installed handle to ensure it is firmly attached and does not wobble.
Operating the Cabinet Pull
The Emtek Alexander cabinet pull is designed for simple and reliable operation. To open or close a cabinet door or drawer, grasp the pull firmly and apply gentle, consistent force in the desired direction. Avoid excessive force or sudden jerking motions, which can stress the mounting hardware and potentially damage the cabinet or the pull itself.
Maintenance
Cleaning Instructions:
- Regular Cleaning: To maintain the finish, wipe the pull regularly with a soft, damp cloth.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, ammonia-based products, or solvents, as these can damage the matte brass finish.
- Drying: After cleaning, dry the pull immediately with a clean, soft cloth to prevent water spots.
Inspection:
Periodically inspect the pull and its mounting screws for any signs of loosening. If the pull feels loose, gently tighten the mounting screws with a Phillips head screwdriver. Do not overtighten.
Troubleshooting
Loose Pull:
- Issue: The cabinet pull feels loose or wobbly.
- Solution: Gently tighten the mounting screws from the inside of the cabinet door or drawer using a Phillips head screwdriver. If the screws continue to loosen, consider using a thread-locking compound (e.g., blue Loctite) on the screw threads before re-tightening, or replace the screws if they appear stripped.
Scratched or Damaged Finish:
- Issue: The matte brass finish has minor scratches or discoloration.
- Solution: For minor blemishes, a non-abrasive brass polish specifically designed for matte finishes may help, but always test on an inconspicuous area first. Deep scratches or significant damage may require professional refinishing or replacement of the pull.
Specifications
| Feature | Detail |
|---|---|
| Brand | Emtek |
| Model Number | 86479US4 |
| Collection | Alexander |
| Center-to-Center Measurement | 12 Inches |
| Material | Brass |
| Finish | Matte (US4) |
| Included Components | Mounting Screw(s) |
| Item Weight | Approximately 2.08 ounces (0.06 Kilograms) |
| Manufacturer | Emtek Products Inc |
| UPC | 738505017116 |
Warranty and Support
Emtek products are manufactured to high standards and are backed by a limited warranty. For specific warranty details, claims, or technical support, please refer to the official Emtek website or contact Emtek customer service directly. Keep your purchase receipt as proof of purchase.
- Online Support: Visit the official Emtek website for product information and support resources.
- Customer Service: Contact Emtek customer service for assistance with product issues or warranty inquiries.
