1. Introduction
This manual provides essential information for the safe and effective use of your Rowenta ZR009700 22V Removable Lithium-Ion Battery. This battery is designed to extend the operating time of compatible Rowenta vacuum cleaners.
Key Features:
- 22V Lithium-Ion technology.
- Provides an additional 35 minutes of autonomy (at standard power).
- Compatible with Rowenta X-Force Flex 8.60 models and all RH96/TY96/EO96 series.
- Allows for quick battery replacement to continue cleaning without interruption.
Image 1.1: Rowenta ZR009700 battery highlighting compatibility with X-Force Flex 8.60 models.
2. Safety Information
Please read all safety instructions before using the battery. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- WARNING: Ensure the appliance is disconnected from the power supply before removing or inserting the battery.
- Use only the charger specified by the manufacturer for recharging. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Do not disassemble, open, or shred battery packs.
- Do not expose battery packs to heat or fire. Avoid storage in direct sunlight.
- Do not short-circuit a battery pack.
- In case of leakage, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
- Keep battery packs out of reach of children.
- Do not use any battery pack that is not designed for use with the appliance.
- Store the battery in a clean, dry place away from extreme temperatures.
- Dispose of used batteries according to local regulations. Do not dispose of batteries in household waste.
3. Setup and Installation
Follow these steps to install the Rowenta ZR009700 battery into your compatible vacuum cleaner.
- Ensure Power Disconnection: Before handling the battery, ensure your Rowenta vacuum cleaner is completely switched off and disconnected from any charging cable or power source.
- Locate Battery Compartment: Identify the battery compartment on your vacuum cleaner. Refer to your vacuum cleaner's specific instruction manual for exact location if unsure.
- Remove Existing Battery (if applicable): If replacing an existing battery, press the release button (if present) and carefully slide out the old battery.
- Insert New Battery: Align the Rowenta ZR009700 battery with the compartment. Slide the battery firmly into place until it clicks, indicating it is securely locked.
- Verify Connection: Gently tug on the battery to ensure it is properly seated and will not accidentally detach during use.
Image 3.1: Illustration of inserting the removable battery into the vacuum cleaner.
4. Operating Instructions
4.1 Charging the Battery
To ensure optimal performance and longevity, fully charge the battery before first use and after each cleaning session.
- Connect Charger: Plug the compatible Rowenta charger into a power outlet.
- Connect Battery: Connect the charger to the charging port on the battery. The charging indicator lights on the battery or vacuum cleaner (if charging while installed) will illuminate.
- Monitor Charging: Allow the battery to charge until the indicator lights show a full charge. Charging time may vary.
- Disconnect: Once fully charged, disconnect the charger from the battery and the power outlet.
Image 4.1: The Rowenta ZR009700 battery connected to its charging cable.
4.2 Using the Battery
Once installed and charged, the battery powers your Rowenta vacuum cleaner. The ZR009700 battery provides approximately 35 minutes of additional runtime at standard power settings, allowing for extended cleaning sessions.
To maximize battery life during use:
- Use the appropriate power setting for the cleaning task. Higher power settings consume battery faster.
- Avoid continuously running the vacuum cleaner when not actively cleaning.
- For optimal performance, do not fully discharge the battery regularly.
5. Maintenance and Storage
5.1 Cleaning
- Wipe the exterior of the battery with a soft, dry cloth.
- Do not use harsh chemicals or abrasive cleaners.
- Ensure the charging contacts are clean and free of debris.
5.2 Storage
- Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
- For long-term storage, it is recommended to store the battery with a partial charge (around 50%).
- Avoid storing the battery in a fully discharged or fully charged state for extended periods.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger not properly connected; Faulty charger or outlet; Battery contacts are dirty. | Ensure charger is securely plugged in. Try a different outlet. Clean battery contacts with a dry cloth. If problem persists, contact support. |
| Reduced operating time | Battery not fully charged; Battery degradation over time; High power mode used excessively. | Ensure battery is fully charged. Consider replacing the battery if it's old. Use standard power mode for general cleaning. |
| Battery not fitting into vacuum | Incorrect alignment; Obstruction in compartment. | Re-align the battery carefully. Check for any debris or obstructions in the battery compartment. Ensure compatibility with your vacuum model. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Rowenta |
| Model Number | ZR009700 |
| Battery Type | Lithium-Ion |
| Voltage | 22 Volts |
| Additional Autonomy | Up to 35 minutes (at standard power) |
| Compatibility | Rowenta X-Force Flex 8.60 series (e.g., RH9678WO, RH9695WO, RH9681WO, RH9679WO, RH9680WO, RH9638WO, RH9637WO, RH9611WO), and all RH96/TY96/EO96 ranges. |
| Reusability | Rechargeable |
| Item Dimensions (L x W x H) | 19.9 x 9.7 x 5.7 cm |
| Battery Weight | 188 Grams |
| Components Included | 1 x Rowenta ZR009700 Battery |

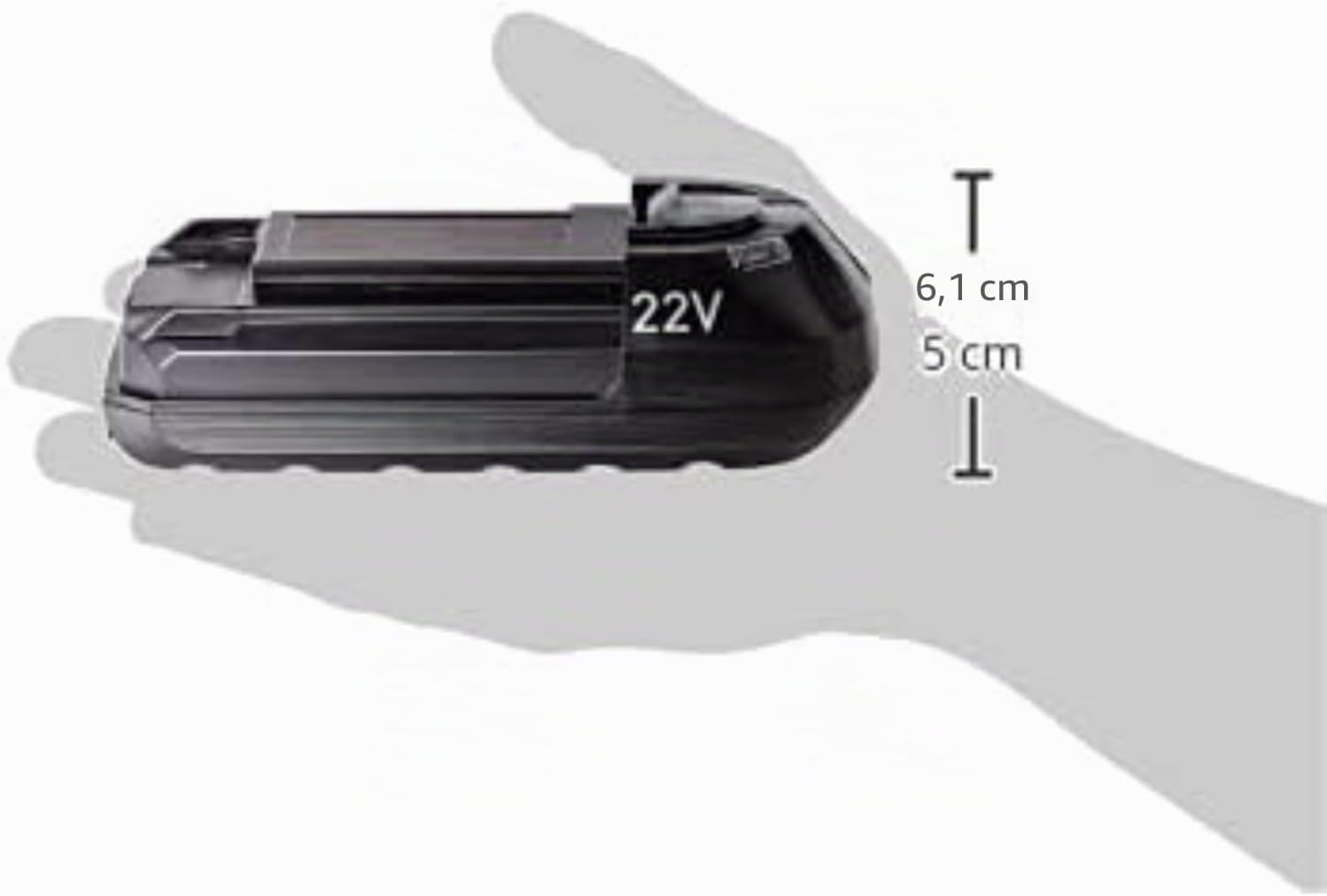

Image 7.1: Approximate dimensions of the Rowenta ZR009700 battery.

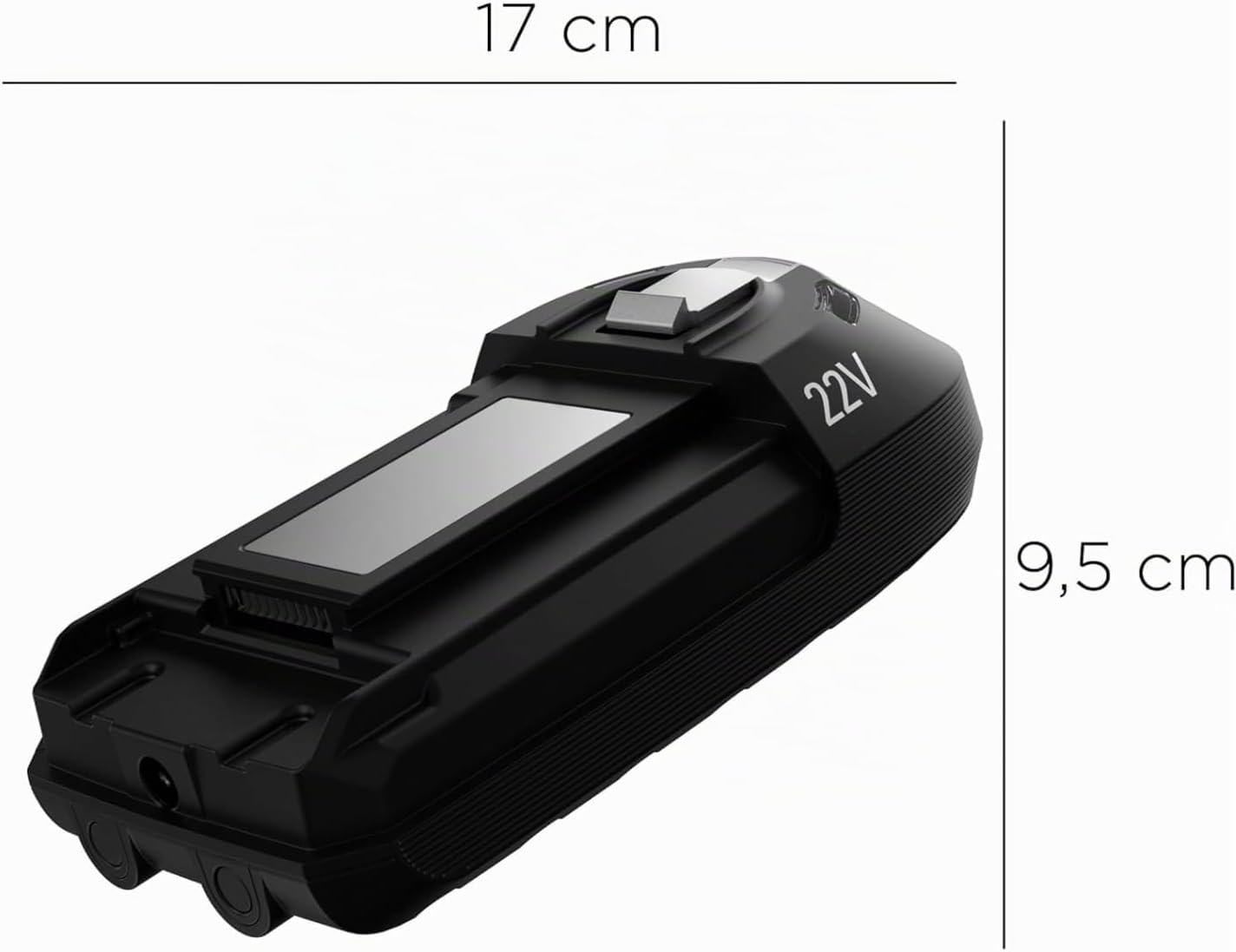

Image 7.2: Detailed measurements of the Rowenta ZR009700 battery (17 cm length, 9.5 cm width).
8. Warranty Information
The Rowenta ZR009700 battery comes with a 2-year product warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.
The warranty does not cover:
- Damage caused by improper use, negligence, or accident.
- Normal wear and tear, including battery capacity degradation over time.
- Damage caused by unauthorized repairs or modifications.
- Use with non-compatible devices or chargers.
Please retain your proof of purchase for warranty claims.
9. Customer Support
For further assistance, technical support, or warranty claims, please contact Rowenta customer service. You can find contact information on the official Rowenta website or through your product's original packaging.
Online Resources: Visit the official Rowenta Store on Amazon for product information and updates.
