Introduction
Thank you for choosing the LawnMaster LT502-1800A Electric Pressure Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pressure washer. Please read all instructions carefully before use and retain this manual for future reference.
The LawnMaster LT502-1800A is designed for various cleaning tasks, offering powerful performance with its 13 Amp/1800-Watt motor, generating up to 1.4 GPM water flow and 2100 Max PSI water pressure. Its features include a Total Stop System, adjustable pressure nozzle, and easy maneuverability with sturdy wheels and a comfort-grip handle.
Important Safety Information
WARNING: Always wear appropriate personal protective equipment, including eye protection, hearing protection, and gloves, when operating the pressure washer. Use at your own risk.
- Never point the spray gun at people, pets, or electrical devices.
- Ensure all connections are secure before starting the unit.
- Do not operate the pressure washer in an enclosed space.
- Always disconnect the power supply before performing any maintenance or cleaning.
- Use only detergents specifically designed for pressure washers.
Product Overview
Familiarize yourself with the components of your LawnMaster LT502-1800A Electric Pressure Washer:

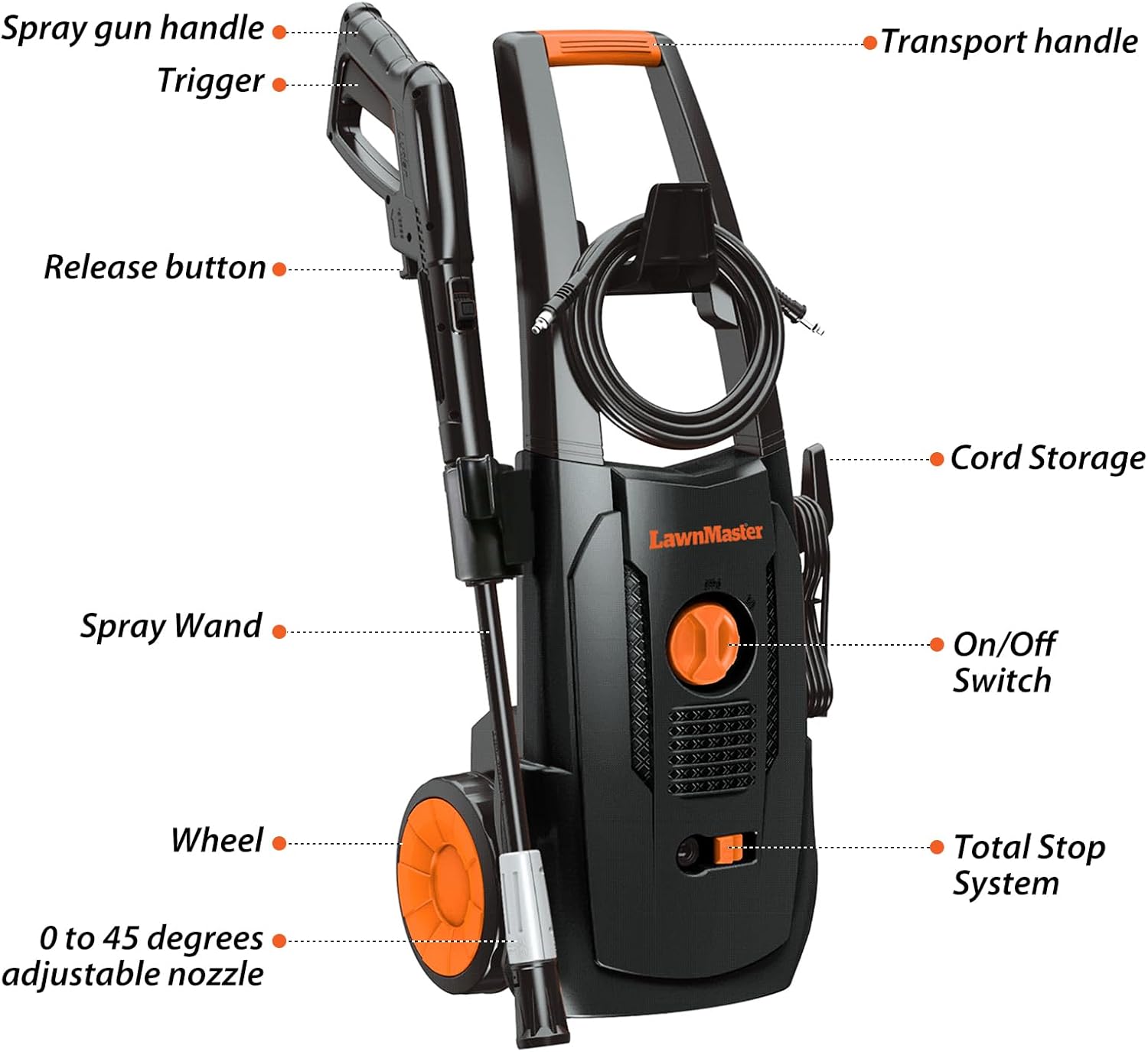

Image: Overview of the LawnMaster LT502-1800A Electric Pressure Washer, highlighting key components such as the spray gun handle, trigger, release button, spray wand, adjustable nozzle, wheels, transport handle, cord storage, On/Off switch, and Total Stop System.
Setup and Assembly
Follow these steps to assemble your pressure washer:
- Attach the Handle: Slide the handle into the designated slots on the main unit until it clicks into place. Secure it with the provided screws.
- Install Hose and Accessory Holders: Attach the hose holder and spray wand bracket to the main unit as shown in the diagram.
- Connect High-Pressure Hose: Connect one end of the high-pressure hose to the outlet on the pressure washer unit and the other end to the spray gun. Ensure connections are tight and secure.
- Connect Water Supply: Attach your garden hose to the water inlet on the pressure washer. Ensure the water supply is turned on before starting the unit.
- Connect Power: Plug the power cord into a grounded electrical outlet.
Video: Unboxing and initial assembly steps for the LawnMaster Electric Pressure Washer LT502. This video demonstrates how to unpack the unit and connect the main components.

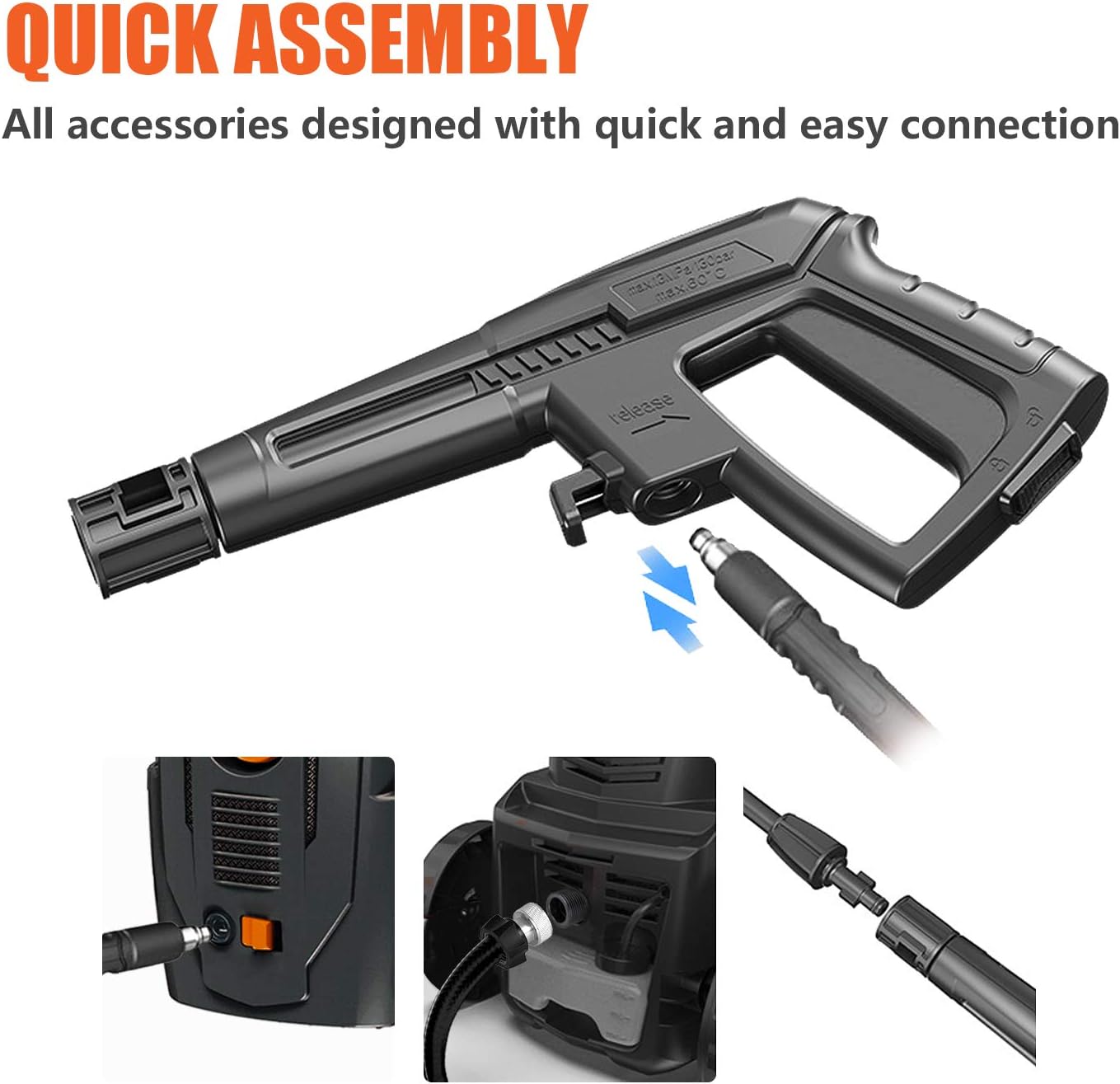

Image: Visual guide for quick assembly, illustrating how to connect the spray gun, hose, and other accessories with quick-connect fittings.
Operating Instructions
Before operating, ensure all connections are secure and the water supply is fully open.
- Starting the Unit: Turn the On/Off switch to the 'ON' position. The Total Stop System (TSS) will automatically shut down the motor when the trigger switch is not engaged, conserving energy and extending product life.
- Using the Spray Gun: The spray gun features a lock/unlock mechanism for safety. Push the button to release the hose or lock it in place.
- Adjusting the Nozzle: The adjustable pressure nozzle rotates to allow water flow between 0 to 45 degrees, covering a range of cleaning jobs. Rotate the nozzle to select the desired spray pattern and pressure.
- 0 degrees: Highest pressure for the toughest cleaning jobs.
- 20 degrees: Ideal for most general cleaning applications.
- 45 degrees: Lowest pressure for easily damaged surfaces.
- Applying Detergent: Fill the integrated soap tank with appropriate pressure washer detergent. Rotate the adjustable nozzle to the 'SOAP' icon to dispense detergent at low pressure.
Image: Illustration of the all-in-one adjustable nozzle, demonstrating how to rotate it to select different spray angles (0, 20, and 45 degrees) for varying water pressure and cleaning intensity.
Image: A hand opening the cap of the integrated soap tank, indicating where to fill detergent for soap application.
Video: An operation guide demonstrating the assembly and use of the LawnMaster Pressure Washer LT502, including connecting hoses, adjusting the nozzle, and applying soap.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your pressure washer.
- Cleaning the Nozzle: If the nozzle becomes clogged, use the provided cleaning pin to clear any debris.
- Draining Water: After each use, disconnect the water supply and power. Squeeze the spray gun trigger to release any remaining pressure and drain water from the pump and hose.
- Storage: Store the pressure washer in a dry, frost-free area. Wrap the high-pressure hose and power cord around the designated storage areas. Secure the spray gun and wand in their respective holders.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power supply; On/Off switch is OFF | Check power connection; Turn On/Off switch to ON |
| Low water pressure | Insufficient water supply; Clogged nozzle; Air in pump | Ensure water supply is fully open; Clean nozzle with pin; Bleed air from pump by running without nozzle until steady stream |
| Water leaks | Loose connections; Damaged O-rings | Tighten all connections; Replace damaged O-rings |
Specifications
Key technical specifications for the LawnMaster LT502-1800A Electric Pressure Washer:
- Power Source: Corded Electric
- Motor: 13 Amp / 1800-Watt
- Maximum Pressure: 2100 PSI (Max)
- Maximum Flow Rate: 1.4 Gallons Per Minute (GPM)
- Hose Length: 20 Feet
- Power Cord Length: 35 Feet
- Item Weight: 16.1 Pounds
- Product Dimensions: 13"L x 13"W x 20.6"H
- Safety Feature: Total Stop System (TSS)
Image: The LawnMaster LT502-1800A pressure washer displayed with its core specifications: Lightweight (16.3 lbs), Max Pressure (1500 PSI), Volume (1.4 GPM), and Powerful Motor (1800W).
Warranty and Support
For warranty information, technical support, or to order replacement parts, please refer to the contact details provided in your product packaging or visit the official LawnMaster website. Keep your purchase receipt as proof of purchase for warranty claims.
