1. Product Overview
The Keuco IXMO Solo 59554 is a flush-mounted functional unit designed for thermostatic taps. This unit integrates a hose connection (DN 15) and serves as the basic body for wall installation, ensuring a clean and minimalist aesthetic. It is engineered for an installation depth ranging from 65 mm to 95 mm, providing flexibility for various wall constructions. This unit is compatible with Keuco IXMO Solo trim sets 59554010001 and 59554010002.
Key Features:
- Flush-mounted functional unit for thermostatic fitting.
- Integrated hose connection, DN 15.
- Designed for wall installation as a basic body.
- Adjustable installation depth: 65 mm to 95 mm.
- Compatible with specific Keuco IXMO Solo trim sets.
2. Safety Information
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage, personal injury, or product malfunction.
- Installation must be performed by a qualified professional plumber in accordance with local plumbing and building codes.
- Ensure the main water supply is turned off before beginning any installation work.
- Verify all connections are secure and watertight to prevent leaks.
- Do not use abrasive cleaners or harsh chemicals on the product, as this may damage the finish.
- Keep small parts out of reach of children.
3. Package Contents
The Keuco IXMO Solo 59554 package includes the following components:
- Keuco IXMO Solo 59554 flush-mounted functional unit for thermostatic mixer.
- Integrated hose connection DN 15.
- Basic body for wall installation.
- Installation instructions.

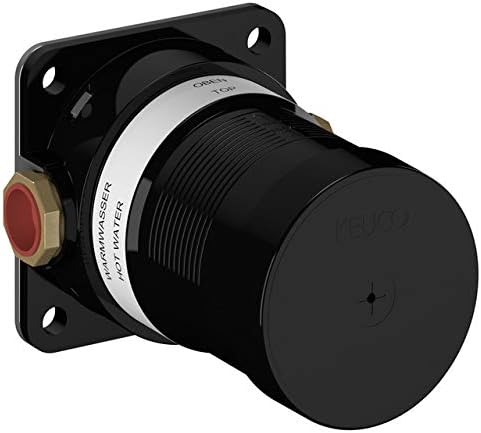

Figure 1: Keuco IXMO Solo 59554 functional unit, showing the main body with hot water inlet label.
4. Installation Guide
This section provides a general overview of the installation process. For detailed, step-by-step instructions, please refer to the specific installation manual provided with the product or consult a qualified professional.
- Preparation: Turn off the main water supply. Ensure the installation area is clean and clear. Gather all necessary tools and materials.
- Wall Opening: Create an appropriate opening in the wall for the flush-mounted unit. The installation depth should be between 65 mm and 95 mm. Refer to the technical drawing for precise dimensions.
- Mounting the Basic Body: Securely mount the basic body of the Keuco IXMO Solo 59554 unit within the wall opening. Ensure it is level and properly aligned.
- Water Connections: Connect the hot and cold water supply lines to the designated inlets on the functional unit. The unit includes a DN 15 hose connection. Ensure all connections are sealed properly to prevent leaks.
- Pressure Testing: After all connections are made, slowly turn on the main water supply and check for any leaks. Address any leaks immediately.
- Finishing: Once the basic body is installed and tested, the wall can be closed and the compatible Keuco IXMO Solo trim set (e.g., 59554010001 or 59554010002) can be installed according to its specific instructions.
Figure 2: Technical drawing illustrating the dimensions and connections of the Keuco IXMO Solo 59554 unit.
5. Operation
The Keuco IXMO Solo 59554 functional unit works in conjunction with a compatible thermostatic trim set to control water temperature and flow. Once the trim set is installed, operation typically involves:
- Temperature Control: Rotate the temperature control handle on the trim set to adjust the water temperature. Thermostatic valves maintain a consistent temperature even with fluctuations in water pressure.
- Flow Control: Use the flow control handle (if present on the trim set) to adjust the water volume.
- Safety Stop: Most thermostatic valves include a safety stop, usually at 38°C (100°F), to prevent accidental scalding. This can typically be overridden by pressing a button or switch on the trim set while turning the handle.
Refer to the specific user manual for your chosen Keuco IXMO Solo trim set for detailed operating instructions.
6. Care and Maintenance
Proper care and maintenance will ensure the longevity and optimal performance of your Keuco IXMO Solo functional unit and its associated trim set.
- Cleaning: Clean the visible parts of the trim set regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for bathroom fixtures.
- Avoid Harsh Chemicals: Do not use abrasive sponges, scouring pads, or cleaners containing alcohol, ammonia, bleach, or phosphoric acid, as these can damage the surface finish.
- Rinsing: Always rinse thoroughly with clean water after cleaning and dry with a soft cloth to prevent water spots.
- Internal Components: The concealed functional unit generally requires no user maintenance. If issues arise, consult a qualified plumber.
7. Troubleshooting
If you experience issues with your Keuco IXMO Solo thermostatic valve system, consider the following common troubleshooting steps. For complex problems, contact a qualified plumber.
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flow or low pressure. | Main water supply off, clogged aerator, blocked supply lines. | Check main water supply. Clean or replace aerator. Inspect supply lines for kinks or blockages. |
| Water temperature is inconsistent or incorrect. | Thermostatic cartridge issue, unbalanced water pressure, hot/cold supply reversed. | Consult a plumber to check/replace the thermostatic cartridge. Ensure hot and cold supplies are correctly connected. |
| Leaks from the trim set or wall. | Loose connections, damaged seals, improper installation. | Turn off water supply immediately. Tighten connections. Inspect and replace seals if damaged. Re-evaluate installation. Contact a plumber. |
8. Technical Specifications
- Model Number: 59554000170
- Product Dimensions: 4.61 x 5.59 x 4.02 inches (117 x 142 x 102 mm)
- Item Weight: 2.86 pounds (1.3 kg)
- Manufacturer: Keuco
- ASIN: B08F9ZZWXC
- Installation Depth: 65 - 95 mm
- Hose Connection: DN 15
- Included Components: Keuco IXMO Solo 59554 flush-mounted functional unit for thermostatic mixer with hose connection DN 15.
- Batteries Required: No

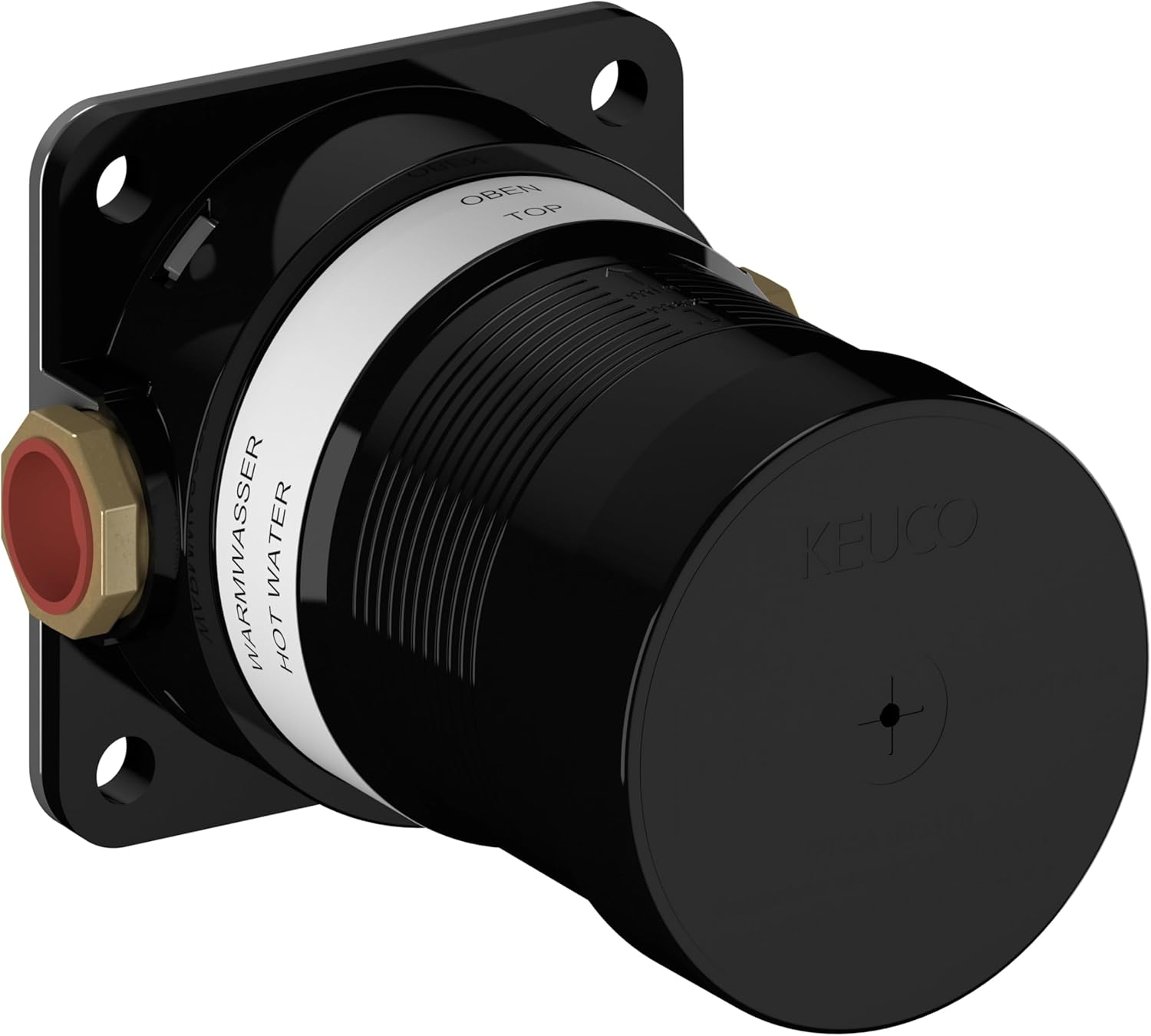

Figure 3: Angled view of the Keuco IXMO Solo 59554 functional unit, highlighting its compact design.
9. Warranty and Support
For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Keuco website. For technical support, spare parts, or service inquiries, please contact Keuco customer service or your authorized dealer.
Keuco Official Website: www.keuco.com
