Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Walfront AC200-240V WiFi Fan Coil Unit Thermostat. This digital thermostat is designed for controlling central air conditioners and fan coil units, offering precise temperature regulation and convenient control via its LCD display or a connected Wi-Fi application.
Key features include:
- LCD display showing room temperature, heating/cooling status, fan speed, and clock.
- Four fan speed modes: automatic, high, medium, and low.
- Integrated sensor with a temperature range of 5°C to 35°C for high accuracy.
- Strong anti-interference capabilities.
- Wi-Fi connectivity for remote control via a smartphone application.
Safety Information
Please read all safety warnings and instructions carefully before installing or operating this device. Failure to follow these instructions may result in electric shock, fire, or damage to the product.
- Electrical Hazard: Installation must be performed by a qualified electrician. Disconnect power at the circuit breaker before installation or servicing.
- Voltage: Ensure the power supply matches the thermostat's rated voltage (AC200-240V).
- Placement: Install the thermostat in a location away from direct sunlight, drafts, or heat sources that could affect temperature readings.
- Cleaning: Do not use liquid cleaners or aerosols directly on the thermostat. Clean with a soft, dry cloth.
Product Overview

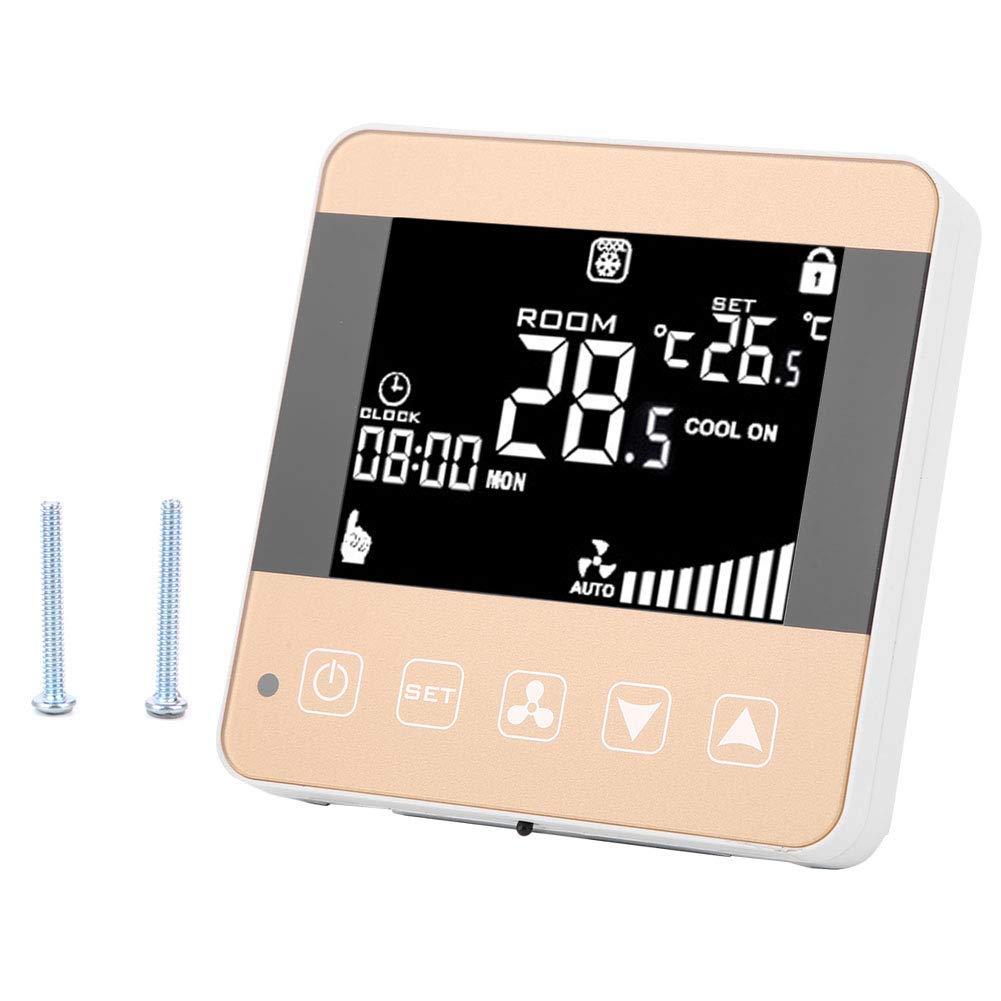

The Walfront WiFi Fan Coil Unit Thermostat features a clear LCD display and touch controls for easy interaction. It is designed to seamlessly integrate into your central air conditioning system.
The thermostat's display provides real-time information, including the current room temperature, the set temperature, the operating mode (heating or cooling), fan speed, and the current time. The touch buttons below the screen allow for manual adjustments.
The device is designed for wall mounting and connects directly to your fan coil unit's wiring. Its compact and modern design blends well with various interior decors.
Setup
Installation
- Power Disconnection: Before beginning installation, ensure the main power supply to the fan coil unit and the thermostat's circuit is turned off at the circuit breaker.
- Mounting: Mount the thermostat to a standard electrical wall box using the provided screws. Ensure it is securely fastened.

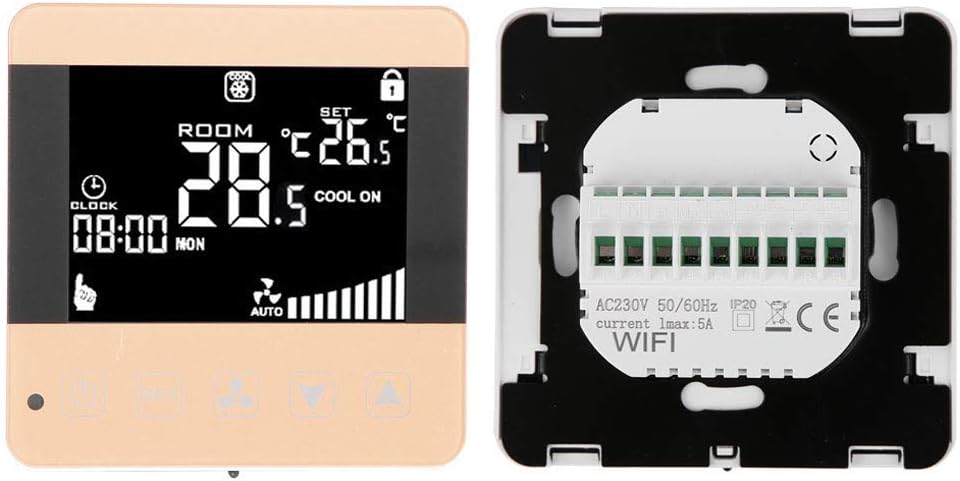

- Wiring: Connect the electrical wires from your fan coil unit to the corresponding terminals on the back of the thermostat. Refer to the wiring diagram below and your fan coil unit's manual for specific connections. Common connections include Live (L), Neutral (N), High Fan Speed (H), Medium Fan Speed (Med), Low Fan Speed (Low), and Valve control wires.
Initial Power-Up and Wi-Fi Connection
- Restore Power: Once wiring is complete and secure, restore power at the circuit breaker. The thermostat display should illuminate.
- Wi-Fi Pairing: Follow the instructions in the dedicated smartphone application (refer to the app's guide for download and pairing process) to connect your thermostat to your home Wi-Fi network. This will enable remote control and advanced scheduling features.
Operating Instructions
Basic Operation
- Power Button: Press the power button (usually indicated by a circle with a vertical line) to turn the thermostat on or off.
- Temperature Adjustment: Use the Up (▲) and Down (▼) arrow buttons to increase or decrease the desired set temperature. The temperature range is 5°C to 35°C.
- Mode Selection: Press the 'SET' button to cycle through operating modes (e.g., Heating, Cooling, Fan Only).
- Fan Speed Control: Press the fan icon button to select the desired fan speed: Automatic, High, Medium, or Low. In Automatic mode, the fan speed adjusts based on the temperature difference.
- Clock Display: The current time is displayed on the LCD screen. Time settings can typically be adjusted via the smartphone application.
Wi-Fi and App Control
Once connected to Wi-Fi, the thermostat can be controlled remotely using the dedicated smartphone application. This allows for:
- Remote temperature adjustment.
- Scheduling and programming of temperature settings.
- Monitoring of room temperature and system status.
- Advanced settings configuration.
Refer to the smartphone application's help section for detailed instructions on using its features.
Maintenance
The Walfront WiFi Fan Coil Unit Thermostat requires minimal maintenance to ensure optimal performance.
- Cleaning: Periodically wipe the thermostat's screen and casing with a soft, dry, lint-free cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the surface or internal components.
- Sensor Care: Ensure the temperature sensor (located within the unit) is not obstructed by dust or debris, which could affect temperature accuracy.
- Firmware Updates: Check the smartphone application periodically for any available firmware updates for your thermostat. Updates can improve performance and add new features.
Troubleshooting
If you encounter issues with your thermostat, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Thermostat display is blank. | No power supply. | Check the circuit breaker and ensure power is restored. Verify wiring connections. |
| Incorrect temperature reading. | Sensor obstruction or improper placement. | Ensure the sensor is clear of debris. Relocate the thermostat if it's in direct sunlight or a draft. |
| Cannot connect to Wi-Fi. | Incorrect Wi-Fi password, weak signal, or router issue. | Verify Wi-Fi password. Move the thermostat closer to the router or check router settings. Restart the router. |
| Fan coil unit not responding. | Incorrect wiring or unit malfunction. | Double-check wiring connections. Consult a qualified technician if the issue persists. |
Specifications
| Feature | Specification |
|---|---|
| Brand | Walfront |
| Model Number | WLF-XXX |
| Power Source | Câble électrique (Wired) |
| Voltage | 240 Volts (AC200-240V) |
| Connectivity Technology | Wi-Fi |
| Control Type | Touch, Application |
| Temperature Control Type | Digital |
| Temperature Range | 5°C - 35°C (Internal Sensor) |
| Display Type | LCD |
| Backlight | Yes |
| Mounting Type | Montage mural (Wall Mount) |
| Item Weight | 183 Grams |
| Specific Uses | Climatiseur (Air Conditioner) |
Warranty Information
For detailed warranty information, please refer to the product packaging or contact Walfront customer support. Typically, products come with a standard manufacturer's warranty covering defects in materials and workmanship under normal use.
Support
If you require further assistance or have questions not covered in this manual, please contact Walfront customer support. Contact details can usually be found on the product packaging, the official Walfront website, or through your retailer.
