Benro VX20 Two Series Arca-Swiss Style Aluminum Ballhead Instruction Manual

1. Introduction

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Benro VX20 Two Series Arca-Swiss Style Aluminum Ballhead. Designed for versatile camera support, this ballhead offers precise control for various photographic and videographic applications.

2. Package Contents

• Benro VX20 Two Series Arca-Type Aluminum Ball Head
• Arca-Swiss Compatible Quick Release Plate (Benro PU50X)
• Allen Keys (for plate attachment)

3. Key Features

• Two Series Design: Compact and precise control for various shooting scenarios.
• Arca-Swiss Compatibility: Fast and secure camera mounting with a quick-release clamp and plate.
• Dual Panoramic Rotation: Independent panning at both the base and the quick-release platform for level panoramas and horizontal adjustments.
• Friction and Lock Controls: Separate controls for ball tension and pan locking for fine-tuned adjustments.
• Durable Aluminum Construction: Made from strong aluminum alloy with ergonomic control knobs.
• Standard Tripod-Mount Interface: Compatible with most tripods.

4. Setup Instructions

4.1 Attaching the Ballhead to a Tripod

The Benro VX20 ballhead features a standard 1/4-inch connector at its base for mounting onto a tripod or other support system. Ensure the tripod's mounting screw is securely tightened into the ballhead's base.

4.2 Attaching the Quick Release Plate to Your Camera

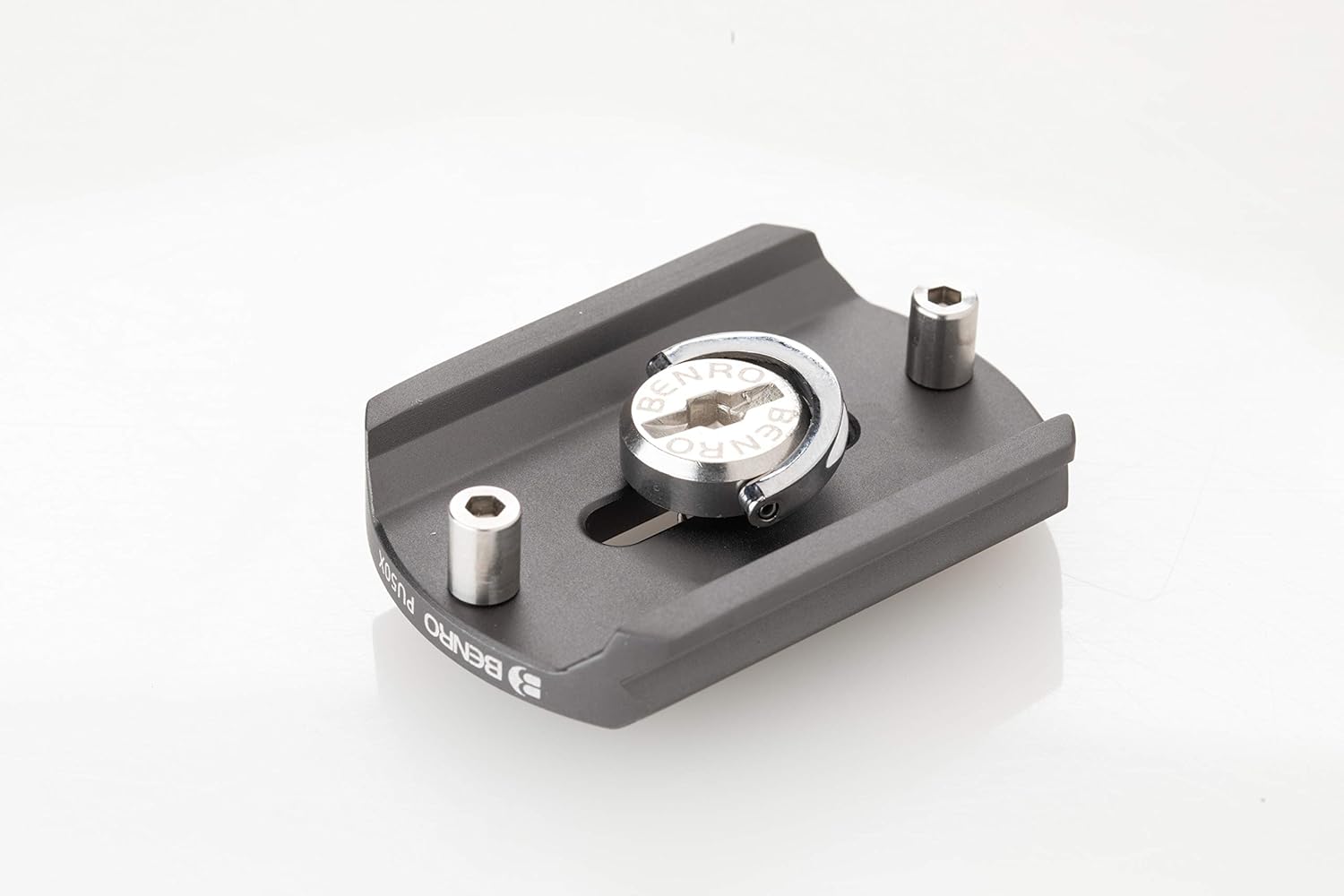

The included Arca-Swiss compatible quick release plate (Benro PU50X) attaches to the bottom of your camera. Use the provided Allen key or a coin to securely fasten the plate's screw into your camera's tripod socket. Ensure the plate is oriented correctly and tightened to prevent camera rotation.

4.3 Mounting Your Camera to the Ballhead

With the quick release plate attached to your camera, open the quick release clamp on the ballhead by turning the clamp knob. Slide the camera with its plate into the clamp. Ensure the plate is fully seated, then tighten the clamp knob until the camera is securely held. The ballhead features a safety lock mechanism to prevent accidental release.

5. Operating Instructions

5.1 Ball Head Adjustment (Main Lock Knob)

The large main lock knob controls the movement of the ball. Loosen this knob to allow the camera to tilt and swivel freely. Tighten it to lock the camera securely in position. The knob also integrates a friction adjustment, allowing you to set the desired resistance for ball movement.

5.2 Dual Panoramic Control

The VX20 features dual panoramic control:

• Base Panning: The knob at the base of the ballhead allows for 360-degree rotation of the entire head. Loosen this knob to pan the ballhead horizontally without affecting the ball's tilt.
• Platform Panning: A smaller knob on the quick-release platform allows for independent panning of the camera itself. This is useful for making small horizontal adjustments or creating stitched panoramas without re-leveling the main ball.

5.3 Bubble Level

A small bubble level is integrated into the quick release clamp to assist with precise leveling of your camera. Ensure the bubble is centered for a perfectly level shot.

6. Maintenance

To ensure the longevity and optimal performance of your Benro VX20 ballhead, follow these maintenance guidelines:

• Keep the ballhead clean and free from dust, dirt, and moisture. Use a soft, dry cloth for cleaning.
• Avoid using harsh chemicals or abrasive materials, as these can damage the finish and internal components.
• Periodically check all screws and knobs for tightness.
• Do not over-tighten knobs, as this can cause damage.
• Store the ballhead in a protective bag when not in use.

7. Troubleshooting

If you encounter any issues with your Benro VX20 ballhead, consider the following:

• Camera Slipping: Ensure the quick release plate is securely attached to your camera and the quick release clamp knob is fully tightened. Check that the safety lock mechanism is engaged.
• Ball Movement Too Loose/Tight: Adjust the friction control integrated into the main ball lock knob to achieve the desired resistance.
• Panoramic Movement Stiff: Ensure the panoramic lock knob at the base is sufficiently loosened.
• Unusual Noises: Discontinue use and inspect for any loose parts or damage. Contact customer support if the issue persists.

8. Specifications

9. Warranty and Support

The Benro VX20 ballhead comes with a standard limited warranty of 3 years from the date of purchase for the original owner. If you register the product online, the warranty is extended by 2 additional years, for a total of 5 years, in applicable regions.

For technical support, warranty claims, or further assistance, please visit the official Benro website or contact their customer service department.
