ROIDMI Zero Storm Anti-Bacterial Cordless Stick Vacuum Cleaner User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your ROIDMI Zero Storm Anti-Bacterial Cordless Stick Vacuum Cleaner. Please read this manual thoroughly before operating the appliance and retain it for future reference. The ROIDMI Zero Storm is designed for efficient cleaning with advanced antibacterial features, offering a powerful and convenient cleaning experience for various surfaces.

2. Safety Instructions

To reduce the risk of fire, electric shock, or injury, always observe basic safety precautions when using electrical appliances.

• Do not use the vacuum cleaner outdoors or on wet surfaces.
• Do not allow the vacuum cleaner to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust cup and/or filters in place.

3. Product Overview

The ROIDMI Zero Storm is a versatile cordless stick vacuum cleaner featuring a powerful motor, multi-stage filtration, and an integrated antibacterial system for a hygienic cleaning environment.

Figure 3.1: Full view of the ROIDMI Zero Storm Cordless Stick Vacuum Cleaner, showing the main unit, extension wand, and floor brush.

Key Components:

• Main Unit: Contains the motor, dustbin, and battery.
• Extension Wand: Connects the main unit to various attachments for extended reach.
• Floor Brush: Motorized brush for cleaning hard floors and carpets.
• Crevice Tool: For narrow spaces and corners.
• Upholstery Brush: For cleaning fabric surfaces like sofas and curtains.
• Wall Mount: For convenient storage and charging.

Advanced Filtration and Sterilization:

The Zero Storm incorporates a multi-stage filtration system, including a HEPA filter and an antibacterial coated filter, to capture fine dust and allergens. Additionally, the ZIWEI sterilization system actively eliminates bacteria and inhibits their growth, ensuring cleaner air output.

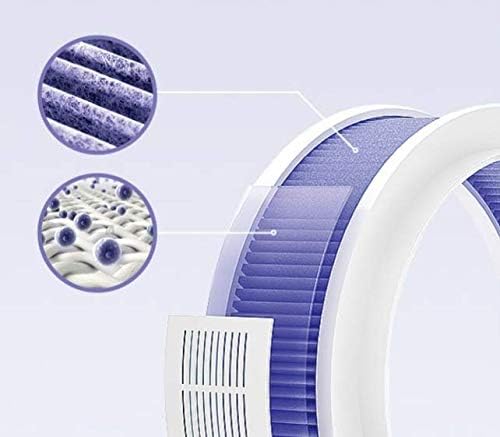

Figure 3.2: Diagram illustrating the multi-layer filtration system, including the HEPA filter, designed to capture dust and allergens.

Figure 3.3: Diagram showing the Novaron antibacterial particles at work, targeting and neutralizing bacteria within the vacuum's system.

4. Setup

4.1 Assembly

1. Unpack Components: Carefully remove all components from the packaging.
2. Attach Extension Wand: Insert the extension wand into the main unit until it clicks securely into place.
3. Attach Floor Brush: Connect the desired floor brush or attachment to the end of the extension wand until it clicks. For handheld use, attach accessories directly to the main unit.

4.2 Charging the Battery

Before first use, fully charge the vacuum cleaner. The battery is a Lithium-ion type.

1. Connect the charging adapter to the charging port on the main unit or the wall mount.
2. Plug the adapter into a power outlet.
3. The charging indicator light will illuminate. A full charge typically takes approximately 2.5 hours.
4. Once fully charged, the indicator light will change or turn off, depending on the model.

5. Operating Instructions

5.1 Power On/Off and Mode Selection

• Power On: Press the power button located on the main unit to start the vacuum cleaner. It will typically start in Normal mode.
• Mode Selection: Press the mode selection button (if available) to cycle through different power modes: Normal, Intermediate, and Turbo.
• Power Off: Press the power button again to turn off the vacuum cleaner.

5.2 Using Attachments

Select the appropriate attachment for the cleaning task.

• Floor Brush: Ideal for general cleaning of hard floors and low-pile carpets.
• Crevice Tool: Use for tight spaces, corners, and edges.
• Upholstery Brush: Suitable for cleaning sofas, chairs, and other fabric surfaces.

Figure 5.1: The ROIDMI Zero Storm in stick configuration, effectively cleaning a hard floor surface.

Figure 5.2: The ROIDMI Zero Storm in stick configuration, demonstrating its use on a rug or carpeted surface.

Figure 5.3: The ROIDMI Zero Storm used in handheld mode with a crevice tool, cleaning between sofa cushions.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

6.1 Emptying the Dustbin

Empty the dustbin regularly, especially when the MAX line is reached, to maintain suction power.

1. Ensure the vacuum cleaner is turned off.
2. Locate the dustbin release button and press it to detach the dustbin from the main unit.
3. Open the dustbin lid and empty the contents into a waste bin.
4. Close the dustbin lid and reattach the dustbin to the main unit until it clicks.

6.2 Cleaning Filters

The filters should be cleaned periodically to prevent clogging and maintain suction efficiency. It is recommended to clean them monthly or as needed.

1. Remove the dustbin as described above.
2. Carefully remove the HEPA filter and other filter components from the dustbin.
3. Tap the filters gently over a waste bin to remove loose dust.
4. If necessary, rinse the filters under running water. Ensure they are completely dry before reassembling. Do not use a dryer or direct heat.
5. Reassemble the dry filters and dustbin.

6.3 Cleaning the Brush Roll

Hair and debris can become entangled in the brush roll, affecting performance.

1. Turn off the vacuum cleaner and detach the floor brush.
2. Locate the brush roll release mechanism (refer to product diagrams if available) and remove the brush roll.
3. Use scissors or a cleaning tool to cut and remove any tangled hair or fibers.
4. Reinsert the brush roll and secure it in place.

7. Troubleshooting

If you encounter issues with your ROIDMI Zero Storm, refer to the following table for common problems and solutions.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

The ROIDMI Zero Storm comes with a manufacturer's warranty:

• Motor: 5-year warranty.
• Components: 2-year warranty.

This warranty is valid when purchased through official channels. Please retain your proof of purchase for warranty claims.

9.2 Customer Support

For technical assistance, warranty claims, or general inquiries, please contact your local official ROIDMI distributor or visit the official ROIDMI website for support contact details.
