1. Introduction
This manual provides instructions for the safe and efficient operation and maintenance of your Harper 4-in-1 Quick Change Steel Convertible Hand Truck, Model JDCSA8543. This versatile hand truck is designed to convert between four different positions to accommodate various material handling needs, supporting loads up to 700 lbs.
2. Safety Information
Read and understand all safety warnings and instructions before operating this hand truck. Failure to follow these instructions may result in injury or property damage.
- Maximum Load Capacity: Do not exceed the maximum load capacity of 700 lbs. Overloading can cause instability and damage to the hand truck.
- Proper Loading: Always center the load on the hand truck's base plate. Secure tall or unstable loads with straps or ropes to prevent shifting or falling during transport.
- Personal Protective Equipment: Wear appropriate safety footwear and gloves when handling heavy loads.
- Clear Path: Ensure your path is clear of obstacles, debris, and uneven surfaces before moving the hand truck.
- Stairs and Ramps: Exercise extreme caution when moving loads up or down stairs and ramps. Always maintain control and use proper body mechanics.
- Conversion Safety: Ensure the quick-change mechanism is fully engaged and locked in place after converting the hand truck to a new position.
- Maintenance: Regularly inspect the hand truck for any signs of wear, damage, or loose components. Do not use a damaged hand truck.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Setup & Conversion
The Harper 4-in-1 Hand Truck features a quick-change mechanism that allows for easy conversion between four configurations without the need for tools or pins.
3.1. Understanding the Quick Change Mechanism
The hand truck's versatility comes from its patented quick-change trigger. To convert, locate the trigger mechanism near the handle. Squeeze the trigger to release the locking pins, allowing you to adjust the frame and wheels into the desired position. Ensure the pins re-engage and lock the frame securely before use.
3.2. Converting to 2-Wheel Dolly Mode
This is the standard upright position for moving boxes and other items. The handle extends up to 56 inches for tall loads. The 8-inch solid rubber wheels provide stability.

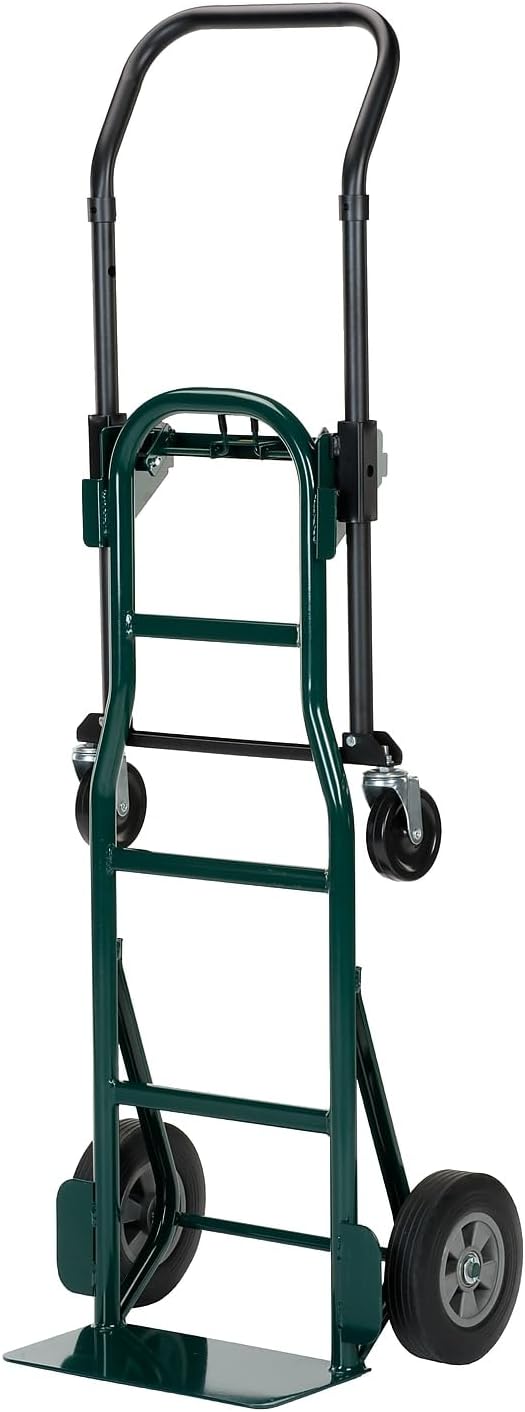

Image: The Harper 4-in-1 Hand Truck configured as a traditional 2-wheel dolly, standing upright with its large wheels at the bottom and the handle extended.
3.3. Converting to 4-Wheel Incline Truck Mode
For better load control in tight spaces or when moving items at an angle, convert to the 4-wheel incline mode. This position utilizes the main wheels and the smaller swivel casters, allowing for easier pivoting and maneuvering.
Image: The Harper 4-in-1 Hand Truck in an inclined position, supported by its two large wheels and two smaller swivel casters, ready for angled transport.
3.4. Converting to 4-Wheel Cart Mode
For large, heavy, or oversized loads that require horizontal transport, convert the hand truck into a 4-wheel cart. This configuration provides a stable platform with all four wheels on the ground, making it ideal for moving multiple items or bulky objects.
Image: The Harper 4-in-1 Hand Truck transformed into a flat 4-wheel cart, with the handle folded down and all four wheels supporting the frame horizontally.
3.5. Converting to 56" Tall 2-Wheeler Mode
This mode is similar to the standard 2-wheel dolly but with the handle fully extended to its maximum height of 56 inches, suitable for exceptionally tall items.
Image: The Harper 4-in-1 Hand Truck in 2-wheel dolly mode, being used to transport a tall filing cabinet, demonstrating its capacity for vertical loads.
4. Operating Instructions
4.1. Loading the Hand Truck
- Position the hand truck with the base plate flat on the ground.
- Slide the base plate under the item to be moved.
- For 2-wheel dolly mode, tilt the hand truck back slowly until the load rests securely against the frame.
- For 4-wheel cart mode, place the load evenly on the cart surface.
- Always ensure the load is balanced and stable before moving. Use straps if necessary.
4.2. Moving the Load
- Maintain a firm grip on the handle(s).
- Push or pull the hand truck slowly and deliberately.
- Use the 4-inch swivel casters in 4-wheel modes for enhanced maneuverability and easy turning.
- Avoid sudden stops or turns, especially with heavy loads.
4.3. Unloading the Hand Truck
- Bring the hand truck to a complete stop at the desired location.
- For 2-wheel dolly mode, slowly tilt the hand truck forward until the load is stable on the ground.
- For 4-wheel cart mode, carefully remove the load from the platform.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your Harper hand truck.
- Cleaning: Wipe down the steel frame with a damp cloth to remove dirt and debris. Dry thoroughly to prevent rust.
- Wheel Inspection: Periodically check the 8-inch solid rubber wheels and 4-inch swivel casters for wear, damage, or obstructions. Ensure they spin freely.
- Fasteners: Inspect all bolts, nuts, and other fasteners for tightness. Tighten any loose components.
- Quick Change Mechanism: Keep the quick-change trigger and locking pins clean and free of debris. Lubricate moving parts with a light oil if conversion becomes stiff.
- Storage: Store the hand truck in a dry, protected area when not in use.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty converting positions. | Debris in mechanism, lack of lubrication, bent component. | Clean the quick-change trigger and locking pins. Apply light lubricant. Inspect for damage. |
| Wheels not rolling smoothly. | Debris in wheel bearings, damaged wheels/casters, loose axle. | Remove debris from wheels and axles. Check for damage and replace if necessary. Ensure axles are secure. |
| Hand truck feels unstable. | Overloaded, unevenly distributed load, loose fasteners, damaged frame. | Reduce load weight. Redistribute load evenly. Tighten all fasteners. Inspect frame for damage. |
7. Specifications
- Brand: Harper
- Model Number: JDCSA8543
- Material: Alloy Steel
- Load Capacity: 700 Pounds
- Item Weight: 32.3 Pounds
- Wheel Type: Solid Rubber (8-inch main wheels, 4-inch swivel casters)
- Number of Wheels: 4 (2 main, 2 swivel)
- Base Plate: 14" x 7.5"
- Handle Adjustment: Up to 56" tall
- UPC: 053417035097
8. Warranty & Support
Harper Trucks products are manufactured to high-quality standards. For specific warranty details and support, please refer to the documentation included with your purchase or visit the official Harper Trucks website. Keep your proof of purchase for warranty claims.
Manufacturer: Harper Trucks
Contact: For customer service or technical support, please visit the Harper Store on Amazon or the official Harper Trucks website.
9. Product Overview Video
Watch this official video for a visual demonstration of the Harper 4-in-1 Quick Change Hand Truck's features and conversion capabilities.
Video: A demonstration of the Harper 4-in-1 Quick Change Hand Truck, showcasing its various configurations and ease of conversion.
