ABS YR-Q100 Bluetooth Wall-Mounted Portable CD Player User Manual

1. Introduction

Thank you for purchasing the Cuifati YR-Q100 Bluetooth Wall-Mounted Portable CD Player. This versatile device offers multiple playback options including CD, USB, memory card, and Bluetooth connectivity, along with FM radio and alarm clock functions. Its wall-mounted design saves space, while the included stand allows for tabletop use. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.

2. Product Features

• Multi-format Playback: Supports CD, CD-R, CD-RW, MP3, WMA formats.
• USB/Memory Card Playback: Directly play audio files from USB drives and memory cards.
• Bluetooth Connectivity: Wirelessly connect to Bluetooth-enabled devices like smartphones and tablets.
• FM Radio: Built-in FM tuner for listening to your favorite radio stations.
• Alarm Clock Function: Use the player as an alarm clock with customizable settings.
• Remote Control: Full-function remote for convenient operation from a distance.
• Wall-Mounted & Tabletop Design: Flexible installation options to suit your space.
• A-B Repeat Function: Ideal for language learning or repeating specific audio segments.
• Single Cycle/Full Disc Cycle: Playback modes for CDs.

Image: The YR-Q100 CD player shown in a wall-mounted configuration, emphasizing its space-saving design and primary function as a music player.

Image: The CD player in a home setting, with a child studying nearby, demonstrating its utility as a tool for learning, particularly with its A-B repeat function for language study.

3. Package Contents

Please check the package carefully to ensure all items are present and in good condition:

• YR-Q100 CD Player Unit
• Remote Control
• Wall-Mounting Plate
• Wall-Mounting Screws and Anchors (6 sets)
• Tabletop Stand
• USB Power Adapter (US Plug 100-240V)
• USB Power Cable
• 3.5mm Audio Cable

Image: A complete view of all items included in the product package, laid out for easy identification.

4. Setup

4.1 Wall Mounting

1. Choose a suitable location on a wall, ensuring it is a stable surface and within reach of a power outlet.
2. Place the wall-mounting plate against the wall at the desired height and mark the screw holes.
3. Drill pilot holes at the marked locations. Insert the plastic anchors into the drilled holes.
4. Align the wall-mounting plate with the anchors and secure it to the wall using the provided screws.
5. Carefully slide the CD player unit onto the mounted plate until it clicks securely into place.

Image: The screws and wall anchors necessary for securely mounting the CD player to a wall.

Image: The front and rear of the CD player, illustrating the design and the mounting slots on the back for wall installation.

4.2 Tabletop Setup

If you prefer to use the player on a flat surface:

1. Unfold the provided tabletop stand.
2. Place the CD player unit onto the stand, ensuring it is stable and upright.

Image: The foldable tabletop stand and the USB power adapter, ready for use.

4.3 Power Connection

1. Connect the USB power cable to the DC 5V input port on the CD player.
2. Plug the other end of the USB power cable into the provided USB power adapter.
3. Insert the USB power adapter into a standard US wall outlet (100-240V).

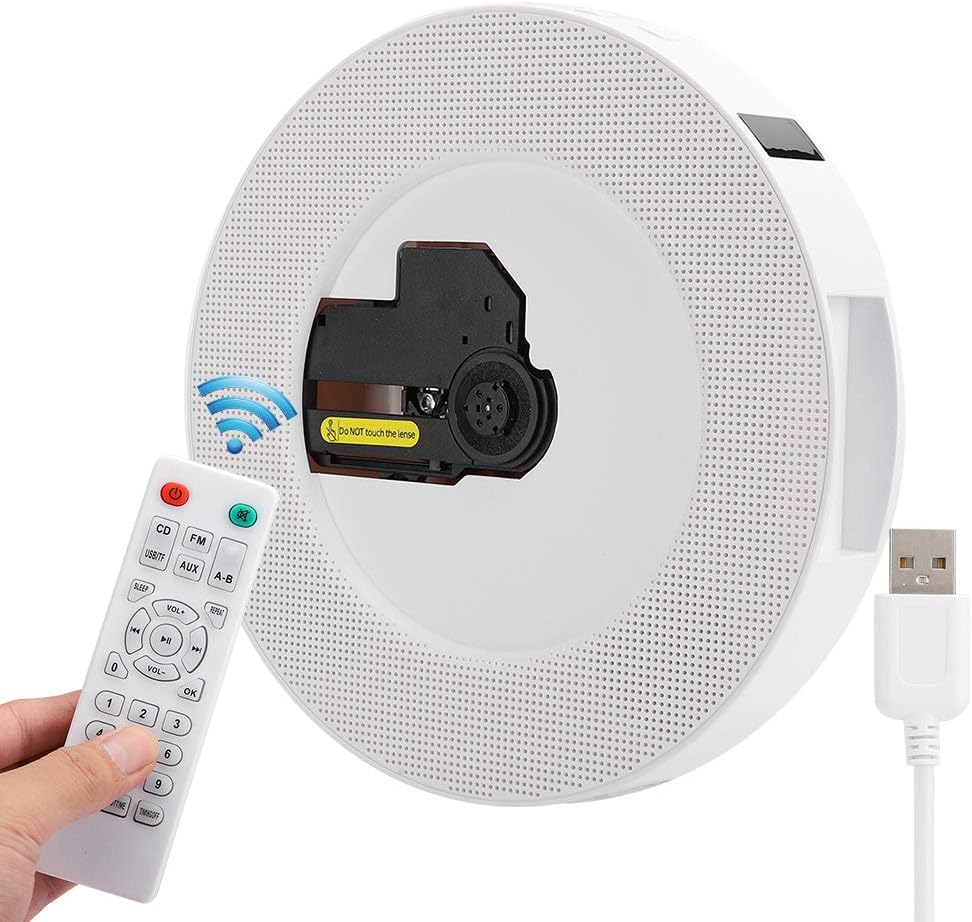

Image: The CD player with its USB power cable connected, demonstrating the power input method.

5. Operating Instructions

5.1 Power On/Off

Press the power button on the unit or the remote control to turn the player on or off.

5.2 CD Playback

1. Gently insert a CD into the disc slot until it is fully seated. The player will automatically detect the CD and begin playback.
2. Use the 'CD' button on the remote or unit to switch to CD mode if another mode is active.
3. Use the Play/Pause, Next/Previous, and Volume buttons on the unit or remote to control playback.

Image: A detailed view of the CD drive mechanism, showing the lens and disc area.

5.3 USB/Memory Card Playback

1. Insert a USB flash drive into the USB port or a memory card into the TF card slot.
2. Press the 'USB/TF' button on the remote to switch to USB/Memory Card mode. The player will automatically detect and play compatible audio files.

Image: A close-up of the side ports, including the USB port, memory card slot, and 3.5mm audio jack.

5.4 Bluetooth Connection

1. Press the 'Bluetooth' button on the remote or the 'MODE' button on the unit until 'Bluetooth' mode is selected. The player will enter pairing mode.
2. On your Bluetooth-enabled device (e.g., smartphone), search for available Bluetooth devices and select 'YR-Q100' to connect.
3. Once connected, you can play audio from your device through the CD player.

5.5 FM Radio

1. Press the 'FM' button on the remote or the 'MODE' button on the unit until 'FM' mode is selected.
2. Press the Play/Pause button to auto-scan and save available FM stations.
3. Use the Next/Previous buttons to navigate through saved stations.

5.6 Alarm/Clock Function

1. To set the clock, press the 'TIME' button on the remote. Use the number buttons to input the time and 'OK' to confirm.
2. To set the alarm, press the 'BOOTTIME' button on the remote. Follow the on-screen prompts or indicator lights to set the alarm time and source.
3. The player also supports a countdown timer and time-power-off function, accessible via the 'TIMINGOFF' button on the remote.

5.7 Remote Control Usage

The remote control provides full functionality for the CD player. Ensure the remote has working batteries and is pointed towards the player's sensor.

• Power Button: On/Off.
• CD/FM/AUX/USB/Bluetooth: Mode selection buttons.
• VOL+/-: Adjust volume.
• Play/Pause, Next/Previous: Playback control.
• REPEAT: Cycle through repeat modes (single, all).
• A-B: Set A-B repeat points.
• TIME/BOOTTIME/TIMINGOFF: Clock and alarm settings.
• Number Buttons: Direct track selection or time input.

Image: The remote control unit, displaying all its buttons for various functions, including mode selection, playback control, and time settings.

5.8 A-B Repeat and Cycle Functions

• A-B Repeat: During playback, press the 'A-B' button once to set point A. Press it again to set point B. The player will then repeatedly play the segment between A and B. Press 'A-B' a third time to cancel.
• Repeat Mode: Press the 'REPEAT' button to cycle through different repeat modes: repeat one track, repeat all tracks, or random play.

Image: A close-up of the physical buttons on the player unit, including mode, volume, and playback controls.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the exterior of the player. Do not use liquid cleaners or abrasive materials.
• Disc Care: Handle CDs by the edges. Keep them clean and free of scratches. Do not touch the optical lens inside the player.
• Storage: When not in use for extended periods, unplug the player and store it in a cool, dry place.
• Ventilation: Ensure proper ventilation around the player to prevent overheating. Do not block any ventilation openings.

7. Troubleshooting

8. Specifications

Image: Diagram illustrating the physical dimensions of the CD player unit.

Image: The rear panel of the player, displaying the model number, power requirements, and compliance markings.

9. Warranty and Support

The Cuifati YR-Q100 CD Player comes with a 90-day warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

For technical support, warranty claims, or any questions regarding your product, please contact Cuifati customer service through the retailer's platform or the official Cuifati store page.

Image: Official Cuifati warranty information, indicating a 90-day coverage period.
