1. Product Overview
The Cadence Q1T is a 1-inch car tweeter designed to enhance the high-frequency audio performance in your vehicle's sound system. These tweeters feature a piezo dome design, offering clear sound reproduction. They are built for surface mounting and are compatible with a wide range of car audio setups due to their 4-ohm impedance.
Key features include:
- High-Quality Sound: Delivers excellent high-frequency performance.
- Power Handling: RMS power handling of 50 watts and peak power handling of 100 watts per tweeter.
- Wide Frequency Response: Reproduces frequencies from 5kHz to 22kHz for detailed audio.
- High Sensitivity: 93dB at 1 watt/1 meter, ensuring efficient sound output.
- Durable Construction: Features a piezo magnet design for reliability.
- System Compatibility: 4-ohm impedance for broad compatibility.
Image 1.1: A pair of Cadence Q1T 1-inch car tweeters, showcasing their compact design and grille.
2. Important Safety Information
Please read all instructions carefully before installation. Improper installation can result in damage to the product, vehicle, or personal injury. Always follow these safety guidelines:
- Disconnect Battery: Before beginning any electrical work, disconnect the vehicle's negative battery terminal to prevent electrical shorts and damage.
- Professional Installation: If you are unsure about any part of the installation process, seek assistance from a qualified car audio professional.
- Wiring: Ensure all wiring is correctly routed and secured to prevent pinching, chafing, or short circuits. Use appropriate gauge wire for connections.
- Avoid Obstructions: Do not mount tweeters in locations that obstruct airbags, vehicle controls, or driver visibility.
- Moisture Protection: While durable, these tweeters are not waterproof. Avoid exposing them to excessive moisture.
- Power Handling: Do not exceed the recommended RMS or peak power handling to prevent damage to the tweeters.
3. Package Contents
Verify that all items are present in the package before proceeding with installation:
- Cadence Q1T Tweeters (2 units)
- Wiring (for connection)
- Instruction Manual (this document)
4. Specifications
The following table details the technical specifications for the Cadence Q1T 1-inch Car Tweeters:
| Feature | Specification |
|---|---|
| Model Number | Q1T |
| Speaker Type | Tweeter |
| Speaker Size | 1 Inch |
| RMS / Max Power | 50 W / 100 W (each) |
| Frequency Response | 5 kHz - 22 kHz |
| Sensitivity | 93 dB (at 1 watt/1 meter) |
| Impedance | 4 Ohms |
| Mounting Type | Surface Mount |
| Product Dimensions | 2.01"D x 2.01"W x 0.83"H |
| Audio Driver Type | Piezoelectric Driver |
| Material | Hybrid Ceramic High Efficiency Dome, Paper Diaphragm |
| Number of Items | 2 |

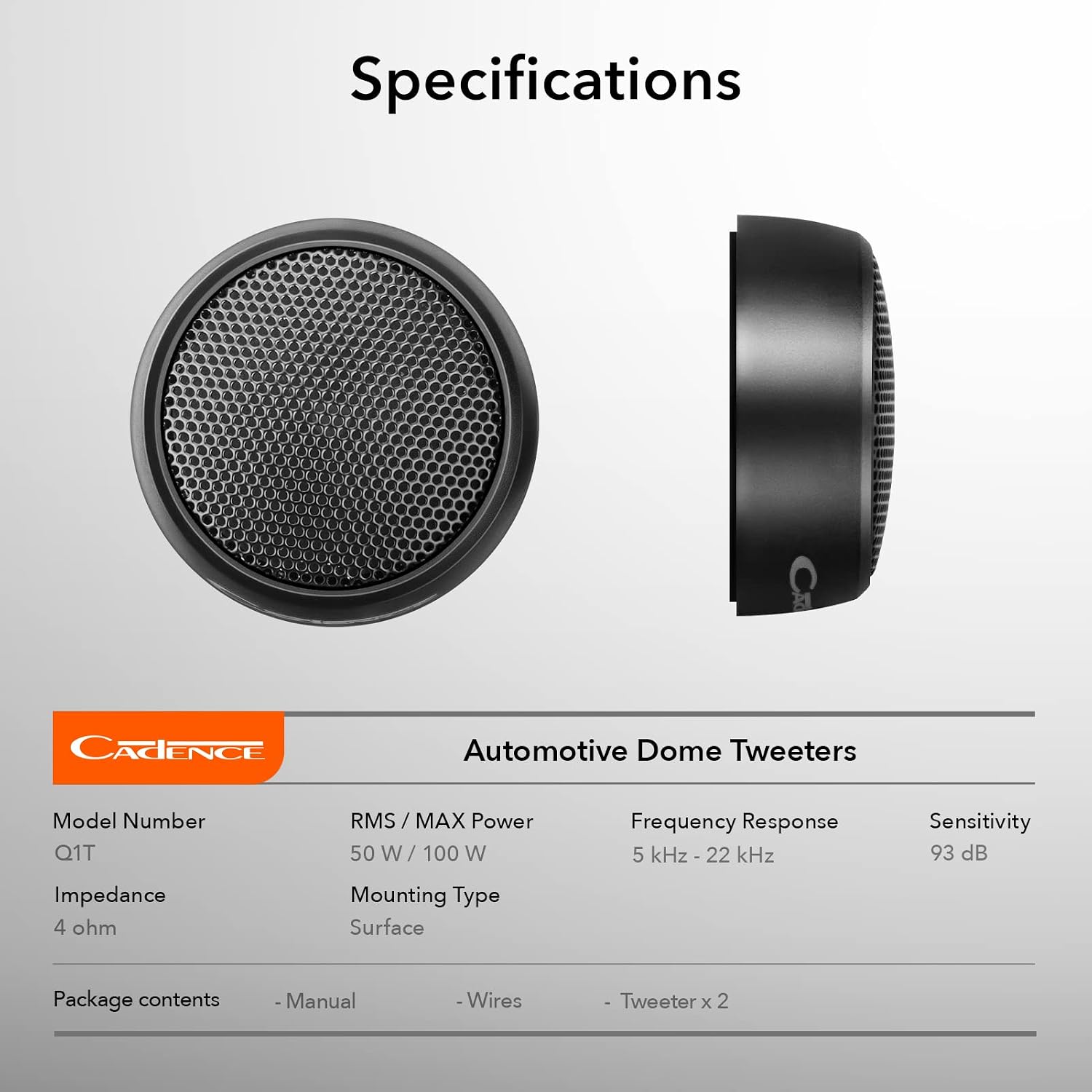

Image 4.1: Visual representation of the Cadence Q1T tweeter specifications.
5. Setup and Installation
Proper installation is crucial for optimal performance. Follow these steps for installing your Cadence Q1T tweeters:
5.1. Planning the Mounting Location
The Q1T tweeters are designed for surface mounting. Choose a location in your vehicle that allows for clear sound projection and does not interfere with vehicle operation or safety features. Common locations include dashboard corners, A-pillars, or door panels. Ensure there is sufficient space behind the mounting surface for wiring.
5.2. Mounting the Tweeters
- Prepare Surface: Clean the chosen mounting surface thoroughly.
- Secure Tweeter: Use appropriate screws or adhesive (not included, unless specified in package contents) to firmly attach the tweeter housing to the surface. Ensure it is stable and will not vibrate loose.
Image 5.1: An example of a Cadence Q1T tweeter surface-mounted in a vehicle's interior.
5.3. Wiring Instructions
The Q1T tweeters have a built-in capacitor for high-pass filtering, simplifying wiring. Connect the tweeter wires to your car audio system's high-frequency output or to the appropriate crossover points if using an external crossover.
- Identify Polarity: Ensure correct positive (+) and negative (-) connections. Incorrect polarity can lead to phase issues and reduced sound quality.
- Secure Connections: Use crimp connectors or solder for secure and reliable electrical connections. Insulate all exposed wiring to prevent short circuits.
- Route Wires: Route all wires away from moving parts, sharp edges, and heat sources. Use zip ties or cable clamps to secure wiring.
- Reconnect Battery: Once all connections are secure and verified, reconnect the vehicle's negative battery terminal.
6. Operation
Once installed and wired correctly, the Cadence Q1T tweeters will operate as part of your car's audio system, reproducing high-frequency sounds. No specific user operation is required beyond the initial setup and integration with your head unit or amplifier. Adjust your audio system's settings (e.g., treble, balance, fader) to achieve your desired sound profile.
7. Maintenance
The Cadence Q1T tweeters require minimal maintenance to ensure long-lasting performance:
- Cleaning: Periodically wipe the tweeter grilles with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.
- Inspection: Occasionally check the mounting and wiring connections to ensure they remain secure.
- Avoid Overpowering: Do not continuously play audio at distortion levels or exceed the tweeter's maximum power handling, as this can cause permanent damage.
8. Troubleshooting
If you encounter issues with your Cadence Q1T tweeters, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from tweeters | Loose or incorrect wiring connection | Check all wiring connections for proper polarity and secure contact. Ensure wires are not pinched or broken. |
| Head unit or amplifier settings | Verify that the head unit or amplifier is powered on and audio output is enabled for the tweeter channels. Check fader/balance settings. | |
| Distorted or poor sound quality | Overpowering or clipping | Reduce volume or amplifier gain. Ensure the amplifier is not being overdriven. |
| Incorrect wiring polarity | Double-check positive and negative connections. | |
| Improper mounting | Ensure tweeters are securely mounted and not vibrating against other surfaces. | |
| Intermittent sound | Loose connections or damaged wiring | Inspect all wiring for damage and ensure connections are tight. |
If the problem persists after attempting these solutions, contact Cadence customer support or a qualified car audio technician.
9. Warranty and Support
Cadence products are designed for quality and reliability. For information regarding the warranty period, terms, and conditions for your Q1T tweeters, please refer to the warranty card included with your purchase or visit the official Cadence website. For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Cadence customer support through their official channels.
Cadence Customer Support: Please visit www.cadencesound.com for contact information and further resources.
