Hisense WF3S1243BW3 Front-Load Washing Machine User Manual

1. Introduction

Thank you for choosing the Hisense WF3S1243BW3 Front-Load Washing Machine. This manual provides important information regarding the safe installation, operation, and maintenance of your appliance. Please read it thoroughly before using the washing machine and keep it for future reference.

The Hisense WF3S1243BW3 is a high-capacity (12 kg) front-load washing machine designed for efficient and convenient laundry care, featuring touch controls and smart connectivity.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.

• Ensure the appliance is properly grounded.
• Do not operate the washing machine if it is damaged or malfunctioning. Contact qualified service personnel.
• Keep children and pets away from the appliance during operation.
• Do not wash items that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances.
• Unplug the appliance from the power supply before cleaning or performing any maintenance.
• Do not install or store the appliance where it will be exposed to temperatures below freezing or exposed to the weather.

3. Installation and Setup

Proper installation is crucial for the optimal performance and safety of your washing machine.

3.1 Unpacking

Carefully remove all packaging materials, including the transport bolts at the rear of the machine. Keep packaging materials out of reach of children.

3.2 Location and Leveling

Install the washing machine on a firm, level floor. The appliance is designed for under-counter installation. Adjust the leveling feet to ensure the machine is stable and does not wobble. Incorrect leveling can cause excessive vibration and noise.

3.3 Water Connection

Connect the inlet hose to a cold water tap with a 3/4-inch thread. Ensure all connections are tight to prevent leaks. Do not reuse old inlet hoses.

3.4 Drain Connection

Securely attach the drain hose to a standpipe or laundry tub. Ensure the drain hose is not kinked or blocked, and that its end is positioned at the correct height (between 60 cm and 100 cm from the floor) to prevent siphoning.

3.5 Electrical Connection

Plug the power cord into a grounded 220 Volt, 50 Hz electrical outlet. Do not use extension cords or adapters. Ensure the electrical supply meets the appliance's requirements.

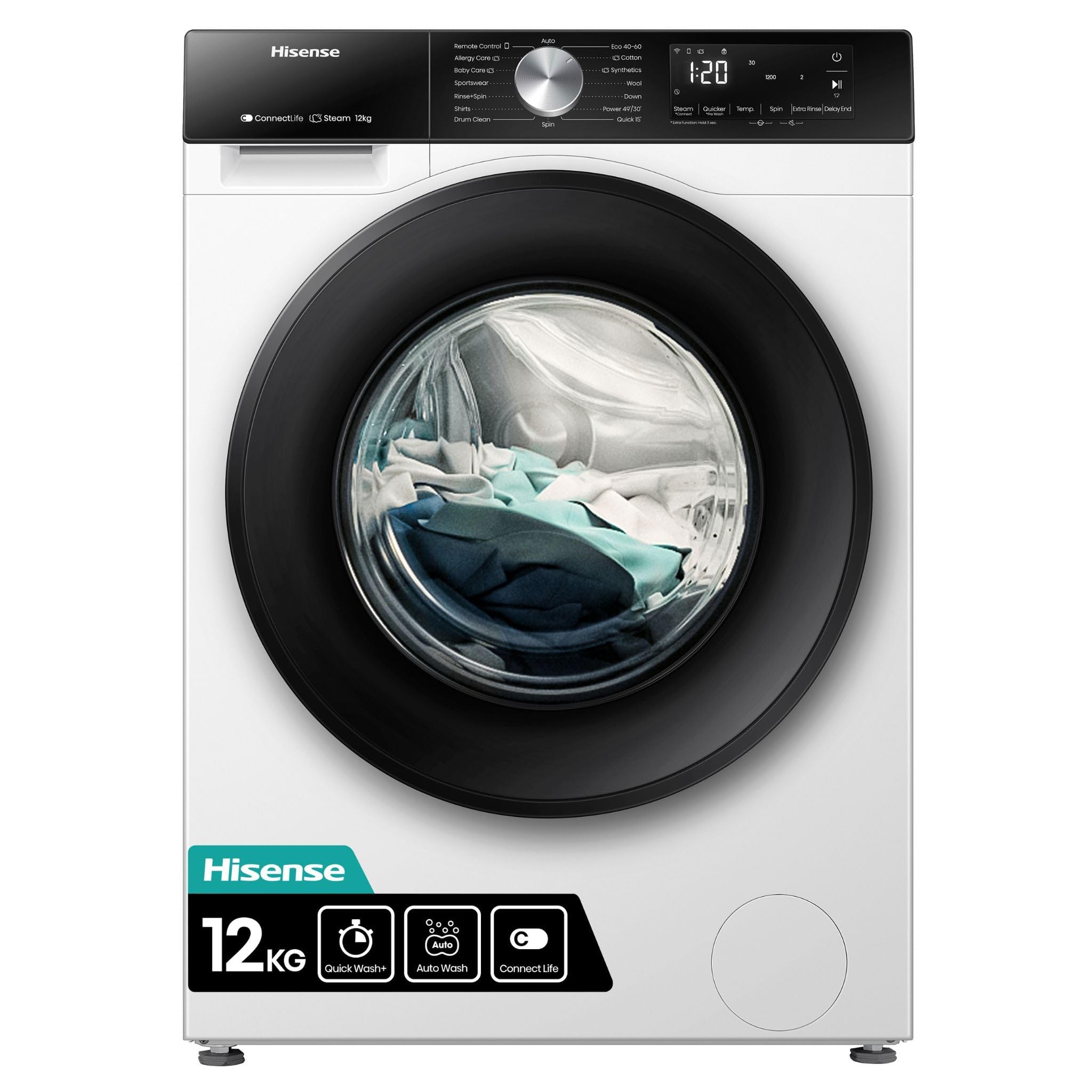

Figure 1: Overview of the Hisense WF3S1243BW3 Front-Load Washing Machine. This image shows the overall design, including the front-load door and control panel area.

4. Operating Instructions

Your Hisense WF3S1243BW3 washing machine features an intuitive touch control panel and smart connectivity for ease of use.

4.1 Loading Laundry

Open the front-load door and load laundry into the stainless steel drum. Do not overload the machine; the maximum capacity is 12 kg. Ensure no items are caught in the door seal before closing the door firmly.

4.2 Adding Detergent and Additives

Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and any fabric softener or pre-wash detergent to their respective compartments. Refer to your detergent packaging for dosage recommendations.

4.3 Selecting a Wash Program

The washing machine offers 19 standard cycles. Use the touch screen control panel to select your desired program. Common programs include:

• Allergens: A specialized cycle for removing allergens.
• Active Steam: Utilizes steam for enhanced cleaning and sanitization.
• Quick Wash: For lightly soiled items needing a fast cycle.
• Delicates: Gentle washing for sensitive fabrics.
• Cottons: For everyday cotton items.

You can also adjust temperature, spin speed, and other options using the touch controls.

4.4 Starting and Pausing a Cycle

Press the 'Start/Pause' button on the touchpad to begin the selected wash cycle. To pause a running cycle, press the same button. The door may unlock after a short delay if the water level and temperature are safe.

4.5 Smart Connectivity

Refer to the separate smart connectivity guide for instructions on connecting your washing machine to your home network and using its smart features via a mobile application.

5. Maintenance

Regular maintenance ensures the longevity and efficiency of your washing machine.

5.1 Cleaning the Detergent Dispenser

Periodically remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse it under running water and use a brush if necessary.

5.2 Cleaning the Drum

Run a drum clean cycle (if available) or a hot wash with no laundry and a washing machine cleaner to remove any odors or residue from the stainless steel drum.

5.3 Cleaning the Drain Pump Filter

Locate the drain pump filter, usually at the bottom front of the machine. Open the cover, place a shallow tray underneath to catch water, and carefully unscrew the filter. Clean any lint or debris and reinsert it securely.

5.4 Cleaning the Exterior

Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.

6. Troubleshooting

Before contacting service, refer to this section for common issues and their solutions.

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Hisense website. Do not attempt to repair the appliance yourself, as this may void your warranty and pose safety risks. Contact authorized service personnel for any repairs or technical assistance.
