1. Introduction
This manual provides essential information for the safe and efficient operation of your Hisense WF5I8043BWF slim front-load washing machine. Please read these instructions carefully before using the appliance and retain them for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.
- Ensure the appliance is properly grounded.
- Do not allow children to play with or operate the washing machine.
- Never force the door open during operation.
- Unplug the appliance before cleaning or performing maintenance.
- Do not wash items that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances.
3. Installation
3.1 Unpacking and Transit Bolt Removal
Before operating the washing machine, it is crucial to remove all transit bolts located at the rear of the appliance. These bolts secure the drum during transport and must be removed to prevent damage during operation. Refer to the diagram below for bolt locations.
Technical drawing showing the dimensions of the Hisense WF5I8043BWF washing machine: 595mm width, 470mm depth, 845mm height. This diagram also indicates the location of transit bolts at the rear.
3.2 Placement
Place the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and maintenance. The slim design (iFit) allows for flexible placement.
Image demonstrating the iFit slim design of the washing machine, featuring a depth of 470mm for easy integration into compact spaces.
3.3 Water and Electrical Connections
Connect the water inlet hose to a cold water tap and the drain hose to a suitable drain. Ensure all connections are secure to prevent leaks. Plug the power cord into a grounded electrical outlet. Consult a qualified technician if you are unsure about any connections.
4. Operating Instructions
4.1 Control Panel Overview (iPlay TFT Display)
The washing machine features an iPlay TFT display for intuitive program selection and monitoring.

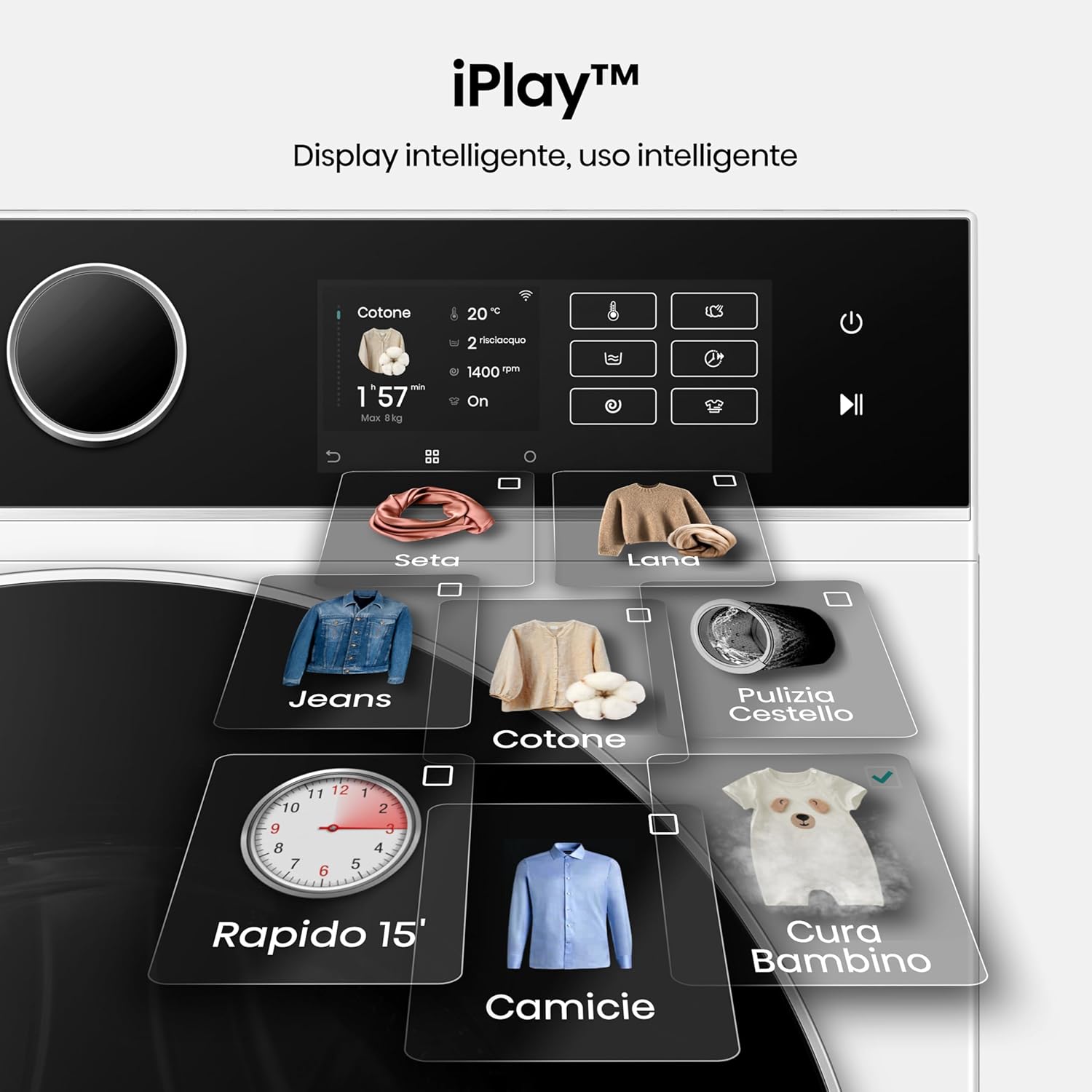

A detailed view of the iPlay TFT display, showcasing its intuitive interface for selecting wash programs like Cotton, Jeans, Wool, Quick 15', and special functions.
4.2 Loading Laundry (Maxi Drum)
The Maxi Drum design provides a larger capacity for easier loading and unloading of up to 8 kg of laundry.

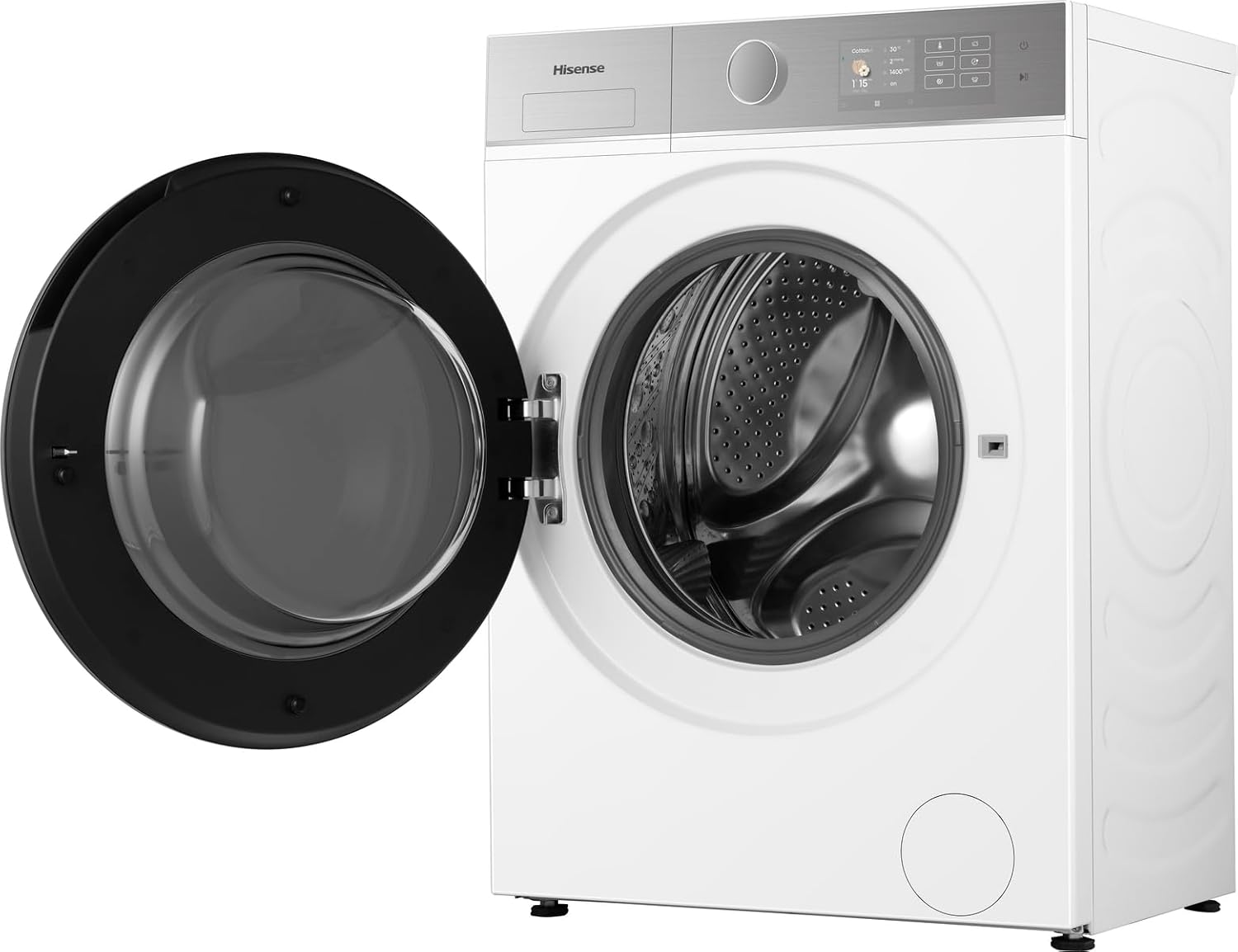

The washing machine with its door open, revealing the spacious drum designed for easy loading and unloading.
4.3 Detergent Dispenser
Add detergent and fabric softener to the appropriate compartments in the dispenser drawer.
The pull-out detergent dispenser drawer, with compartments for pre-wash, main wash, and fabric softener.
4.4 Program Selection
Turn the program selector knob or use the touch display to choose from 15 available programs. Key programs include:
- Quick Program: For fast washing cycles.
- Steam Programs (Hygiene Guard+): Utilizes high-temperature steam to eliminate 99.99% of bacteria and allergens.
- Refresh: Revitalizes clothes and removes creases with minimal water.
- Anti-Stain: Targets 9 common stain types by adjusting temperature, speed, and wash duration.
- Allergy Care: Uses high-temperature hot air sterilization to remove 99.99% of harmful bacteria.
- Cold Wash: Achieves effective cleaning at lower temperatures, saving energy.
- Quicker: Reduces wash time by up to 57% for selected programs.
4.5 Smart Features (Connect Life App)
Connect your washing machine to the Connect Life app for enhanced control and monitoring.
- Smart Assist: Optimizes wash settings based on fabric type, load volume, and soil level.
- Energy Monitoring: Track real-time energy and water consumption to manage costs.
- Smart Link: If you have a compatible Hisense dryer, the washing machine can automatically select the appropriate drying program.
Illustration of the Smart Assist feature via the ConnectLife app, allowing users to optimize wash settings based on fabric type, load volume, and soil level.
The ConnectLife app's Energy Monitoring function, showing real-time energy and water consumption data to help manage costs.
Diagram illustrating the Smart Link feature, which allows the washing machine to communicate with a compatible dryer for optimized drying cycles.
4.6 Adding Items During Cycle
The washing machine allows you to add forgotten items during a cycle. Look for the 'Add Garment' indicator on the display. Ensure the water level is below the door seal before opening.
5. Maintenance
5.1 Drum Clean Function
Regularly use the Drum Clean function to maintain hygiene and prevent the accumulation of mold and bacteria inside the drum. This function uses hot air to dry the drum after washing.
5.2 General Cleaning
Wipe the exterior of the machine with a soft, damp cloth. Clean the detergent dispenser drawer regularly to prevent residue buildup. Check and clean the drain pump filter periodically.
6. Troubleshooting
If you encounter issues with your washing machine, refer to the following common solutions. For persistent problems, contact customer support.
- Machine not starting: Check if the power cord is plugged in, the door is closed properly, and the water supply is on.
- Excessive vibration/noise: Ensure all transit bolts have been removed. Verify the machine is level and all four feet are stable on the floor.
- Water leakage: Check all hose connections for tightness. Inspect the detergent drawer for excessive detergent buildup.
- Poor washing results: Ensure correct detergent dosage and program selection for the load type and soil level.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | WF5I8043BWF |
| Capacity | 8 kg |
| Dimensions (W x D x H) | 59.5 cm x 47 cm x 84.5 cm |
| Weight | 61 kg |
| Maximum Spin Speed | 1400 rpm |
| Energy Efficiency Class (New EU) | A |
| Energy Consumption (Eco 40-60) | 33 kWh / 100 cycles |
| Water Consumption (Eco 40-60) | 38 L / cycle |
| Noise Level (Spin) | 72 dB(A) |
| Voltage | 240 Volt |
| Special Features | Smart Connectivity, Steam, Refresh, Anti-stain, iFit, iPlay, Maxi Drum |
The official EU energy label for the Hisense WF5I8043BWF, indicating its Class A energy efficiency, 8 kg capacity, 33 kWh/100 cycles, 38 L water/cycle, and 72 dB spin noise.
Detailed product data sheet for the Hisense WF5I8043BWF, providing comprehensive technical specifications including dimensions, energy efficiency, spin speed, and warranty information. For more details, visit the EU EPREL database.
8. Warranty and Support
Your Hisense WF5I8043BWF washing machine comes with a 24-month manufacturer's warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
For technical assistance, spare parts, or further information, please visit the official Hisense website:
