iDOO EU-ID-IG301-B
iDOO Hydroponics Growing System Kit 12Pods Instruction Manual
Model: EU-ID-IG301-B
Brand: iDOO
1. Overview
The iDOO Hydroponics Growing System Kit 12Pods is an indoor gardening solution designed for efficient plant growth without soil. It features an integrated LED grow light, a built-in fan for air circulation, and an automatic timer for light cycles. The system allows for adjustable height to accommodate different plant growth stages and includes a 4.5L water tank for nutrient solution.
Figure 1: iDOO Hydroponics Growing System Kit with mature basil plants.
This system is ideal for growing herbs, vegetables, and small fruits indoors, providing fresh produce year-round. Its compact design makes it suitable for various indoor environments, including kitchens, living rooms, offices, and bedrooms.
2. Product Components
The iDOO Hydroponics Growing System Kit includes the following components:
- Water Tank (4.5L capacity)
- LED Grow Light with adjustable height
- Built-in Fan
- Water Pump
- 12 Planting Pods
- Plant Food (Nutrient A and Nutrient B)
- Tray
- Saucer
- Cleaning Brush
- Labels
- Tools (specific tools not detailed, but implied for setup/maintenance)
Figure 2: Included components for the iDOO Hydroponics Growing System Kit.
3. Setup Instructions
Setting up your iDOO Hydroponics Growing System is a straightforward process:
- Assemble the System: Connect the LED grow light unit to the water tank base. Ensure all connections are secure.
- Insert Planting Pods: Place the provided sponges into the plastic holders, then insert your seeds into the sponges. Place these assembled pods into the 12 designated holes on the top tray of the system.
- Add Water: Fill the 4.5L water tank with clean water up to the "MAX" indicator.
- Add Nutrient Solution: Following the instructions on the plant food bottles (Nutrient A and Nutrient B), add the appropriate amount of nutrient solution to the water tank. The visual window on the tank allows you to monitor the water level.
- Plug In and Power On: Connect the power adapter to the system and plug it into a power outlet. The system will automatically begin its light and water circulation cycles.
Video 1: Official iDOO Indoor Herb Hydroponic System setup guide. This video demonstrates the quick and easy setup process for the hydroponic system, including adding water and placing the planting pods.
Figure 3: Steps for adding nutrient solution to the water tank. Calculate difference, mix solution, and add water to max level.
4. Operating Instructions
The iDOO Hydroponics Growing System is designed for automated operation, but understanding its modes and features will optimize your plant growth:
- Automatic Light Cycle: The 22-Watt LED light automatically turns on for 16 hours and off for 8 hours, simulating natural sunlight. To set the desired 16-hour ON cycle, unplug and replug the unit, then turn it on at the time you wish the cycle to begin.
- 2 Growing Modes:
- Vegetables Mode: Emits blue light, red light, far red light, and white light, suitable for leafy greens and herbs.
- Flower/Fruit Mode: Emits red light, far red light, and white light, optimized for flowering and fruiting plants.
- Adjustable Height: The height of the LED light can be adjusted up to 11.02 inches to accommodate plants at different growth stages, ensuring optimal light exposure as they grow.
- Built-in Fan: The integrated fan operates at timed intervals to simulate natural breeze, aiding in pollen spread during florescence and heat dispersion during germination.
- Silent Sleep Mode: This feature allows you to turn off the fan, water pump, and lights for 10 hours, providing a quiet environment when needed.
Figure 4: Illustration of the two distinct growing modes: Vegetables Mode and Flower/Fruit Mode.
Figure 5: The adjustable height mechanism of the LED grow light, allowing for plant growth up to 11.02 inches.
Figure 6: Silent Sleep Mode controls, allowing for 10 hours of quiet operation without lights or fan.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your iDOO Hydroponics Growing System:
- Water Level Monitoring: Regularly check the water level using the visual window on the tank. Replenish water as needed to maintain the optimal level for plant growth.
- Nutrient Replenishment: Add nutrient solution according to the plant food instructions, typically every 1-2 weeks depending on plant growth and water consumption.
- System Cleaning: Periodically, especially when changing out plants or starting a new growth cycle, empty the water tank and clean it thoroughly with the provided cleaning brush to prevent algae buildup and ensure a healthy environment for your plants.
- Pruning: Trim plants as they grow to encourage bushier growth and prevent them from touching the LED lights, which can cause burning.

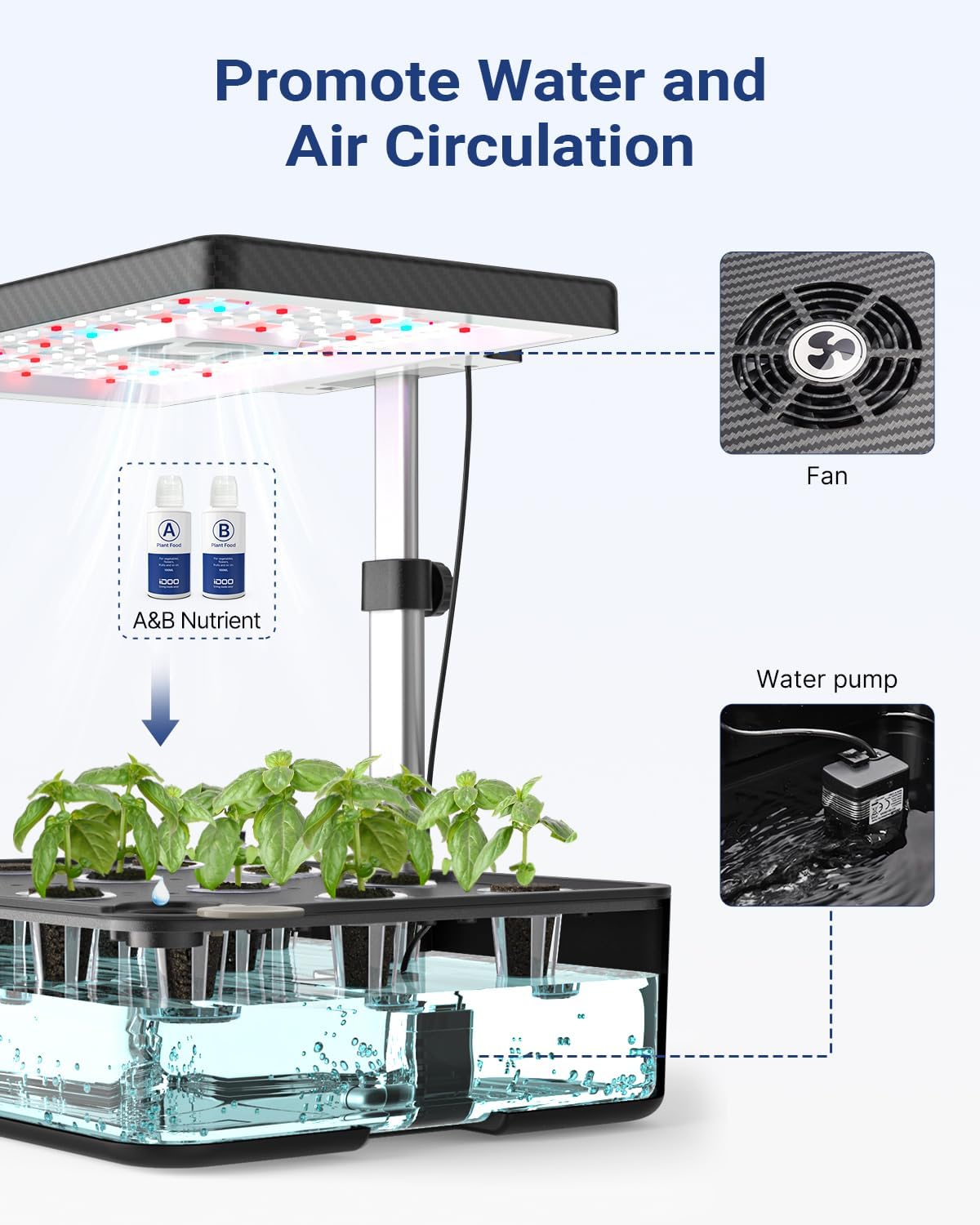

Figure 7: Illustration of the internal water and air circulation system, highlighting the importance of nutrient addition.
6. Troubleshooting
If you encounter issues with your iDOO Hydroponics Growing System, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Plants not growing or wilting | Insufficient water/nutrients, incorrect light mode, or old seeds. | Check water level and add nutrients. Ensure correct growing mode is selected. Use fresh seeds. |
| Algae growth in water tank | Excessive light exposure to water, or infrequent cleaning. | Ensure planting pods are properly sealed to block light. Clean the tank regularly. |
| Pump/Fan not working | Power interruption, or blockage. | Check power connection. Ensure no debris is obstructing the pump or fan. If power was interrupted, unplug and replug the unit to reset the timer. |
| Plants growing too tall/touching light | Light height not adjusted. | Adjust the height of the LED grow light upwards as plants grow. |
7. Specifications
| Feature | Detail |
|---|---|
| Material | Plastic |
| Color | Black |
| Special Feature | Self Watering |
| Planter Form | Tray |
| Shape | Square |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Mounting Type | Tabletop |
| Plant or Animal Product Type | Herb |
| Product Dimensions | 6.3"D x 11.8"W x 15.4"H |
| Capacity | 4 Liters |
| Number of Pieces | 12 |
| Included Components | Tray, Saucer, Cleaning Brush, Label, Tools, 12Pods, Water Tank, Fan, LED Light, Hydroponics System Kit |
| Item Weight | 3.96 pounds (1.8 Kilograms) |
| Accepted Voltage Frequency | 100 to 120 Volts and 60 Hertz |
| Manufacturer | iDOO |
| Item Model Number | EU-ID-IG301-B |
8. Warranty and Support
For warranty information, technical support, or any inquiries regarding your iDOO Hydroponics Growing System Kit, please refer to the contact information provided in the product packaging or visit the official iDOO website. Keep your purchase receipt for warranty claims.
You can visit the official iDOO store for more products and support: iDOO Store
