Svbony SV410 ED Terrestrial Telescope 9-27x56 Instruction Manual

1. Introduction

The Svbony SV410 ED Terrestrial Telescope is a compact and lightweight spotting scope designed for various observation activities, including bird watching, hunting, and target shooting. It features Extra-low Dispersion (ED) glass and fully multi-coated (FMC) lenses to provide clear, high-contrast images with minimal chromatic aberration. This manual provides detailed instructions for the proper setup, operation, and maintenance of your SV410 ED telescope.

Figure 1: Svbony SV410 ED Terrestrial Telescope, a compact and lightweight spotting scope.

2. Product Overview

2.1 Key Features

• Ultra-Compact Design: Weighs only 550g, making it highly portable and easy to handle.
• ED Glass: Equipped with Extra-low Dispersion glass to virtually eliminate chromatic aberration, ensuring excellent resolution and contrast.
• FMC Lenses: Advanced Fully Multi-Coated anti-reflective coatings on all air-to-glass surfaces maximize light transmission for bright, sharp images.
• Close Focus: Can focus down to 2 meters, allowing for detailed observation of nearby objects.
• Ready-to-Use Case: Includes a protective carrying case that allows use while mounted on a tripod.

2.2 Components

The Svbony SV410 ED telescope includes the following components:

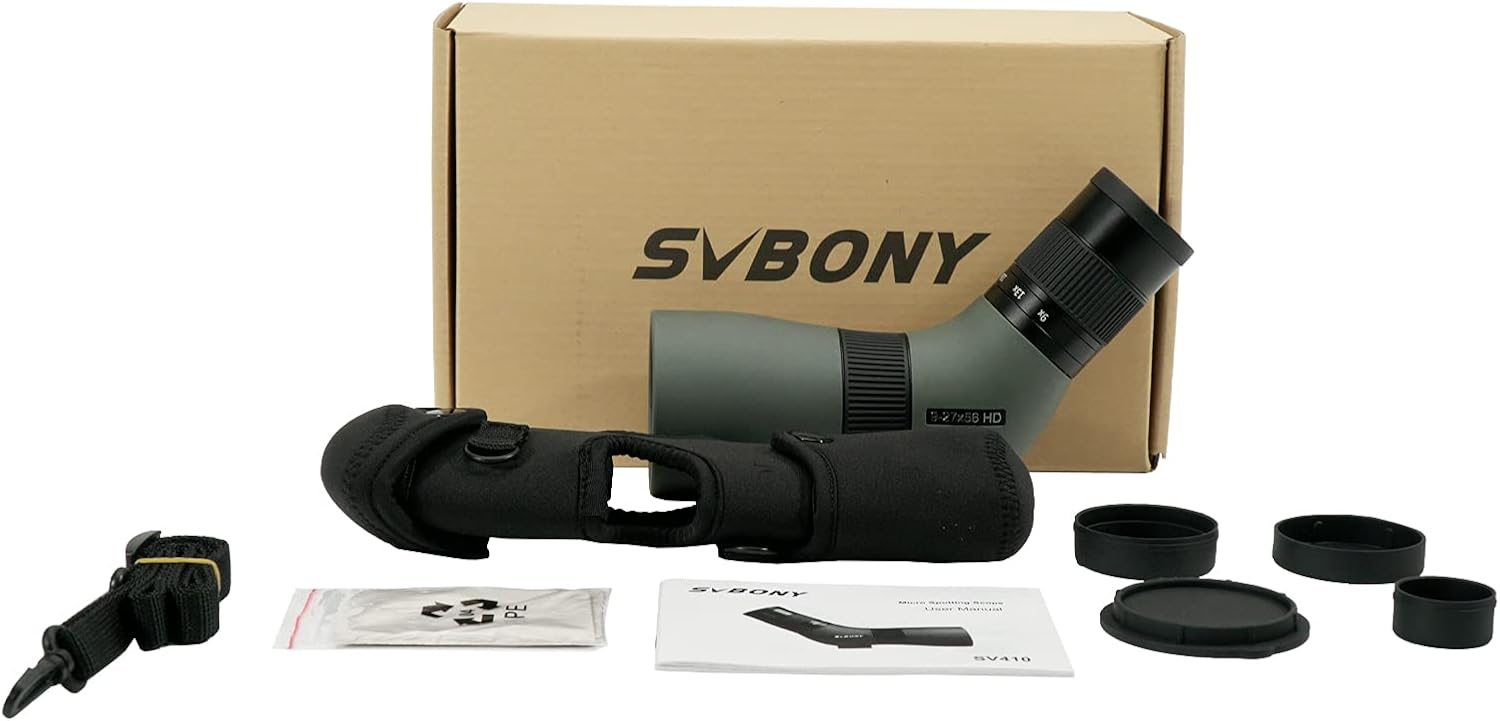

Figure 2: Contents of the SV410 ED package. Includes the telescope, carrying case, lens cleaning cloth, and user manual.

• Svbony SV410 ED 9-27x56mm Spotting Scope
• Carrying Case
• Lens Cleaning Cloth
• User Manual

3. Setup

3.1 Mounting on a Tripod

For stable observation, especially at higher magnifications, it is recommended to mount the SV410 ED on a tripod. The telescope features a standard tripod mounting thread.

1. Locate the tripod mounting socket on the underside of the telescope.
2. Align the telescope's mounting socket with the screw on your tripod's quick-release plate or head.
3. Securely fasten the telescope to the tripod by turning the screw clockwise until tight.

Figure 3: Tripod mounting thread for stable observation.

3.2 Attaching a Phone Adapter (Optional)

To capture images or videos through the telescope using your smartphone, you can attach a compatible phone adapter.

4. Operation

4.1 Adjusting Magnification

The SV410 ED offers a variable magnification range from 9x to 27x. To adjust the magnification:

1. Look through the eyepiece.
2. Rotate the zoom ring (located near the eyepiece) to increase or decrease the magnification to your desired level.

Figure 4: Adjusting the magnification using the zoom ring on the eyepiece.

4.2 Focusing

To achieve a clear image:

1. Point the telescope at your desired object.
2. Slowly rotate the focus knob (typically located on the side of the telescope body) until the image appears sharp and clear.
3. The SV410 ED can focus on objects as close as 2 meters.

4.3 Eyepiece Adjustment

The eyepiece features a twist-up eyecup for comfortable viewing with or without eyeglasses.

1. If you wear eyeglasses, twist the eyecup down to its lowest position.
2. If you do not wear eyeglasses, twist the eyecup up to a comfortable position that provides a full field of view.

Figure 5: The eyepiece can be adjusted for comfortable viewing.

5. Maintenance

Proper care and maintenance will ensure the longevity and optimal performance of your Svbony SV410 ED telescope.

• Cleaning Lenses: Use the provided lens cleaning cloth or a soft, lint-free cloth specifically designed for optics. Gently wipe the lens surfaces to remove dust and smudges. For stubborn marks, a small amount of lens cleaning fluid can be applied to the cloth, not directly to the lens.
• Body Cleaning: Wipe the body of the telescope with a soft, damp cloth. Avoid using abrasive cleaners or solvents.
• Storage: When not in use, store the telescope in its protective carrying case in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure all lens caps are in place.
• Water Resistance: The telescope is designed to be water-resistant (IPX5 rating), but it is not fully waterproof. Avoid submerging it in water.

6. Troubleshooting

If you encounter issues with your Svbony SV410 ED telescope, refer to the following common problems and solutions:

• Blurred Image:
  • Ensure the focus knob is properly adjusted for your viewing distance.
  • Check if the eyepiece diopter is set correctly for your vision.
  • Verify that the objective lens and eyepiece are clean and free of smudges or dust.
• Dark Image:
  • Ensure the objective lens cap is removed.
  • Check for sufficient ambient light.
  • Verify that the lenses are clean.
• Difficulty Adjusting Zoom/Focus:
  • If the rings are stiff, try rotating them gently but firmly. Avoid excessive force.
  • Extreme temperatures can affect the smoothness of moving parts. Allow the telescope to acclimate to moderate temperatures.

If problems persist, please contact Svbony customer support for assistance.

7. Specifications

8. Safety Information

Please observe the following safety guidelines to prevent injury and damage to the product:

• Eye Safety: It is strictly forbidden to use the telescope to look directly at the sun, as this can cause severe and permanent eye damage.
• Fire Hazard: Do not place the telescope's eyepiece under direct sunlight, as this can concentrate sunlight and potentially cause a fire.

9. Warranty and Support

Svbony offers a lifetime warranty for spotting scopes, monoculars, binoculars, and microscopes. Additionally, there is a 30-day no-reason return policy.

Beyond the warranty period, maintenance services are still offered, with buyers responsible for associated costs. For support or warranty claims, please contact Svbony customer service through Amazon. Responses are typically provided within 12 hours.
