KLARSTEIN Quickstick Flex Sous Vide Immersion Cooker

Introduction

This user manual provides essential information for the safe and efficient operation of your KLARSTEIN Quickstick Flex Sous Vide Immersion Cooker. Please read these instructions thoroughly before first use and retain them for future reference.

The Quickstick Flex is designed to provide precise temperature control for sous vide cooking, ensuring consistent and delicious results for a variety of foods.

Safety Instructions

Adhering to safety guidelines is crucial for preventing injury and damage to the appliance. Always follow these instructions:

• Do not immerse the main unit above the maximum water level indicator.
• Ensure the appliance is securely clamped to the cooking vessel before operation.
• Always unplug the appliance from the power outlet before cleaning or when not in use.
• Keep out of reach of children.
• Do not operate if the power cord or plug is damaged.
• This appliance is waterproof to IPX7 standards, meaning it can withstand immersion in water up to 1 meter for 30 minutes. However, do not intentionally submerge the entire unit beyond its intended operational depth.
• The device features a Safety-First technology with an automatic shut-off function if the water level drops to a critical point. Ensure sufficient water is always present during operation.

Figure 1: Safety First Technology. The appliance features an automatic shutdown mechanism if the water level becomes too low, preventing dry operation and potential damage.

Figure 2: IPX7 Waterproof Rating. The Quickstick Flex is designed to be waterproof to IPX7, ensuring safe operation even when partially submerged in water.

Product Overview

The KLARSTEIN Quickstick Flex is a powerful and precise immersion circulator designed for sous vide cooking. Key features include:

• Power: 1300 Watts for rapid heating.
• Temperature Range: 32-194 °F (0-95 °C) with precise control of +/- 0.2 °C.
• Circulation: Built-in pump with 3D streamline heating technology for uniform temperature distribution.
• Display: Rotatable LCD touch-display for intuitive control and readability from any angle.
• Timer: Integrated timer function for precise cooking durations.
• Capacity: Suitable for water baths up to 21 quarts.
• Heating Element: Durable, maintenance-free PTC heating element.

Figure 3: Product Components. The Quickstick Flex immersion cooker shown with typical sous vide ingredients.

Figure 4: 180° Rotating Head. The LCD touch display can be rotated 180 degrees for optimal viewing from various angles.

Figure 5: Durable Heating Element. The appliance features a maintenance-free PTC heating element for long-lasting performance, along with clear MIN/MAX water level markings.

Setup

1. Choose a Suitable Container: Select a heat-safe pot or container large enough to hold the food you are cooking and allow for proper water circulation. The Quickstick Flex is suitable for containers up to 21 quarts.
2. Secure the Cooker: Attach the Quickstick Flex securely to the side of your chosen container using the adjustable clamp. Ensure it is stable and upright.
3. Fill with Water: Fill the container with water. Ensure the water level is between the MIN and MAX markings on the immersion cooker. Do not exceed the MAX line.
4. Connect Power: Plug the power cord into a standard 110-120V ~ 50-60 Hz electrical outlet.

Operating Instructions

Follow these steps to operate your Quickstick Flex:

1. Power On: Press the power button on the touch display to turn on the device.
2. Set Temperature: Use the '+' and '-' buttons to adjust the desired cooking temperature. The display shows the set temperature and the current water temperature. The temperature range is 0-95 °C (32-194 °F).
3. Set Timer (Optional): Press the 'SET' button to switch to timer setting mode. Use the '+' and '-' buttons to set the desired cooking time. Press 'SET' again to confirm.
4. Start Cooking: Once the temperature and time are set, the device will begin heating the water to the target temperature. The 3D circulation system will ensure even heat distribution.
5. Add Food: Once the water reaches the set temperature, carefully place your vacuum-sealed food into the water bath.
6. Monitor Progress: The display will show the current water temperature and the remaining cooking time.
7. Completion: When the timer expires, the device will alert you. Carefully remove the food from the water bath.
8. Power Off: Press the power button to turn off the device and unplug it from the outlet.

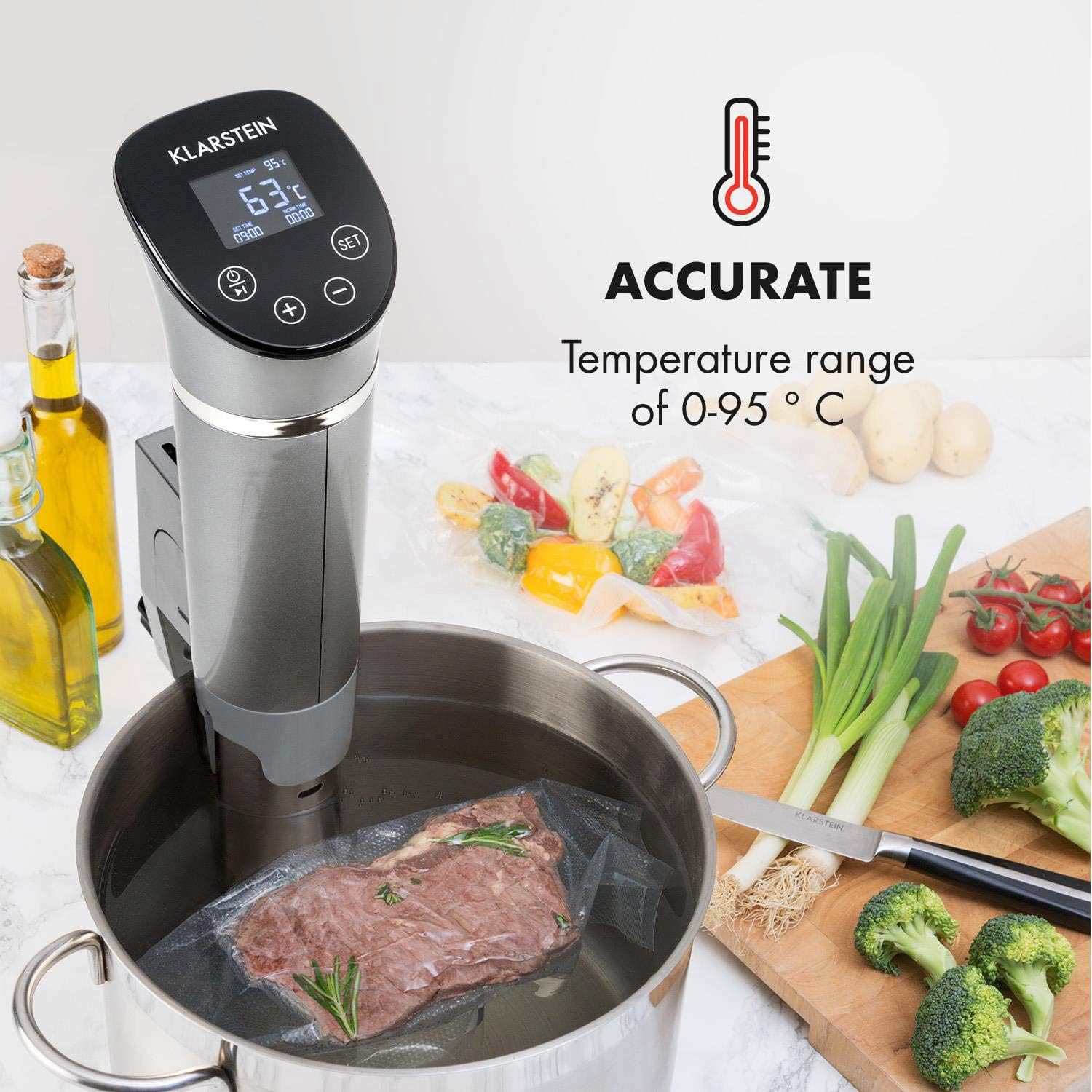

Figure 6: Accurate Temperature Control. The device maintains a precise temperature range of 0-95°C (32-194°F) for optimal cooking results.

Figure 7: 3D Circulation. The built-in pump ensures even temperature distribution throughout the water bath, eliminating cold spots.

Figure 8: Precise Temperature Accuracy. The Quickstick Flex offers precise temperature control within +/- 0.2°C, crucial for achieving desired doneness in various foods.

Maintenance and Cleaning

Proper maintenance ensures the longevity and performance of your Quickstick Flex:

• After Each Use: Unplug the device and allow it to cool completely.
• Cleaning the Circulator: The stainless steel lower part of the immersion cooker can be rinsed under running water. Use a soft cloth to wipe away any food residue or mineral deposits.
• Cleaning the Display: Wipe the LCD touch display with a soft, damp cloth. Do not use abrasive cleaners or immerse the top part of the unit.
• Storage: Store the Quickstick Flex in a dry place when not in use.

Figure 9: Easy Cleaning. The lower section of the device can be easily rinsed under water after use for simple maintenance.

Troubleshooting

Specifications

Warranty and Support

For detailed warranty information and customer support, please refer to the documentation included with your product packaging or visit the official KLARSTEIN website. This manual provides general operational guidelines; specific warranty terms and conditions may vary.
