1. Product Overview
The Lindby Grazyna LED Wall Lamp (Model 9624615) is a modern and decorative lighting fixture designed for indoor use. Featuring a distinctive black and gold finish, this lamp provides soft, warm-white indirect illumination, creating a pleasant atmosphere in various living spaces. Its energy-efficient integrated LED technology ensures low power consumption and a long lifespan. The lamp can be mounted on walls or ceilings, serving as both a functional light source and a stylish decorative element.
Key Features:
- Energy-efficient LED technology for reduced electricity consumption.
- Integrated LED light sources, ready for immediate use.
- High-quality black and gold metal construction.
- Suitable for modern living rooms, dining rooms, hallways, and kitchens.
- Provides a cozy, warm-white light (3000 Kelvin).

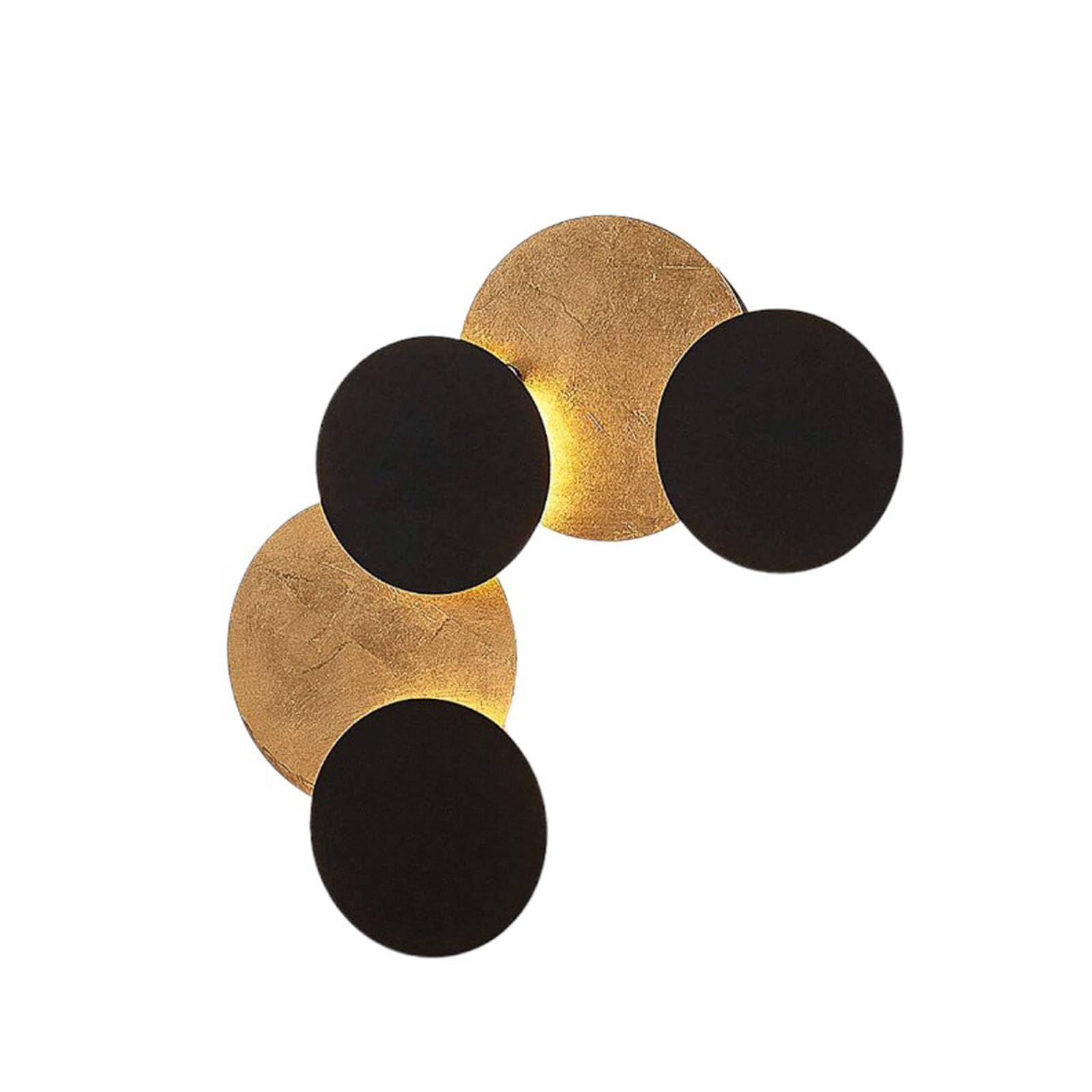

Figure 1: Front view of the Lindby Grazyna LED Wall Lamp.
Figure 2: The Grazyna lamp providing indirect lighting in a room setting.
2. Important Safety Instructions
Please read these safety instructions carefully before installation and use. Keep this manual for future reference.
- Electrical Safety: Always disconnect the main power supply at the circuit breaker before attempting any installation, maintenance, or cleaning.
- Qualified Installation: Installation should be performed by a qualified electrician in accordance with local electrical codes and regulations.
- Indoor Use Only: This product has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. It is strictly for indoor use in dry environments.
- Protection Class I: This appliance is Class I and must be earthed. Ensure proper earthing connections are made.
- No Modifications: Do not attempt to modify or alter the product in any way. Unauthorized modifications can lead to electric shock, fire, or product damage.
- Integrated LEDs: The LED light sources are integrated and cannot be replaced by the user. Do not attempt to open the LED modules.
- Handling: Handle the lamp with care to avoid damage to the finish or internal components.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- 1 x Lindby Grazyna LED Wall Lamp unit
- Integrated LED light sources (pre-installed)
- Mounting hardware (e.g., screws, wall plugs - typically included for wall mounting)
- Instruction Manual
4. Installation Instructions
Follow these steps for safe and correct installation of your Lindby Grazyna LED Wall Lamp.
- Prepare for Installation:
- Ensure the main power supply to the installation area is switched off at the circuit breaker.
- Gather necessary tools (e.g., drill, screwdriver, wire strippers, pencil, measuring tape).
- Mark Mounting Points:
- Hold the lamp's mounting plate against the desired wall or ceiling location.
- Use a pencil to mark the positions for drilling holes.
Figure 3: Product dimensions (520mm width, 150mm height, 50mm depth).
- Drill Holes and Insert Wall Plugs:
- Drill holes at the marked positions using an appropriate drill bit for your wall material.
- Insert the provided wall plugs into the drilled holes.
- Electrical Connection:
- Carefully connect the electrical wires from your mains supply to the lamp's terminals.
- Connect the Live (L) wire, Neutral (N) wire, and Earth (PE) wire according to standard color codes (e.g., Brown/Black to L, Blue to N, Green/Yellow to PE).
- Ensure all connections are secure and properly insulated.
Figure 4: Back view with wiring connections. Ensure proper electrical connections.
- Mount the Lamp:
- Align the lamp's mounting plate with the wall plugs.
- Secure the lamp to the wall using the provided screws. Do not overtighten.
- Restore Power:
- Once the lamp is securely mounted and all electrical connections are verified, restore power at the main circuit breaker.
- Test the lamp by switching it on.
5. Operating Instructions
The Lindby Grazyna LED Wall Lamp is designed for simple operation via an external wall switch.
- Turning On/Off: Use your standard wall switch to turn the lamp on or off.
- Dimming: This lamp is not designed for dimming unless explicitly stated on the packaging or by a compatible external dimmer switch. Attempting to dim a non-dimmable LED fixture may cause damage or flickering.
- Light Output: The lamp provides a fixed warm-white light output of 1020 lumens at 3000 Kelvin.
Figure 5: Close-up view of the integrated LED light sources.
6. Care and Maintenance
Proper care will ensure the longevity and appearance of your Lindby Grazyna LED Wall Lamp.
- Cleaning: Always disconnect the power supply before cleaning. Use a soft, dry, lint-free cloth to wipe the surface of the lamp. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- LEDs: The integrated LEDs are maintenance-free and have a long operational life. Do not attempt to replace them.
- Inspection: Periodically check the lamp for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
7. Troubleshooting
If you encounter issues with your Lindby Grazyna LED Wall Lamp, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up. | No power supply. Faulty wall switch. Loose wiring connection. | Check if the main power supply is on. Verify the wall switch is in the 'ON' position. Check the circuit breaker. If comfortable and qualified, inspect wiring connections (with power off). |
| Light flickers. | Unstable power supply. Incompatible dimmer switch (if used). Loose connection. | Ensure stable power supply. If using a dimmer, ensure it is compatible with LED fixtures. This lamp is generally not dimmable. Check wiring connections (with power off). |
| Light appears dim. | Expected light output. External factors (e.g., room size, other light sources). | The lamp has a fixed light output of 1020 lumens. This is not a fault. Consider adding additional lighting if more brightness is desired. |
| Physical damage to the lamp. | Impact or improper handling. | Discontinue use immediately. Contact your retailer for repair or replacement options. |
If the problem persists after attempting these solutions, please contact customer support or a qualified electrician.
8. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Lindby |
| Model Number | 9624615 |
| Dimensions (L x W x H) | 5 x 52 x 15 cm |
| Weight | 1.16 kg |
| Material | Metal |
| Color | Black, Gold |
| Light Source | Integrated LED |
| Total Wattage | 17 W |
| Luminous Flux | 1020 lumens |
| Color Temperature | 3000 Kelvin (Warm White) |
| Voltage | 230 Volt |
| IP Code | IP20 (Indoor use only) |
| Protection Class | I |
| Energy Efficiency Label | F (3 kWh/1000h) |
| Switch Type | Compatible with external wall switch |
| Installation Type | Wall mounting |
| Specific Use | Living room, Dining room, Hallway, Kitchen |
| Country of Origin | China |

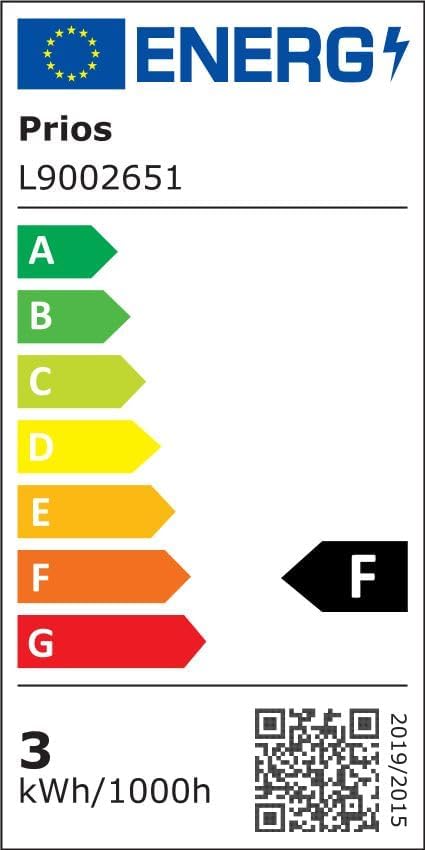

Figure 6: Energy efficiency label. For more details, visit the EPREL database.
9. Warranty and Support
For information regarding the warranty period and terms for your Lindby Grazyna LED Wall Lamp, please refer to the documentation provided at the time of purchase or contact your retailer directly. Lindby is committed to providing quality products and customer satisfaction.
For technical assistance, spare parts, or any other inquiries, please contact Lindby customer service through their official website or the contact information provided by your retailer.
