Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Ferroli RAC-9000-D Air Cooler with Air Purifier. This appliance is designed to provide both cooling and air purification, ensuring a comfortable and healthier indoor environment. It features a powerful, quiet SD motor, digital touch controls, and a wireless remote for convenient operation.
Safety Instructions
Read all instructions carefully before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always connect the appliance to a grounded power outlet with the correct voltage.
- Do not operate the cooler with a damaged cord or plug.
- Keep the appliance away from heat sources, direct sunlight, and flammable materials.
- Ensure adequate ventilation around the unit. Do not block air inlets or outlets.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Unplug the cooler before filling or draining water, cleaning, or performing any maintenance.
- Do not allow children to operate or play with the appliance.
- Use only clean water in the water tank. Do not add any chemicals or additives.
- If the appliance emits unusual sounds, smells, or smoke, unplug it immediately and contact customer support.
Package Contents
Carefully unpack the box and ensure all items are present and in good condition. If any items are missing or damaged, contact your retailer.
- Ferroli RAC-9000-D Air Cooler with Air Purifier Unit
- Wireless Remote Control
- Wheels (for assembly)
- Instruction Manual (this document)
- Ice Packs (may be included for enhanced cooling)

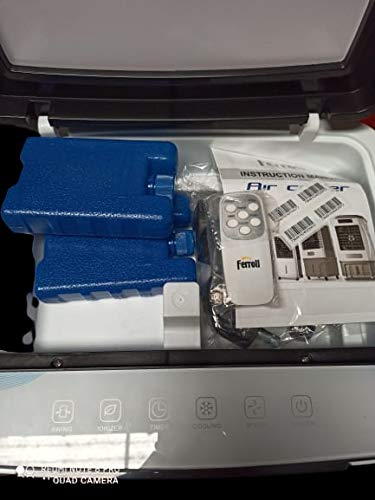

Figure 1: Inside view of the Ferroli air cooler, showing the remote control, instruction manual, and blue ice packs for enhanced cooling.
Setup
- Unpacking: Remove all packaging materials and inspect the unit for any damage. Keep packaging for future storage or transport.
- Attaching Wheels: Turn the unit upside down carefully. Insert the provided wheels into the designated slots at the bottom of the cooler until they click into place. Ensure all wheels are securely attached.
- Placement: Place the air cooler on a flat, stable surface in a well-ventilated area. Ensure there is at least 20 cm of space from walls or furniture to allow for proper airflow.
- Filling the Water Tank: Open the water inlet cover, typically located at the top or side of the unit. Fill the 70-liter water tank with clean, cool water. Do not exceed the 'MAX' water level indicator. For enhanced cooling, you may add ice cubes or the provided ice packs to the water tank.
- Power Connection: Plug the power cord into a suitable grounded electrical outlet.
Operating Instructions
Your Ferroli air cooler can be operated using the digital touch control panel on the unit or the wireless remote control.
Figure 2: The top control panel of the Ferroli air cooler, featuring buttons for various functions including Swing, Ionizer, Cooling, Timer, Speed, and Power.
Control Panel Functions:
- POWER: Press to turn the unit ON or OFF.
- SPEED: Press to cycle through the 3 fan speed settings: Low, Medium, High.
- COOLING: Activates the water pump to circulate water over the honeycomb pads, providing evaporative cooling. Ensure the water tank is filled before activating this function.
- SWING: Activates the oscillation function, moving the louvers to distribute air across a wider area.
- IONIZER: Activates the air purification function, releasing negative ions to help clean the air.
- TIMER: Sets the operating time for the unit. Press repeatedly to select desired operating duration.
Remote Control:
The wireless remote control provides convenient access to all functions from a distance. Ensure the remote has working batteries and point it towards the unit's receiver.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air cooler.
- Cleaning the Exterior: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Draining the Water Tank: Regularly drain the water tank, especially if the cooler will not be used for an extended period. Locate the drain plug at the bottom or back of the unit, remove it, and allow all water to drain out.
- Cleaning the Water Tank: After draining, clean the inside of the water tank with a soft brush and mild detergent. Rinse thoroughly with clean water.
- Cleaning Honeycomb Cooling Pads: The honeycomb pads can accumulate dust and mineral deposits. Carefully remove the back panel (refer to diagram if available) and slide out the pads. Rinse them under running water. For heavy deposits, soak them in a mild descaling solution (e.g., vinegar and water) before rinsing. Ensure they are completely dry before reinserting.
- Cleaning the Nano Carbon Air Filter: The air purifier includes a Nano Carbon Air Filter. This filter should be cleaned periodically by gently vacuuming or rinsing with water. Ensure it is completely dry before reinstallation.
- Cleaning the Insect Net: The insect net, located at the back, should be cleaned regularly to prevent blockage and maintain airflow. Remove and rinse with water.
Figure 3: Rear view of the Ferroli air cooler, highlighting the honeycomb cooling pads and the water level indicator at the bottom.
Troubleshooting
If you encounter issues with your air cooler, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power supply; Power cord not plugged in; Power button not pressed. | Check power outlet; Ensure power cord is securely plugged in; Press the POWER button. |
| No cooling effect | Water tank empty; Cooling function not activated; Honeycomb pads clogged. | Fill water tank; Press the COOLING button; Clean honeycomb pads. |
| Weak airflow | Air inlet/outlet blocked; Fan speed too low; Air filter clogged. | Clear obstructions; Increase fan speed; Clean air filter. |
| Unusual noise | Unit not on a level surface; Foreign object in fan; Water pump issue. | Place on a flat surface; Unplug and check for obstructions; Contact service if pump is noisy. |
| Water leakage | Water tank overfilled; Drain plug loose; Unit tilted. | Do not exceed MAX level; Ensure drain plug is secure; Place on a level surface. |
If the problem persists after attempting these solutions, please contact Ferroli customer support.
Specifications
- Brand: Ferroli
- Model: RAC-9000-D
- Type: Air Cooler with Air Purifier
- Reservoir Capacity: 70 Liters
- Material: Plastic
- Color: White and Grey
- Controls: Digital Touch Control, Wireless Remote
- Fan Speeds: 3 (Low, Medium, High)
- Special Features: Ionizer, Nano Carbon Air Filter, Honeycomb Cooling Pads, Strong Air, Super Quiet SD Motor, Insect Net
- Included Components: Wheels
- Form Factor: Desert Cooler
Warranty and Support
Your Ferroli RAC-9000-D Air Cooler with Air Purifier comes with a 1-year On-Site Warranty from the date of purchase. This warranty covers manufacturing defects and faulty workmanship under normal use conditions.
For warranty claims, technical assistance, or any product-related inquiries, please contact Ferroli customer support. Keep your purchase receipt as proof of purchase for warranty services.
Customer Support Contact: Please refer to the contact information provided on the product packaging or the official Ferroli website for the most up-to-date support details.
