1. Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your BAIXINDE Ambient Air Temperature Sensor. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
2. Product Overview

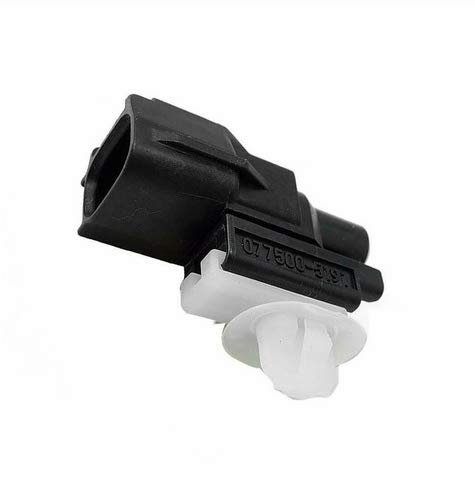

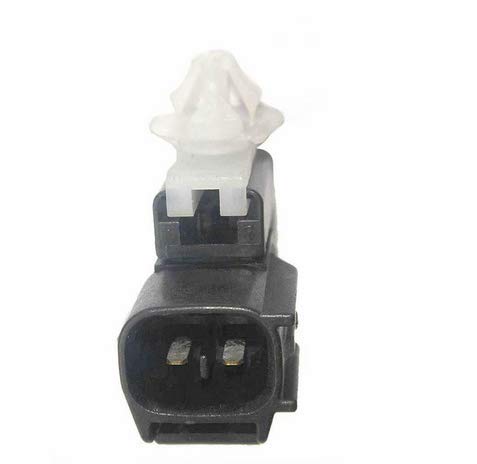

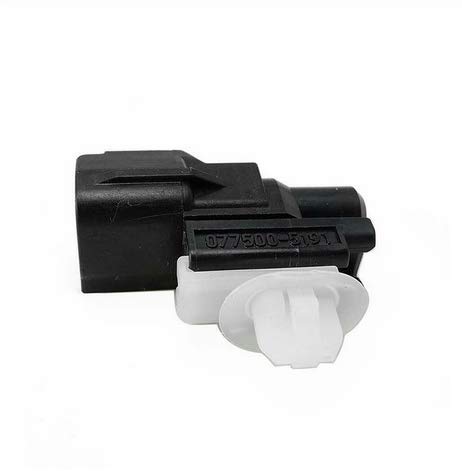

The BAIXINDE Ambient Air Temperature Sensor is designed to accurately measure the external air temperature, providing crucial data to your vehicle's engine control unit (ECU) or climate control system. This information is vital for various vehicle functions, including fuel mixture adjustments, air conditioning performance, and dashboard temperature displays.
3. Compatibility
This sensor is compatible with various vehicle models. Please verify the part number against your vehicle's requirements before installation. Known compatible models include:
- CADILLAC CTS (2003-2004)
- CADILLAC SRX (2004)
- CHRYSLER SEBRING (2001-2002)
- DODGE STRATUS (2001-2002)
- LEXUS ES300 (1997-2003)
- LEXUS ES330 (2004-2006)
- LEXUS ES350 (2007-2015)
- LEXUS GS300 (1997-2005)
- LEXUS GS400 (1998-2000)
- LEXUS GS430 (2001-2005)
- TOYOTA 4RUNNER (1999-2002)
- MITSUBISHI LANCER (2008-2011)
- SCION XD (2010)
- TOYOTA YARIS (2007-2015)
4. Specifications
| Specification | Detail |
|---|---|
| Item Model Number | 077500-5191 |
| Manufacturer | BAIXINDE |
| Material | Plastic |
| Measurement Accuracy | ±2.0% |
| Measuring Range | Below 104 - 104 °Fahrenheit |
| ASIN | B08D3KZSBJ |
| Date First Available | July 16, 2020 |
5. Setup and Installation
Installation of an ambient air temperature sensor typically involves locating the old sensor, disconnecting its electrical connector, removing it, and then installing the new sensor. Professional installation is recommended if you are unfamiliar with automotive electrical systems or component replacement.
5.1 Safety Precautions
- Ensure the vehicle's ignition is off and the battery is disconnected before beginning any work.
- Wear appropriate personal protective equipment, such as gloves and eye protection.
- Refer to your vehicle's service manual for specific sensor location and removal procedures.
5.2 Installation Steps (General)
- Locate the Sensor: The ambient air temperature sensor is typically located in the front bumper area, behind the grille, or near the radiator support.
- Disconnect Electrical Connector: Carefully press the release tab and pull the electrical connector away from the old sensor. Avoid pulling on the wires.
- Remove Old Sensor: Depending on the vehicle, the sensor may be clipped in, screwed in, or twisted out. Remove it gently.
- Install New Sensor: Insert the BAIXINDE sensor into the mounting location. Ensure it is securely fastened.
- Connect Electrical Connector: Plug the vehicle's electrical connector firmly into the new sensor until it clicks into place.
- Reconnect Battery: Reconnect the vehicle's battery.
- Test Functionality: Start the vehicle and check the dashboard display for accurate temperature readings.
6. Operation
Once installed, the BAIXINDE Ambient Air Temperature Sensor operates continuously when the vehicle is in use. It sends electrical signals corresponding to the detected air temperature to the vehicle's onboard computer. The computer uses this data for various functions, including:
- Displaying the outside temperature on the dashboard.
- Assisting the climate control system in regulating cabin temperature.
- Providing input for engine management systems to optimize fuel efficiency and emissions based on ambient conditions.
The sensor requires no user interaction during normal operation.
7. Maintenance
The BAIXINDE Ambient Air Temperature Sensor is designed for long-term reliability with minimal maintenance. However, periodic inspection can help ensure its continued accuracy and function.
- Visual Inspection: Periodically check the sensor's exposed area for any physical damage, corrosion on the electrical connector, or accumulation of dirt and debris.
- Cleaning: If dirt or debris is present, gently clean the sensor tip with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials. Ensure the electrical connector is free of moisture and corrosion.
- Wiring Check: Ensure the wiring leading to the sensor is intact and free from cuts, fraying, or loose connections.
8. Troubleshooting
If you experience issues with your ambient air temperature readings, consider the following troubleshooting steps:
8.1 Incorrect Temperature Readings
- Check for Obstructions: Ensure the sensor is not blocked by debris, mud, or ice, which can affect its ability to read ambient air temperature accurately.
- Verify Connection: Ensure the electrical connector is securely attached to the sensor and that there is no corrosion on the pins.
- Recent Installation: If recently installed, ensure the sensor is correctly seated in its mounting location and not exposed to direct heat sources from the engine or road.
- Compare with Known Good Source: Compare the vehicle's temperature reading with a reliable external thermometer. A consistent discrepancy may indicate a faulty sensor or wiring issue.
8.2 No Temperature Reading
- Check Wiring: Inspect the wiring harness leading to the sensor for any breaks or disconnections.
- Fuse Check: Consult your vehicle's manual to see if the ambient temperature sensor is on a fused circuit and check the relevant fuse.
- Sensor Failure: If all connections and wiring appear intact, the sensor itself may have failed and require replacement.
For persistent issues, it is recommended to consult a qualified automotive technician.
9. Warranty and Support
Information regarding specific warranty terms for the BAIXINDE Ambient Air Temperature Sensor is not provided in this manual. For warranty claims or technical support, please contact the manufacturer, BAIXINDE, or your point of purchase directly. Keep your purchase receipt as proof of purchase.
